3G/4G Cellular Modem to Card-Guard Pigtail
Cross Reference Guide

USB Modems
PC-Card Modems

USB Modems		External Antenna Connector		Pigtail Part Number
	Huawei E368 (AT&T Force 4G)	TS9 Connector		ANT-100-TS9
	Novatel USB551L Verizon 4G/LTE	TS9 Connector		ANT-100-TS9
	Novatel USB727	TS9 Connector		ANT-100-TS9
	Novatel USB760	TS9 Connector		ANT-100-TS9
	Pantech UMW190	MS-151		ANT-100-MS151
	Sierra 305 (AT&T Lightning)	TS9 Connector		ANT-100-TS9
	Sierra 308 (AT&T Shockwave)	TS9 Connector		ANT-100-TS9
	Sierra 313U - AT&T Momentum Sierra 320U - Telstra	TS9 Connector (x2)		ANT-100-TS9
	Sierra 598	TS9 Connector		ANT-100-TS9
	Sierra 875U	SSMB  (long)		ANT-100-SSMB
	Sierra 885 (AT&T Mercury)	TS9 Connector		ANT-100-TS9
	Sierra 889 (AT&T Compass)	TS9 Connector		ANT-100-TS9

PC-Card / ExpressCard Modems		External Antenna Connector		Pigtail Part Number
	Huawei EC360	SSMB  (long)		ANT-100-SSMB
	Huawei E630, E620, E612. EC321	CRC9001		ANT-100-620

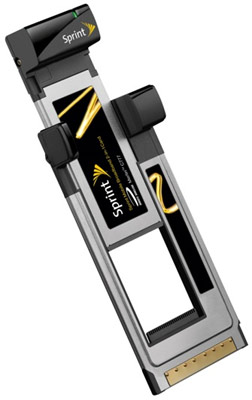

	Novatel - Sprint C777	TS9 Connector (Long)		ANT-100-TS9

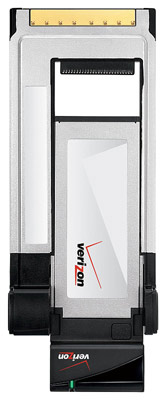

	Novatel - Verizon PC770	TS9 Connector (Long)		ANT-100-TS9
	Novatel EX-720	MS-151		ANT-100-MS151
	Novatel V740	MS-151		ANT-100-MS151
	Novatel U740 PC-Card	MS-151		ANT-100-MS151
	Option GT Max 3.6 / 7.2 PC-Card/ExpressCard	MC-Card		ANT-100-MC

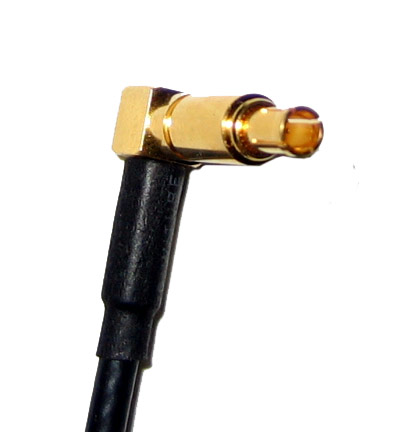

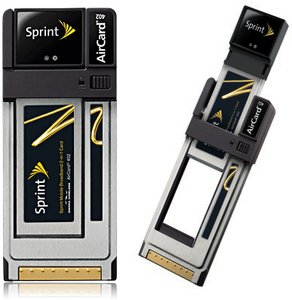

	Sierra Wireless AirCard 402	TS9 Connector (Long)		ANT-100-TS9
	Sierra Wireless AirCard 595	AC595 Proprietary (short)		ANT-100-595
	Sierra Wireless AirCard 850/860	SSMB  (short)		ANT-100-860
	Sierra Wireless AirCard 875	SSMB  (long)		ANT-100-SSMB
	Sierra Wireless AirCard 880/881	SSMB  (long)		ANT-100-SSMB
	Sierra Wireless AirCard 890	TS9 Connector (Long)		ANT-100-TS9
	Sprint / Pantech PX-500	PX-500 Connector		ANT-100-PX500
	Verizon Wireless PC5750	PX-500 Connector		ANT-100-PX500

All Pigtails Above Are Designed For Use With The
Proxicast LAN-Cell and PocketPORT Cellular Routers
