The Unsung Hero of Signal: Understanding Antenna Ground Planes

Have you ever installed a high-gain 4G/5G antenna only to find your speeds are still sluggish? The problem might not be the antenna itself. It could be missing its most important partner: the ground plane.

While it sounds technical, a ground plane is a simple concept that can make or break your wireless connection. If you’re using cellular or WiFi antennas, knowing how this works is the secret to professional-grade performance.

The "Radio Mirror" Effect

Imagine you have a light bulb in the middle of a dark room. It throws light in every direction. Now, place a mirror directly underneath it. Suddenly, all that light that was heading toward the floor is reflected upward, making the room much brighter.

An antenna ground plane works exactly like that mirror, but for radio waves. Many common antennas—technically called "monopoles"—are electrically only half an antenna. They need a flat, conductive surface (the ground plane) to act as the "other half."

When the signal hits the metal ground plane, it reflects. This reflection combines with the original signal to create a complete, powerful radio wave pattern. Without it, your signal is weak, lopsided, and much shorter in range.

Why Some Antennas Don't Need One

You might notice some antennas mounted on wooden poles or plastic boxes. These are "No Ground Plane" (NGP) antennas. Engineers have essentially built the "mirror" right into the antenna casing. While convenient, these are often larger and more expensive than standard antennas that rely on an external metal surface.

Size and Frequency: The Perfect Fit

How big does your ground plane need to be? It depends on the frequency of the signal you are using (like 700 MHz for 4G or 5 GHz for WiFi).

Radio waves are like ripples in a pond. Lower frequencies have long, slow ripples; higher frequencies have short, fast ripples. A ground plane must be large enough to "catch" these ripples. A good rule of thumb is that the metal surface should extend at least one-quarter of a wavelength in every direction from the base of the antenna.

        Pro Tip: For 4G/5G cellular (which uses lower frequencies), you need a larger metal surface—like a car roof. For high-frequency WiFi, a small metal plate often works just fine.


Where to Place the Antenna

To get a clear signal in all directions (omni-directional), always place your antenna in the center of the ground plane. If you place it at the edge, the signal will be "pulled" toward the metal, making your connection strong in one direction but very weak in the other.

Acceptable Materials

You don't need fancy aerospace materials. Anything that conducts electricity well will work! Common choices include:

Steel (like a car roof or heavy machinery)
Aluminum (like a specialized mounting plate)
Copper or Brass

Non-conductive materials like wood, plastic, fiberglass, or glass cannot act as ground planes.

Safety First: RF Ground vs. Electrical Ground

It is very important not to confuse an RF Ground Plane with Electrical Grounding.

RF Ground: Creates the "mirror" to improve your radio signal.
Electrical Ground: Protects you from shocks and diverts lightning safely to the earth.

Even if you have a great ground plane for signal, you still need a lightning arrestor and a wire to a literal ground rod if your antenna is mounted outdoors!

Proxicast Solutions

Standard: Magnetic Mount Antenna

This antenna requires a ground plane. Its magnetic base is designed to stick to the metal roof of a vehicle, which then acts as the ground plane for maximum signal.

View Product

Ground Plane Independent: Fiberglass Omni

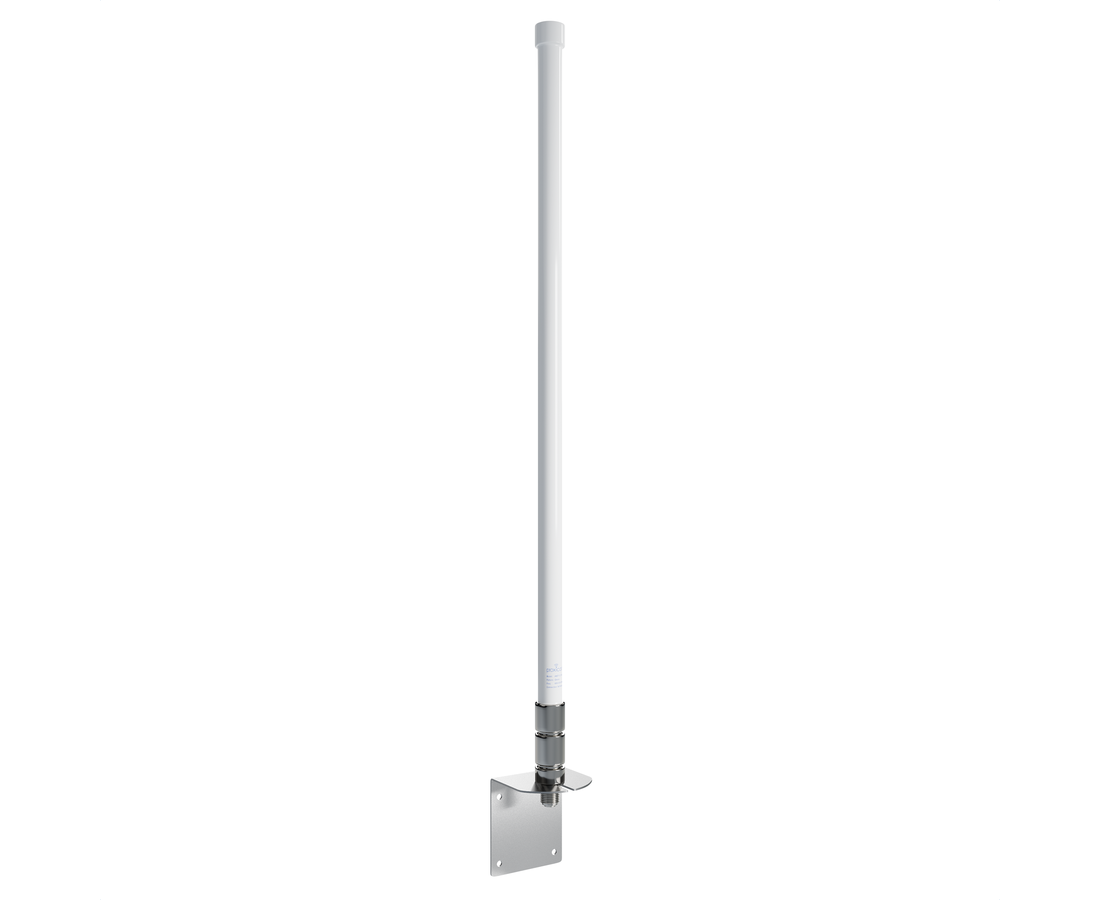

Perfect for mounting on wooden poles or non-metal buildings. This antenna does not require an external ground plane to achieve high-performance 4G/5G/LTE gain.
