Replacement 230V Gas Discharge Tube for 0 - 6 GHz Coaxial Lightning Arresters (4 pack)
Save 15%

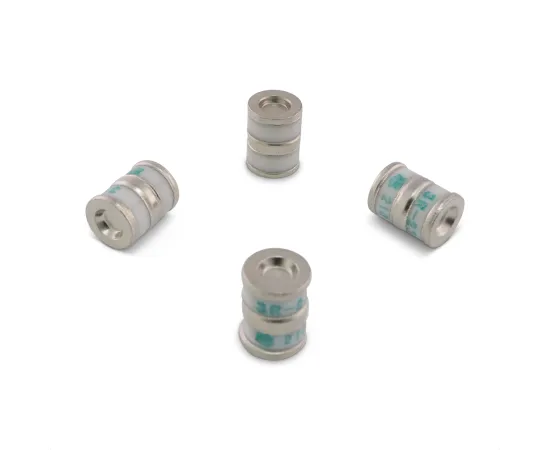

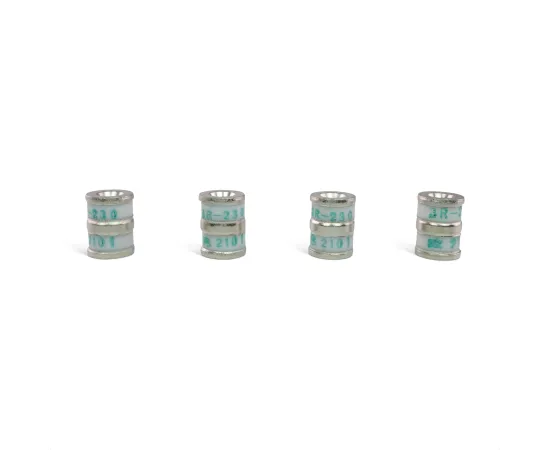

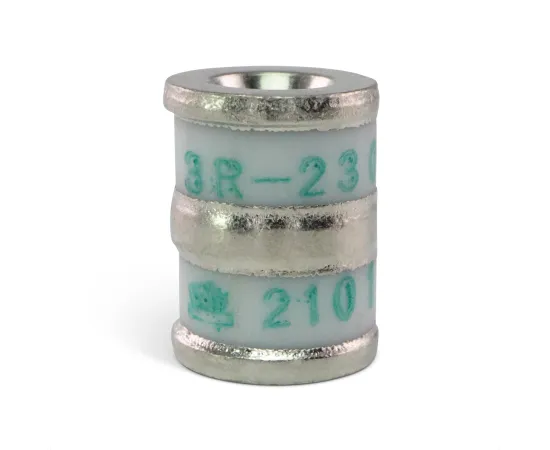

Package of 4 coaxial gas discharge tubes.
- Type: 3R-230
- Operational Frequency Range: 0 - 6 GHz
- Discharge Voltage: 230V
- Max Discharge Current: 10 kA (8/20 μs)
- Max Power: 200 W

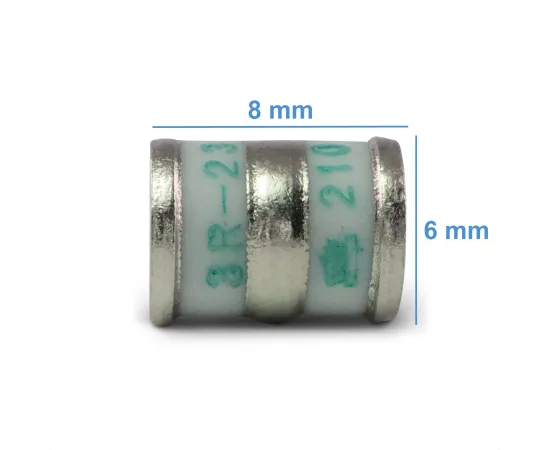

- Length: 8 mm
- Diameter: 6 mm

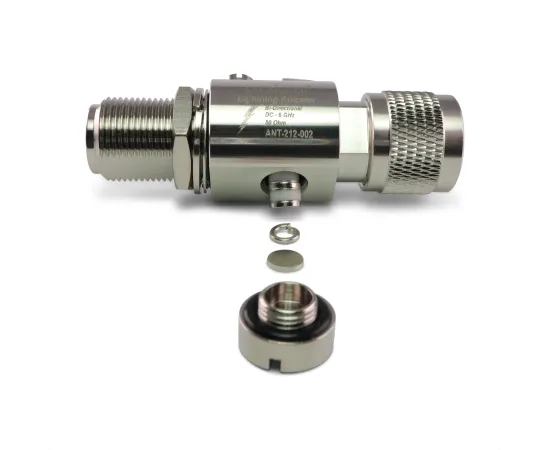

After a lightning strike or if signal is disconnected, unscrew the gas discharge tube assembly from the bottom of the arrester and replace the tube. The gas discharge tube can be installed in either orientation.
Be sure to fully tighten the gas discharge tube cap when reassembling. Shake the arrester after replacing the gas discharge tube - if it rattles, the tube is not correctly installed.
Compatible with all Proxicast brand 0 - 6 GHz lightning arresters including:
- ANT-211-001
- ANT-211-002
- ANT-212-001
- ANT-212-002
DOES NOT FIT SERIES ANT-23x-xxx or ANT-271x-xxx (0-3 GHz)
- Title: Replacement 230V Gas Discharge Tube for 0 - 6 GHz Coaxial Lightning Arresters (4 pack)
- Part #: ANT-210-GDT-4PK
- UPC Code: 617237752239
- HS Code: 8536.30.00
- Country of Origin: China
- Shipping Weight (lbs): 0.150
- PERMALINK: https://www.proxicast.com/shopping/ANT-210-GDT-4PK
