Proxicast 7-in-1 Pro-Grade MIMO 4G/5G + WiFi + GPS Flexible Combination Screw Mount Vehicle Antenna (Top Hat)

MSRP:$37995
$29995
You save: $80.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$287.95
$284.95
$281.95
Availability: 113 Item(s)
ANT-520-421
+ −

Minimum quantity for "Proxicast 7-in-1 Pro-Grade MIMO 4G/5G + WiFi + GPS Flexible Combination Screw Mount Vehicle Antenna (Top Hat)" is 1.

Add to Wish List
Key Features
  • Combines 6 Wideband Elements for 4G/5G or WiFi + 1 GPS Antenna into a Single IP67-Rated Weatherproof Enclosure
  • User Selectable Configuration of any Combination of 4G/5G and WiFi up to 6x6 MIMO
  • Outstanding Low Profile Performance - 7 dBi Peak Cellular Gain -- 4~6 dBi Peak WiFi Gain
  • Works on all 4G / LTE / 5G / FirstNet and Wi-Fi (2.4, 5.8, 6/7 GHz) and GPS Networks including AT&T, Verizon and T-Mobile
  • Also Supports LTE Unlicensed (LTE/U), Licensed-Assisted Access (LAA), Multefire and OnGo (CBRS) Radio Systems
  • Flat Round Radome is 2.7 inches Tall, Rugged and Perfect for Transportation, Telematics and Remote Monitoring Applications
  • 15 ft Long Coax Leads for Large Vehicles - Buses, Trucks, RV's, Vans, Ambulances, Taxi Cabs, Food Trucks, Command & Emergency Response Vehicles



ANT-520-421

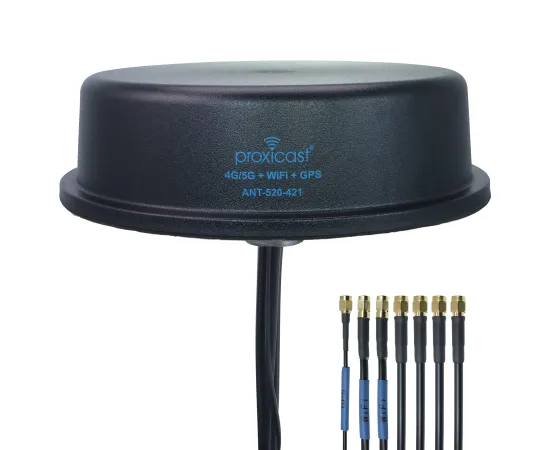

Proxicast TopHat Pro-Grade Low-Profile 7-in-1 Combination Vehicle Antenna

Low Profile (2.7 in) 4G/5G/WiFi/GPS MIMO Antenna

This 7-in-1 low-profile, heavy-duty, multi-element combo antenna cost-effectively combines high efficiency and peak gain in a compact easy to install form factor.

Featuring 1 GPS element, 2 dedicated 2 WiFi elements & 4 wideband flex elements for WiFi or Cellular, this antenna is ideally suited for 2x2, 4x4 and 6x6 MIMO vehicular modems and routers.

All WiFi generations through WiFi-7 and 4.9 GHz public safety bands are supported.

The active L1 band GPS element has a low noise amplifier (LNA).

Key Features

  • IP67 Rated - Completely Weatherproof
  • 2.7 Inches Tall
  • Durable ABS Radome
  • 15 ft Pre-Terminated Coax Leads
  • Compatible with all Cellular & WiFi Routers
Rugged for Vehicle Applications

Designed for use in fleet management, mobile video, fire, police, EMS and remote monitoring applications.

Installation requires only a 1.5 in diameter hole. The included rubber gasket and mounting nut seal the opening from water and dust.

The aerodynamic radome withstands car washes and tree branches.

State-of-the-Art element design provides vehicles with reliable wireless coverage on the go.

4G 5G CBRS FirstNet

WiFi

7 antennas in 1

4G LTE, 5G, FirstNet & CBRS

Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers that support up to 4x4 MIMO.

All The Latest Wi-Fi Standards

Wideband frequency coverage includes the 2.4, 5.8 and 6/7 GHz bands used for the IEEE 802.11a, b, g, n, ac, ax standards. You are ready for the future with built-in support for MU-MIMO Wi-Fi 6e and even Wi-Fi 7 for up to 6x6 MIMO.

Mix & Match Cellular & Wi-Fi MIMO

With 6 isolated wideband elements, you can configure this MIMO antenna as needed:

  • 4x4 5G + 2x2 WiFi
  • 2x2 4G/5G + 2x2 4G/5G (dual SIM)
  • 2x2 4G/5G + 2x2 Wi-Fi
  • 2x2 4G/5G + 3x3 Wi-Fi
  • 4x4 Wi-Fi
  • 6x6 Wi-Fi

See full Specifications on the Documentation tab.



ANT-520-421 Specifications



4 Wideband Flex Elements (Cellular or WiFi)

Frequency Range
 600-6000 MHz
Impedance
 50 ohms
Peak Gain
 7 dBi x 4
Polarization
 Linear
VSWR
 < 2.0:1
Max Input Power
 50 W
Connector
 4x SMA Male on 15 ft LMR200 (4.5 m)



2 WiFi Elements

Frequency Range
 2400-2500 / 4900-7125 MHz
Impedance
 50 ohms
Antenna Gain
 4~6 dBi x 2
Polarization
 Linear
VSWR
 < 2.0:1
Max Input Power
 50 W
Connector
 4x RP-SMA Male on 15 ft LMR200 (4.5 m)



GPS Element

Frequency Range
 1575.42 MHz
Impedance
 50 ohms
Antenna Gain
 28 +/- 2dB Typical
Polarization RHCP
VSWR
 < 2.0:1
Max Input Power
 50 W
Connector
 1x SMA Male on 15 ft RG174 (4.5 m)
Noise Figure 1.5 dB
DC Voltage 2.2 - 5.0 V
DC Current 5 - 15 mA



Mechanical

Material
 Black  ABS / Brass / Steel / Rubber - RoHS compliant.
Ground Plane Integrated
Operating Temperature
 -40C to +85C
Ingress Protection IP67 (waterproof)
Wind Rating 134 MPH (60 m/s)

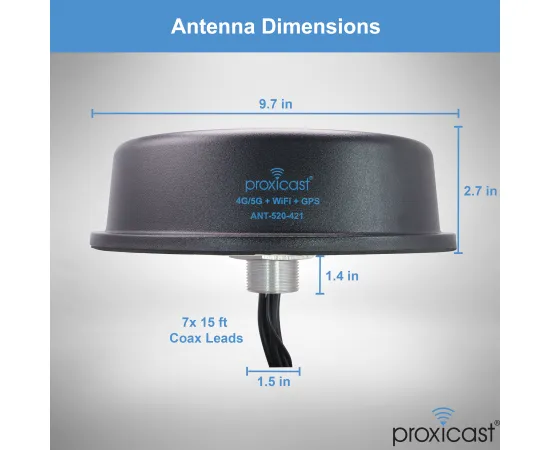

Dimensions

Radome: 9.7 in x 2.7 in (247 x 69.5 mm)

Mounting post: 1.5 in (38 mm) diameter; 1.4 in (36 mm) length

Can be extended up to 3 in (80 mm) with optional post extension part # BRK-520-421
Weight
 2.7 kg (6 lb)
Mount
 38 mm (1.5 in) Hole - Adhesive Rubber Gasket & Nut included





SKU: ANT-520-421

UPC: 850021295240

ANT-520-421 Specification Sheet (810 Kb)

  • Title: Proxicast 7-in-1 Pro-Grade MIMO 4G/5G + WiFi + GPS Flexible Combination Screw Mount Vehicle Antenna (Top Hat)
  • Part #: ANT-520-421
  • UPC Code: 850021295240UPC
  • ASIN: B0BCPD8JXGASIN
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 6.250
