Proxicast 9/11 dBi Ultra Broadband High Gain 4G / 5G / CBRS / Wi-Fi / Public Safety Band Fixed Mount Outdoor LPDA Directional Antenna (600-6000 MHz)

MSRP:$9995
$6995
You save: $30.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$67.15
$66.45
$65.75
** Out of Stock **
ANT-128-004

Minimum quantity for "Proxicast 9/11 dBi Ultra Broadband High Gain 4G / 5G / CBRS / Wi-Fi / Public Safety Band Fixed Mount Outdoor LPDA Directional Antenna (600-6000 MHz)" is 1.

Key Features

  • IMPROVES SIGNAL STRENGTH and SPEED on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all 4G LTE & 5G Sub-6 cellular broadband services or use as a Wi-Fi Antenna (600 - 6000 MHz)
  • LONG RANGE SOLUTION for 4G/5G Cellular, 3.5 - 3.7 GHz CBRS, 4.9 GHz Public Safety, 2.4 GHz & 5.8 GHz Wi-Fi and 900 MHz radio systems

  • COMPATIBLE WITH routers, modems and gateways from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Proxicast, Sierra, HiBoost, weBoost, Wilson, ZTE and many others

  • HIGH GAIN increases signal strength and data speeds in areas with marginal coverage

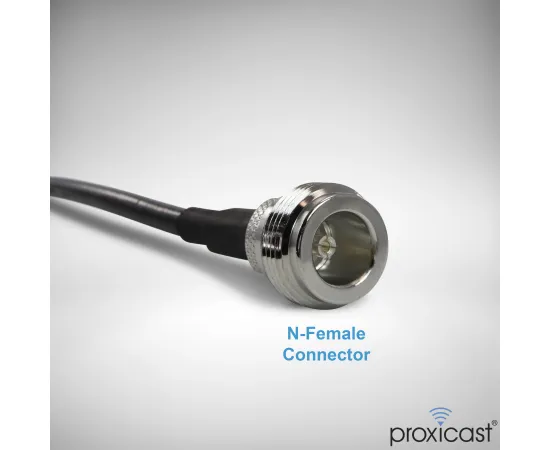

  • Female N connector with 12" pigtail - Outdoor weatherproof enclosure protects antenna elements

  • Includes pole/wall mounting bracket and hardware (mast sold separately)

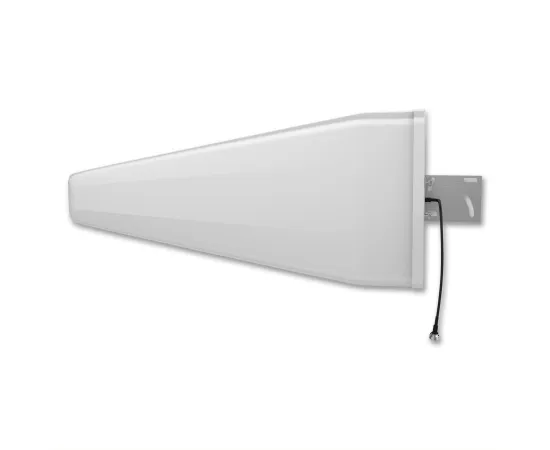

Proxicast's ultra wide-band log-periodic dipole array directional antenna is compatible with all 4G/LTE and Sub-6 5G data services from Verizon, AT&T, T-Mobile, US Cellular, Bell Mobility, Rogers, Telus and many other cellular operators. It can also be used with 3.5-3.7 GHz CBRS, 4.9 GHz Public Safety Band radios, 2.4 & 5.8 GHz Wi-Fi access points and unlicensed 900 MHz systems.

This small, light-weight, easy-to-install directional antenna improves transmit and receive signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.

With the appropriate adapter cable (not included), this antenna is compatible with USB cellular modems, MiFi Hotspots and routers from companies such as Cisco, Cradlepoint, Digi, MoFi, Pepwave, Proxicast, and Sierra. It is also compatible with most signal booster/amplifiers.

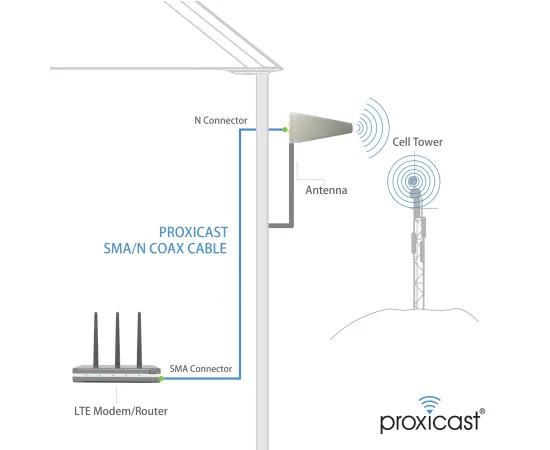

Directional antennas must be pointed toward a cell tower. For help locating your nearest tower, consult the OpenSignal or CellReception sites.

For MIMO applications mount 2 identical LPDA antennas at 90 degree angles to each other.

Not for use with cell phones.



ANT-128-004 Specifications
Electrical Properties
Frequency Range 600 - 6000 MHz
Impedance 50 ohm
Peak Gain 9/11 dBi
Beam Width V 60°, H 90°
Polarization Vertical
VSWR < 1.8
Max Input Power 50 W
Mechanical Properties
Connector N Female on 12 in (300 mm) LMR 195 coax lead
Materials Ivory ABS / Brass / Aluminum - RoHS compliant
Operating Temperature -40C to +70C
Dimensions 440 x 209 x 70 mm (17.3 x 8.2 x 2.8 in) excluding 90 x 70 mm bracket
Weight 510 g (18 oz) without bracket

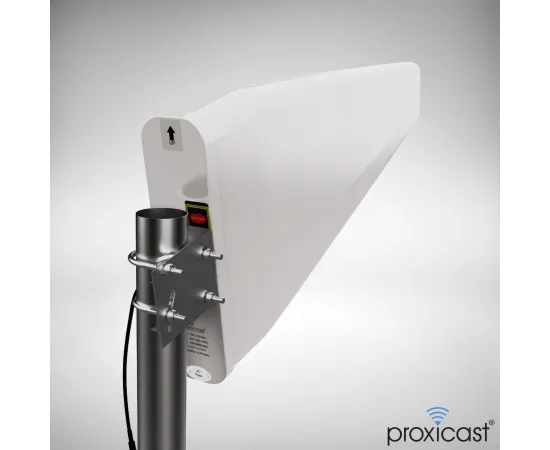

Mount Pole/wall (2.0 inch diameter U-bolts and incline/decline bracket included)



SKU: ANT-128-004

UPC: 617237750952
