Proxicast Premium Extra Large 3-Inch Magnetic Antenna Base (SMA Jack / TS9 Plug) - 6.5 ft Coax Lead - Connect 3G/4G/LTE SMA Antennas to TS9 Modems/Hotspot - Nighthawk, Velocity, Jetpack, etc.
- GET THE BEST SIGNAL - Places Antenna in Most Favorable Location to Boost Signal Strength and Reception

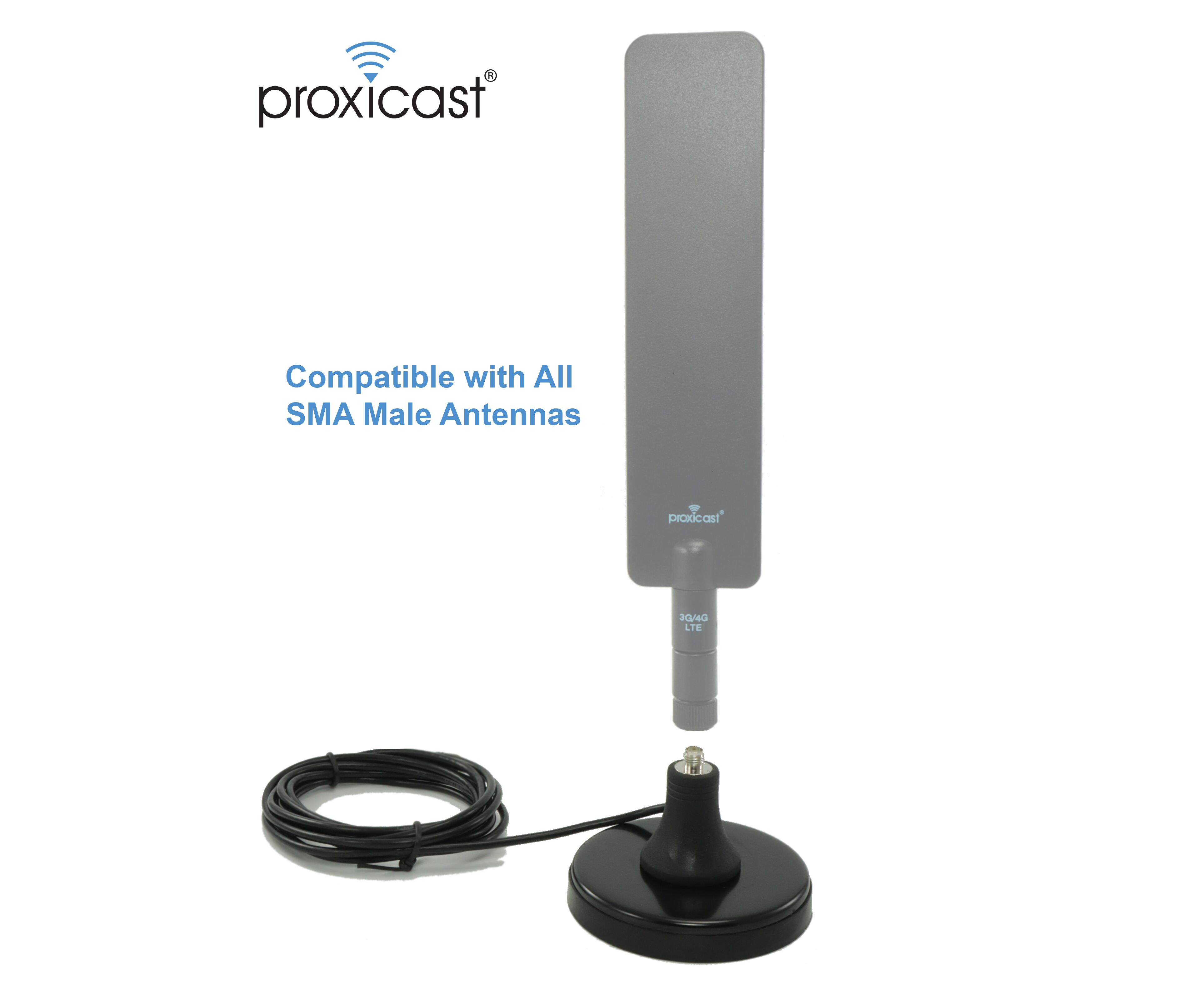

- USE ANY SMA ANTENNA - Compatible With Any SMA Male Antenna -- Not for Wi-Fi Antennas
- STRONG and STABLE - Extra Large 3-Inch Diameter Magnet Provides Secure Mounting -- Rubber Cap Protects Surfaces
- USE WITH ANY SMA DEVICE - 6.5 Foot Flexible Coax Connects to TS9 Jacks found on many Routers, USB Modems and Hotspots
- VENDOR INDEPENDENT - Compatible with Devices from Huawei, Netgear, Novatel, Samsung, Sierra Wireless, ZTE and many others
This magnetic mounting base lets you locate your antenna for the best signal reception without having to move your modem, router or receiver. The magnetic base provides a non-destructive mounting option for screw-on SMA antennas that normally could not be used with TS9 external antenna ports.

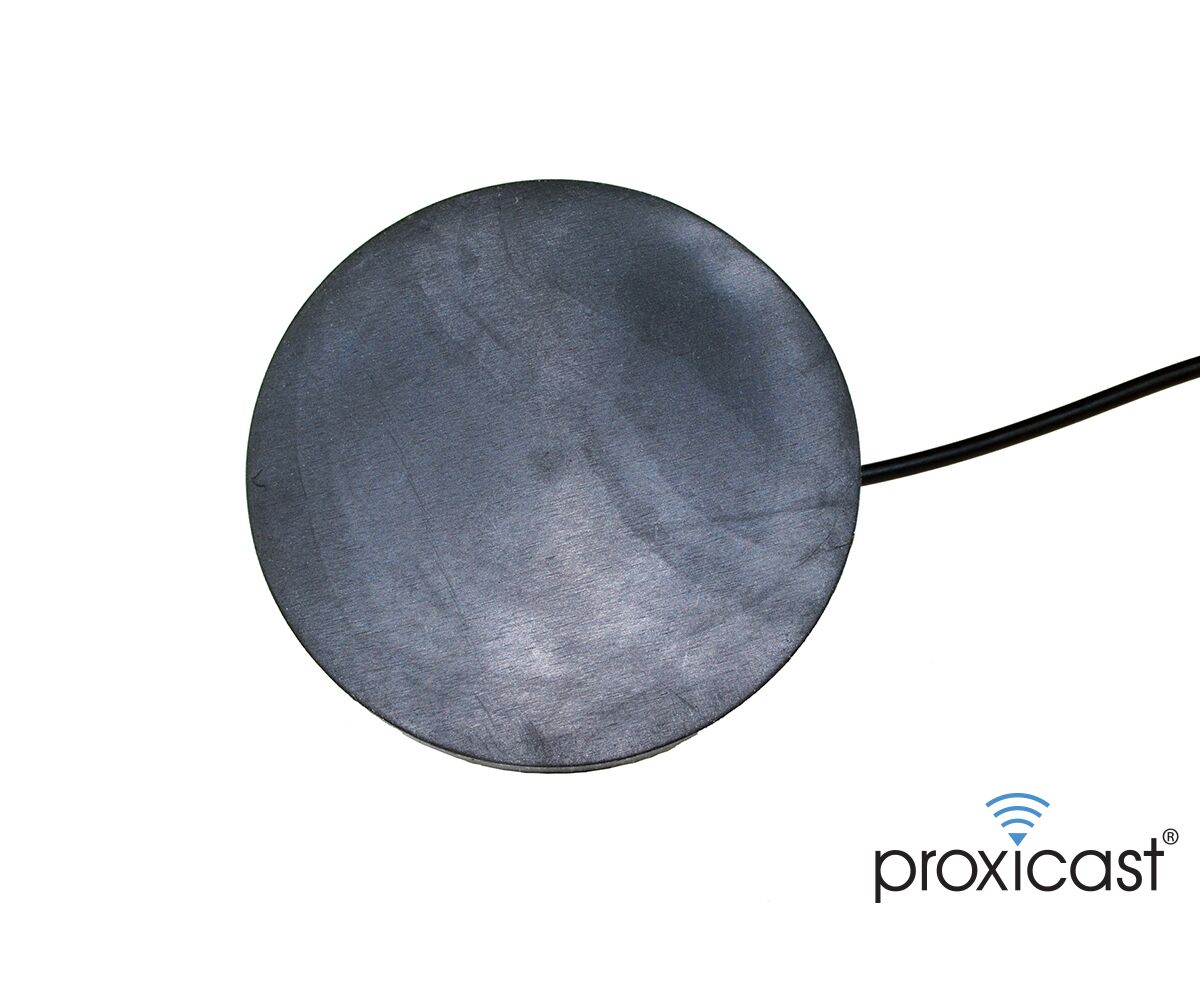

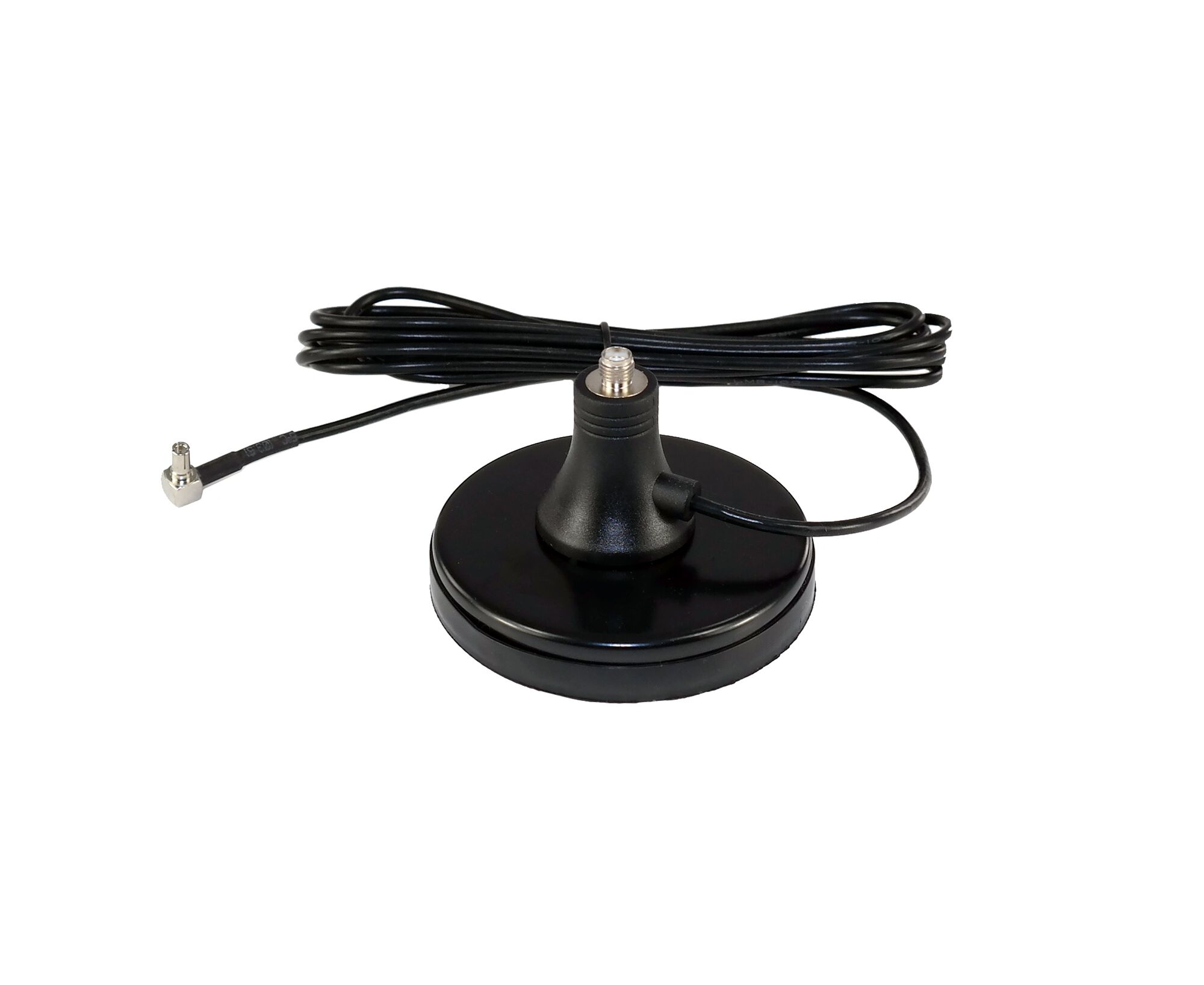

The Proxicast Premium Magnetic Antenna Base is an extra large (3 inch / 70 mm) diameter magnetic antenna base with an SMA female jack on top. Its strong magnet and durable metal construction makes it suitable for mobile vehicle mounting applications, stationary applications or even desktop use. The large diameter base improves stability and provides stronger magnetic force. The base includes a rubber cap to protect mounting surfaces.

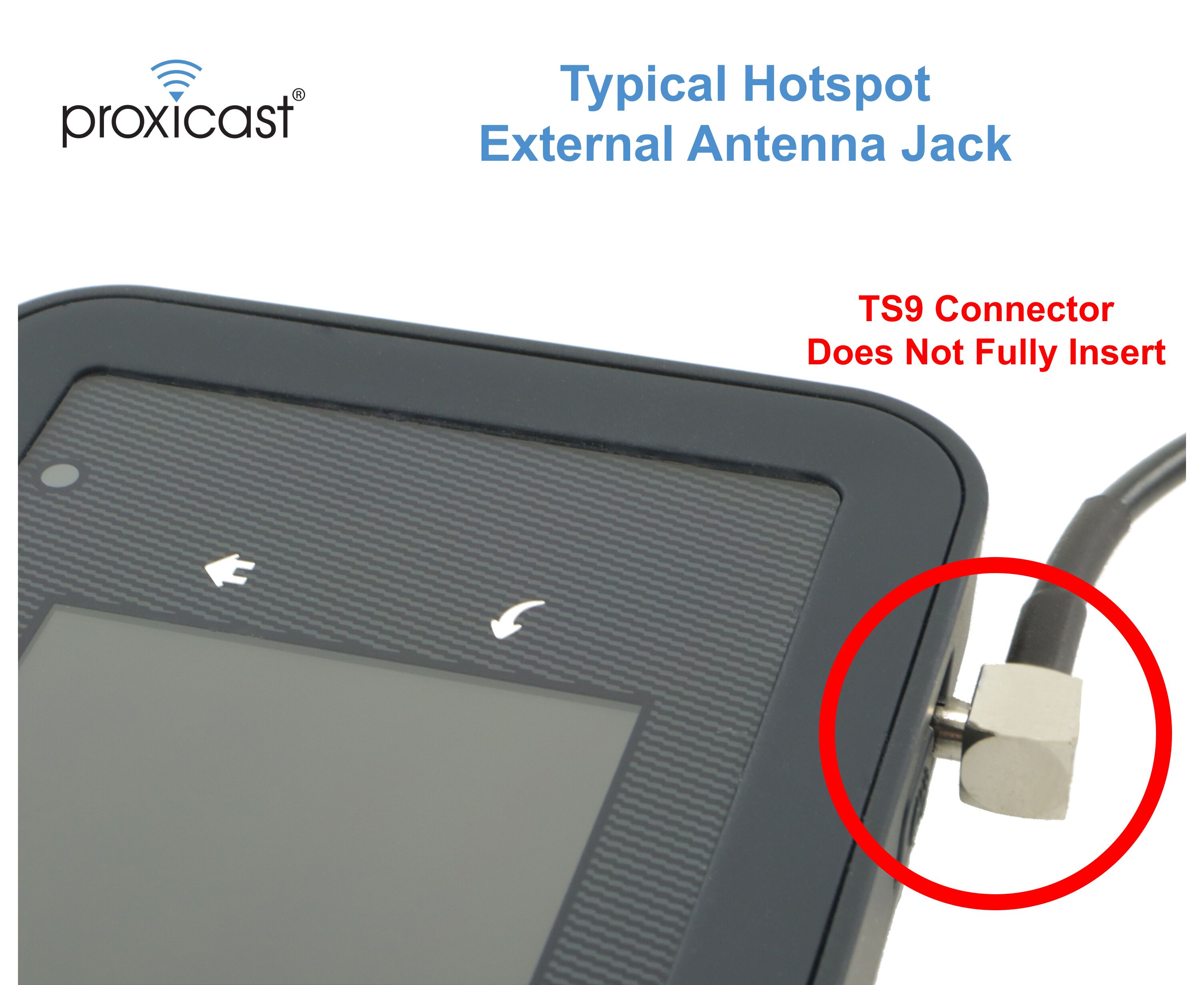

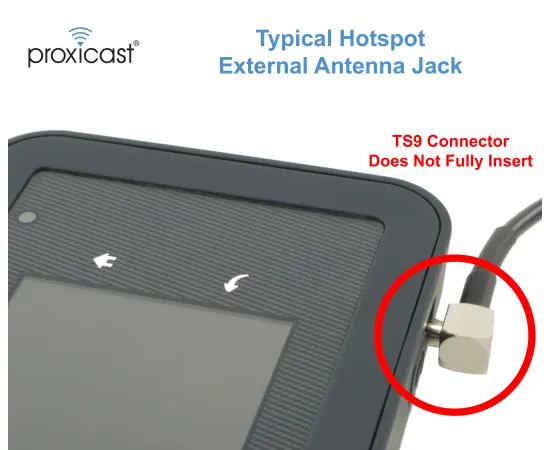

The base also features a flexible 79 inch (6.5 ft / 2 meter) low-loss coax cable with a right angle TS9 male plug to connect to cellular USB modems, LTE desktop routers, hotspots & JetPacks.
Compatible with many USB and desktop modems and hotspots which use TS9 external antenna connectors including:
- AT&T Netgear Nighthawk, Velocity, Unite 781S, 340U Beam, 313U Momentum, AC770s, Elevate 754S, ZTE MF279, MF293, MF985 Velocity 2
- Sprint / Netgear 341U, Netgear Zing 771S, Sierra 803S
- T-Mobile / Huawei E587 Sonic, Huawei UMG366 Jet 2.0, ZTE MF61
- Verizon/Novatel U620L, 6620L, 551L, 4620L, 7730L, MHS291L, MHS800L, MHS815L, AC791L, 8800L
- Sierra 312U, 320U, 330U
NOT FOR USE WITH Wi-Fi (RP-SMA) ANTENNAS

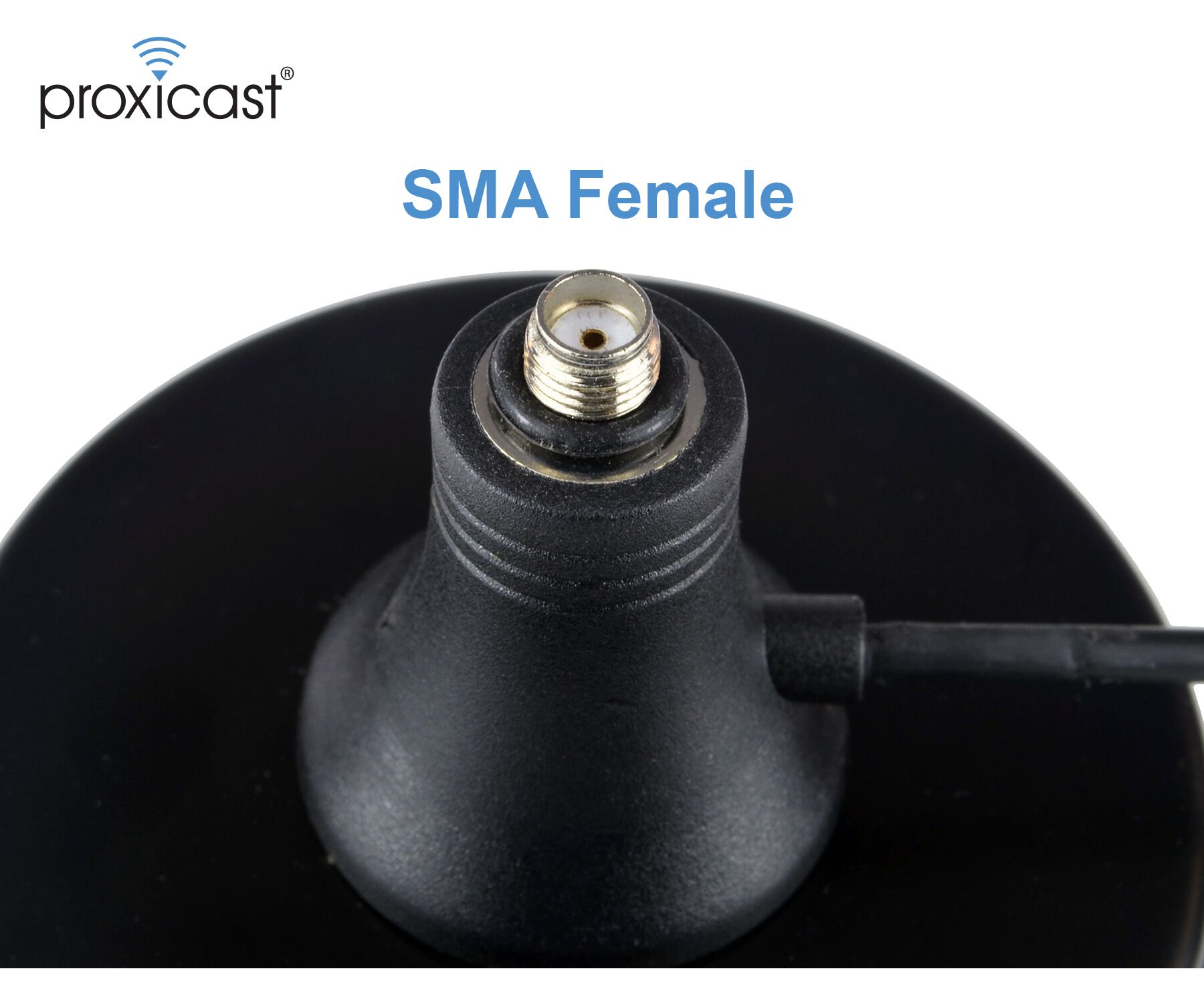

| Top connector | SMA jack type (female) |

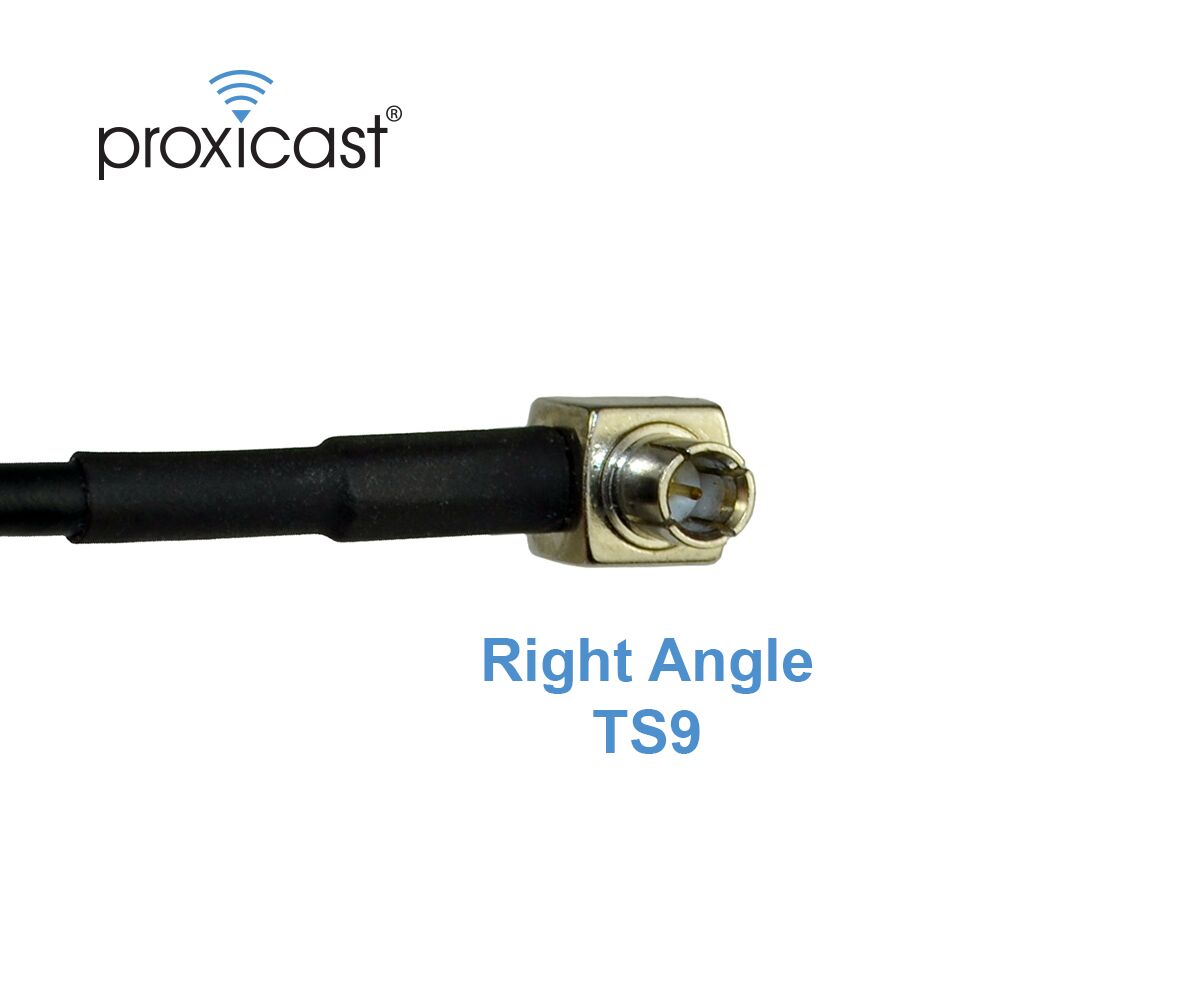

| Lead connector | TS9 right-angle plug type (male) |
| Coax | HPP100 low-loss |
| Length | 79 in. |

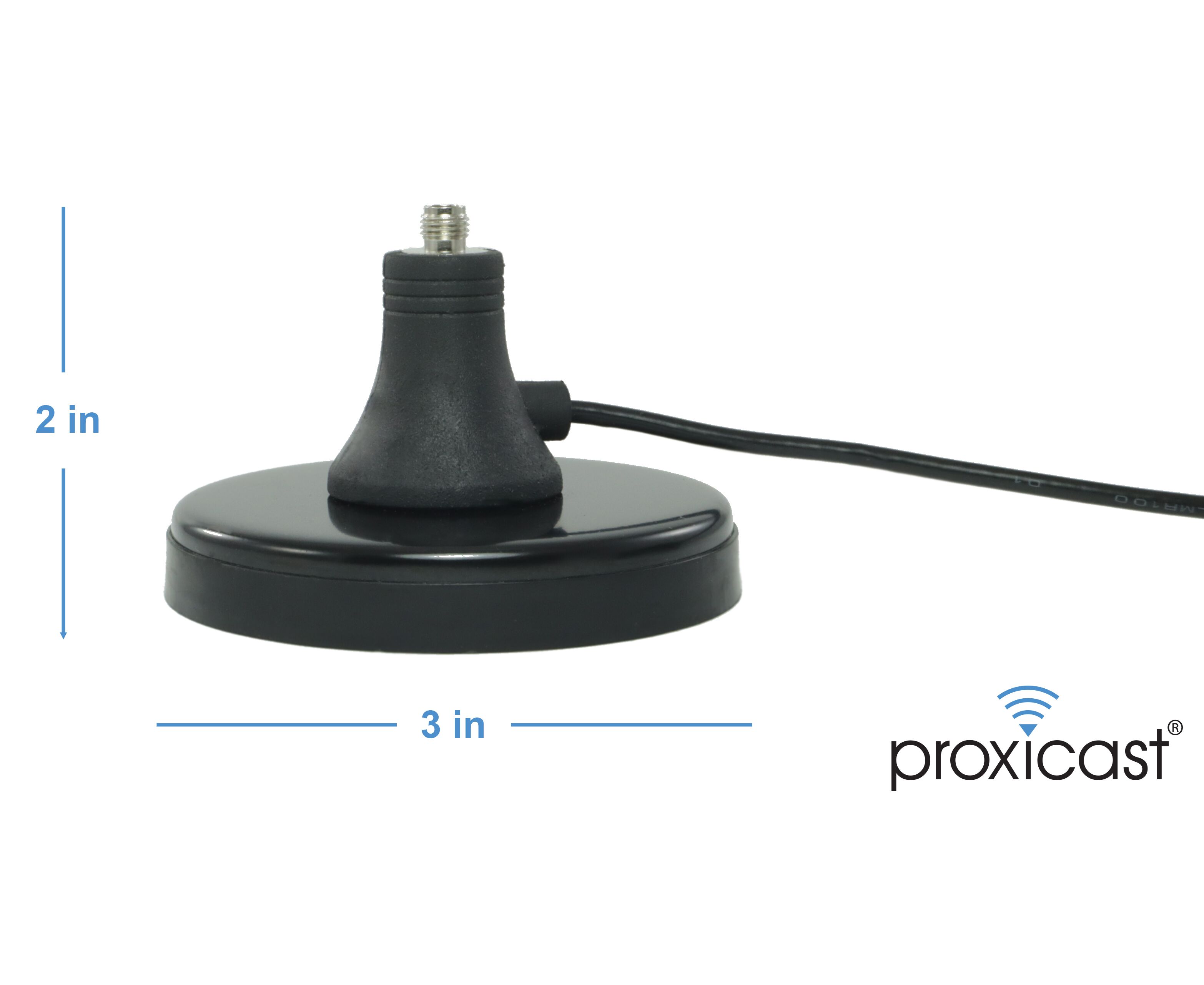

| Diameter | 3.0 in. |
| Weight | 8 oz. |
| Certifications | RoHS compliant |
SKU: ANT-120-MB9b
UPC: 617237749796
- Title: Proxicast Premium Extra Large 3-Inch Magnetic Antenna Base (SMA Jack / TS9 Plug) - 6.5 ft Coax Lead - Connect 3G/4G/LTE SMA Antennas to TS9 Modems/Hotspot - Nighthawk, Velocity, Jetpack, etc.
- Part #: ANT-120-MB9b
- UPC Code: 617237752031
- ASIN: B07QLKRLNY
- HS Code: 8517.70.00.00
- Country of Origin: China
- Shipping Weight (lbs): 0.800
- PERMALINK: https://www.proxicast.com/shopping/ANT-120-MB9b
