Proxicast Pro-Grade 6-in-1 Low-Profile Omni-Directional MIMO Through Hole Mount Antenna - (4x 5G + 2x WiFi) - 2 ft Coax - Black

Proxicast Pro-Grade 6-in-1 Low-Profile Omni-Directional MIMO Through Hole Mount Antenna - (4x 5G + 2x WiFi) - 2 ft Coax - Black
Proxicast Pro-Grade 6-in-1 Low-Profile Omni-Directional MIMO Through Hole Mount Antenna - (4x 5G + 2x WiFi) - 2 ft Coax - Black
$15995 MSRP:$19995

Add to Wish List
Add to Cart
MSRP:$19995
$15995
You save: $40.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
100+
250+
Price
$153.55
$151.95
$150.35
$148.75
$147.15
$145.55
Availability: 9 Item(s)
ANT-121-T66-B-02
+ −

Minimum quantity for "Proxicast Pro-Grade 6-in-1 Low-Profile Omni-Directional MIMO Through Hole Mount Antenna - (4x 5G + 2x WiFi) - 2 ft Coax - Black" is 1.


Add to Wish List

Key Features

  • LOW PROFILE: 2.4 inches Tall with 3-5 dBi Gain -- Omni-Directional 4x4 5G + 2x2 WiFi MIMO Antenna -- Indoor/Outdoor Use
  • 4 IDENTICAL ISOLATED 5G ANTENNA ELEMENTS: Covers all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) -- Connect any lead to any cellular antenna port on your device
  • 2 IDENTICAL ISOLATED WIFI ANTENNA ELEMENTS: Supports all 2x2 MIMO WiFi Technologies including WiFi-6

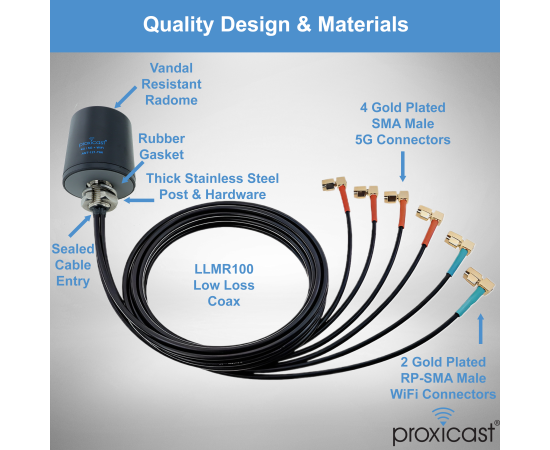

  • PRO-GRADE QUALITY MATERIALS & DESIGN: Vandal Resistant & IP67 Weatherproof -- High Impact Plastic -- Heavy Duty Stainless Steel Mounting Hardware -- No Exposed Cabling
  • LOW SIGNAL LOSS: Thick Double Shielded LLMR100 Low-Loss Coax Cables with Gold-Plated SMA Male Connectors
  • WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
  • COMPATIBLE WITH 4X4 MIMO Routers & Modems from Cisco, Cradlepoint, Digi, Peplink, Robustel, Telktonika and others. Some models may require connection adapters
  • IDEAL FOR: Kiosks, Hotspots, Vehicle Passenger Connectivity, IOT, Industrial Automation, Mobile Video, Vehicle-to-Vehicle (V2V) and Vehicle-to-Everything (V2X) Autonomous Driving and Recreational Vehicle Applications

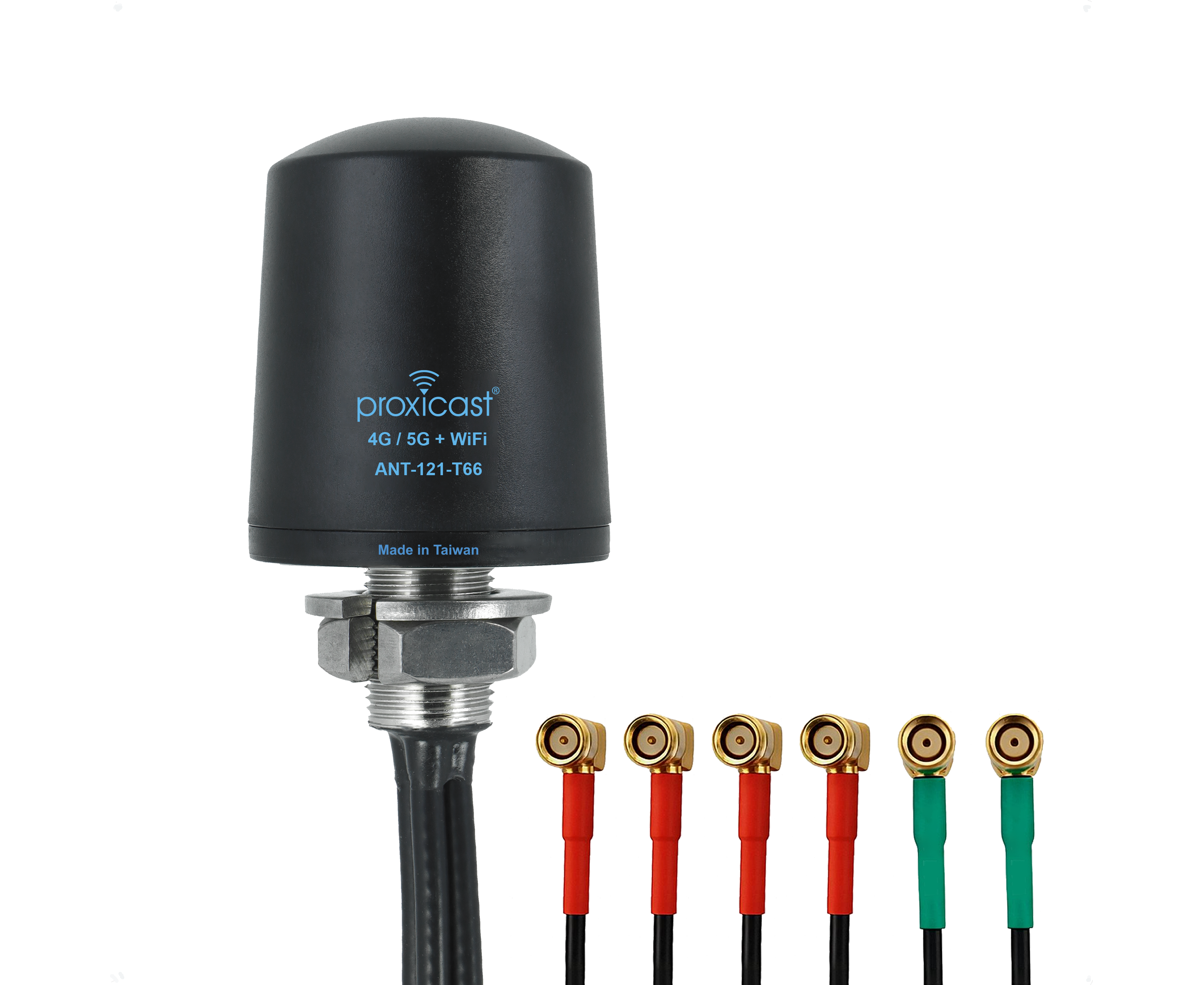

This low profile (2.4 inch tall) fixed mount omni-directional 5G 4x4 MIMO + WiFi 2x2 MIMO external 6-in-1 combination antenna provides 3 to 5 dBi of gain and supports all sub 6 GHz cellular frequency bands for AT&T, Verizon, T-Mobile, Bell, Rogers, Telus and other carriers worldwide. It also includes 2 integrated WiFi element for simplified installation.

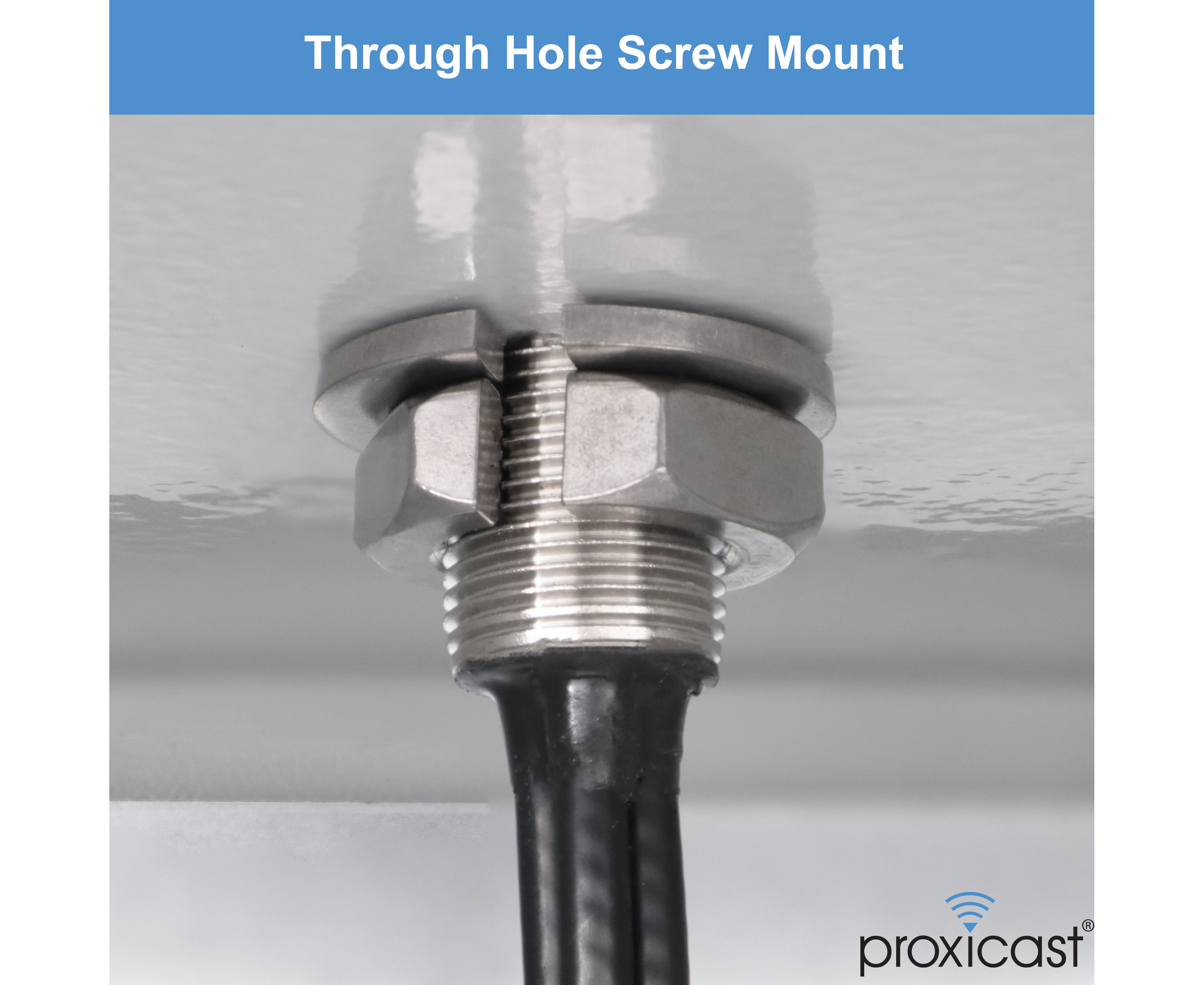

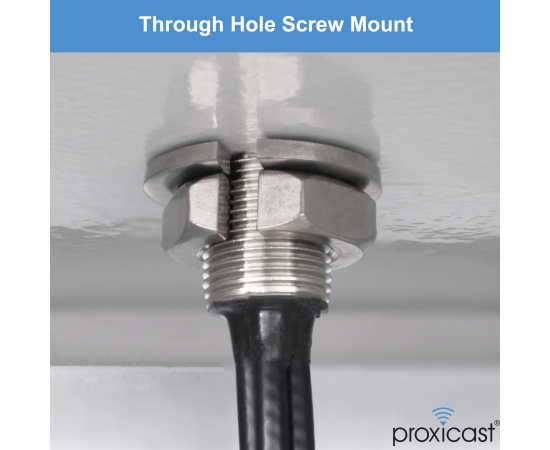

Permanently mounts via a 7/8 in (20 mm) hole with internal nut. Resists vandalism with no exposed coax cable, a high impact polycarbonate radome shell and an extra thick stainless steel threaded mounting post and hardware. Completely waterproof (IP67).

Integrated SMA male plug connectors for 5G mate with SMA female jacks found on most cellular modems and routers.

Integrated RP-SMA male plug connectors for WiFi mate with Reverse Polarity SMA female jacks found on most WiFi equipment.


* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.

Vending Machines

Kiosks & ATMs

Machine Control Panels

Vandal Resistant

  • High Impact PC Radome
  • Thick Mounting Post
  • Not Removable from Outside
  • No Exposed Coax Cabling

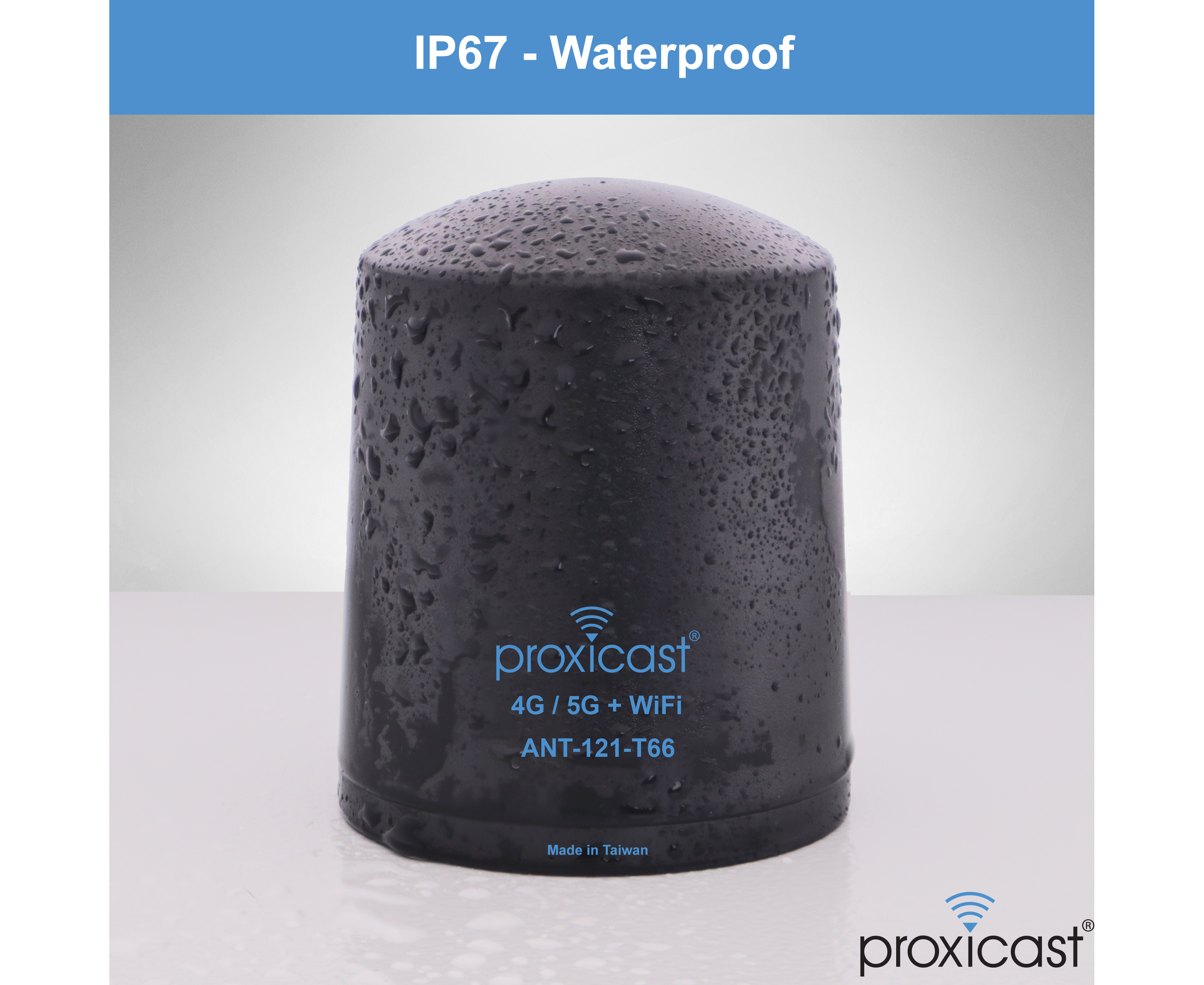

Weatherproof

  • Water & Dust Proof
  • IP67 Rated
  • Stainless Steel Mounting Post & Hardware






Inconspicuous

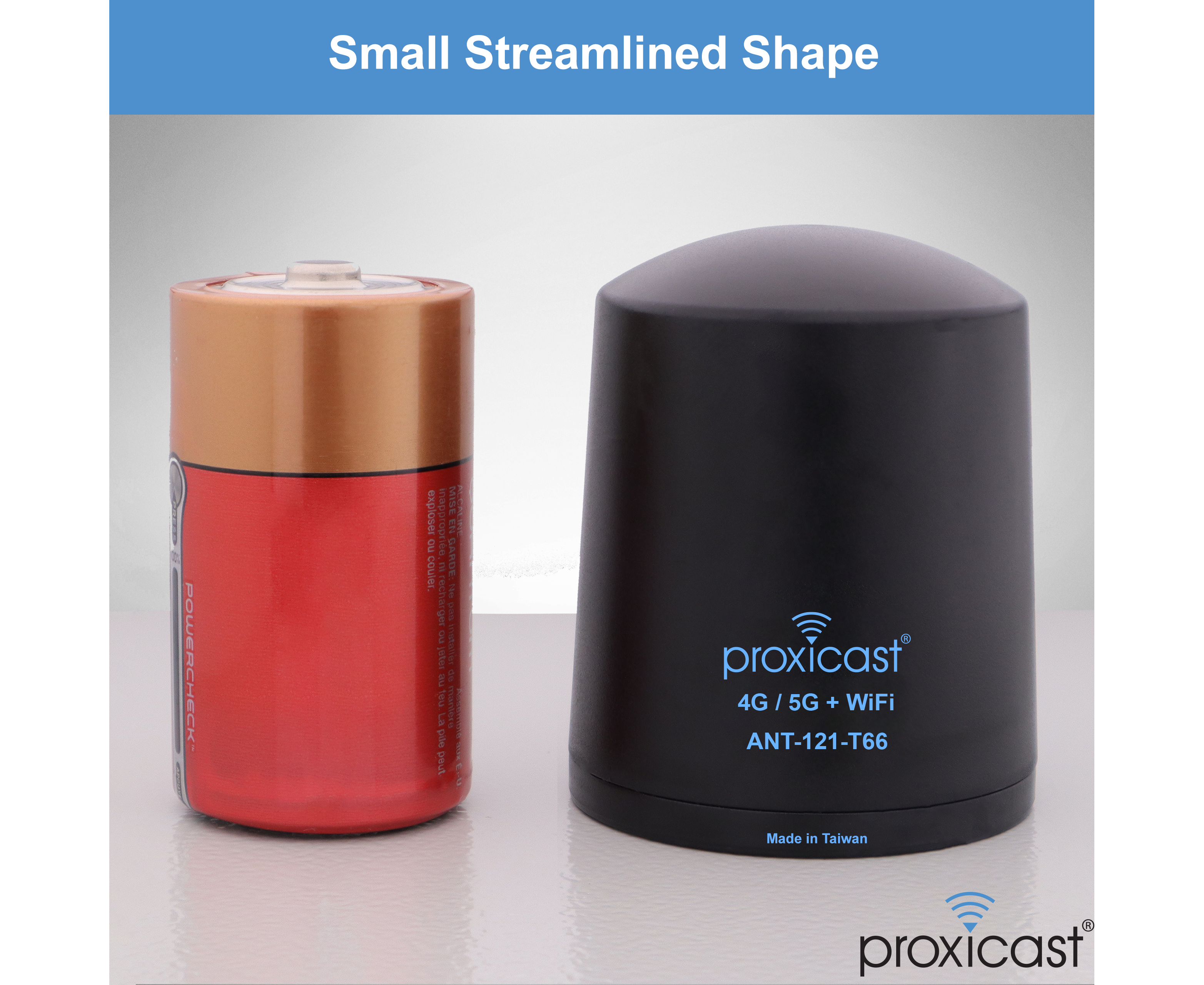

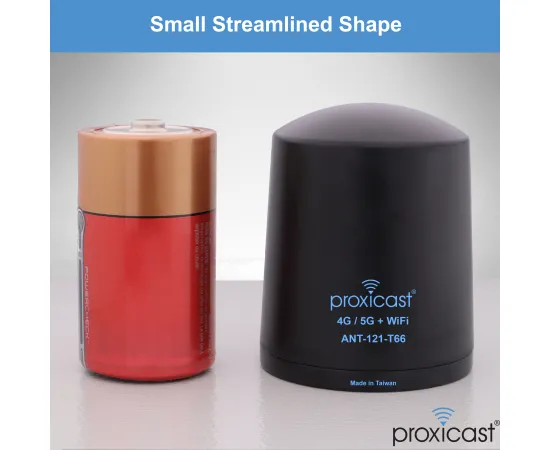

  • 2.4 Inches Tall
  • Simple Geometric Shape
  • Omnidirectional Coverage
  • Paintable to Blend into Surroundings

Universal Compatibility

  • Any MIMO Capable 4G/5G Device
    with 4 SMA Jacks
  • Any 4G/5G, FirstNet or
    CBRS Network
  • AT&T, T-Mobile, Verizon
  • 2x2 MIMO WiFi Equipped Modems & Routers

Compatible with any 4x4 MIMO 5G Modem or Router with External Antenna Ports Including:

Cisco Catalyst Cellular Gateways:

  • CG418-E

Cradlepoint:

  • E300 Series Enterprise Router
  • E3000 Series Enterprise Router
  • R1900 Series 5G Ruggedized Router
  • IBR1700 Series Ruggedized Router
  • S700 Series
  • R900 Series

Digi:

  • TX40
  • TX54
  • TX64

Peplink:

  • Transit Pro E
  • Max Transit Duo Pro
  • MAX BR1 Pro 5G
  • MAX BR2
  • MAX BR2 Pro

Rosbustel:

  • R5020

Sierra Wireless:

  • Airlink MP70
  • AirLink XR80 & XR90 (require FAKRA adapters)

Teltonika:

  • RUTM5x series
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount through a horizontal metal surface at least 8 inches in diameter
  • Do not use a Y cable to connect 2 antenna leads to 1 modem port
  • Do not extend coax cables
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

ANT-121-T66 Specifications

4G/5G Cellular Properties
Frequency Range 600-6000 MHz - all 4G & 5G Sub-6 (FR1) Bands
Impedance 50 ohms
Antenna Gain 3-5 dBi frequency dependent
Radiation Omni
Polarization Vertical
VSWR < 2.0:1 in band
Max input power 50 W
Ground Plane 8 inch (20 cm) diameter min.
WiFi Properties
Frequency Range 2.4~2.5 /4.9~5.2/5.8~6.0GHz
Impedance 50 ohms
Peak Gain 2.0~5.0 dBi frequency dependent
VSWR <2.0
Mechanical Properties
Material

Radome: UV stabilized polycarbonate plastic (black or white)

Connectors: Gold-plated brass

RoHS compliant
Connectors 4G/5G: 4x SMA Male on 2 ft (1.8 m) low-loss CFD195 coax cable
WiFi: 2x RPSMA Male on 2 ft (1.8 m) low-loss RG174 coax cable
Operating Temp. -40°C to +80°C

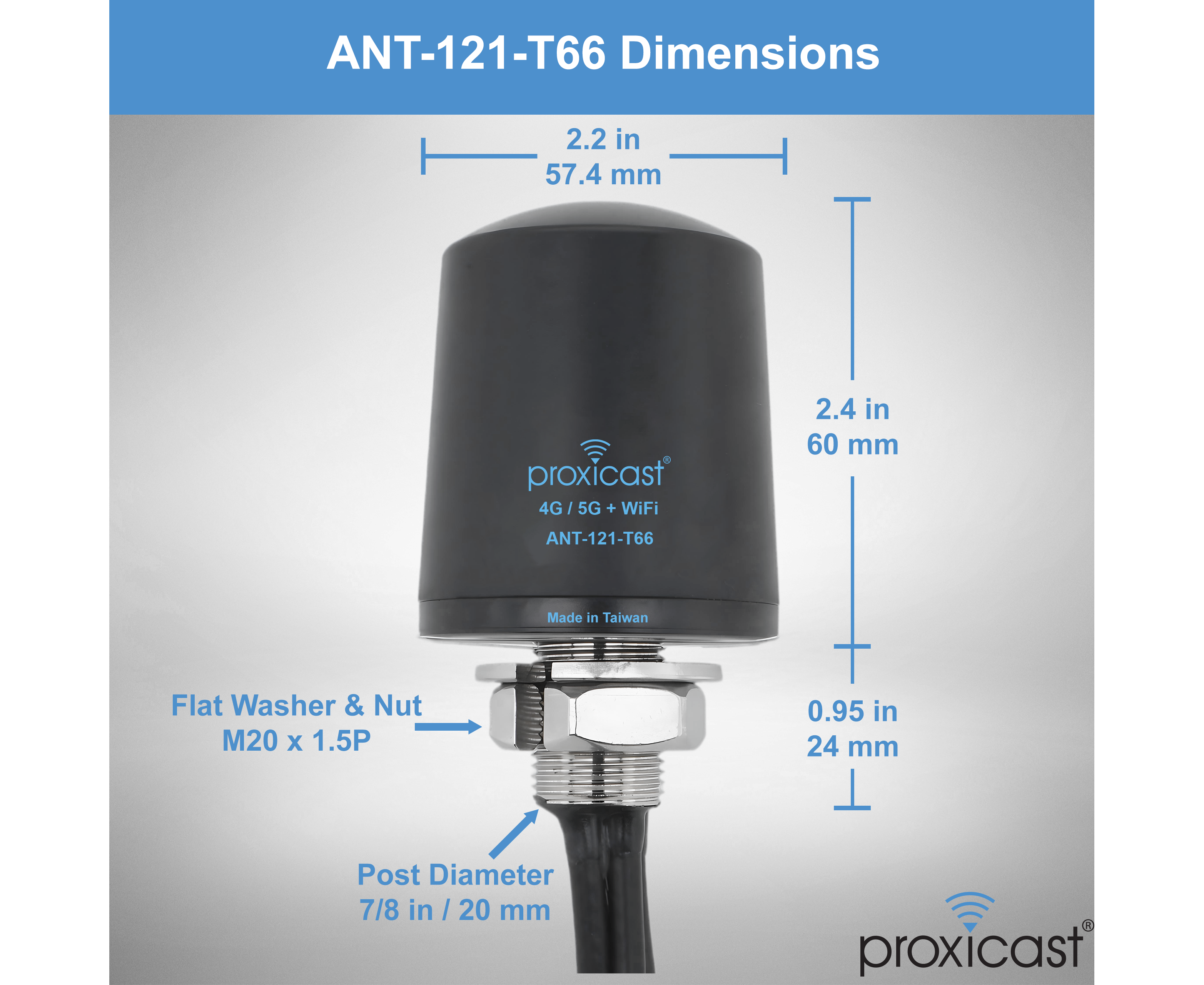

Height Radome: 2.4 inches / 60 mm
Diameter

Radome: 2.2 inches / 54.7 mm at base

Mounting post: 7/8 inches / 20 mm x 1.5 mm thread
Weight 17 oz (482 g)
Environmental Rating

IP67 (waterproof)



ANT-121-T66 Declaration of Conformity (218 Kb)

  • Title: Proxicast Pro-Grade 6-in-1 Low-Profile Omni-Directional MIMO Through Hole Mount Antenna - (4x 5G + 2x WiFi) - 2 ft Coax - Black
  • Part #: ANT-121-T66-B-02
  • UPC Code: 850021295806
  • ASIN: B0FM73CZQL
  • HS Code: 8517.71.00.00
  • Country of Origin: TW - Taiwan
  • Export Control: EAR99 / NLR (No License Required)
  • Shipping Weight (lbs): 1.250
  • PERMALINK: https://www.proxicast.com/shopping/ANT-121-T66-B-02
