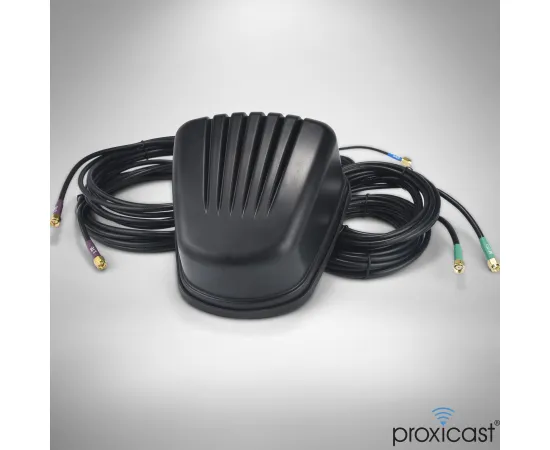

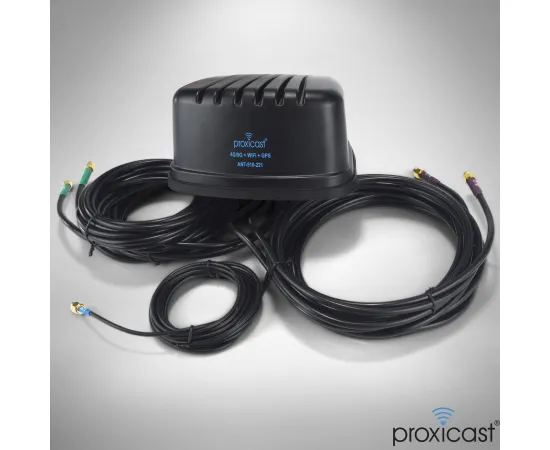

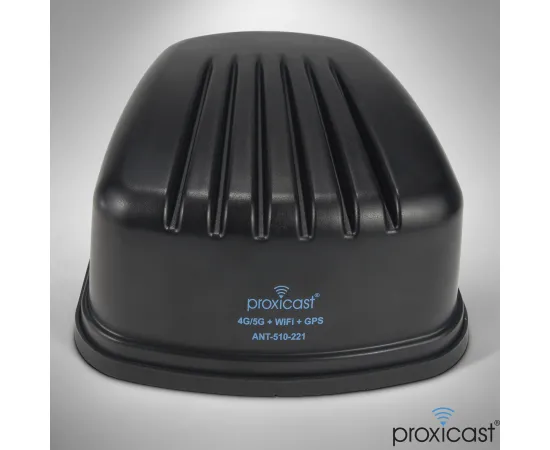

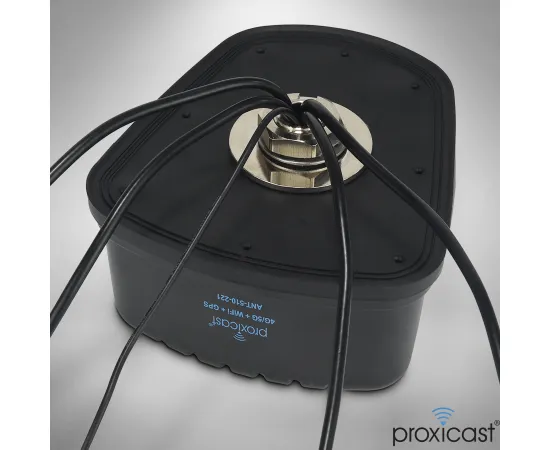

Proxicast 5-in-1 Pro-Grade Low-Profile 2x2 MIMO 4G/5G + Wi-Fi + GPS Screw Mount Combination Vehicle Antenna (Gibraltar)
Key Features

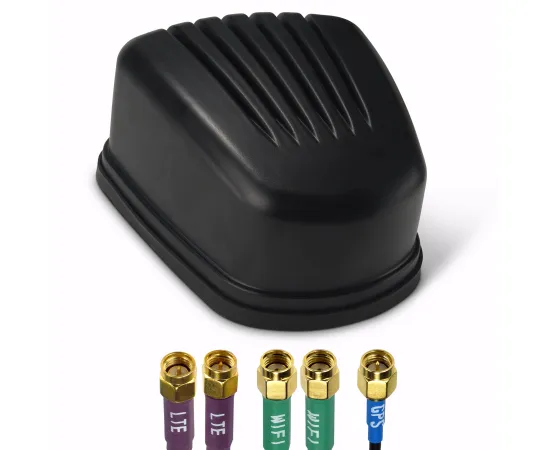

- Combines 2x 4G/5G + 2x Wi-Fi + 1x GPS antennas into a single streamlined weatherproof enclosure
- Provides 2x2 MIMO capability on all 4G / 5G and Wi-Fi (2.4, 5.8, 6/7 GHz) and GPS systems including AT&T, Verizon and T-Mobile

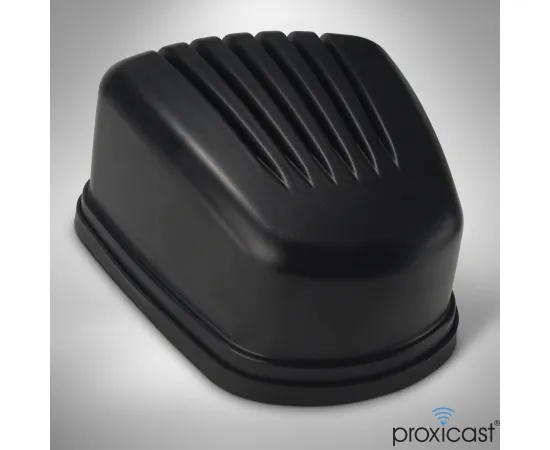

- Low-profile 3 inch high rugged radome is vandal resistant & perfect for transportation, telematics and remote monitoring applications.
- Extra long coax leads for large vehicles - buses, trucks, RV's, vans, ambulances, taxi cabs
- Compatible with multi-radio routers and modems from companies such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Pepwave, Proxicast, Sierra Wireless and many others
- Installs in minutes with just 1 hole. Includes all necessary cabling & hardware. Completely waterproof.
This 5-in-1 low-profile, heavy-duty, multi-element / multi-band combo antenna cost-effectively combines high efficiency and peak gain in a compact easy to install form factor.
Featuring 2 4G/5G, 2 WiFi and 1 GPS elements, it is ideally suited for 2x2 MIMO vehicular modems and routers.
Worldwide 4G/5G band coverage including FirstNet & CBRS.
All WiFi generations through WiFi-7 and 4.9 GHz public safety bands are supported.
The active L1 band GPS element has a low noise amplifier (LNA).
See full Specifications on the Documentation tab.
ANT-510-221 Specifications
4G/5G Elements
|
Frequency Range
|
600-960 MHz ~ 1710-4200 MHz ~ 4900-6000 MHz |
|
Impedance
|
50 ohms |
|
Antenna Gain
|
2x 5/4/3 dBi |
|
Polarization
|
Linear |
|
VSWR
|
< 2.0:1 |
|
Max Input Power
|
50 W |
|
Connector
|
2x SMA Male on 9.8 ft (3m) of low-loss RG58U coax |
WiFi Elements
|
Frequency Range
|
2400-2500 / 4900-7125 MHz |
|
Impedance
|
50 ohms |
|
Antenna Gain
|
4 dBi x 2 |
|
Polarization
|
Linear |
|
VSWR
|
< 2.0:1 |
|
Max Input Power
|
50 W |
|
Connector
|
2x RP-SMA Male on 9.8 ft (3m) of low-loss RG58U coax |
GPS Element
|
Frequency Range
|
1575.42 MHz |
|
Impedance
|
50 ohms |
|
Antenna Gain
|
28 +/- 2dB Typical |
| Polarization | RHCP |
|
VSWR
|
< 2.0:1 |
|
Max Input Power
|
50 W |
|
Connector
|
1x SMA Male on 16.4 ft (5m) of low-loss RG174 coax |
| Noise Figure | 1.5 dB |
| DC Voltage | 2.2 - 5.0 V |
| DC Current | 5 - 15 mA |
Mechanical
|
Material
|
Black ABS / Brass / Steel / Rubber - RoHS compliant. |
| Ground Plane | Integrated |
|
Operating Temperature
|
-40C to +85C |
| Ingress Protection | IP67 (waterproof) |
| Dimensions | 143.6 x 32 mm (5.7 x 1.26 in) when mounted |
|
Weight
|
1.2 kg (2.6 lb) |
|
Mount
|

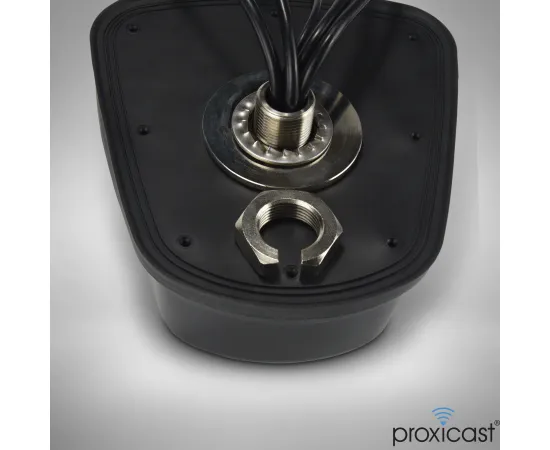

26 mm (1 in) Hole - Rubber Gasket, Nut & Washer included |
SKU: ANT-510-221
UPC: 850021295196
