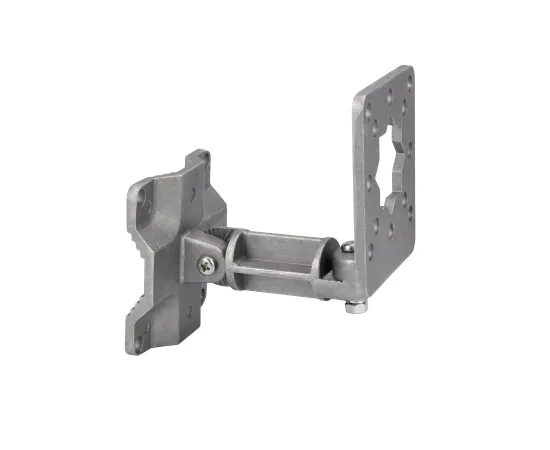

Proxicast Universal Wall/Pole Mount Adjustable Articulated Bracket for Outdoor Antennas, Cameras, Lights, Speakers, etc - Not for Mounting TVs or Monitors

MSRP:$29.95
$21.95
You save: $8.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$21.07
$20.85
$20.63
Availability: 17 Item(s)
ANT-810-AWB
+
Add to Wish List

Key Features

  • EASILY ADJUST Your Antenna to Any Desired Angle & Position for Optimum Signal Reception

  • UNIQUE MOUNTING PLATE Hole Pattern Fits Most Outdoor Antenna Mounting Bolt Positions

  • LOCK THE BRACKET into Position by Tightening the Nuts on the Ends of the Arm

  • DURABLE CAST ALUMINUM Construction Resists Rust and Corrosion - Suitable for Outdoor and Marine Use

  • INCLUDES 2 inch Pole Mounting U-Bolts and Hardware - or Mount Directly to Wall / Ceiling / Floor

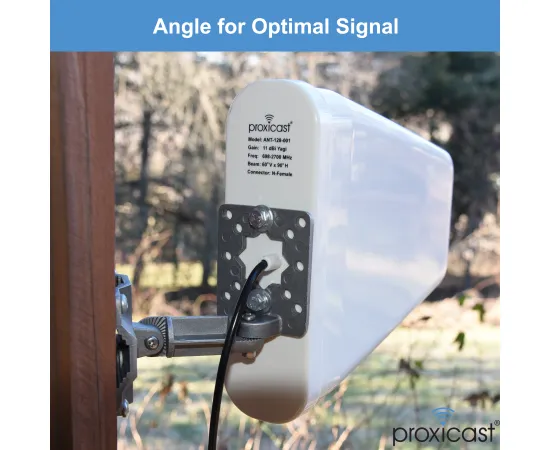

Proxicast's adjustable articulating wall / pole mount bracket provides the extra degree of freedom you need to accurately position your antenna, camera, lighting or other outdoor equipment. With both Left/Right and Up/Down axes, the bracket serves a wide variety of application needs such as up-tilting a directional antenna to align with a remote antenna/tower or angling a camera to get a clear shot around a corner.

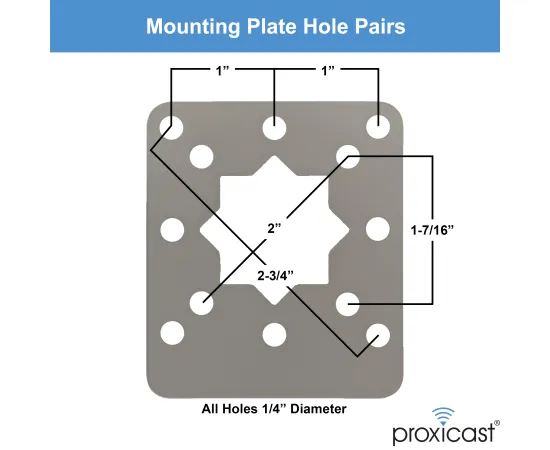

The bracket's plate is pre-drilled with hole patterns matching the most common post spacing for mounting outdoor 3G/4G/LTE antennas vertically, horizontally or at various angles. The plate has a large center opening for connectors. The bracket's standoff arm also provides additional room for feed cables and clearing obstructions.

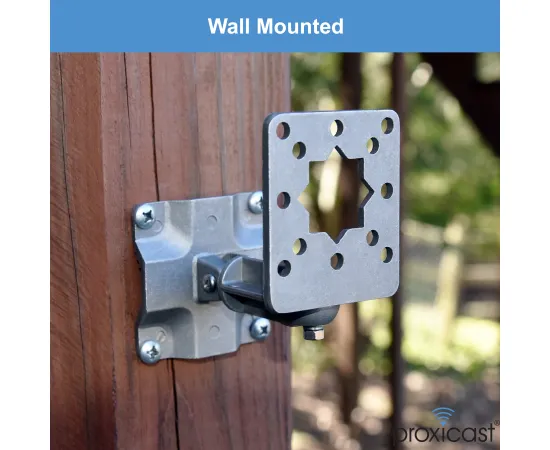

• Mount it to the wall, ceiling, floor, attic, chimney, or flag pole
• Convert a pole mount antenna to a wall mount
• Convert a wall mount antenna to a pole mount
• Down tilt cameras or lights to specific spots

The possibilities are endless.

Unlike some other articulating brackets, Proxicast's adjustable bracket can be locked into position, preventing it from accidental movement.

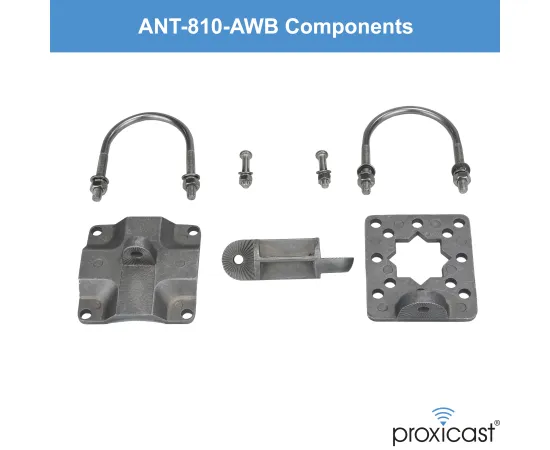

Constructed of light-weight yet strong solid cast aluminum, this bracket will withstand years of outdoor use without rusting.

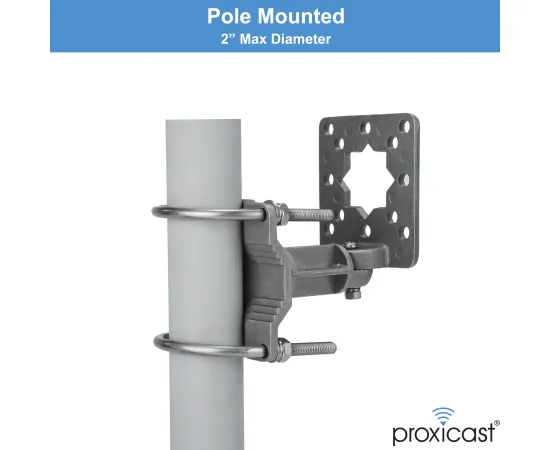

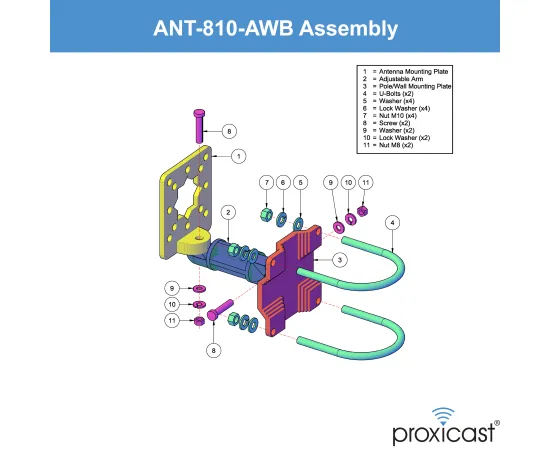

The bracket includes 2 inch U-bolts and clamps for pole mounting.

Compatible with Proxicast antenna models:

  • ANT-128-001
  • ANT-128-004
  • ANT-129-001
and most other directional antennas with 2 or 4 bolt mounts.

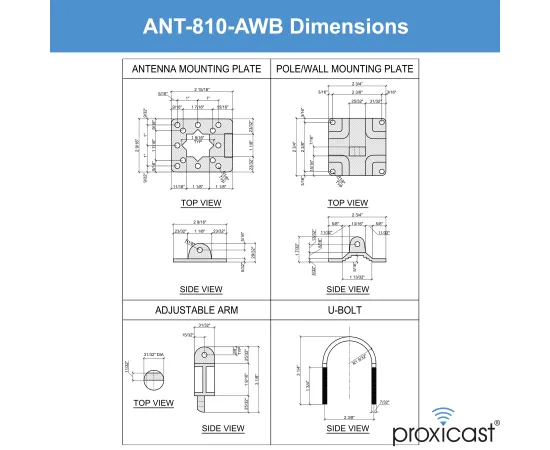

ANT-810-AWB Specifications
Distance From Wall 3.75 in
Overall Height 4.3 in
Width - Wall Plate 2.75 in
Width - Mounting Plate 2.5 in

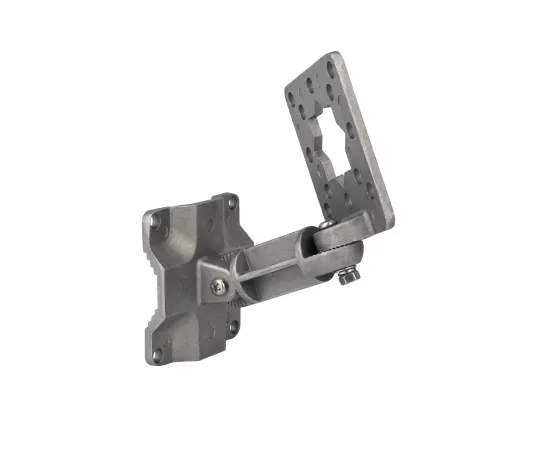

Up/Down Tilt ±70°
Left/Right Swivel ±70°
Material Cast Aluminum
Weight 5.8 oz
Max Load 11 lbs

SKU: ANT-810-AWB

UPC: 850021295042
