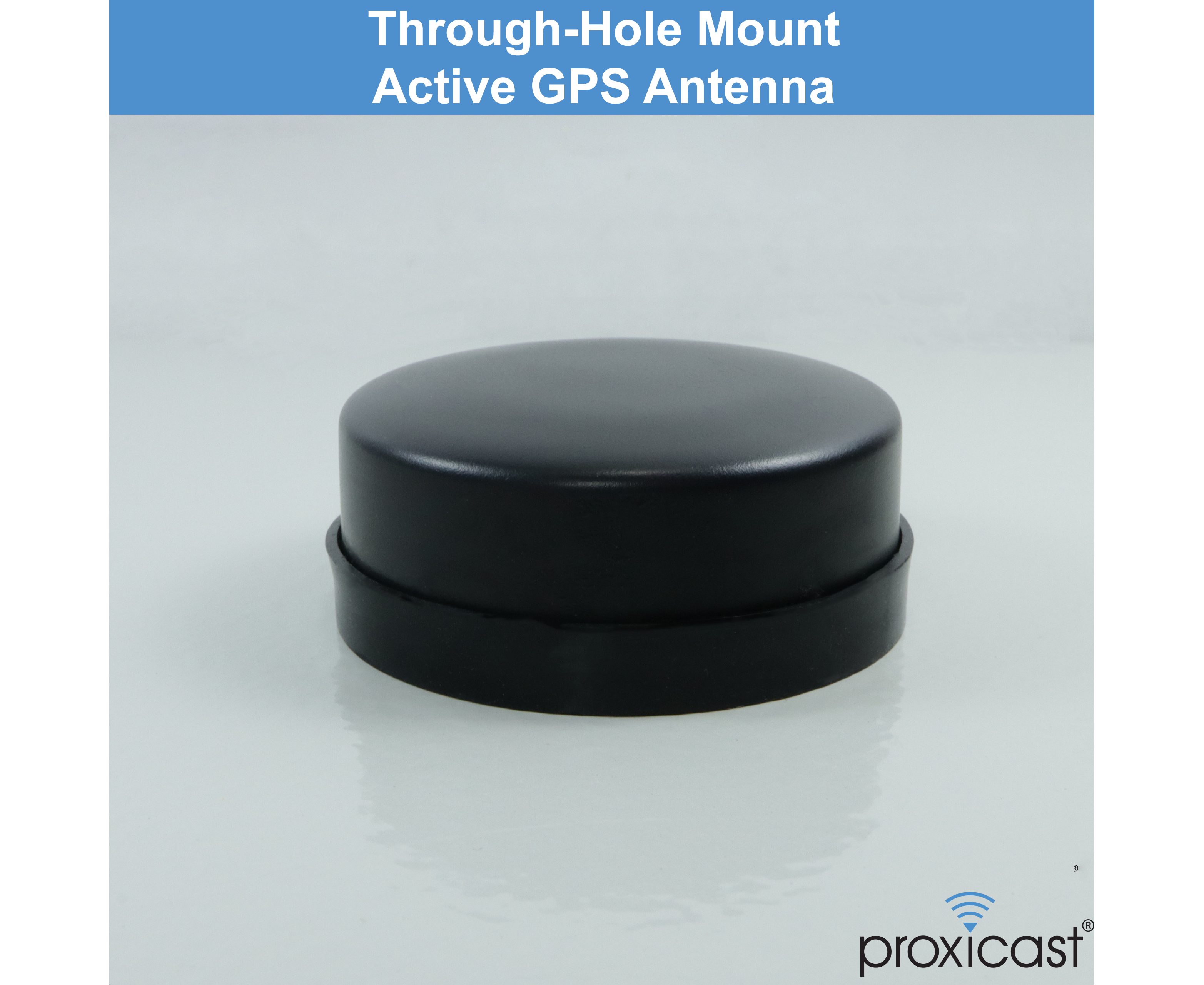

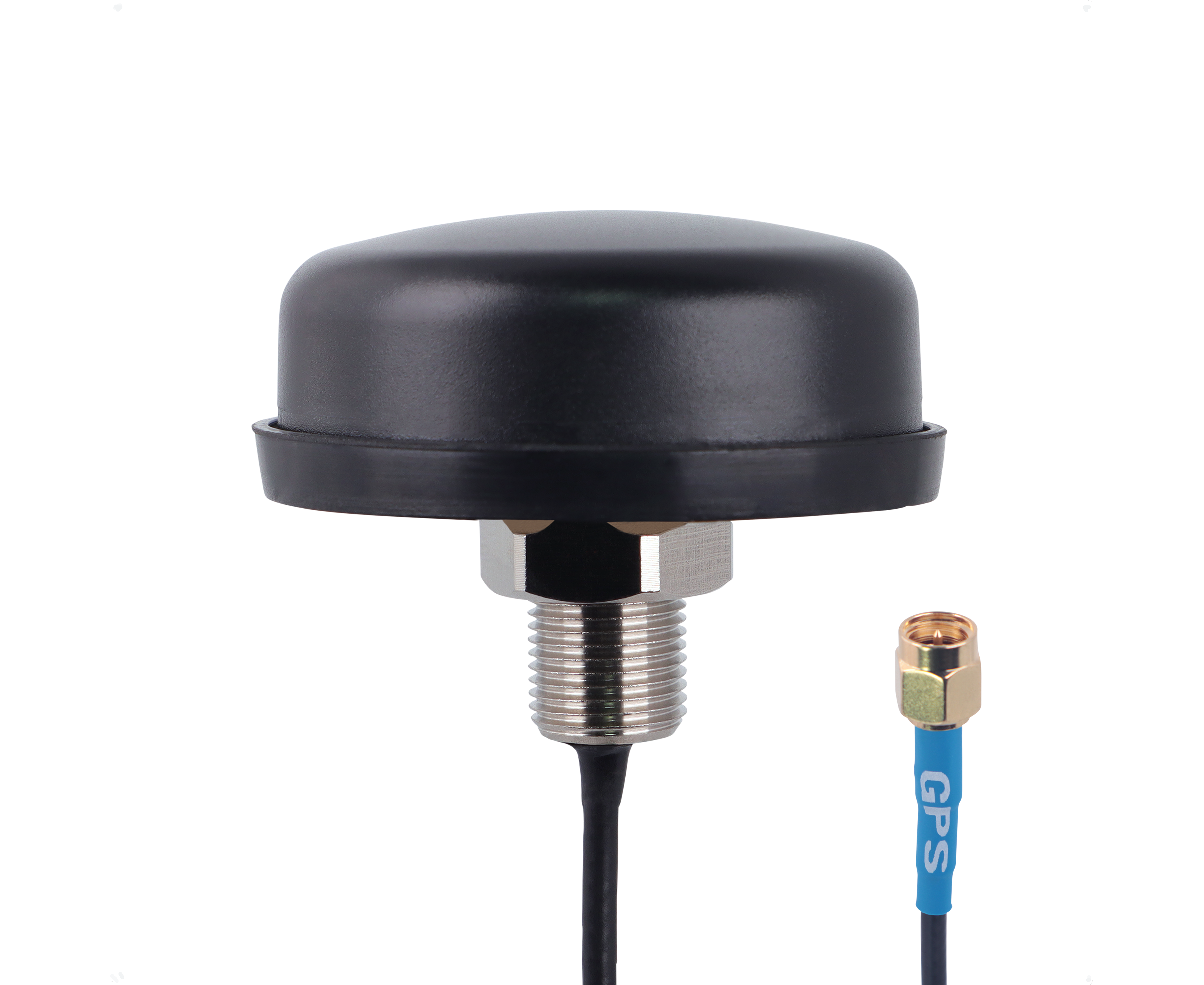

Proxicast Active/Passive GPS Antenna SMA - Through-Hole Screw Mount Puck Antenna with Right Angle SMA Male Connector on 6 ft Coax Lead - 28 dB LNA
- View all variations as list
| Part # | GPS Cable Length | Availability | Price | ||
|---|---|---|---|---|---|
|
ANT-190-005
|
Availability:
45 Item(s)
|
$1995 | ||
|
ANT-190-010
|
Availability:
100 Item(s)
|
$2195 | ||
|
|
ANT-190-020
|
Availability:
150 Item(s)
|
$2395 |
Key Features
- LOW PROFILE GPS PUCK ANTENNA for Devices with External GPS Antenna Connectors
- NARROWBAND L1 FILTER (1575.42 ± 1MHz Center Frequency) Improves GPS Reception (Signal-to-Noise Ratio) and Positional Accuracy

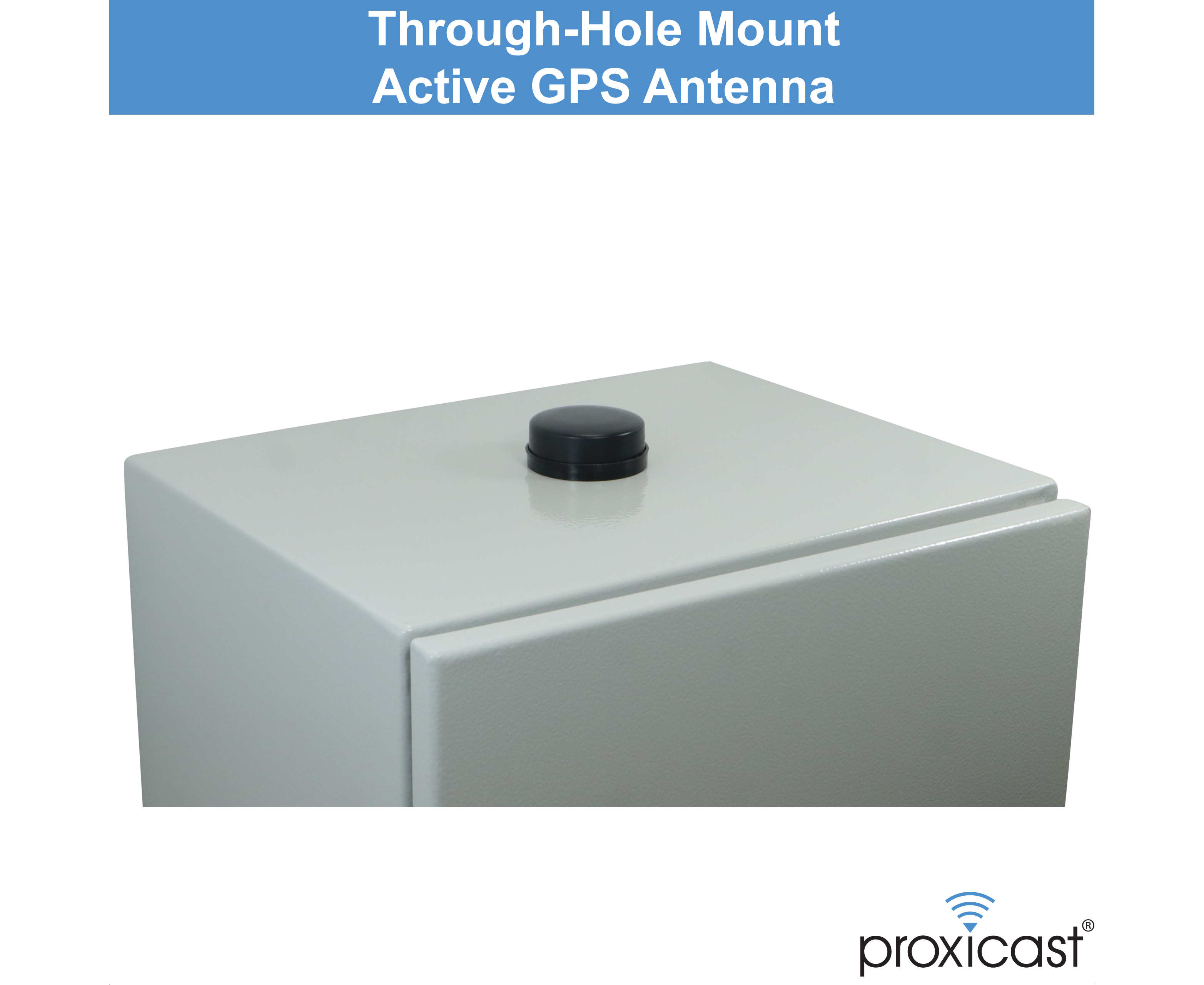

- PERMANENT MOUNT - Through-Hole Screw Mount Design for Vandal Resistant Mounting - No Exposed Cable
- SMA MALE CONNECTOR on 6.6 ft of Low Loss Cable - Works with Standard GPS Receiver Outputs
- LOW NOISE AMPLIFIER - Boosts GPS Signal - 28 ± 4.5dB Gain - Compatible with 3~5V DC GPS Receivers (Passive Gain - 2 dBic Zenith)
- WEATHERPROOF - IP67 rated - Perfect External GPS Antenna for Cars, Trucks, Vans, Boats & RV's
Proxicast's low-profile active GPS screw mount antenna is designed for use in fleet management, automatic vehicle location (AVL), position tracking for autonomous farm equipment, robots and drones, precision timing, mobile video and recreational navigation applications that require peak gain in a compact, vandal resistant form factor.
This antenna is ideally suited for vehicular GPS-enabled modems/routers and dedicated GPS receivers. The antenna can be used with passive or active GPS equipment via its integrated 28 dB low noise amplifier (LNA).

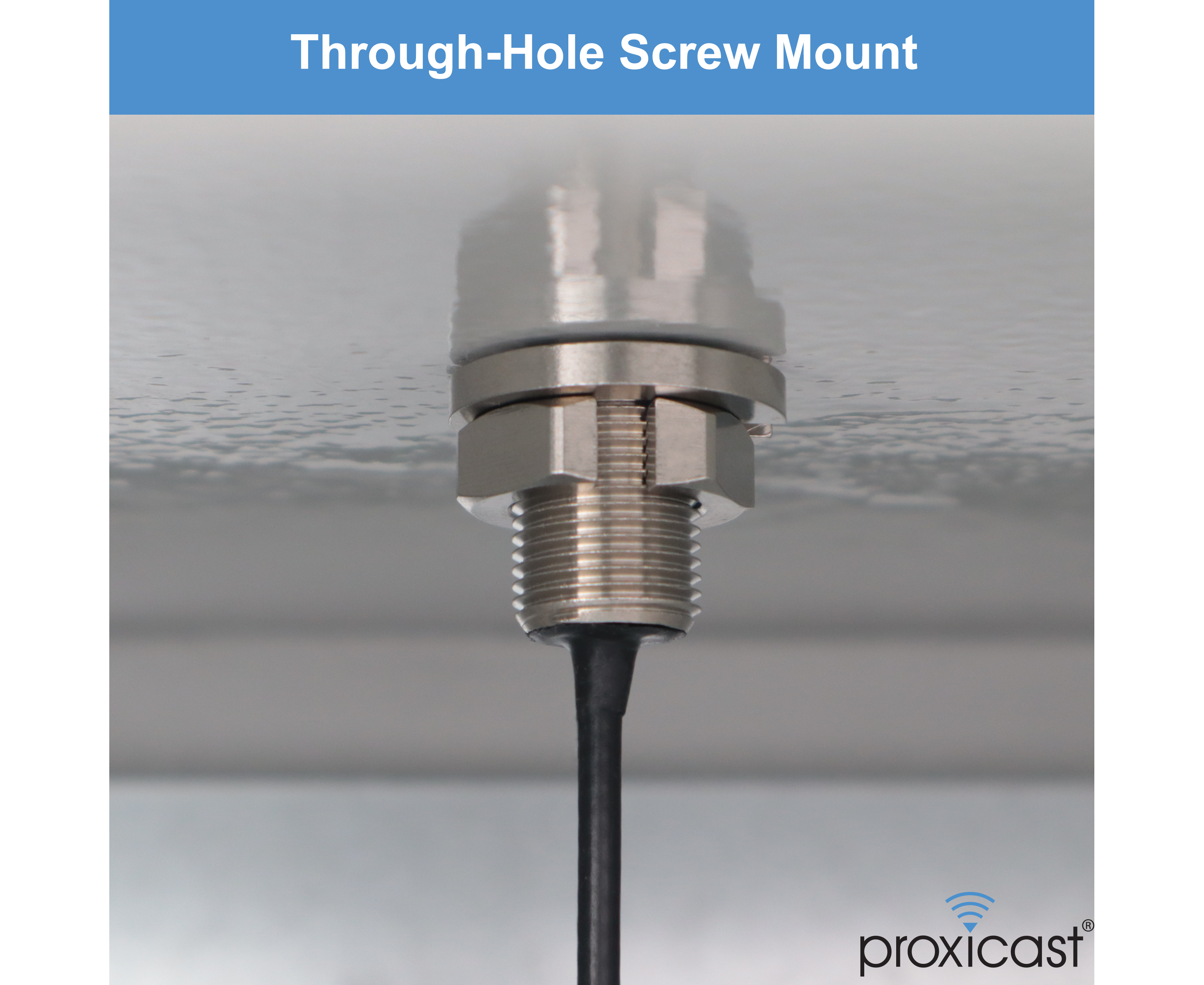

The antenna permanently mounts via a 1/2 in (12 mm) hole with internal nut. Low-loss RG174 coax is fed through center mounting post and pre-terminated with an SMA Male connector. A rubber boot creates a water-tight seal. The antenna is not removable from outside and there is no exposed coax cable once installed.
| Electrical Properties | |
|---|---|
| Center Frequency | 1575.42 MHz |
| Impedance | 50 ohms |
| Passive Gain | 2dBic（Zenith） |
| LNA Gain | 28 ±4.5 dB Typical |
| Polarization | RHCP |
| LNA Supply Voltage | 3.0-5.0 VDC |
| Current Consumption | 13~20mA |
| VSWR | <2.0 |
| Noise Figure | <1.5 |
| Axial Ratio | 3dB（max @ 90°） |
| Ex-Band Attenuation | fo = 1575.42MHz fo ± 20 MHz 7dB MIN fo ± 30 MHz 12dB MIN fo ± 50 MHz 20dB MIN fo ± 100 MHz 30dB MIN |
| Mechanical Properties | |
| Material | ABS / Brass / Steel / Copper / Rubber / RoHS compliant |

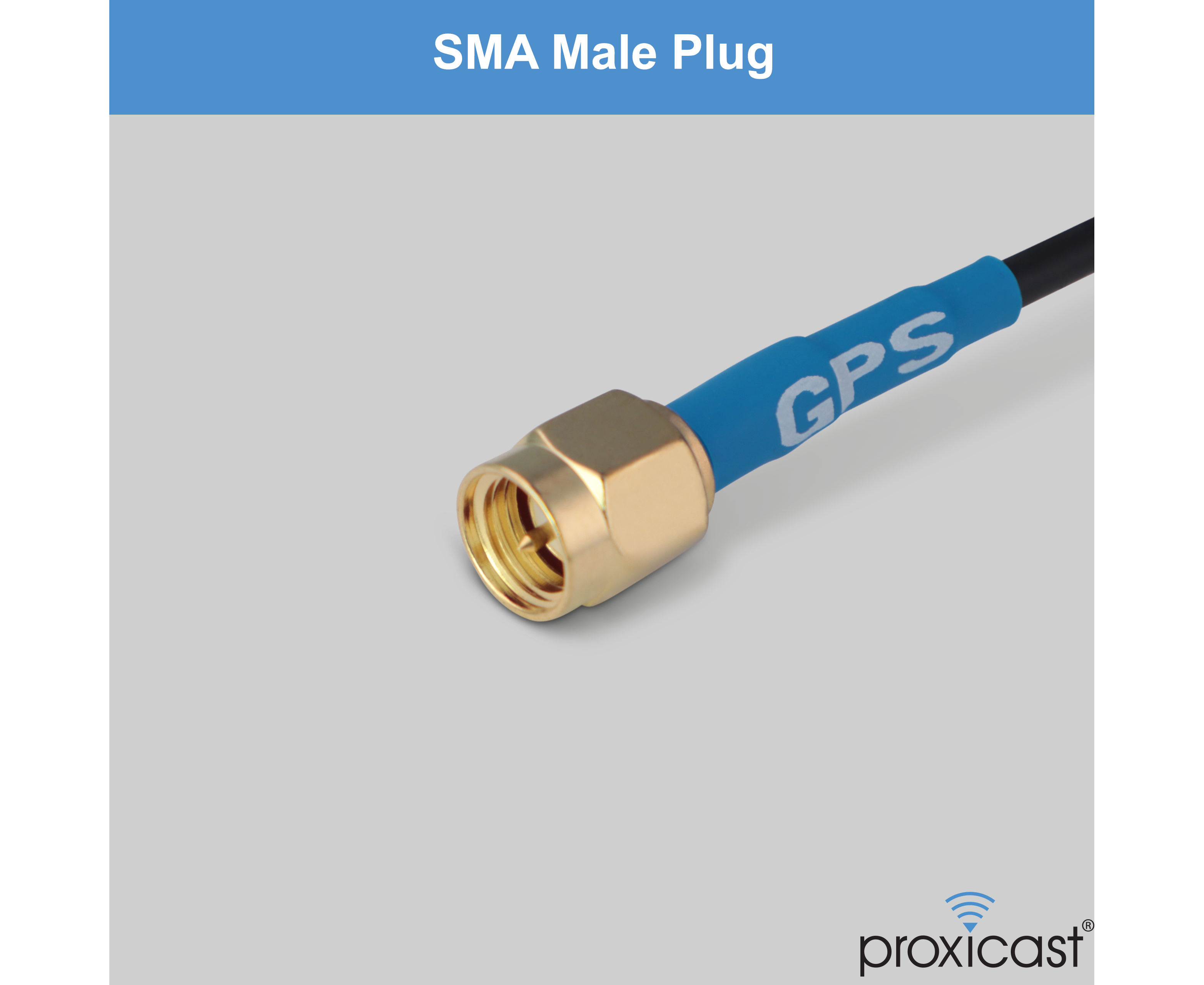

| Connector | Straight SMA Male |
| Cable | 6.6 ft (2.0 m) RG174 |

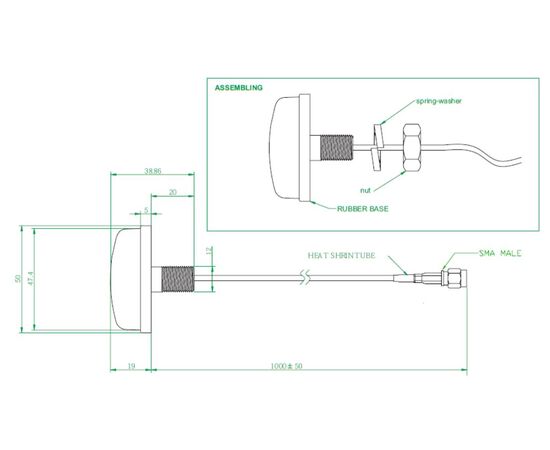

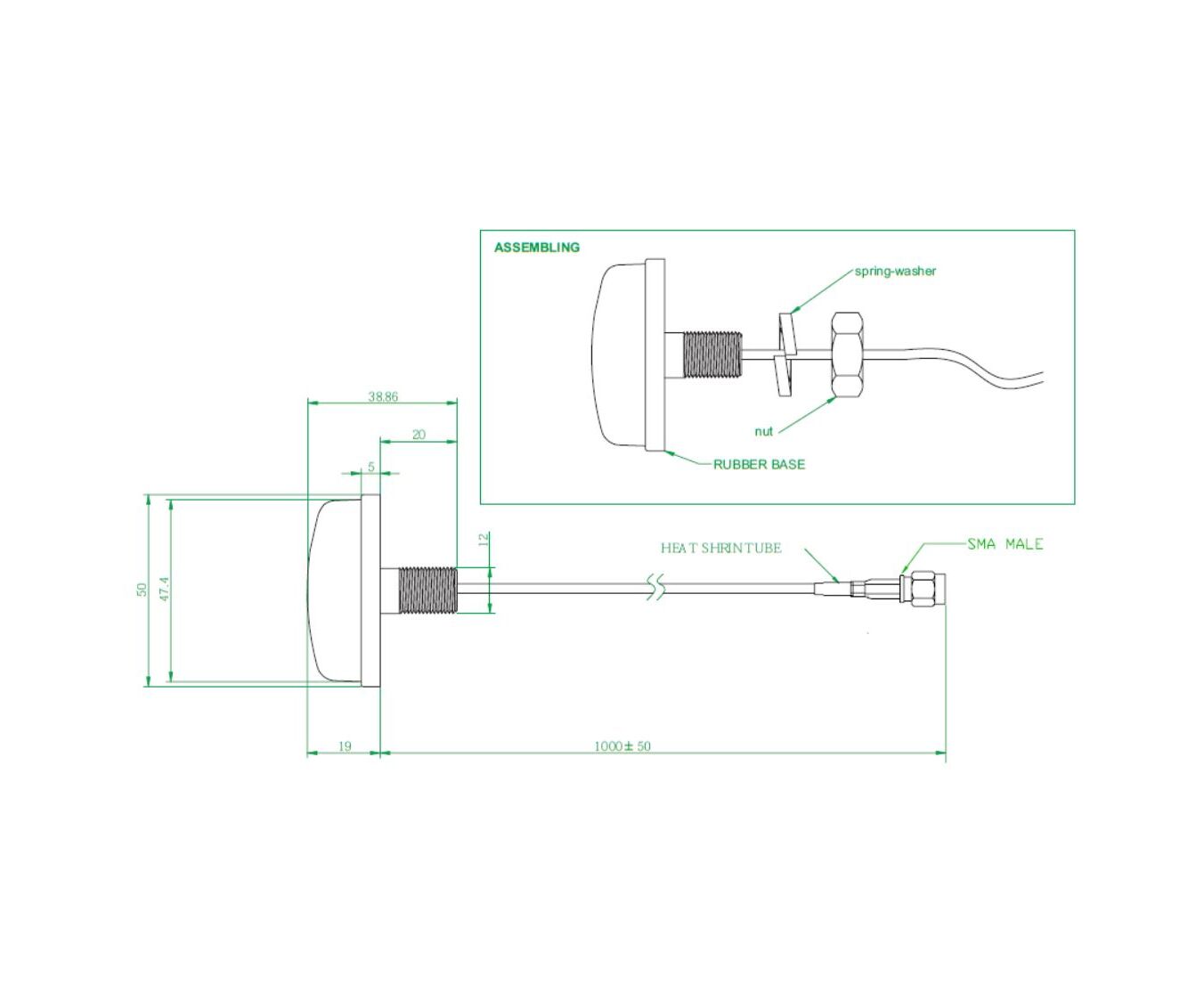

| Mounting | 0.5 in (12 mm) hole - nut, washer & rubber boot included |

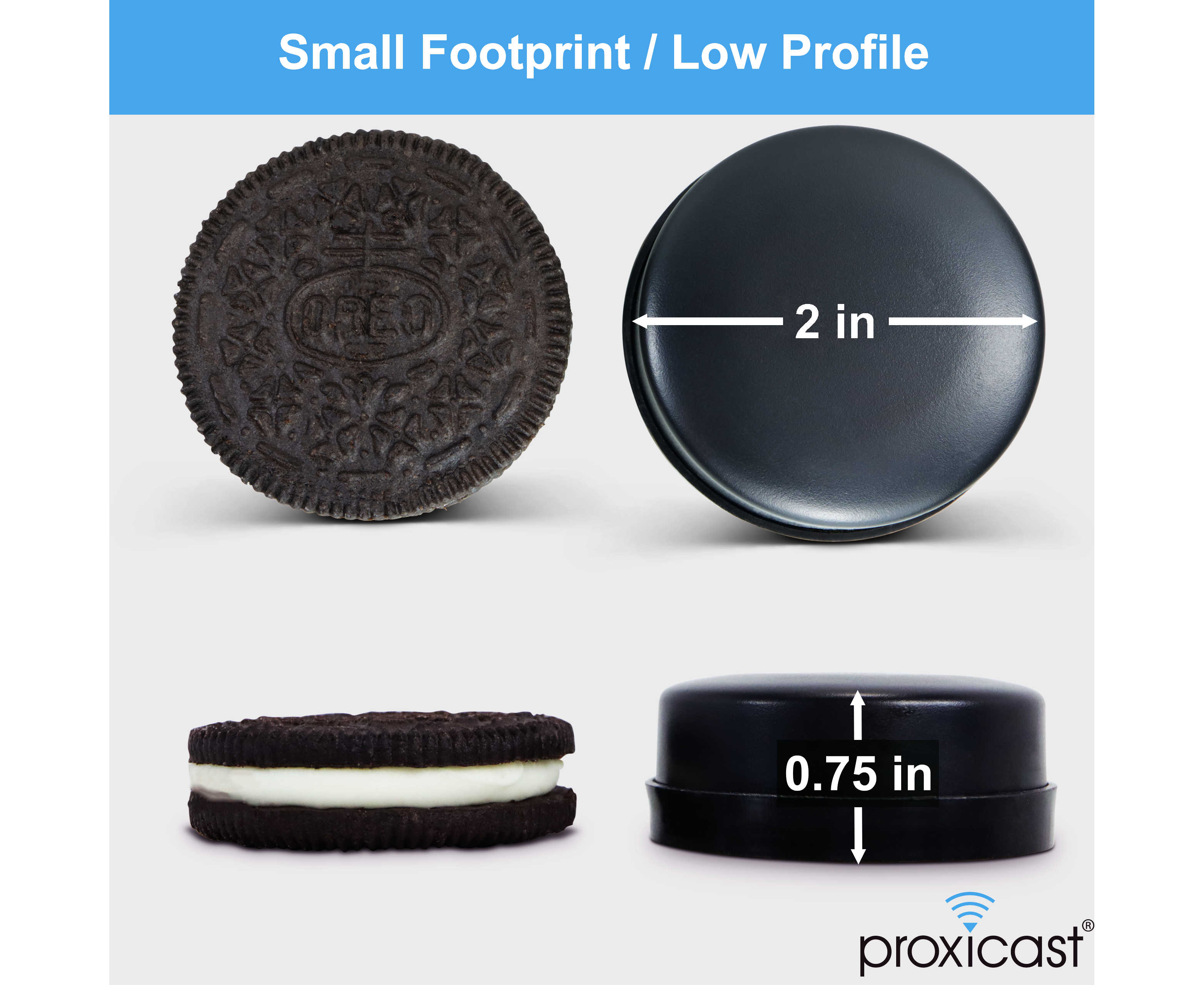

| Dimensions | 2.0 x 0.75 in (50 x 19 mm) when mounted |
| Operating Temp. | -30°C to +80°C |
| Weight | 3 oz (85 g) |

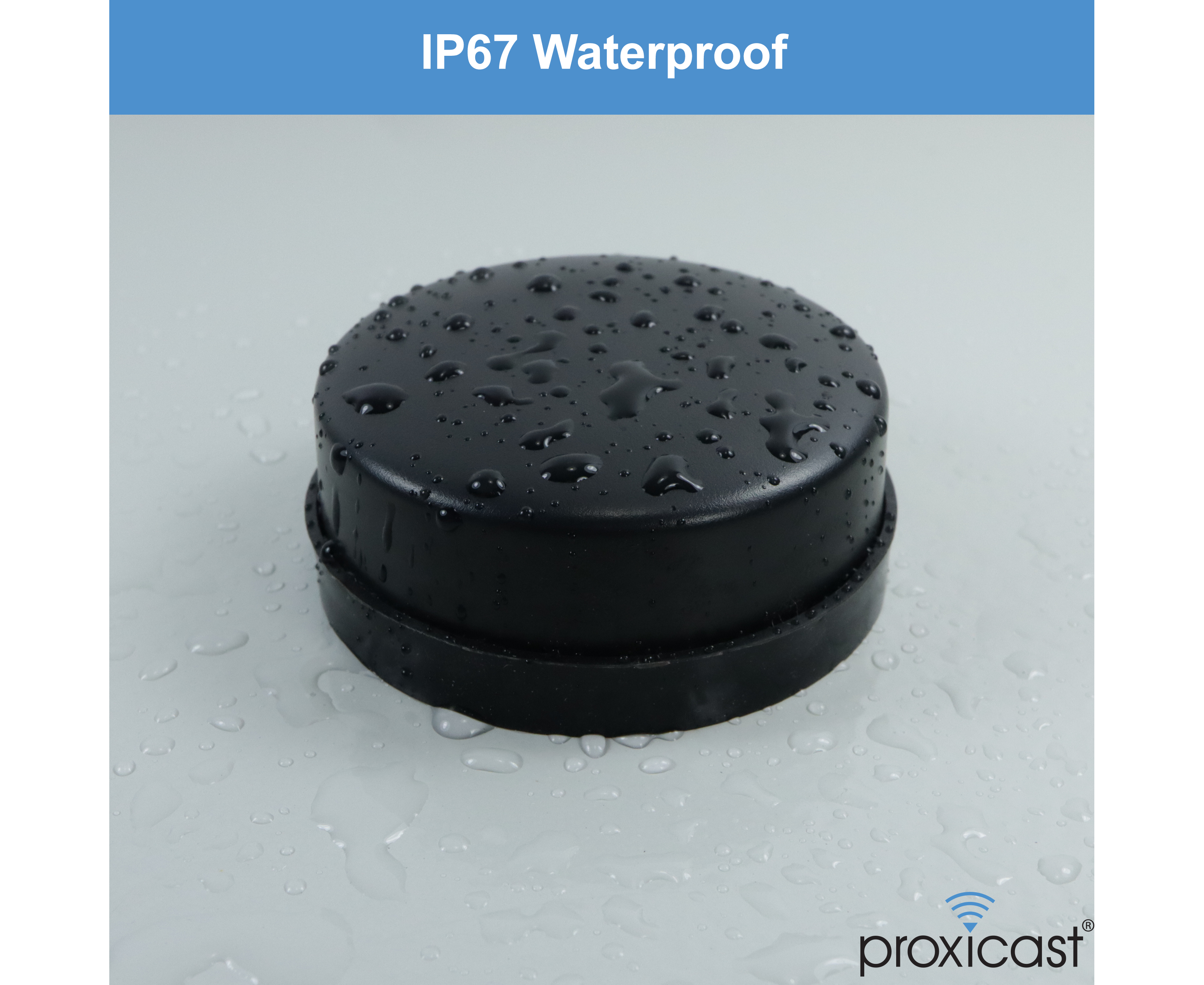

| Ingress Protection | IP67 (waterproof) |
SKU: ANT-190-020
UPC: 850021295523
