12 inch Stainless Steel Extension Pole for Proxicast J-Max Antenna Mounts

MSRP:$2795
$2495
You save: $3.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$23.95
$23.70
$23.45
Availability: 1520 Item(s)
ANT-800-X12
+ −
Add to Wish List
Key Features

  • 12 INCH J-MAX EXTENSION POLE - 304 Stainless Steel Coupling Hardware Included

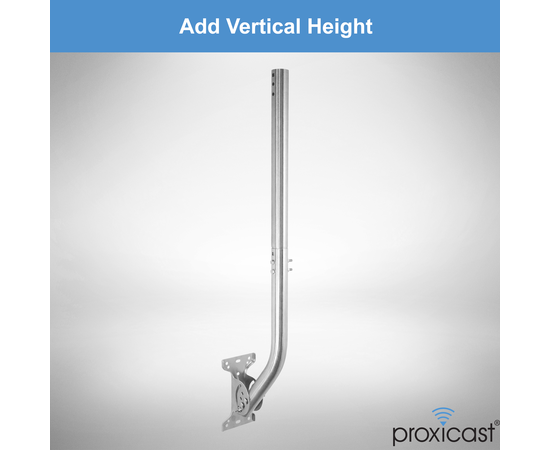

  • ADD MORE HEIGHT - Increase the Vertical Length of the J-Max Mount

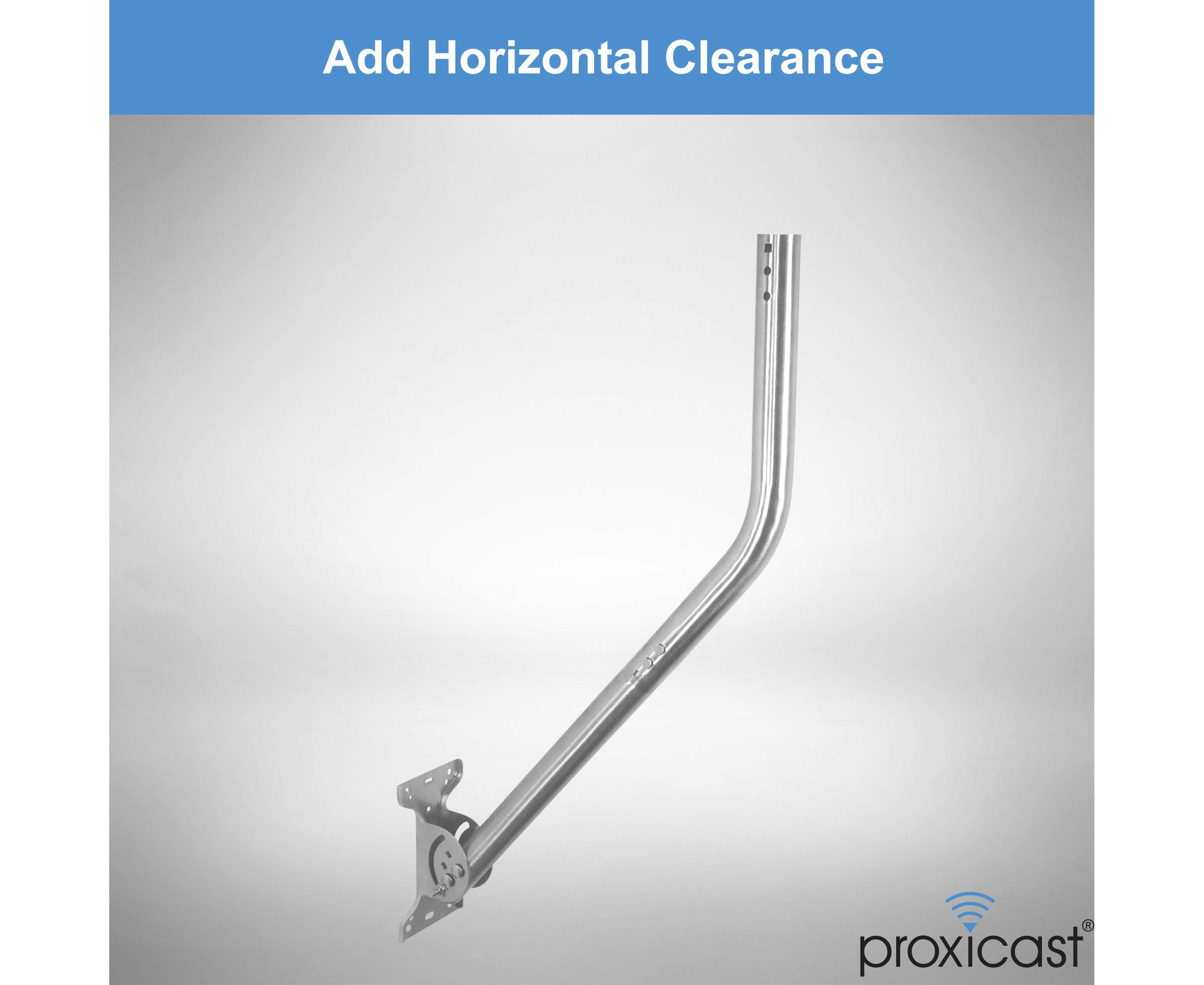

  • ADD MORE CLEARANCE - Extend the Horizontal Stand-Off Distance from J-Max Mount Base to the Curved J-Pipe

  • FITS ANY PROXICAST J-MAX MOUNT - 18 inch or 36 inch (XL) Mounts in Stainless or Aluminum

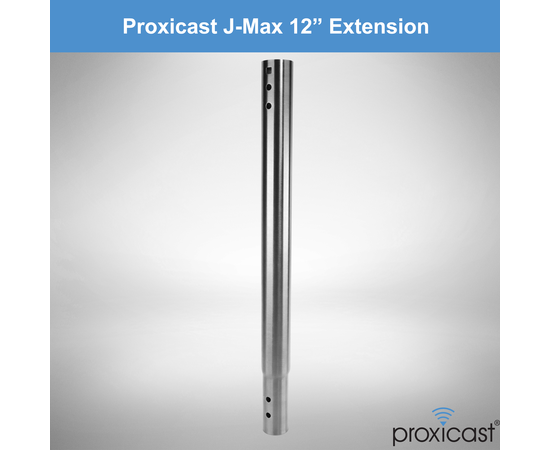

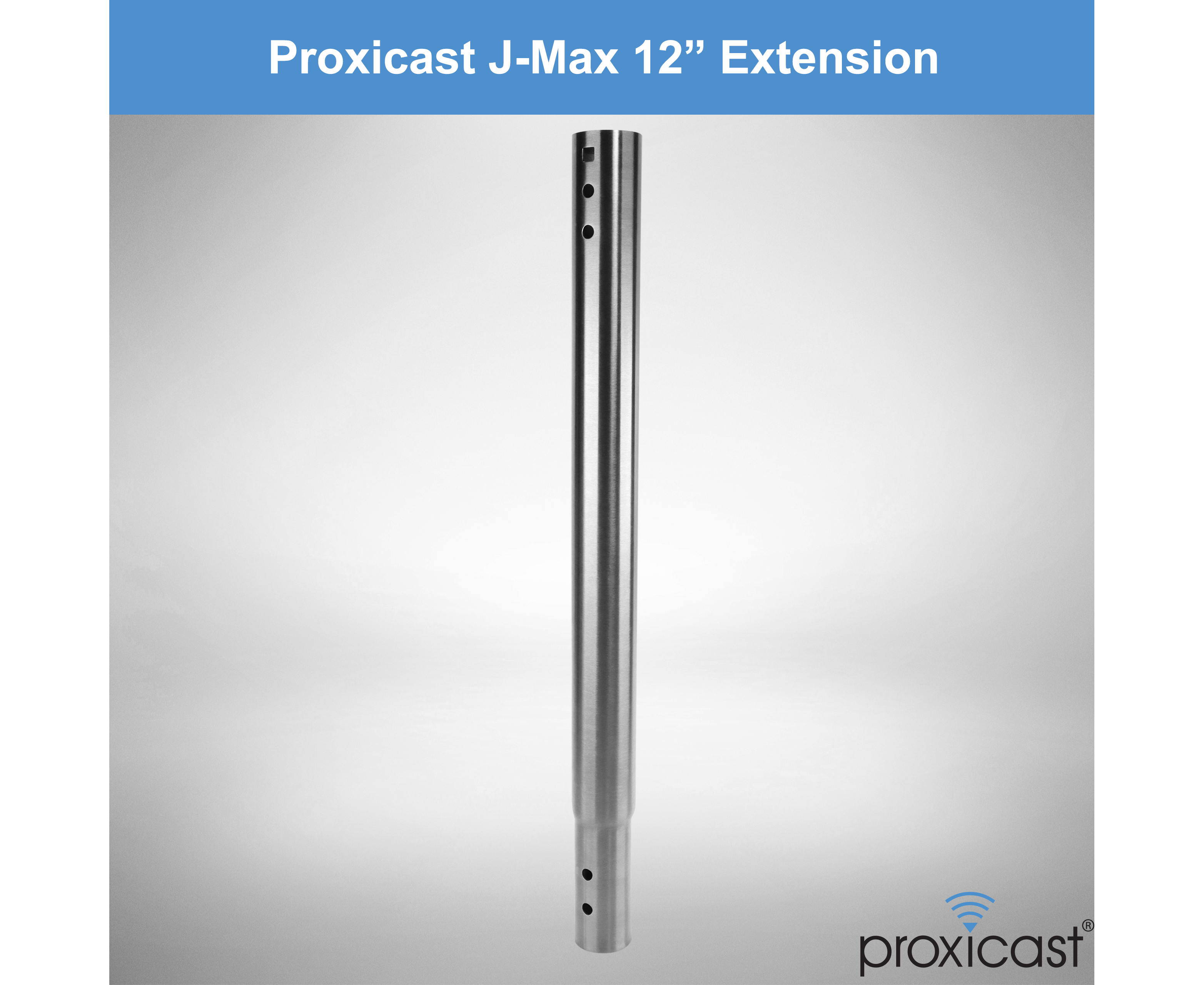

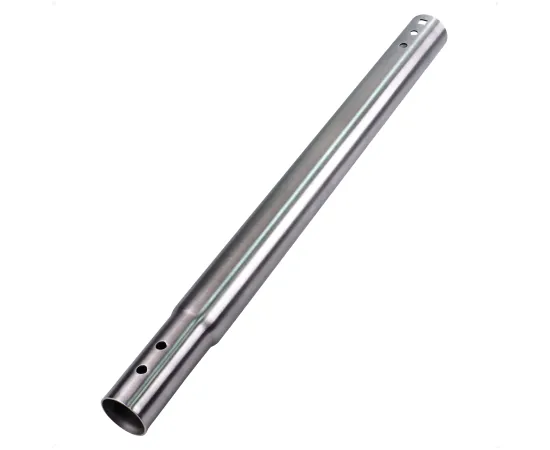

12 inch Stainless Steel Extension Pole for Proxicast’s Pro-Grade adjustable stand-off antenna mounts. Pole is swaged at one end to allow insertion into either end of a curved J-Max J-Pole. Swaged end includes 2 attachment bolts and nylon lock nuts to create a secure connection to the J-pole. The J-Max's round and square hole pattern is replicated for use in either direction.

Use to extend the height of the antenna mast or to increase the wall stand-off distance prior to the bend.

Works with all size J-Max mounts in both aluminum and stainless steel.

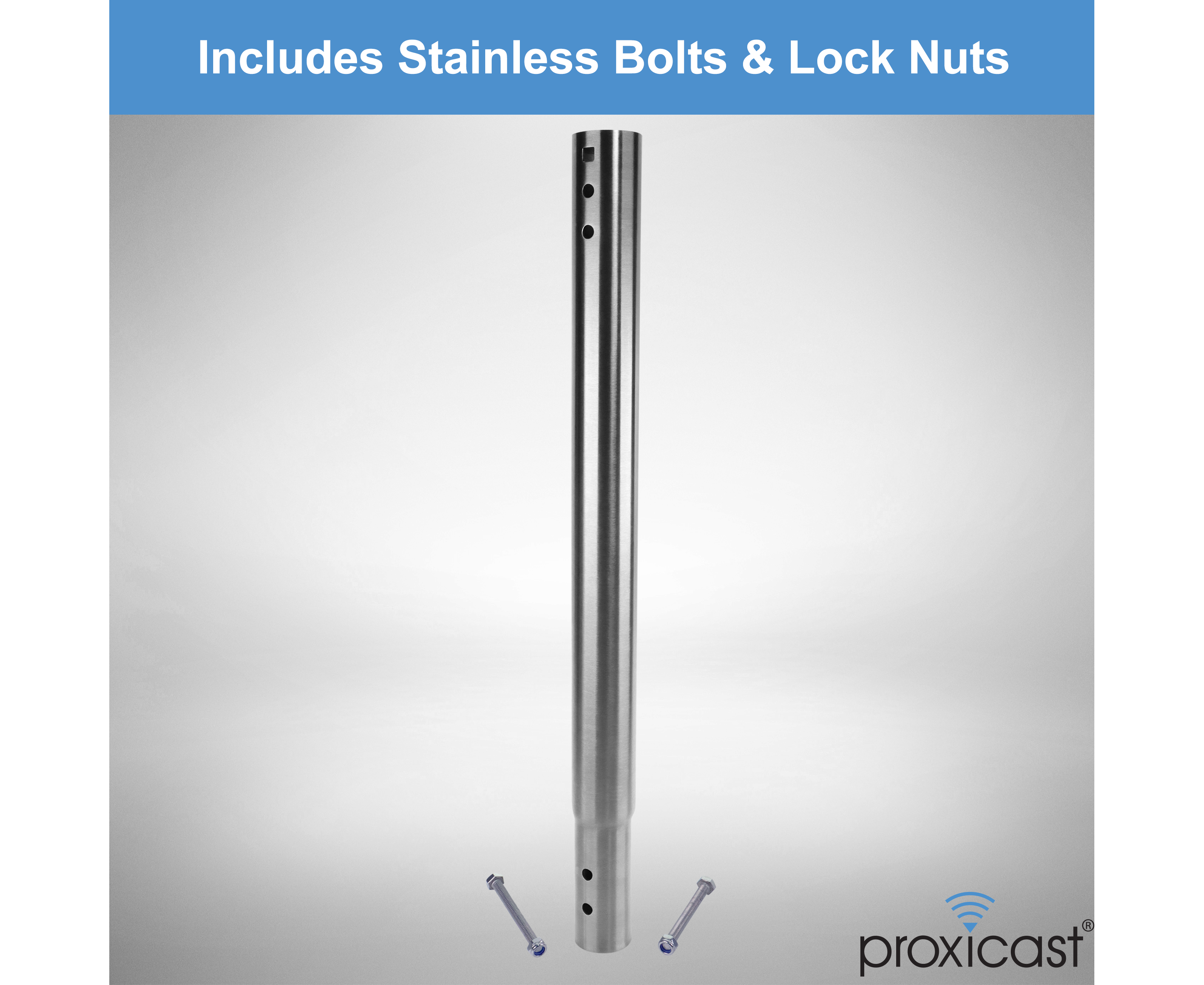

Kit Includes:

  • 12 Inch Stainless Straight Extension Pole (1.5 in. outer dia; 15 in. total length)
  • 2x M6 Stainless Coupling Bolts
  • 2x M6 Stainless Nylon Lock Nuts (use an M10 wrench)

Note:
Depending on placement of the extension, the maximum weight supported by the J-Max mount may be reduced.

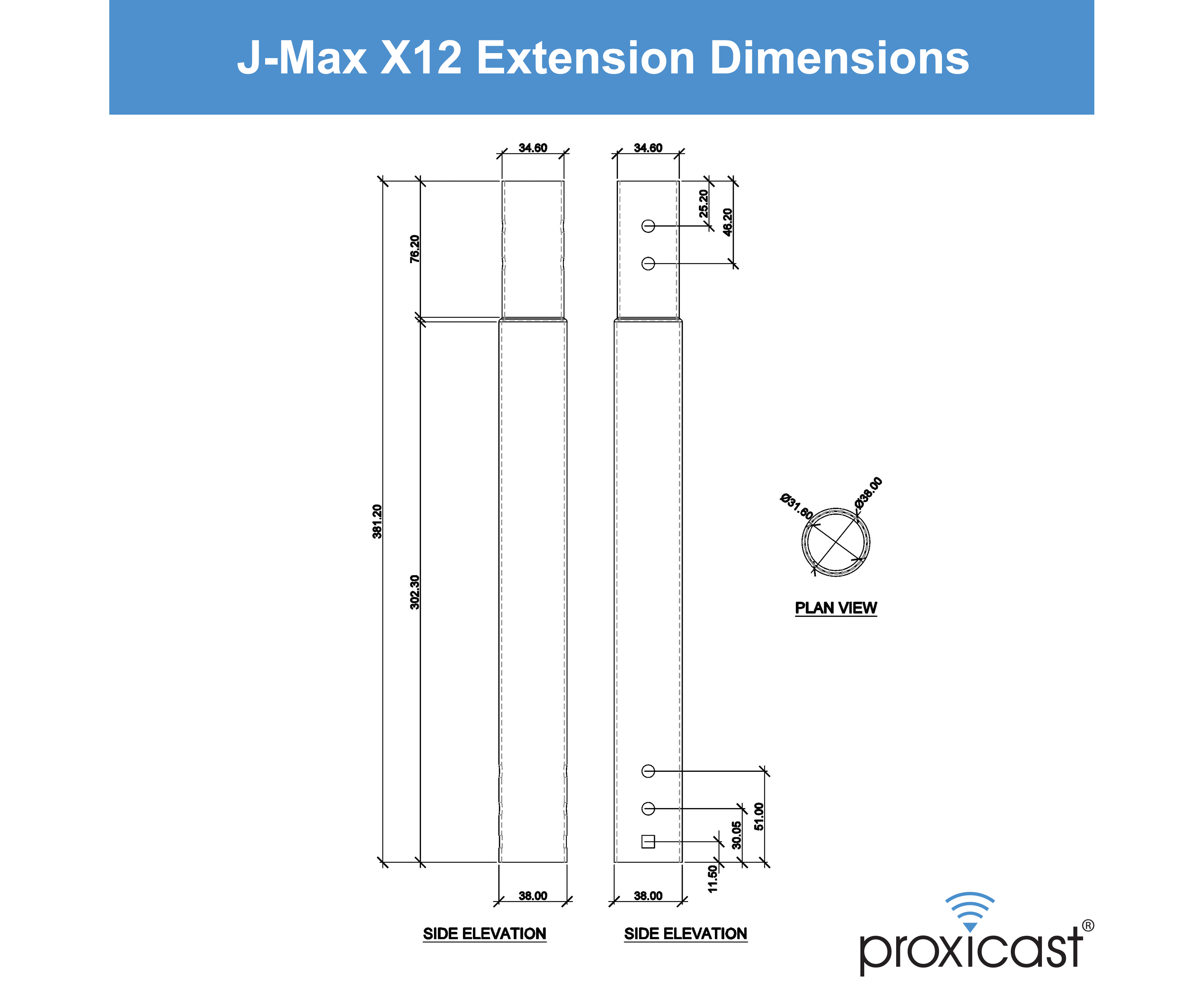

ANT-800-X12 Specifications
Material - Adapter Stainless Steel (SS 304)
Material - Bolts, Nuts,  Stainless Steel (SS 304)

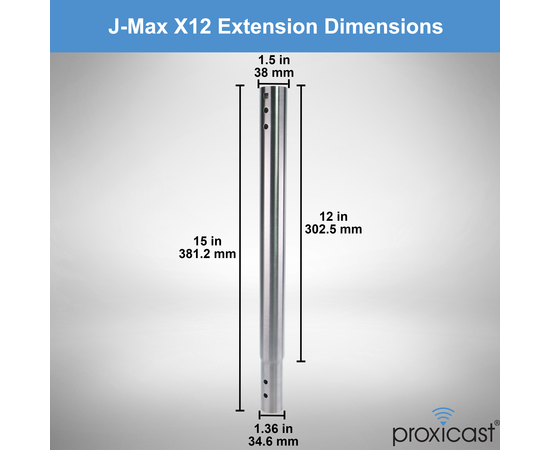

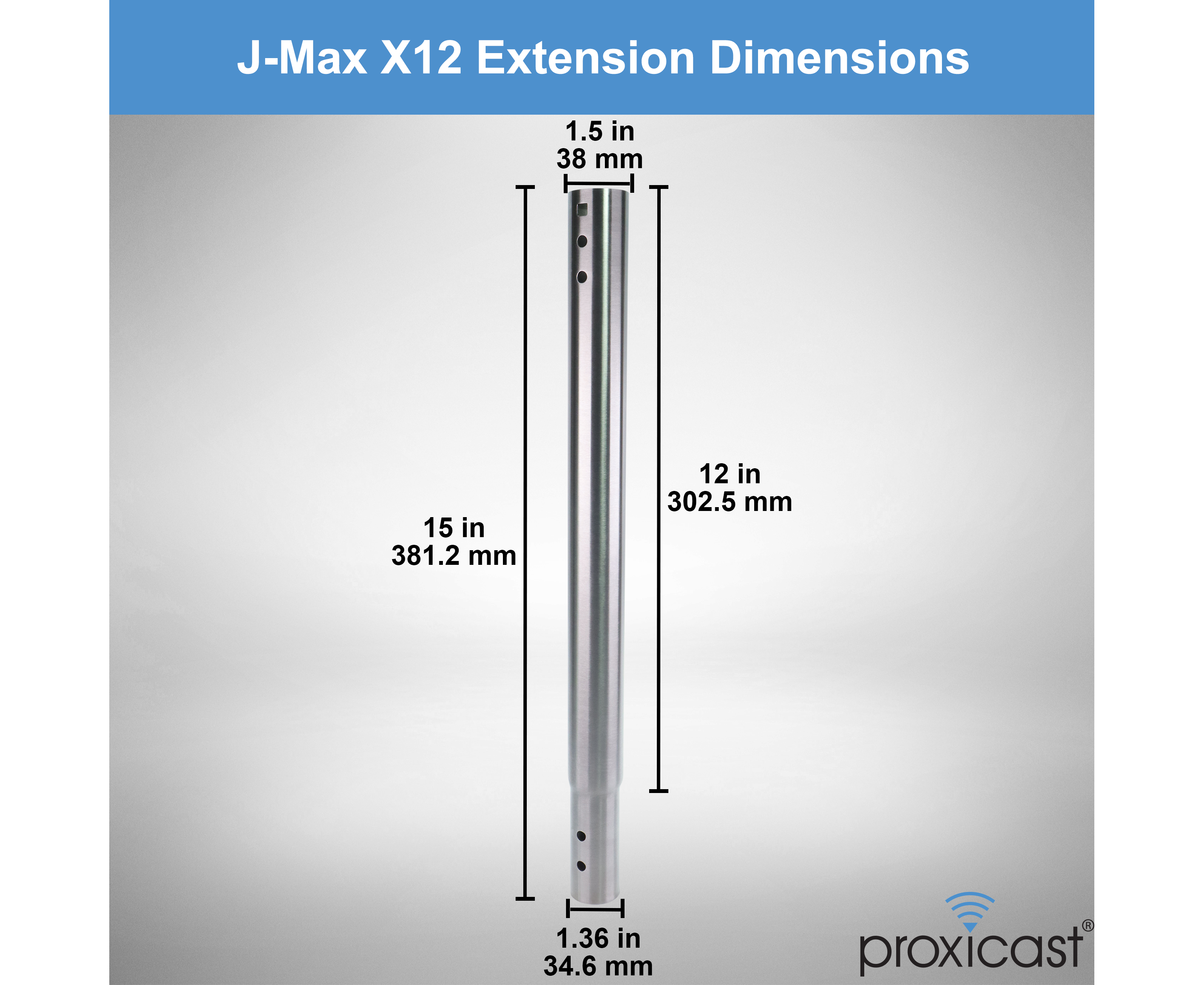

Top Outer Diameter 1.5 in / 38 mm
Bottom Outer Diameter 1.36 in / 34.6 mm
Overall Length 15 in / 381.2 mm
Height Above J-Max 12 in / 302.3 mm
Fastener Size M6 x 55 mm - Use M10 size wrench
Assembled Weight 17 oz / 482 g

SKU: ANT-800-X12

UPC: 617237752246

  • Title: 12 inch Stainless Steel Extension Pole for Proxicast J-Max Antenna Mounts
  • Part #: ANT-800-X12
  • UPC Code: 617237752246
  • ASIN: B0CN5BZYVF
  • HS Code: 7326.19.0080
  • Country of Origin: China
