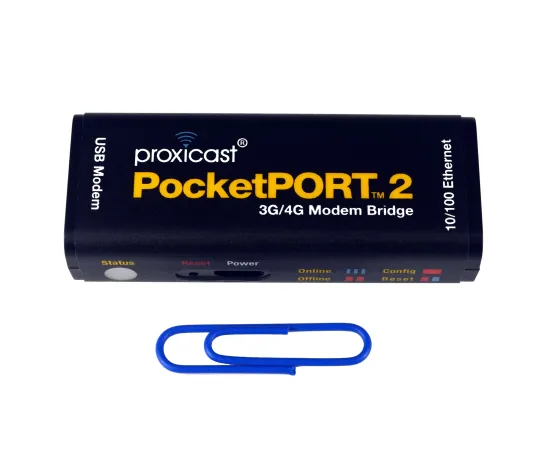

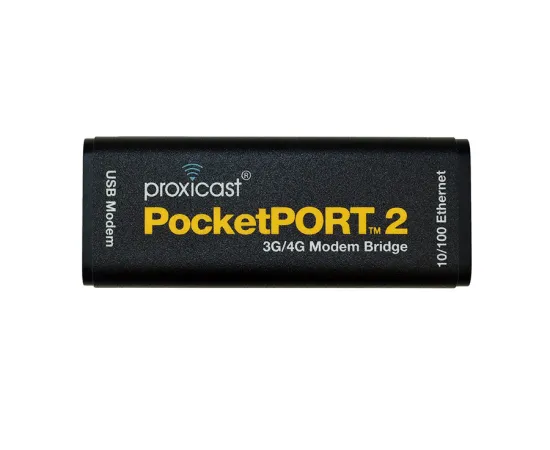

Proxicast PocketPORT 2: Pocket-Sized 4G/LTE USB Cellular Modem Bridge (Mini Router)
The ultra-small Proxicast PocketPORT 2 4G/LTE Cellular Modem Bridge supports all major modem standards. The PocketPORT 2 can function as a 4G/LTE Modem or Router.

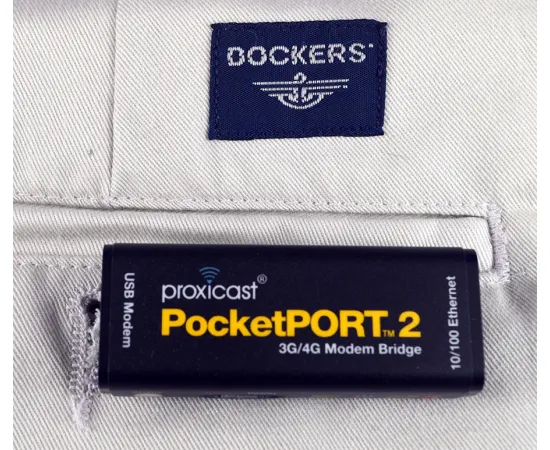

PocketPORT 2 is the World’s Smallest 4G/LTE USB Cellular Modem to Ethernet Bridge/Router

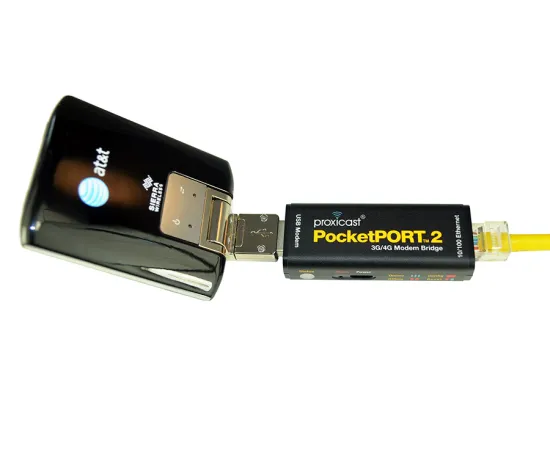

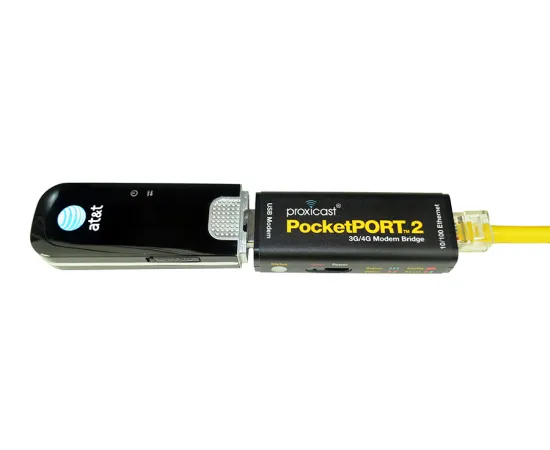

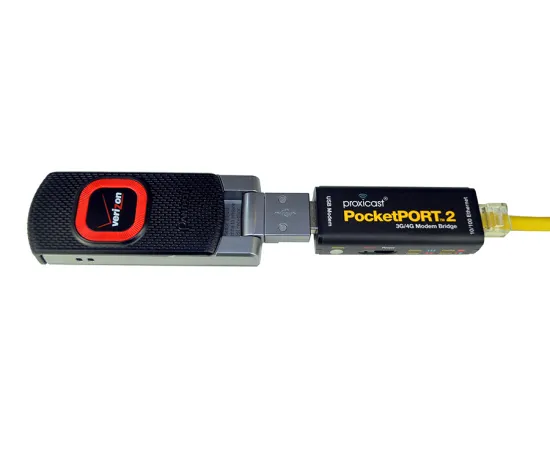

The PocketPORT 2 is the world’s smallest 4G USB Cellular Modem Bridge which can function as a 4G modem or mini 4G router. The PocketPORT 2 instantly connects virtually any cellular 4G USB modem to any Ethernet device simply by plugging both devices into the PocketPORT 2. The PocketPORT 2 is the highly portable, simple and low-cost alternative to large, complex and expensive cellular Ethernet modems. It also has some the functions of more expensive cellular routers.
Use a PocketPORT 2 wherever wired Internet service is unavailable, difficult, costly or time-consuming to install. Plug a PocketPORT 2 into the Ethernet port of devices such as IP cameras (web cams) for security applications, programmable logic controllers (PLC) for industrial processes, digital & network video recorders (DVR/NVR) or any other equipment that needs Internet service for remote access. Have field service technicians keep a PocketPORT 2 in their “pocket” for instant 4G Internet access for remote equipment when they are on site visits.
The PocketPORT 2 can also create a fully encrypted "virtual cable" VPN link between two Ethernet devices over the Internet, using standard 4G cellular USB modems. The PocketPORT 2 contains a powerful VPN controller that is capable of establishing transparent peer-to-peer connections from behind firewalls. It acts just like a very long virtual Ethernet cable. Virtual cable mode can be configured either as point-to-point or point-to-multi-point connections.
3 Modes of Operation

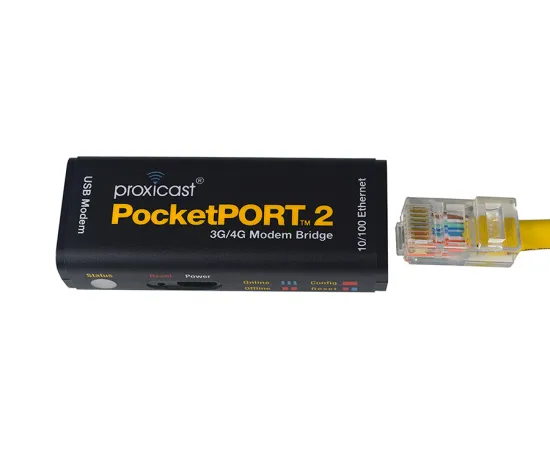

- Bridge Mode - plug a USB modem into any Ethernet port
- Router Mode - provide an Internet connection to an existing network
- Virtual Cable - create a secure Ethernet connection between any Internet connected devices
Read more in the PocketPORT 2 User's Guide
Standard Included Items
- PocketPORT 2 Cellular Modem Bridge

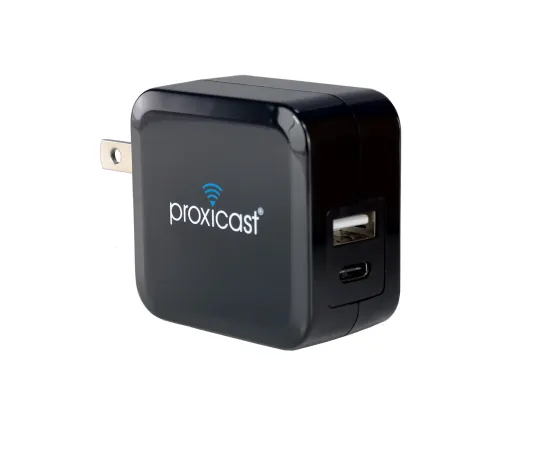

- Auto switching 100-240 VAC to 5 VDC power supply w/US Plugs
- PocketPORT 2 Quick Start Guide
- Proxicast 1 Year Limited Warranty
- Free Firmware Upgrades
- Free Technical Support
USB Modems, external antennas, and antenna pigtails sold separately.
Our PocketPORT 2 kits do not include the cellular USB modem. All USB Modems are sold separately.
Customers desiring a dedicated Virtual Cable Switchboard may purchase a Virtual Cable Switchboard Server Software for Linux license, sold separately

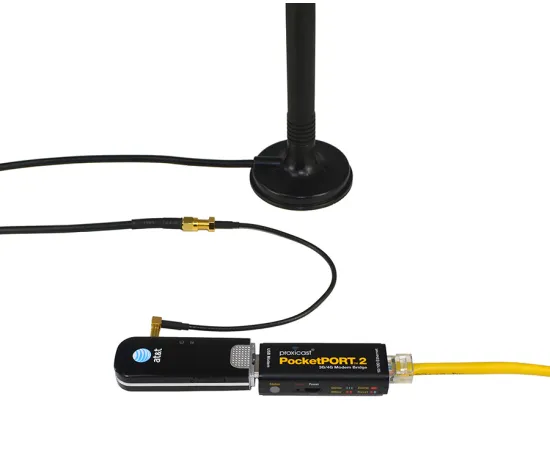

For maximum 4G speeds and connection reliability, Proxicast strongly recommends the use of external antennas with USB modems.
|
Note for users of the Netgear 340U (AT&T Beam), MF861 (AT&T Velocity) or Netgear 341U (Sprint) USB Modems These modems require USB Adapter ACC-USB-004 for compatibility with the PocketPORT 2. |
|
Mobile Applications |
Stationary Applications |

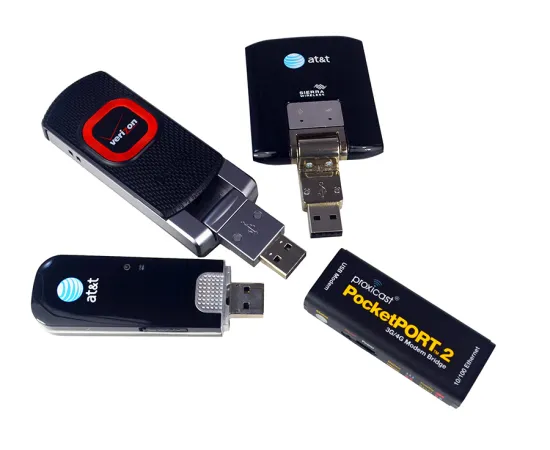

The Proxicast PocketPORT 2 is compatible with most cellular equipment including 4G/LTE modems from Alcatel, AT&T, Franklin, Netgear, Nokia, Novatel, Option, Pantech, Sierra Wireless, Verizon and many more. On 3G/4G/LTE carriers such as, AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, SaskTel, BTC, Digicel, FLOW, Moviestar, Telcel, and many other carriers around the globe.
PocketPORT 2 Specifications
| Mechanical | |
|---|---|
| Dimensions | 62 mm x 23 mm x 15 mm 2.4 in x 0.9 in x 0.6 in |
| Weight | 25 grams |
| Operating Temperature | -10° C ~ 55° |
| Operating Humidity | 10% ~ 80% RH |
| Storage Temperature | -20° C ~ 60° C |
| Storage Humidity | 5% ~ 90% RH |
| Electrical | |
| Operating Voltage | 5 VDC (regulated to ±5%) |
| Power Consumption |
0.75 W without USB modem |

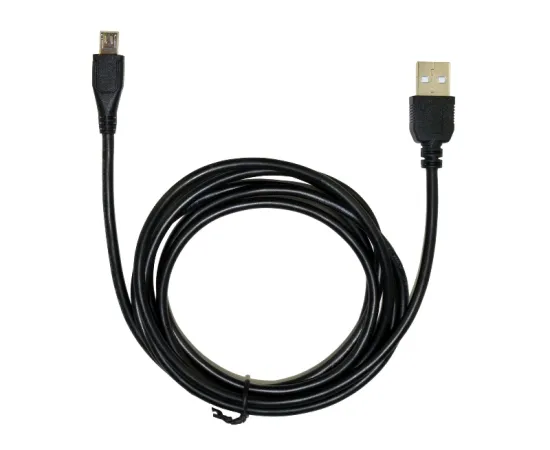

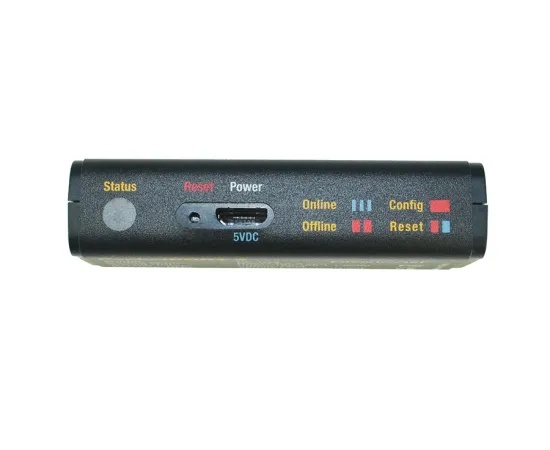

| Power Jack | microUSB |

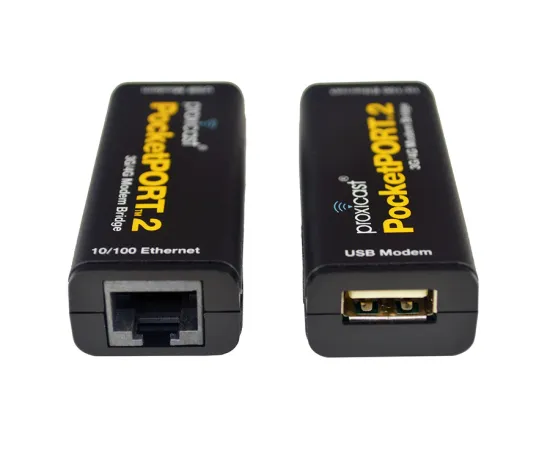

| Interfaces | 1x USB 2.0 (USB modem) 1x RJ45 (10/100 Ethernet) |
| Certifications | FCC Class B, CE |
| External Power Adapter | 7.5 W (5 VDC @ 1.5A), 100~240 VAC input, interchangeable blades |
| Software Features | |
| Operating Modes | IP Pass-Through/Bridge NAT Router Virtual Cable (VPN) |
| # LAN Devices Supported | 1 (IP Pass-Through/Bridge mode) 253 (NAT Router mode) Unlimited (Virtual Cable mode) |
| User Definable IP Address | Yes |
| DHCP Server | Yes, user configurable (NAT Router mode) |

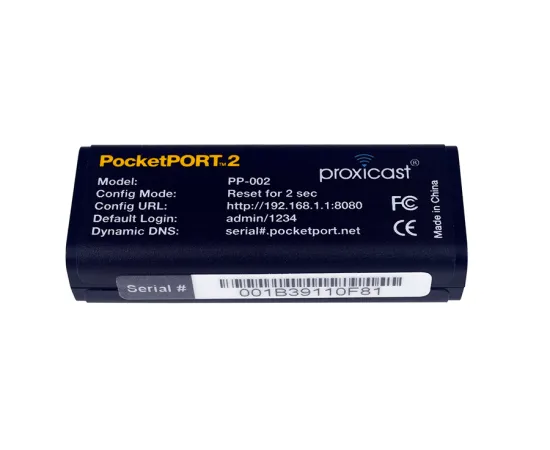

| Dynamic DNS Support | Permanent dynamic DNS hostname: serial#.pocketport.net User-definable DynDNS.com hostname |
| Encryption Algorithm | Twofish, 256 bit keys (Virtual Cable mode) |
| Authentication | Pre-shared Key (Virtual Cable mode) |
| Connection Behind Firewalls | Yes |
| SIM / RUIM Pin Support | Yes |

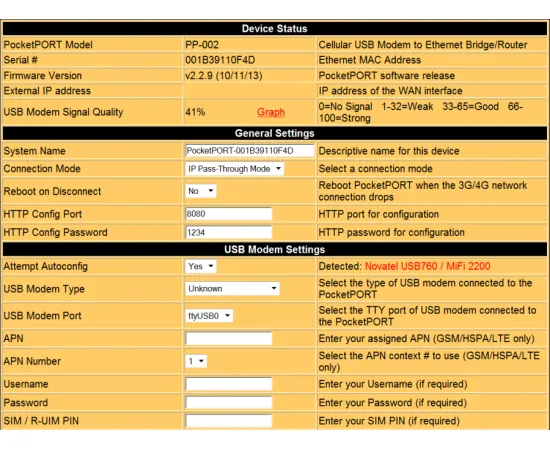

| Device Configuration | Web-browser based (HTTP) |
| Firmware Updateable | Yes |
| USB Modem Features | |
| USB Modems Supported | Most USB form-factor 3G & 4G GSM, LTE, HSPA+, HSPA, HSUPA, HSDPA, UMTS, GPRS, CDMA, EVDO and 1X modems |
| Automatic Configuration of Modem Settings | Yes |
| Connection Monitoring | Yes w/ automatic ICMP (ping) keep-alive heartbeat function |
| Connection Types | Static IP, Dynamic IP, Custom APN |

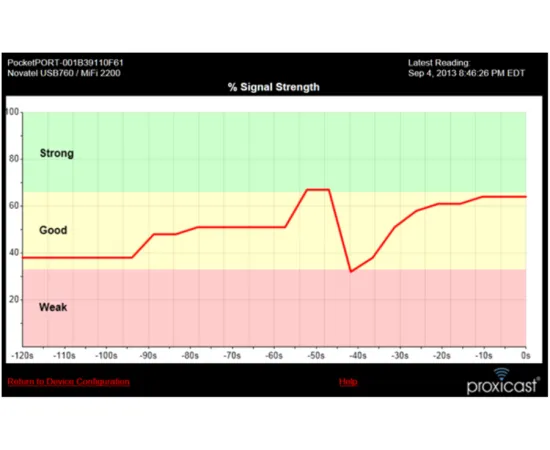

| Modem Signal Strength Display | Yes, dependent on modem capabilities, including signal strength history graph |
