Proxicast Low-Loss Coax Jumper Cable (50 Ohm) - N-Male to N-Male - Radio to Surge Arrestor or Antenna

Home/Coax Cables/N to N/Proxicast Low-Loss Coax Jumper Cable (50 Ohm) - N-Male to N-Male - Radio to Surge Arrestor or Antenna

Save 33%

Proxicast Low-Loss Coax Jumper Cable (50 Ohm) - N-Male to N-Male - Radio to Surge Arrestor or Antenna, Cable Length: 50 ft (CFD 400)

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by Part #	Sort by Cable Length
$17⁹⁵ MSRP:$39⁹⁵	Availability: 217 Item(s) + −	ANT-180-001-10	Cable Length: 10 ft (CFD 195)
$69⁹⁵ MSRP:$104⁹⁵	Availability: 23 Item(s) + −	ANT-180-001-50	Cable Length: 50 ft (CFD 400)
$15⁹⁵ MSRP:$26⁹⁶	Availability: 108 Item(s) + −	ANT-180-001-06	Cable Length: 6 ft (CFD 195)
$22⁹⁵ MSRP:$49⁹⁵	Availability: 256 Item(s) + −	ANT-180-001-15b	Cable Length: 15 ft (CFD 240)
$37⁹⁵ MSRP:$99⁹⁵	Availability: 17 Item(s) + −	ANT-180-001-25b	Cable Length: 25 ft (CFD 240)
$59⁹⁵ MSRP:$89⁹⁵	Availability: 73 Item(s) + −	ANT-180-401-25	Cable Length: 25 ft (CFD 400)
$17⁹⁵ MSRP:$20⁹⁵	Out of Stock	ANT-180-201-06	Cable Length: 6 ft (CFD240)
$25⁹⁵ MSRP:$29⁹⁵	Availability: 54 Item(s) + −	ANT-180-401-06	Cable Length: 6 ft (CFD 400)
$33⁹⁵ MSRP:$39⁹⁵	Out of Stock	ANT-180-401-10	Cable Length: 10 ft (CFD400)
$32⁹⁵ MSRP:$40⁹⁵	Availability: 249 Item(s) + −	ANT-180-401-15	Cable Length: 15 ft (CFD400)
$15⁹⁵ MSRP:$17⁹⁵	Out of Stock	ANT-180-201-03	Cable Length: 3 ft (CFD240)
$31⁹⁵ MSRP:$34⁹⁵	Availability: 130 Item(s) + −	ANT-180-201-20	Cable Length: 20 ft (CFD240)
$35⁹⁵ MSRP:$42⁹⁵	Availability: 46 Item(s) + −	ANT-180-401-20	Cable Length: 20 ft (CFD400)
$63⁹⁵ MSRP:$79⁹⁵	Availability: 5 Item(s) + −	ANT-180-401-36	Cable Length: 36 ft (CFD400)

Description
Specifications
Documentation
Product Inquiry
Identity

Key Features

HIGH PERFORMANCE COAXIAL EXTENSION CABLE for 4G/5G Cellular Broadband, ADS-B and GPS Applications

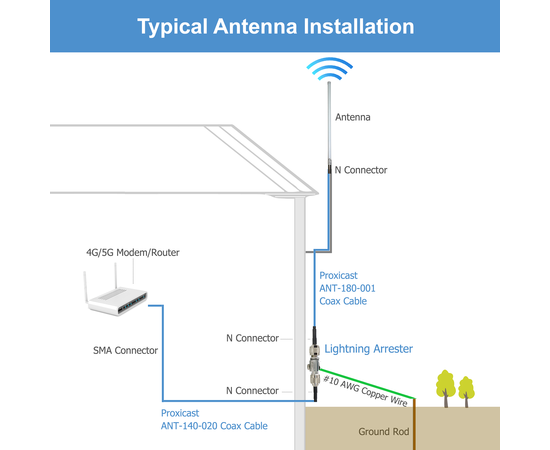

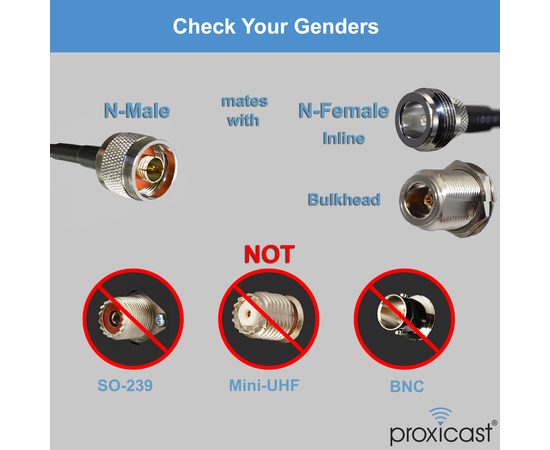

N MALE TO N MALE COAXIAL JUMPER CABLE - Connects from N Female equipment (e.g. modem, router, booster) to N-Female antennas
50-OHM LOW-LOSS COAX with Heat Shrink Tubing on Both Connectors
GOLD PLATED CONNECTOR PINS on Solid Copper Core for Maximum Conductivity - Significantly Outperforms "RG" Series Coax
RATED FOR ALL CLIMATES AND CONDITIONS - Can Withstand the Rigors of Outside Use (not for plenum or direct burial applications)

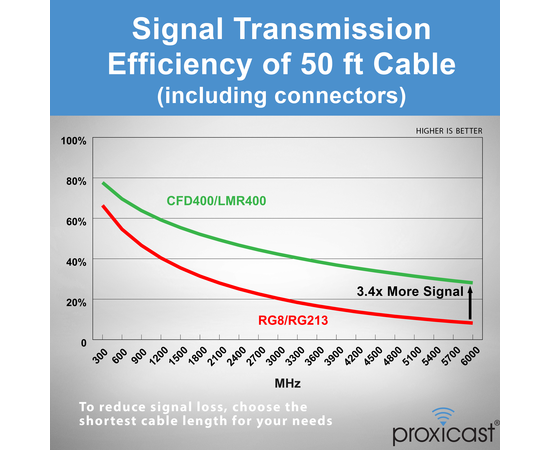

Ultra-low-loss 50 Ohm coax cable for maximum RF reception and transmission at common wireless frequencies. Significantly outperforms “RG” coax cables.	Solid core signal wire and gold-plated signal pins provide top-quality, high-performance conductivity.	Commercial-grade components ensure maximum toughness and durability. Cable is assembled, inspected and 100% tested by in our ISO-9001 certified facility.	Polyethylene jacket withstands abrasions and provides excellent moisture resistance for outdoor use (not rated for direct burial or plenum applications).

Proxicast recommends 0.195 inch diameter coax for assemblies up to 10 ft, 0.240 inch diameter up to 25 ft and 0.400 inch diameter up to 75 ft. It is acceptable to use a thick cable for the long portion of a cable run and a short thin cable to connect to equipment or antennas, but minimize the total cable length and number of connectors. Cable runs longer than 50 ft will generally require an in-line amplifier.

To ensure that you are selecting the correct cable, please refer to the Support tab for information regarding RF Connectors and Signal Attenuation.

Note: All outdoor coax connections must be weather-proofed to minimize damage caused by moisture in the connectors or cabling. Use our Self-Bonding silicone tape (ANT-900-002) for fast and easy connection sealing.

Specifications

Connector 1: N Male
Connector 2: N Male

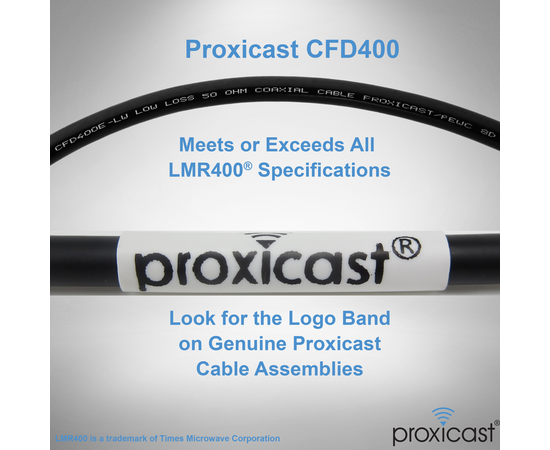

Coax: Low-loss CFD Coax (LMR equivalent)
Impedance: 50 Ohm

For Best Results

Use the shortest possible cable
Do not cut or splice the cable
Observe the minimum bend radius of the cable at all times
Minimize the number of connectors used
Fully tighten coax connectors
Weatherseal all outdoor connections with silicone tape (ANT-900-002)

ANT-180-001 Specifications

Connector 1	N Male (plug) Chrome Plated with Gold Plated Pin
Connector 2	N Male (plug) Chrome Plated with Gold Plated Pin
Length	3 ft (0.914 m) 6 ft (1.829 m) 10 ft (3.048 m) 15 ft (4.572 m) 20 ft (6.096 m) 25 ft (7.620 m) 36 ft (10.973 m) 50 ft (15.240 m) 75 ft (22.860 m)

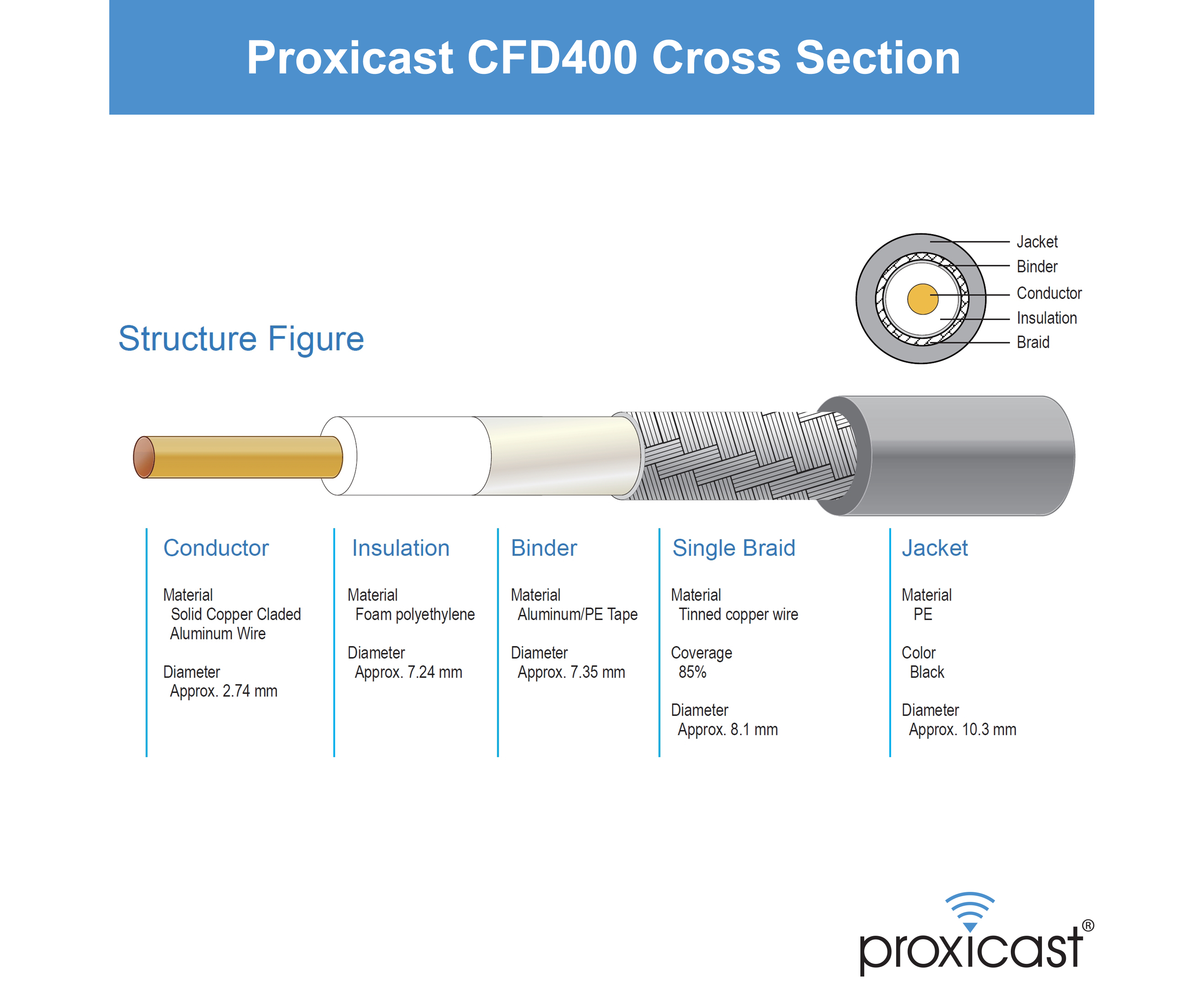

Coax	Low-loss CFD195-E (0.195 inch / 5 mm diameter) Low-loss CFD240-E (0.240 inch / 6.1 mm diameter) Low-loss CFD400-E (0.400 inch / 10.3 mm diameter) Meets or exceeds Times Microwave^® LMR equivalent diameter coax Not rated for direct burial or plenum applications
Impedance	50 ohm
Min Bend Radius	CFD195: 0.5 inch (12.7 mm) CFD240: 0.75 inch (19.1 mm) CFD400: 1.0 inch (25.4 mm)
Operating Temp.	-40 to +185F (-40C to 85C)

SKU: ANT-180-001

UPC: 617237751133

ANT-180-001-NM-NM Series Specification Sheet (431 Kb)

Title: Proxicast Low-Loss Coax Jumper Cable (50 Ohm) - N-Male to N-Male - Radio to Surge Arrestor or Antenna
Part #: ANT-180-001-50
UPC Code: 617237751751
ASIN: B07XYGGFRP
HS Code: 8544.20.00.00
Country of Origin: China
Export Control: EAR99 / NLR (No License Required)
