Proxicast 3G/4G/LTE Universal Wide Band 5 dBi Omni-Directional Paddle Antenna for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Many Others

MSRP:$28.95
$21.95
You save: $7.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$21.07
$20.85
$20.63
Availability: 383 Item(s)
ANT-120-007
+

Minimum quantity for "Proxicast 3G/4G/LTE Universal Wide Band 5 dBi Omni-Directional Paddle Antenna for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Many Others" is 1.

Add to Wish List
Key Features

  • Direct Replacement for Low Gain Antennas included with many Cellular Products

  • Boosts Signal Strength and Upload / Download Data Speeds on AT&T, Verizon, Sprint, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers

  • Compatible with any 3G/4G/LTE Broadband Router, Modem, Trail Camera or Amplifier / Booster with an SMA Antenna Jack

  • 5 dBi Omni Antenna Swivels and Tilts to Increase Weak Signal Reception and Improve Poor Internet Speeds from Remote Cell Towers

  • SMA Male connector screws directly to modem / router / amp or magnetic base (sold separately)

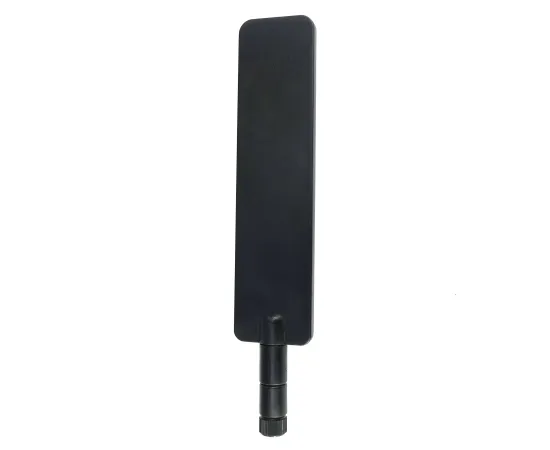

The Proxicast Flat Swivel Antenna is a high-efficiency mid-gain 3G/4G/GPS omnidirectional antenna. The "rubber-duck" style antenna is an 7.7 inch (196 mm) omni-directional antenna that provides 5 dBi of gain and supports all 2G, 3G and 4G/LTE/xLTE/AWS frequency bands (698-2700 MHz) used by U.S. and Canadian cellular carriers such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.

This antenna also covers the GPS frequency (1575 MHz) and can be used as a passive GPS antenna or as a multiplexed cellular + GPS antenna.

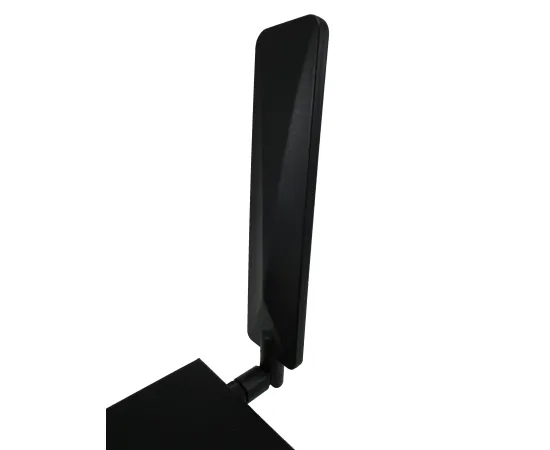

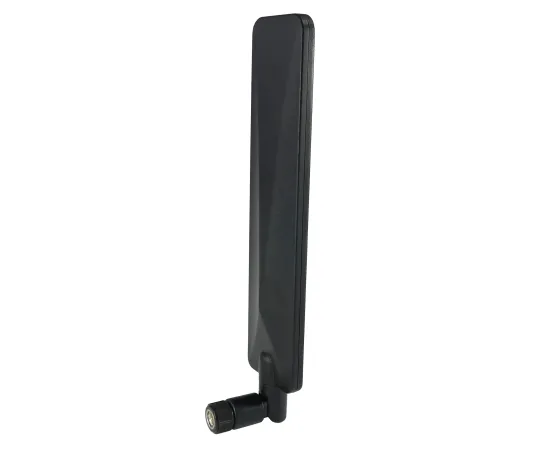

The polycarbonate antenna swivels 90 degrees and rotates 360 degrees for optimal positioning and maximum signal reception and has an integrated SMA male plug connector and ground-plane. This antenna is a smart choice for mobile or stationary applications where extra gain is required.

Compatible with all SMA-based equipment including modems and routers from Cisco, Cradlepoint, Digi, Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion and many others.

NOT for use with Wi-Fi (RP-SMA) devices

Note: LTE devices should use 2 identical antennas for best results.

ANT-120-007 Specifications
Electrical Properties
Frequency Range 698-2700 MHz
Impedance 50 ohm
VSWR ADGP < 2.0:1
Gain 5 dBi
Radiation Omni
Polarization Vertical
Ground Plane Integrated
Mechanical Properties

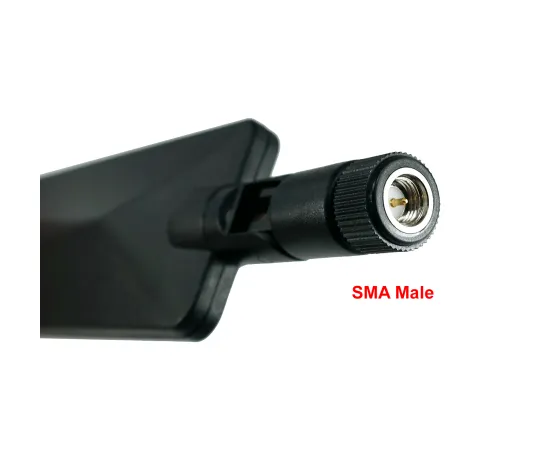

Connector SMA plug type (male) swivel
Material Whip: Polycarbonate (black)
Swivel Mechanism: Polycarbonate (black)
Connector: Brass with black chrome plating

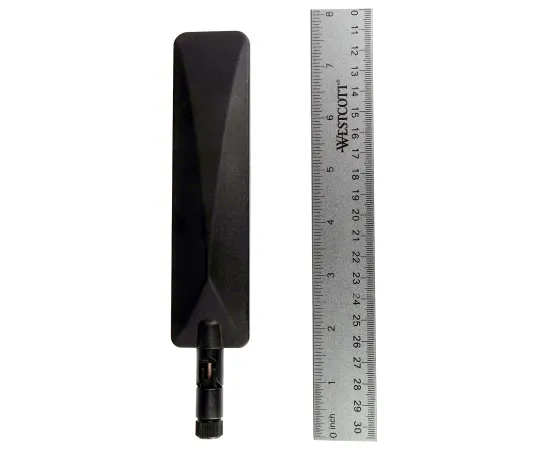

Length 7.7 inches (196 mm)
Width 1.5 inch (38 mm)
Operation Temp. -40°C to + 60°C
Certifications RoHS compliant



SKU: ANT-120-007

UPC: 617237750693
