Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Terminal Antenna (SMA Male) - Compatible with Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and Many Others

MSRP:$3195
$1895
You save: $13.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$18.19
$18.00
$17.81
Availability: 5 Item(s)
ANT-120-008
+ −

Minimum quantity for "Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Terminal Antenna (SMA Male) - Compatible with Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and Many Others" is 1.

Add to Wish List
COMBO: 4G/5G Paddle Antenna + Magnetic Base
Add our extra large & strong magnetic base to mount your ANT-120-008 paddle antenna to position it in the most optimal location away from your modem/router.
Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Terminal Antenna (SMA Male) - Compatible with Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and Many Others
Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional...
$13.99$18.95
+
Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Terminal Antenna (SMA Male) - Compatible with Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and Many Others, 8 image
Proxicast Pro-Grade 3.5-Inch Magnetic Antenna Base (SMA Jack/SM...
$14.99$19.95
=
Total list price$38.90
Price for all$28.98
Key Features

  • DIRECT REPLACEMENT for low gain antennas included with many cellular products

  • BOOSTS SIGNAL STRENGTH and UPLOAD / DOWNLOAD DATA SPEEDS on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers

  • COMPATIBLE WITH ANY 4G/5G Sub-6 broadband router, modem, trail camera or amplifier / booster with an SMA antenna jack

  • SUPPORTS ALL 4G/LTE bands and 5G NR FR1 low frequency bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and mid frequency C-bands n41 (T-Mobile) and n77 (AT&T, Verizon)

  • USE ON FirstNet & Citizens Broadband Radio Service (CBRS) equipment

  • 3-6 dBi OMNI ANTENNA swivels and tilts to increase weak signal reception and improve poor Internet speeds from remote cell towers

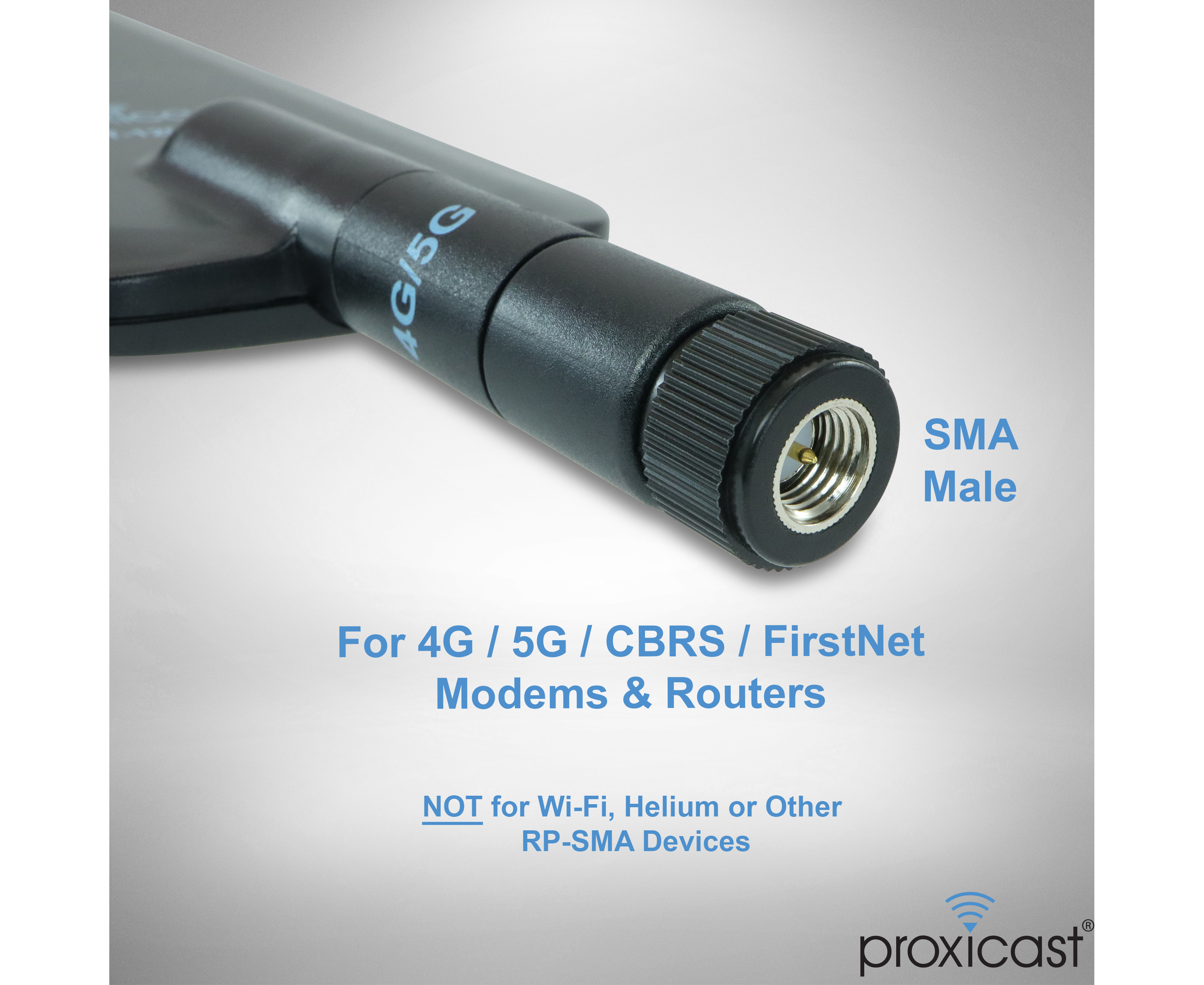

  • SMA MALE CONNECTOR screws directly to modem / router / amp or magnetic base (sold separately)



ANT-120-008

Proxicast 4G/5G/FirstNet/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Antenna

for Modems | Routers | Amplifiers

This high-efficiency 4G/5G/FirstNet/CBRS omnidirectional antenna provides up to 6 dBi of gain and supports all sub-6 GHz frequency bands used by cellular carriers worldwide.

The polycarbonate antenna's 3-way hinge rotates 360 degrees, swivels 180 degrees and tilts 90 degrees for optimal positioning and maximum signal reception.

Replacement for Standard Low Gain Antennas

The SMA male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart choice for applications where extra gain is required.

Key Features


  • Universal Compatibility
  • 6 dBi Peak Gain
  • 600 - 6000 MHz Frequency Coverage
  • Omni Directional Radiation Pattern
  • SMA Male Connector
  • Integrated Ground Plane
  • 3-Way Swivel Hinge

4G 5G CBRS

3 Way Swivel Joint

ANT-120-MB5 magnetic base

4G LTE, 5G, FirstNet & CBRS

Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz. Compatible with all brands of modems and routers with SMA antenna jacks.

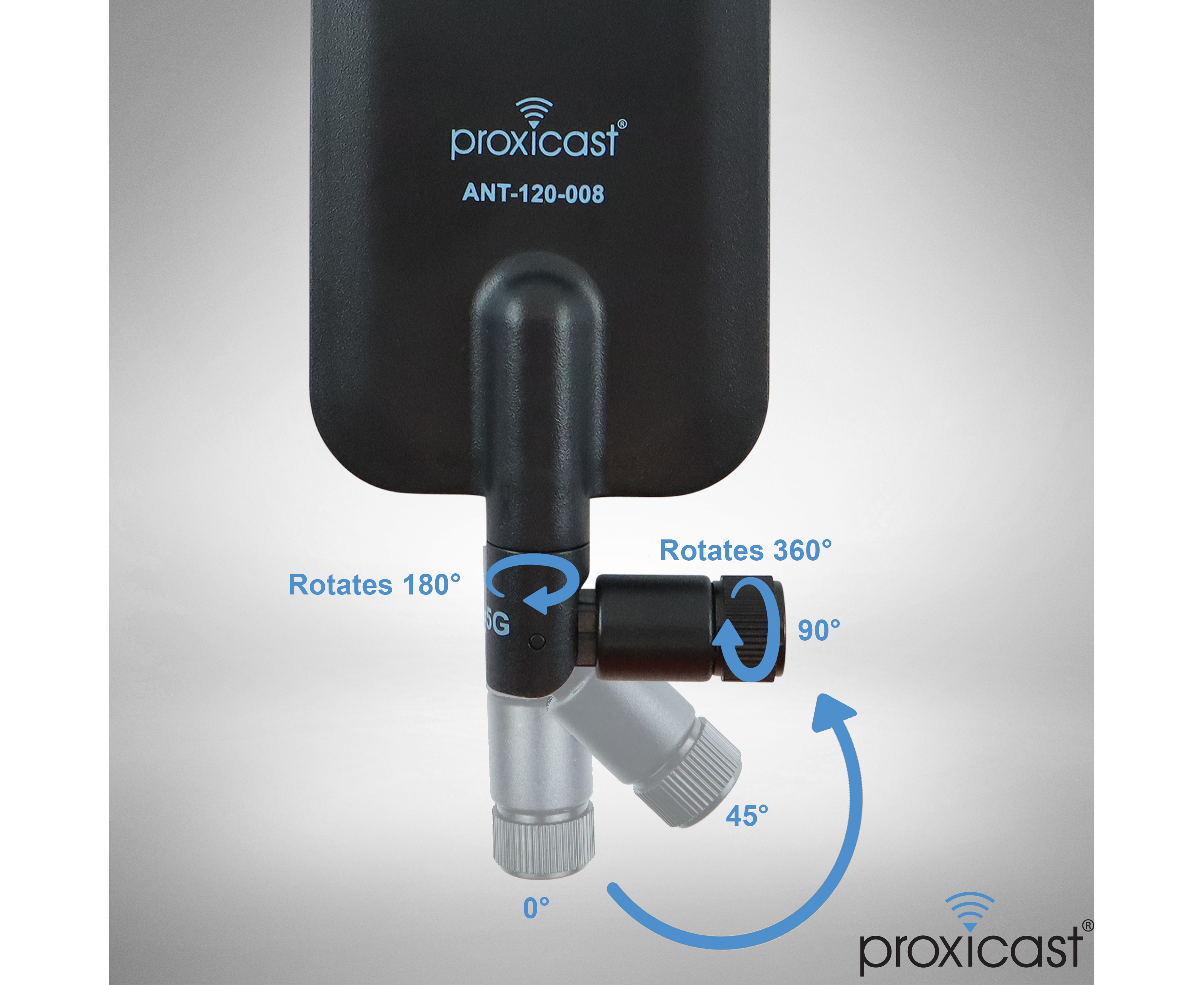

3 Way Hinge

Our 3 Way SMA Connector hinge provides the ultimate in positional flexibility. Rotate it, twist it and flip it to find the best signal.

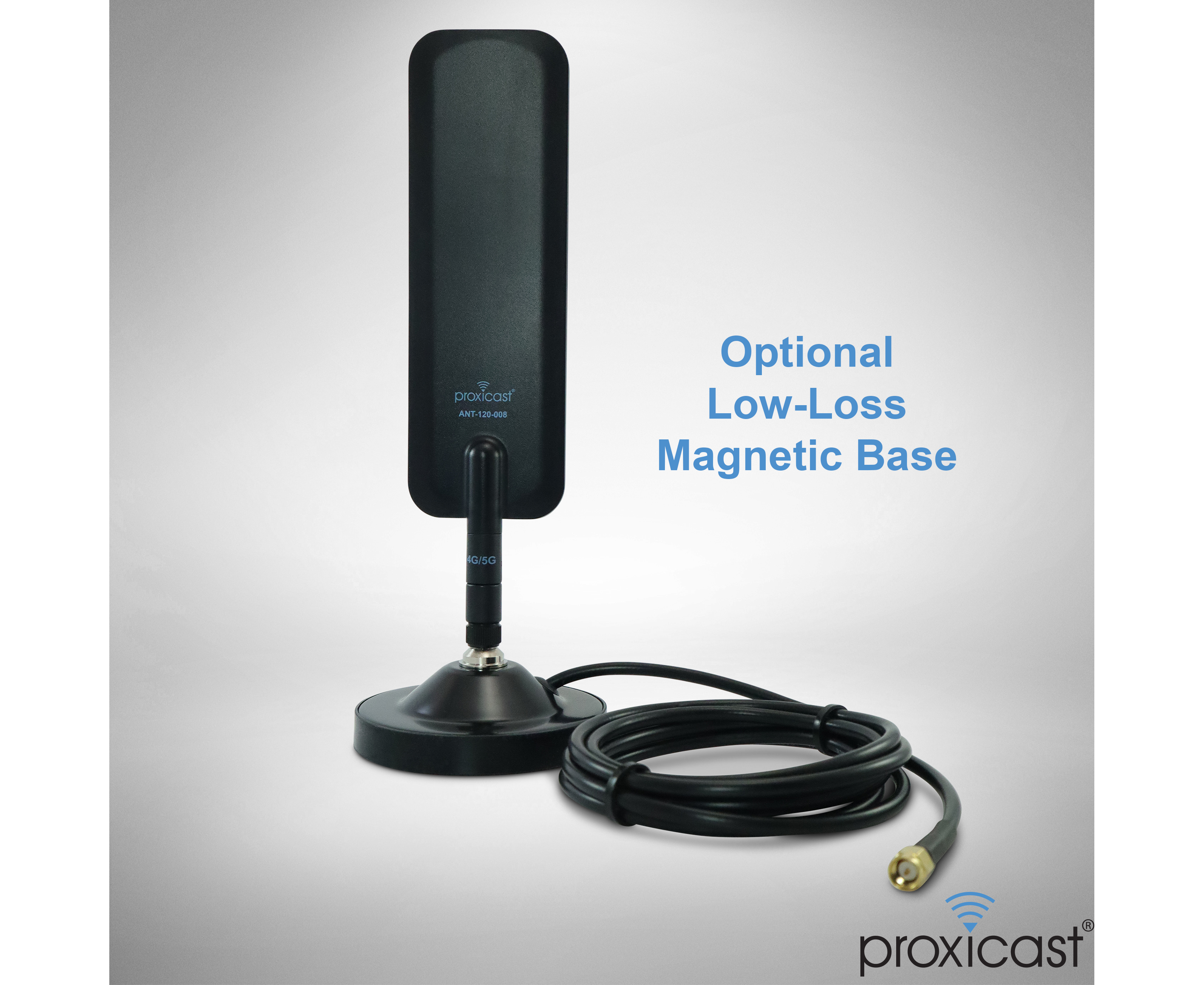

Optional Magnetic Base

Need to position the antenna in a better location? Our Pro-Grade Magnetic Base (ANT-120-MB5) is designed for ultra-low loss at high frequencies.
ANT-120-008 Specifications
Electrical Properties
Frequency Range 600-6000 MHz
Impedance 50 ohm
VSWR ADGP < 2.0:1
Peak Gain 6 dBi
Radiation Omni
Polarization Vertical
Ground Plane Integrated
Mechanical Properties
Connector SMA Male 3-Way Swivel
Material Whip: Polycarbonate (black)
Swivel Mechanism: Polycarbonate (black)
Connector: Brass with black chrome plating

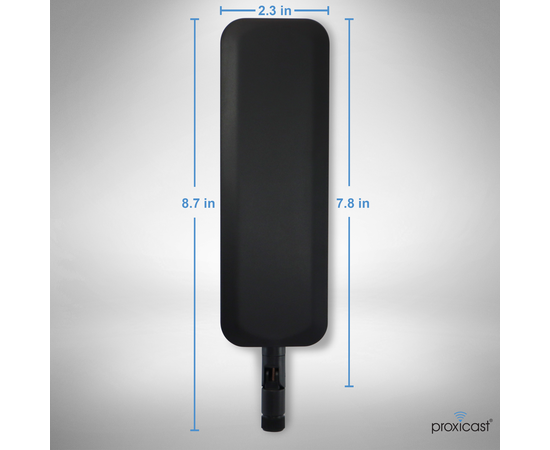

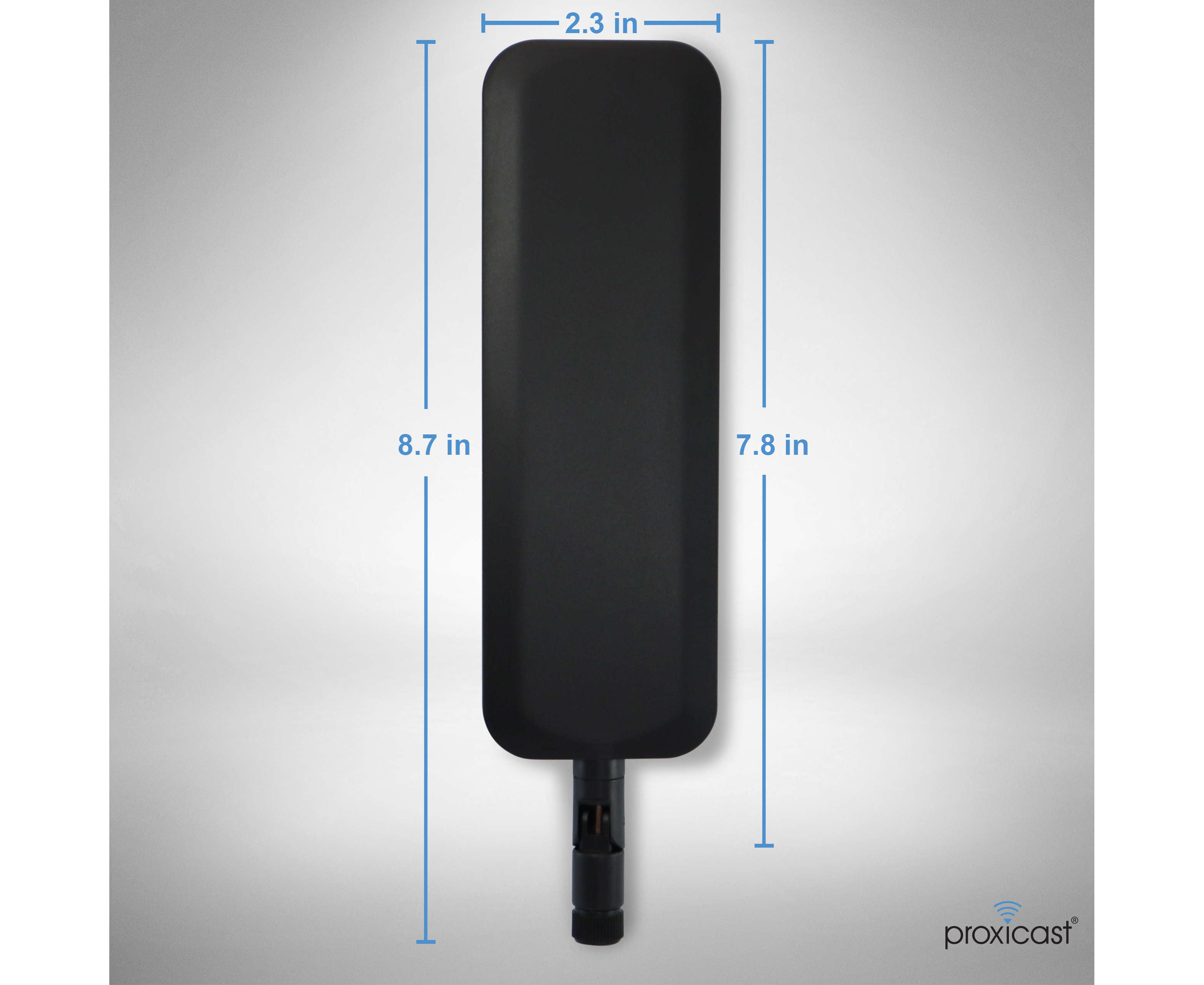

Length 8.7 inches / 22 cm
Width 2.3 inches / 57 mm
Operation Temp. -40°C to + 60°C
Certifications RoHS compliant



SKU: ANT-120-008

UPC: 850021295134

ANT-120-008 Specifications (625 Kb)

  • Title: Proxicast 4G/5G/CBRS Universal Wide-Band 6 dBi Omni-Directional Swivel Terminal Antenna (SMA Male) - Compatible with Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and Many Others
  • Part #: ANT-120-008
  • UPC Code: 850021295134
  • ASIN: B09K627KGQ
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 0.150
  • PERMALINK: https://www.proxicast.com/shopping/ANT-120-008
