Proxicast 4G / LTE / 5G Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Outdoor Directional Panel Antenna

MSRP:$14995
$9995
You save: $50.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$95.95
$94.95
$93.95
Availability: 46 Item(s)
ANT-129-001
+ −

Minimum quantity for "Proxicast 4G / LTE / 5G Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Outdoor Directional Panel Antenna" is 1.

Add to Wish List

Key Features

  • IMPROVES SIGNAL STRENGTH and SPEED on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all 4G LTE & 5G Sub-6 Cellular Broadband Bands Worldwide (600-960/1710-6000 MHz)

  • COMPATIBLE WITH MIMO Capable Routers, Modems And Gateways from CalAmp, Cisco, Cradlepoint, Digi, Inseego, MoFi, Netgear, Pepwave, Proxicast, Sierra, ZTE and many others

  • 7-10 dBi GAIN - Dual Polarized 75 Degree Directional Beamwidth MIMO Design Increases Signal Strength and Data Speeds for Remote Sites with Poor Cellular Signal Coverage

  • SUPPORTS T-MOBILE 5G BAND 71 & New 3 GHz Mid-Band (C-Band) AT&T and Verizon 5G Frequencies

  • 2X FEMALE N CONNECTORS with 12" pigtail *** REQUIRES 2 COAX EXTENSION CABLES ***

  • COMPACT, LIGHT-WEIGHT, Rugged Weatherproof Housing and Corrosion-Resistant Materials

  • HEAVY DUTY POLE MOUNTING BRACKET and Hardware (mast sold separately)

  • REQUIRES 2 COAX EXTENSION CABLES



Proxicast Cross-Polarized MIMO 4G/LTE/5G Panel Antenna

HIGH PERFORMANCE DIRECTIONAL MIMO
Enjoy the benefits of 4G/5G MIMO technology

  • Proxicast's dual polarized directional 4G LTE / 5G MIMO antenna is ideal for signal enhancement in challenging environments
ENHANCED DATA SPEEDS WITH MIMO
  • Two separately fed cross-polarized ultra wideband directional elements focus radio energy enabling connection to distant cell towers and allowing 4G & 5G modems & routers to use two simultaneous data streams for greater throughput

Key Features


  • MIMO Performance
  • Wide Band 4G 7 5G Coverage
  • 7-10 dBi Peak Gain

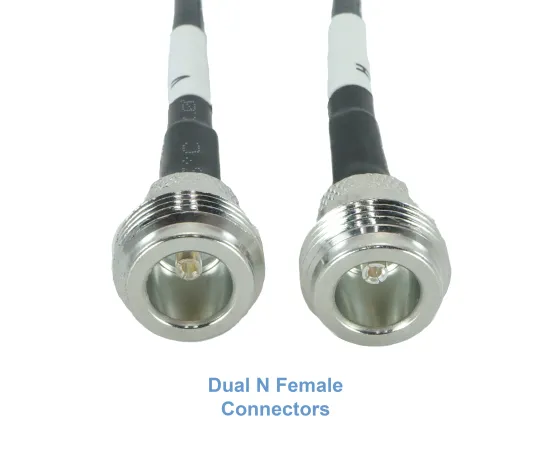

  • Dual N Connectors
  • Universal Compatibility
  • Pole / Wall Mountable
  • Compact - Weatherproof
  • Professional Grade
4G 5G Logo

Works on all Cellular Networks

 Wireless Router

Compatible with any 4G/5G Device
Any Network

Proxicast's MIMO panel antenna boosts 4G/LTE & Sub-6 5G signals on Verizon, AT&T, T-Mobile, US Cellular, Bell Mobility, Rogers, Telus, Sasktel, Telcel, Movistar, Digicel and many other cellular operators worldwide.

 Any Model

With the appropriate adapter cables (not included), this antenna is compatible with all dual-antenna USB cellular modems and Mi-Fi Hotspots, external 4G & 5G cellular modems and routers from companies such as Cisco, Cradlepoint, Digi, Inseego, MoFi, Netgear, Pepwave and Sierra Wireless.
Wrench & Nut Icon

Simple Installation

 Rain Cloud

Ideal for Outdoor Applications
Easy Alignment

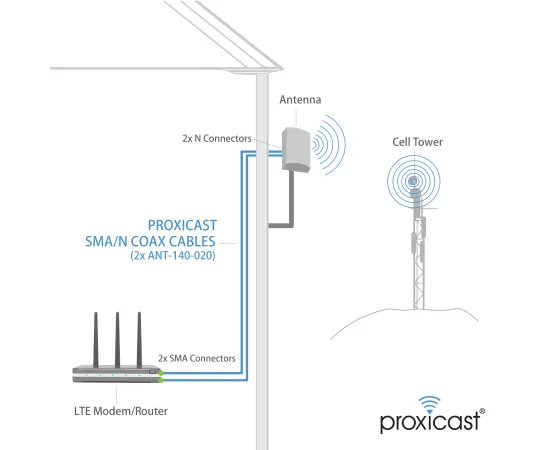

Using 2 separate coax cables, connect the vertical (V) antenna lead to your router's main external antenna jack; connect horizontal (H) lead to the secondary jack.

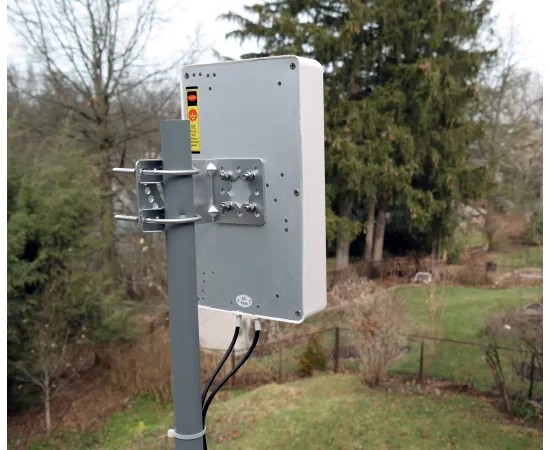

Point the antenna in the general direction of the cell tower serving your location. Mounting hardware is included.

 Corrosion Resistant

The antenna’s corrosion-resistant materials are complemented by its sleek high-tech ivory radome which blends into any environment making it suitable for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount antenna as high as possible, but keep coax leads as short as possible
  • Position away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objects
  • Do not use a splitter to connect 1 modem port to both antenna jacks
  • Do not use RG59/RG6 coax (75 Ohm TV cable from the hardware store) – signal will be seriously degraded.  Use low-loss 50 Ohm coax designed for cellular use: ANT-140-020
  • Weatherseal outdoor connections. Use Silicone Tape part# ANT-900-002
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality(SINR, RSRQ) not signal Strength(RSSI, RSRP, bars)
ANT-129-001 Specifications
Electrical Properties
Frequency Range 600-960 / 1710-6000MHz Includes all 4G/LTE & Sub-6 5G frequencies used worldwide
Impedance 50 ohm
Peak Gain 7 / 10 dBi - frequency dependent
Horizontal Beam Width 70 / 75 degrees
Vertical Beam Width 75 / 60 degrees
Polarization Vertical + Horizontal
VSWR < 2.3
Max Input Power 50 W
Mechanical Properties
Connector 2x N Female on 12 in (300 mm) RG58U coax lead
Materials Ivory ABS / Brass / Aluminum / Stainless Steel - RoHS compliant
Operating Temperature -40C to +60C
Dimensions 11.8 x 7.2 x 2.75 in (300 x 183 x 70 mm) excluding mounting bracket
Weight 1.5 lb (0.62 kg) excluding mounting bracket

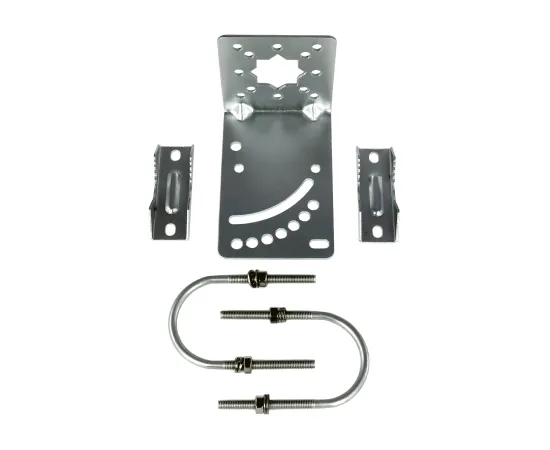

Mount 1.2 - 2.0 inch (30-50 mm) diameter pole (not included) U-bolts and incline/decline bracket included

SKU: ANT-129-001

UPC: 617237750754

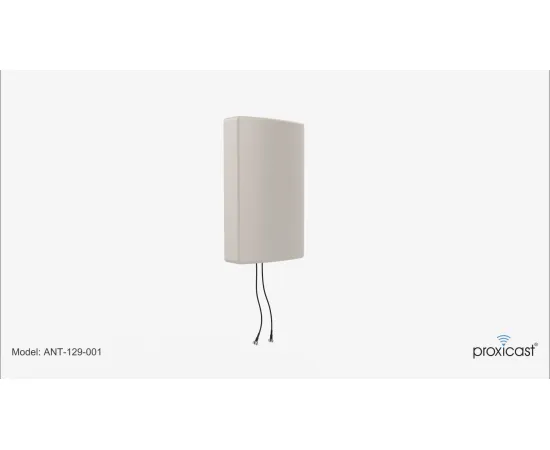

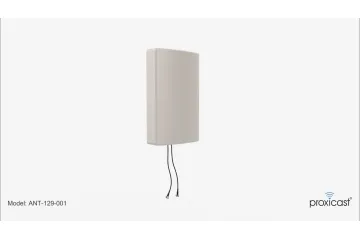

ANT-129-001 Overview (60 sec)

60 second video tour of Proxicast's ANT-129-001 4G / 5G Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Panel Antenna

ANT-129-001 Ad (15 sec)

15 second ad for Proxicast's ANT-129-001 4G / LTE Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Panel Antenna

ANT-129-001 Specifications (913 Kb)

ANT-129-001 Assembly Instructions (117 Kb)

ANT-129-001 Dimensions (112 Kb)

  • Title: Proxicast 4G / LTE / 5G Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed-Mount Outdoor Directional Panel Antenna
  • Part #: ANT-129-001
  • UPC Code: 617237750754
  • ASIN: B01NBSLNJ6
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 3.500
