Proxicast RP SMA Male to N Male Premium Low-Loss Coaxial Cable (50 Ohm) for Connecting WiFi & Helium Miner (HNT Hotspots) to N-Female Antennas

Save 63%
MSRP:$3995
$1497
You save: $24.98
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$14.37
$14.22
$14.07
** Out of Stock **
ANT-310-020-10

Minimum quantity for "Proxicast RP SMA Male to N Male Premium Low-Loss Coaxial Cable (50 Ohm) for Connecting WiFi & Helium Miner (HNT Hotspots) to N-Female Antennas" is 1.

Add to Wish List
Key Features

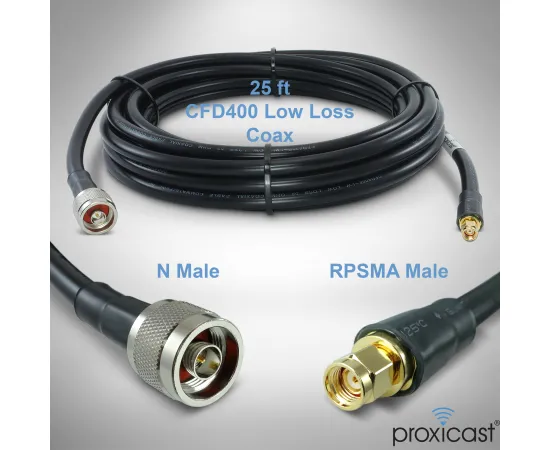

  • Reverse Polarity SMA Male to N Male LMR Equivalent 50 Ohm Coaxial Jumper Cable

  • High Quality, High Speed Coaxial Cable Connects RPSMA Female Equipment to Antennas with N Female Connectors

  • Up to 85% Less Loss than RG8/U & RG213/U Coax

  • Identical to Times Microwave LMR - Significantly Outperforms Generic RG Coax

  • This Helium Miner Cable has Gold Plated Signal Pins & Heat Shrink on Both Ends

  • *NOT* for use with 4G/5G (SMA) or video (cable/satellite/TV) devices



N Male to RP-SMA Male Antenna Coax Jumper Cable for WiFi, Helium, ZigBee & LoRa

RPSMA / N Coax Extension Cable



Low Signal Loss  Copper Core and Gold Plated Pins  Pro Grade Quality  Indoor Outdoor Use
Ultra-low-loss 50 Ohm coax cable for maximum RF reception and transmission at common wireless frequencies. Significantly outperforms “RG” coax cables. Solid copper core and gold-plated signal pins provide top-quality, high-performance conductivity. Commercial-grade components ensure maximum toughness and durability. Cable is assembled, inspected and 100% tested by in our ISO-9001 certified facility. Polyethylene jacket withstands abrasions and provides excellent moisture resistance for outdoor use (not rated for direct burial or plenum applications).



The perfect solution for connecting WiFi, Helium (HNT), ZigBee, LoRa or other reverse polarity SMA radios to antennas with N Female connectors. It can also be used to connect to lightning arresters, access points or any equipment with N-Female and RPSMA Female connectors.

Proxicast's coax extension cable assemblies are constructed with top quality extremely low-loss cable and gold plated connectors and are fully tested.

Proxicast recommends 0.195 inch diameter coax for assemblies up to 10 ft, 0.240 inch diameter up to 25 ft and 0.400 inch diameter up to 75 ft. It is acceptable to use a thick cable for the long portion of a cable run and a short thin cable to connect to equipment or antennas, but minimize the total cable length and number of connectors. Cable runs longer than 50 ft will generally require an in-line amplifier.

To ensure that you are selecting the correct cable, please refer to the Support tab for information regarding RF Connectors and Signal Attenuation.

Note: All outdoor coax connections must be weather-proofed to minimize damage caused by moisture in the connectors or cabling.  Use our Self-Bonding silicone tape (ANT-900-002) for fast and easy connection sealing.



Specifications
  • Connector 1: RPSMA Male
  • Connector 2: N Male

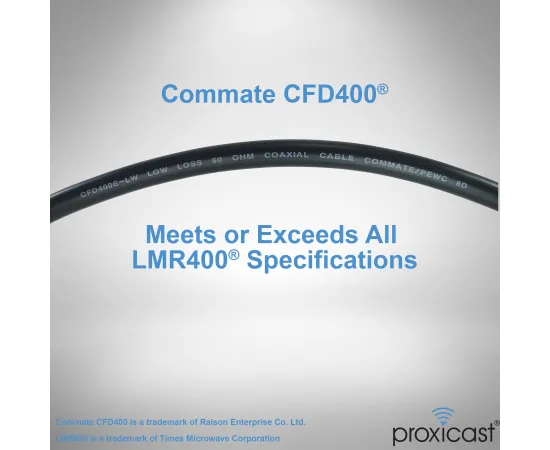

  • Coax: Low-loss CFD Coax (LMR equivalent)
  • Impedance: 50 Ohm
  • Op Temp: -40 to +185F
  • Min Bend Radius: 2.0"



Pro Tips

For Best Results

  • Use the shortest possible cable
  • Do not cut or splice the cable
  • Observe the minimum bend radius of the cable at all times
  • Minimize the number of connectors used
  • Fully tighten coax connectors
  • Weatherseal all outdoor connections with silicone tape (ANT-900-002)

ANT-310-020-10 Specification Sheet (531 Kb)

ANT-310-020-15 Specification Sheet (527 Kb)

ANT-310-420-25 Specification Sheet (583 Kb)

ANT-310-420-36 Specification Sheet (526 Kb)

ANT-310-420-50 Specification Sheet (544 Kb)

  • Title: Proxicast RP SMA Male to N Male Premium Low-Loss Coaxial Cable (50 Ohm) for Connecting WiFi & Helium Miner (HNT Hotspots) to N-Female Antennas
  • Part #: ANT-310-020-10
  • UPC Code: 850021295158
  • ASIN: B09S6X8HNH
  • HS Code: 8544.42.90.10
  • Country of Origin: Taiwan
  • Shipping Weight (lbs): 0.500
