Proxicast Pro-Grade SISO 4G/5G Vandal Resistant Low-Profile Through-Hole Mount Omni-Directional Antenna

MSRP:$11895
$5695
You save: $62.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
100+
Price
$54.67
$54.10
$53.53
$52.96
$52.39
Availability: 95 Item(s)
Black
Proxicast Pro-Grade SISO 4G/5G Vandal Resistant Low-Profile Through-Hole Mount Omni-Directional Antenna, Color: Black, Cable Length: 2 ft
ANT-121-T11-B-02
+ −

Minimum quantity for "Proxicast Pro-Grade SISO 4G/5G Vandal Resistant Low-Profile Through-Hole Mount Omni-Directional Antenna" is 1.


Add to Wish List
  • View all variations as list

Key Features

  • LOW PROFILE: 2.4 inches Tall with 3-8 dBi Gain -- Omni-Directional Antenna -- Indoor/Outdoor Use

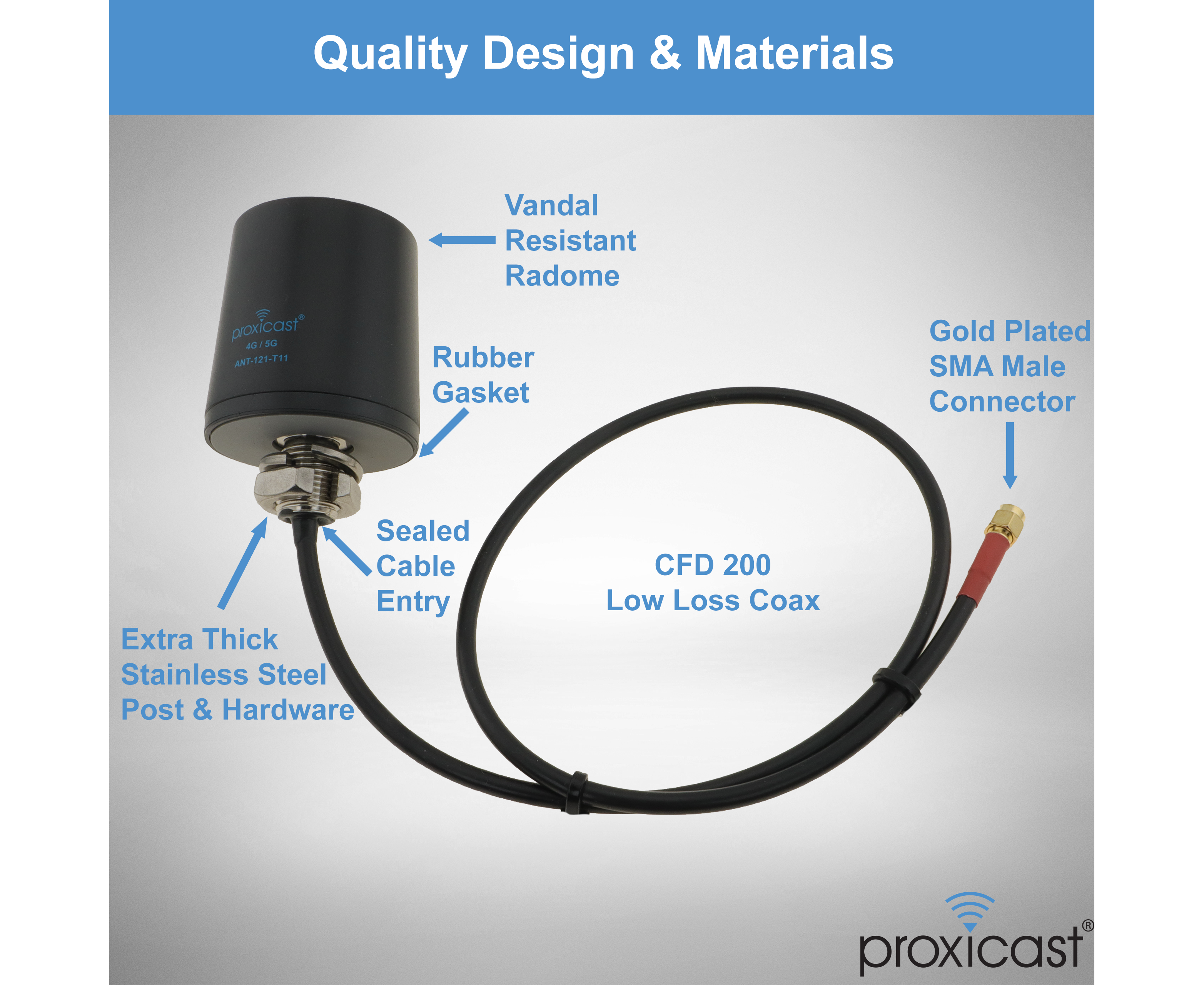

  • PRO-GRADE QUALITY MATERIALS & DESIGN: Vandal Resistant & IP67 Weatherproof -- High Impact Plastic -- Heavy Duty Stainless Steel Mounting Hardware -- No Exposed Cabling
  • LOW SIGNAL LOSS: Thick Double Shielded CFD200 Low-Loss Coax Cables with Gold-Plated SMA Male Connectors -- Less than 1/2 the loss of thinner LMR100 / RG174 coax
  • OMNIDIRECTIONAL ANTENNA ELEMENT: Covers all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) -- Connect lead to any cellular antenna port on your device
  • WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
  • COMPATIBLE WITH Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters.
  • IDEAL FOR: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance & Security (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage

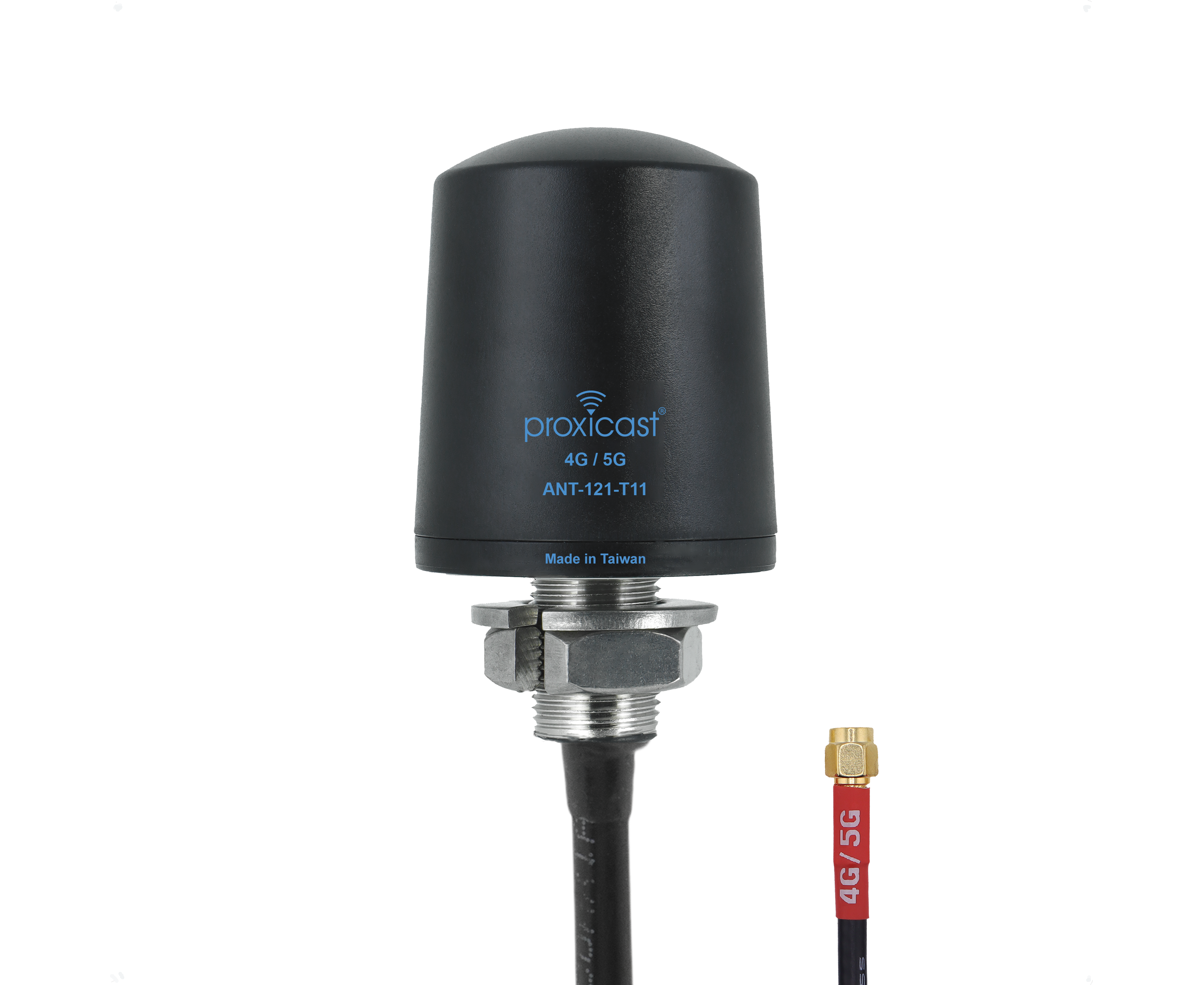

This low profile (2.4 inch tall) fixed mount omni-directional 5G external antenna provides 3 to 8 dBi of gain and supports all sub 6 GHz cellular frequency bands for ATT, Verizon, T-Mobile, Bell, Rogers, Telus and other carriers worldwide.

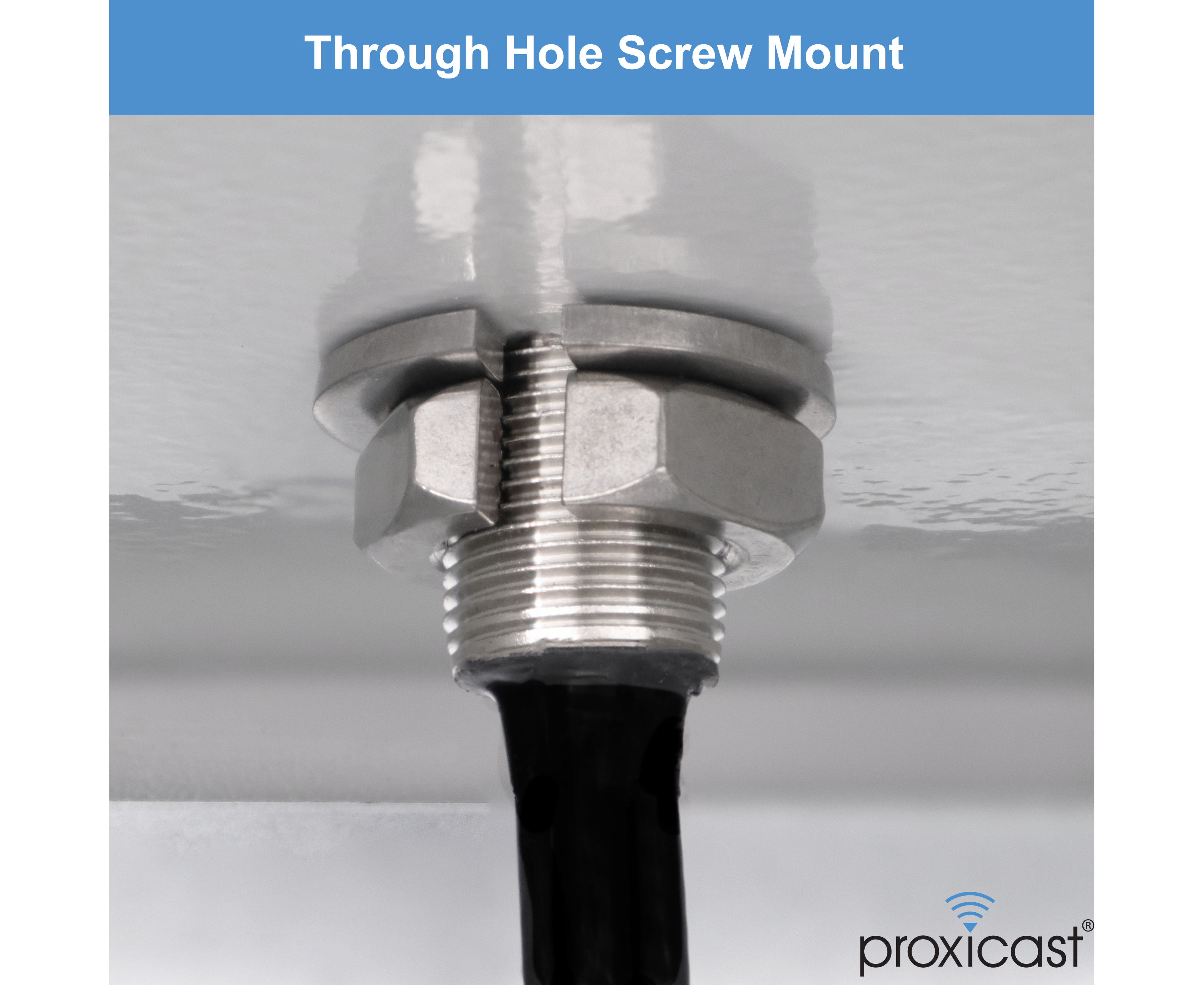

Permanently mounts via a 7/8 in (20 mm) hole with internal nut. Resists vandalism with no exposed coax cable, a high impact polycarbonate radome shell and an extra thick stainless steel threaded mounting post and hardware. Completely waterproof (IP67).

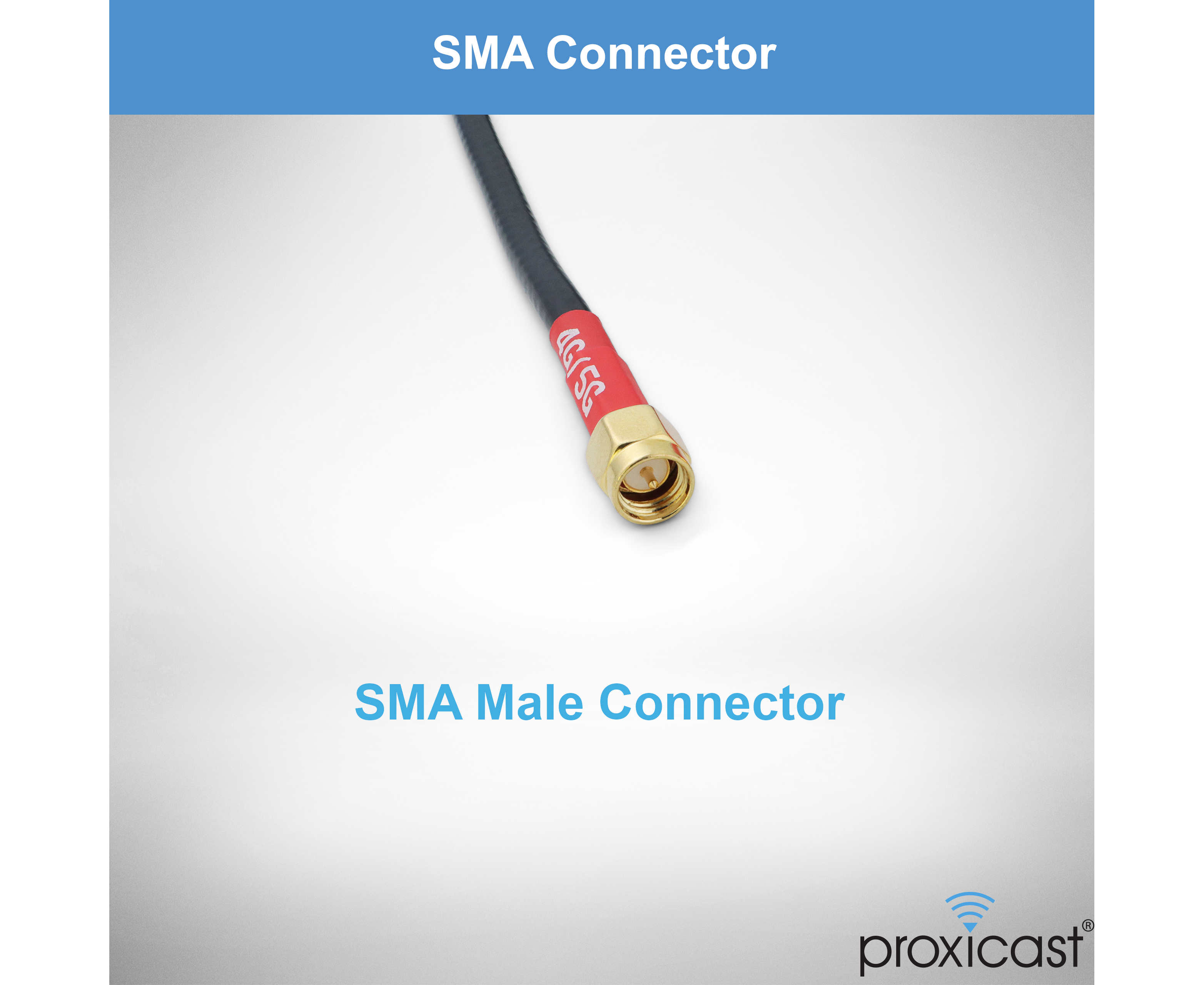

Integrated SMA male plug connector mates with SMA female jacks found on most cellular modems and routers.


* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.



Vending Machines

Kiosks & ATMs

Machine Control Panels

Logos

Vandal Resistant

  • High Impact PC Radome
  • Thick Mounting Post
  • Not Removable from Outside
  • No Exposed Coax Cabling

Weatherproof

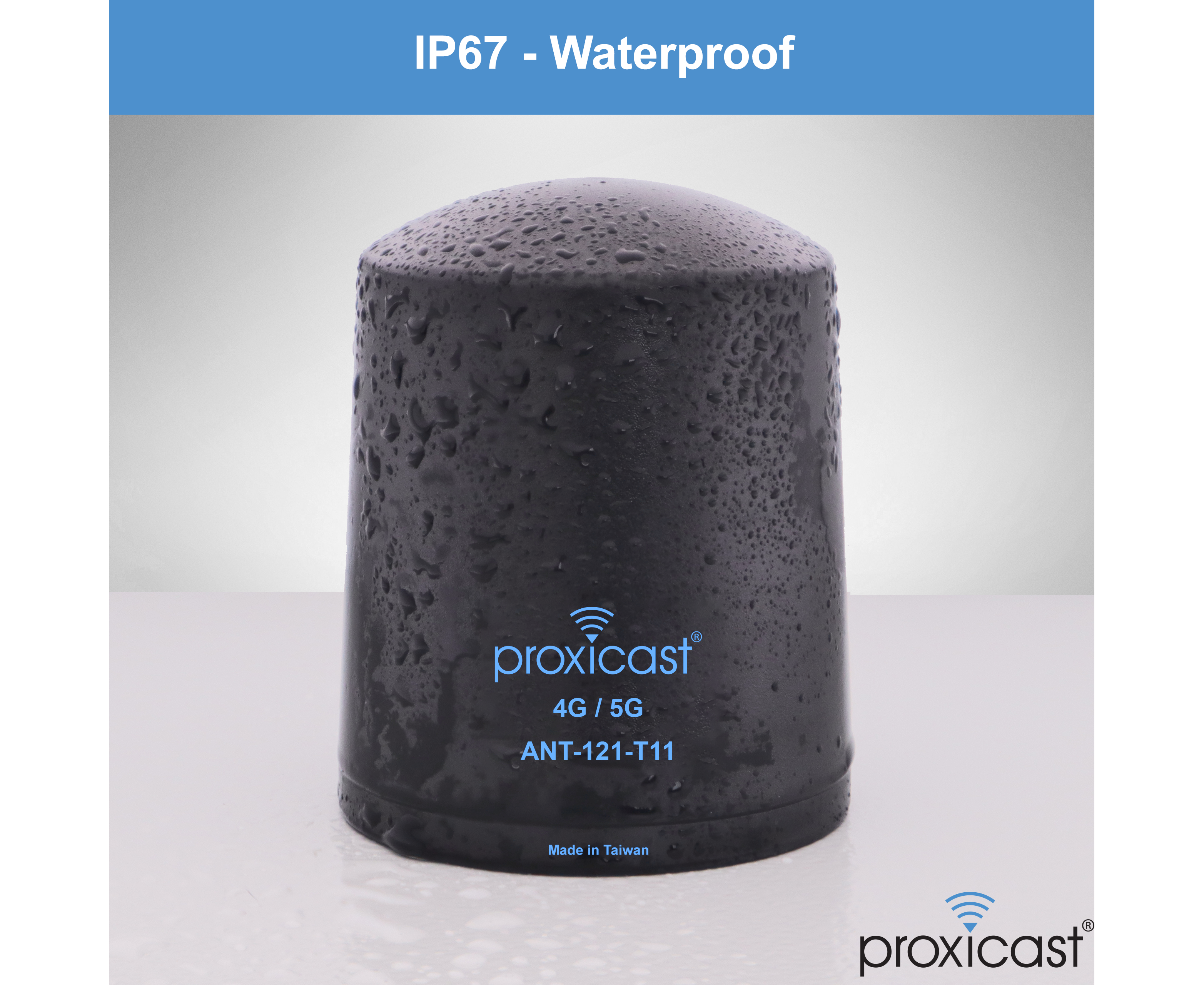

  • Water & Dust Proof
  • IP67 Rated
  • Stainless Steel Mounting Post & Hardware






Inconspicuous

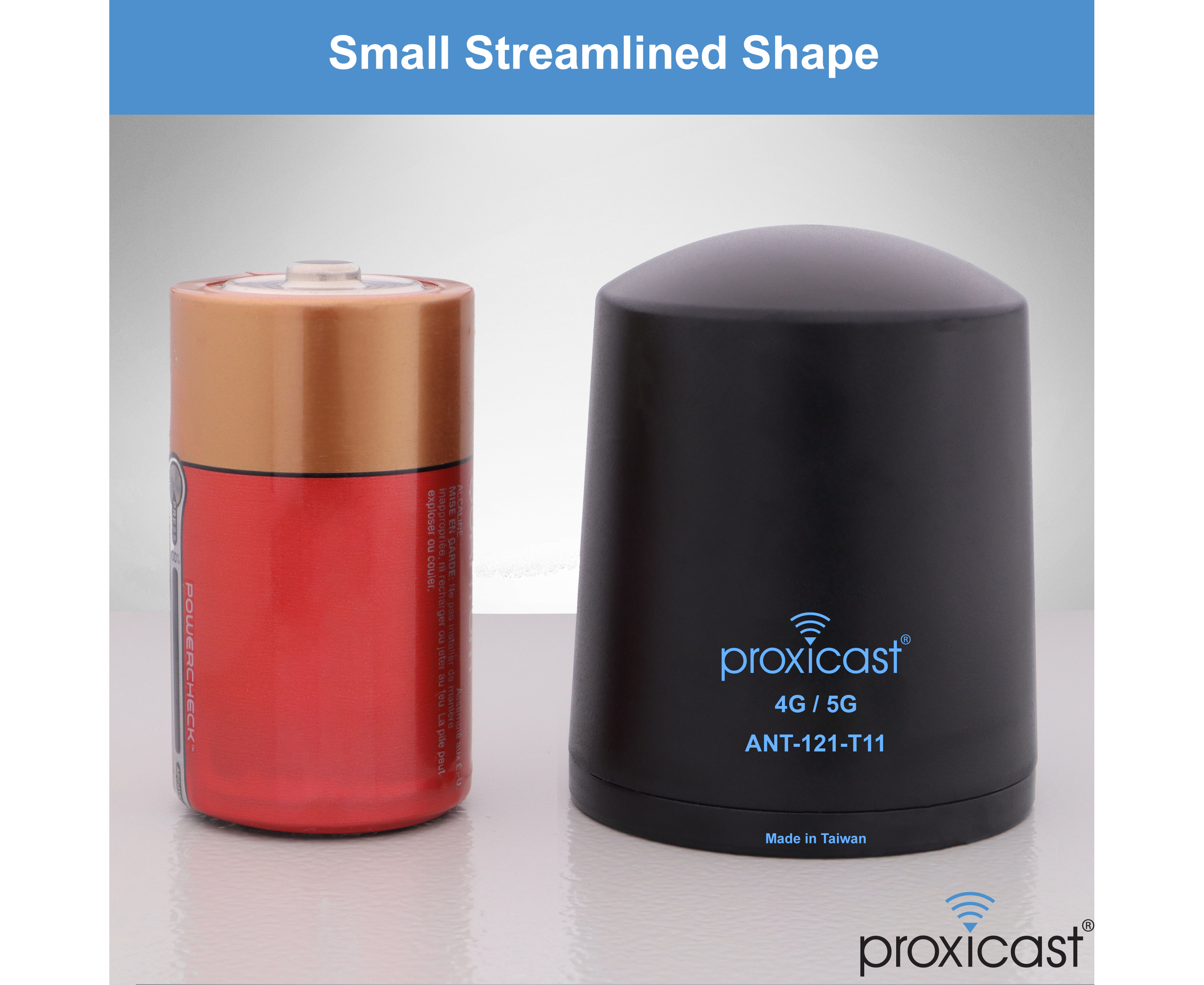

  • 2.4 Inches Tall
  • Simple Geometric Shape
  • Omnidirectional Coverage
  • Paintable to Blend into Surroundings

Universal Compatibility

  • Any 4G/5G Device
    with an SMA Jack
  • Any 4G/5G, FirstNet or
    CBRS Network
  • AT&T, T-Mobile, Verizon
  • Bell, Rogers, Telus

Application Examples

Factory

Vending Machines

Kiosks & ATMs

Machine Control Panels

Ambulance

Vending Machines

  • Inventory Levels
  • Machine Status
  • Advertising Updates
  • Price Changes

Kiosks & ATMs

  • Bank Machines
  • Self Service Kiosks
  • Digital Signage
  • Alarm Systems

Machine Control Panels

  • PLC's
  • NEMA Enclosures
  • Weather Stations
  • Meters & Pump Houses

Emergency Vehicles

  • Police / Fire
  • Ambulance / EMS
  • Hazmat
  • Command & Control
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount through a horizontal metal surface at least 8 inches in diameter
  • Do not use a Y cable to connect antenna lead to more than 1 modem port
  • Do not extend coax cable
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)

ANT-121-T11 Specifications

Electrical Properties
Frequency Range 600-6000 MHz - all 4G & 5G Sub-6 (FR1) Bands
Impedance 50 ohms
Antenna Gain 3-8 dBi frequency dependent
Radiation Omni
Polarization Vertical
VSWR < 2.0:1 in band
Max input power 50 W
Ground Plane 8 inch (20 cm) diameter min.
Mechanical Properties
Material

Radome: UV stabilized polycarbonate plastic (black or white)

Connectors: Gold-plated brass

RoHS compliant
Connector SMA Male on low-loss CFD200 coax cable
Operating Temp. -40°C to +80°C

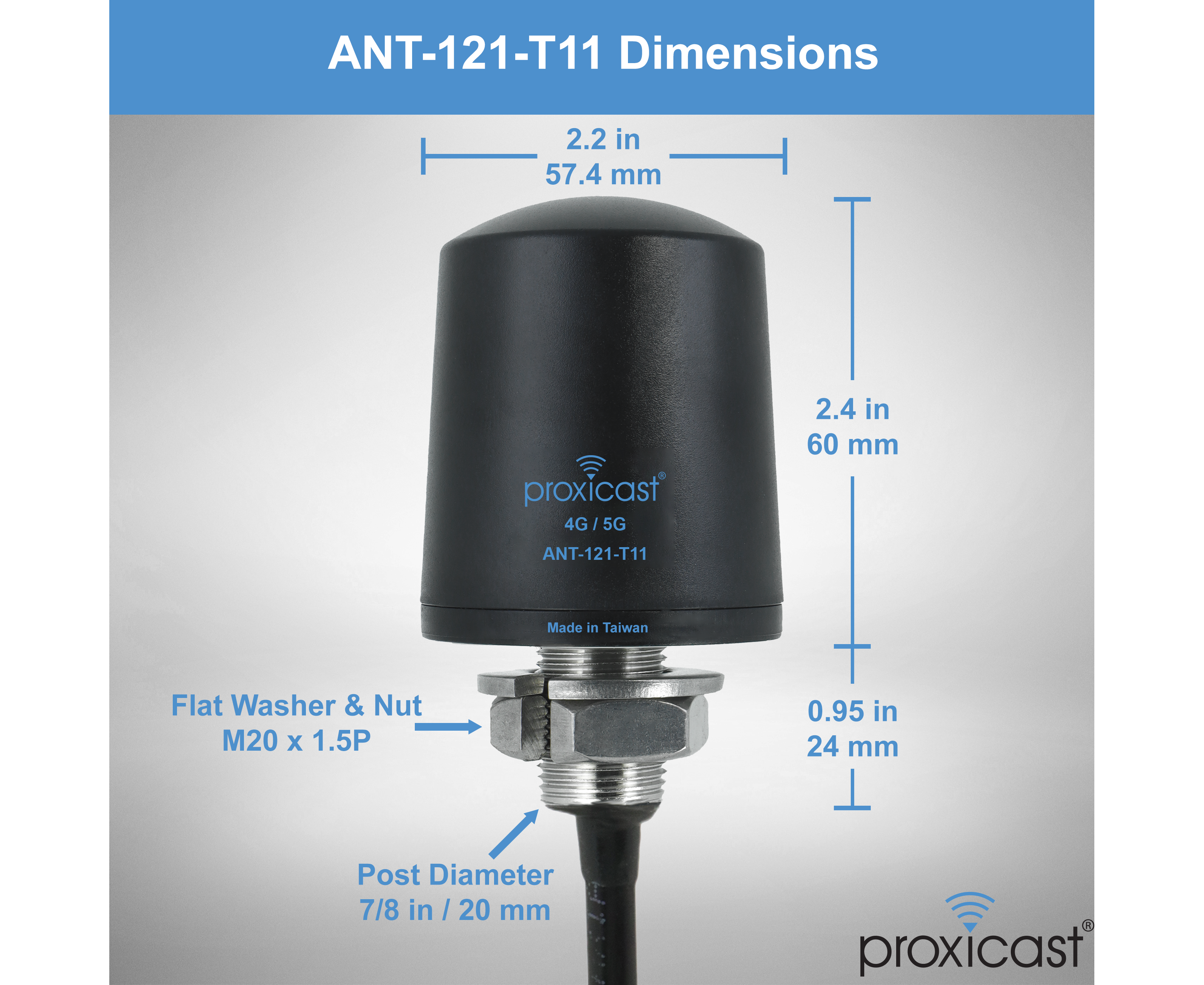

Height Radome: 2.4 inches / 60 mm
Diameter

Radome: 2.2 inches / 54.7 mm at base

Mounting post: 7/8 inches / 20 mm x 1.5 mm thread
Weight 3 oz (85 g)
Environmental Rating

IP67 (waterproof)



  • Title: Proxicast Pro-Grade SISO 4G/5G Vandal Resistant Low-Profile Through-Hole Mount Omni-Directional Antenna
  • Part #: ANT-121-T11-B-02
  • UPC Code: 850021295684
  • ASIN: B0F8NG9QB2
  • HS Code: 8517.71.00.00
  • Country of Origin: Taiwan
  • Export Control: EAR99 / NLR (No License Required)
