Proxicast Ultra Low-Profile 4G/LTE & 5G Omni-Directional 2 dBi Screw-Mount Antenna for Verizon, AT&T, T-Mobile - 6 ft Cable

MSRP:$3795
$2795
You save: $10.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
Price
$26.83
$26.55
$26.27
$25.99
Availability: 270 Item(s)
ANT-120-003
+
Add to Wish List
Key Features

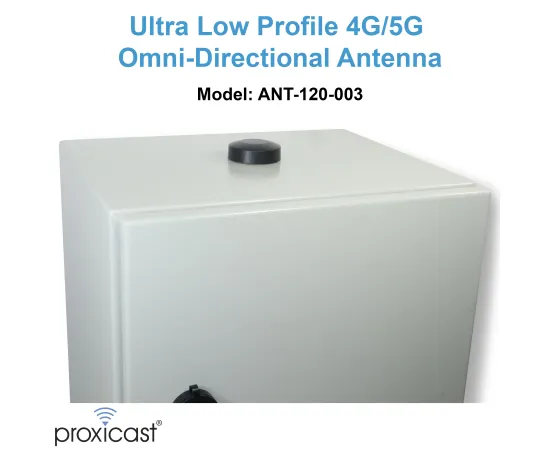

  • PERFECT FOR Kiosks, Vending Machines, Control Panels, NEMA Enclosures, Ceilings and Covert Installations

  • WORKS on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and all 4G LTE  and 5G Cellular Broadband Services

  • COMPATIBLE WITH Routers, Modems & Gateways from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Inseego, Pepwave, Proxicast, Sierra, SureCall, weBoost, Wilson, ZTE and many others

  • VANDAL RESISTANT - No Exposed Cable When Installed - Water Tight When Mounted Correctly for Outdoor Use

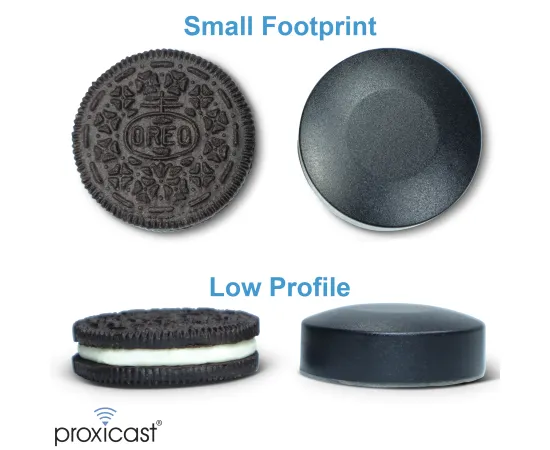

  • LOW PROFILE - 0.6 inches High x 1.8 inches Diameter - SMA Male Connector with 6 ft Coax Cable



This extremely low profile (< 0.6 inches tall) fixed mount omni-directional antenna provides 2 dBi of gain and works on all 4G & 5G cellular frequency bands worldwide.

Permanently mounts via a 1/2 in. (12 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable. Includes 6 ft of low-loss coax fed through center mounting post.

Designed for M2M applications such as vending machines, meter housings, equipment sheds, or other locations requiring an inconspicuous low-profile external antenna. Can also be vehicle mounted for buses, vans, trucks or other mobile installations.

Integrated SMA male plug connector mates with SMA female jack on modems, routers, etc.

This antenna is also available for Wi-Fi frequencies (2.4 & 5.8 GHz).  See ANT-130-005.



Application Examples

Factory

Vending Machines

Kiosks & ATMs

Machine Control Panels

Surveillance Camera

Vending Machines

  • Inventory Levels
  • Machine Status
  • Advertising Updates
  • Price Changes

Kiosks & ATMs

  • Bank Machines
  • Self Service Kiosks
  • Digital Signage
  • Alarm Systems

Machine Control Panels

  • PLC's
  • NEMA Enclosures
  • Weather Stations
  • Meters & Pump Houses

Surveillance

  • 4G Cameras
  • DVRs' & NVR's
  • Covert Installations
  • Law Enforcement
Pro Tips

For Best Results

  • Orient antennas vertically
  • Do not extend coax cables
  • Do not use a Y cable to connect 2 modem ports to 1 antenna or 2 antennas to 1 modem port
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)





ANT-120-003 Specifications
Electrical Properties
Frequency Range 600~6000 MHz
Impedance 50 ohms
Antenna Gain 2 dBi
Radiation Omni
Polarization Vertical
VSWR ADGP < 2.0:1
Max input power 20 W
Ground Plane Integrated
Mechanical Properties
Connector SMA Male on 6 ft (2m) low-loss RG174 coax cable
Material Polycarbonate / Brass   RoHS compliant
Operation Temp. -30°C to +75°C
Height 0.59 inches / 15 mm
Diameter 1.8 inches / 46 mm



SKU: ANT-120-003

UPC: 617237749789

  • Title: Proxicast Ultra Low-Profile 4G/LTE & 5G Omni-Directional 2 dBi Screw-Mount Antenna for Verizon, AT&T, T-Mobile - 6 ft Cable
  • Part #: ANT-120-003
  • UPC Code: 617237749789
  • ASIN: B00K9G25NA
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 0.125
