Proxicast Ultra Low Profile MIMO 4G / 5G Omni-Directional Magnetic/Adhesive Mount Antenna for Verizon, AT&T, T-Mobile Modems & Routers with SMA or TS9 External Antenna Jacks

MSRP:$7995
$5495
You save: $25.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
Price
$52.75
$52.20
$51.65
$51.10
Availability: 95 Item(s)
ANT-122-M19
+ −

Minimum quantity for "Proxicast Ultra Low Profile MIMO 4G / 5G Omni-Directional Magnetic/Adhesive Mount Antenna for Verizon, AT&T, T-Mobile Modems & Routers with SMA or TS9 External Antenna Jacks" is 1.

Add to Wish List
Key Features

  • Works on any 4G / 5G cellular network such as Verizon, AT&T, T-Mobile and more. This is *NOT* a TV antenna
  • Compatible with any Broadband Router or Modem with SMA Antenna Jacks from CalAmp, Cisco, Cradlepoint, Digi, MoFi, Multi-Tech, Pepwave, Proxicast, Sierra and others
  • Compatible with any Mobile Hotspot with TS9 Antenna Jacks such Nighthawk M6 / MR6500, M5 / MR5100, M1 / MR1100, Velocity 2, Verizon Jetpack 8800L and others
  • Dual Antenna MIMO Design Improves Performance - Flexible Magnetic & Adhesive Mounting Options

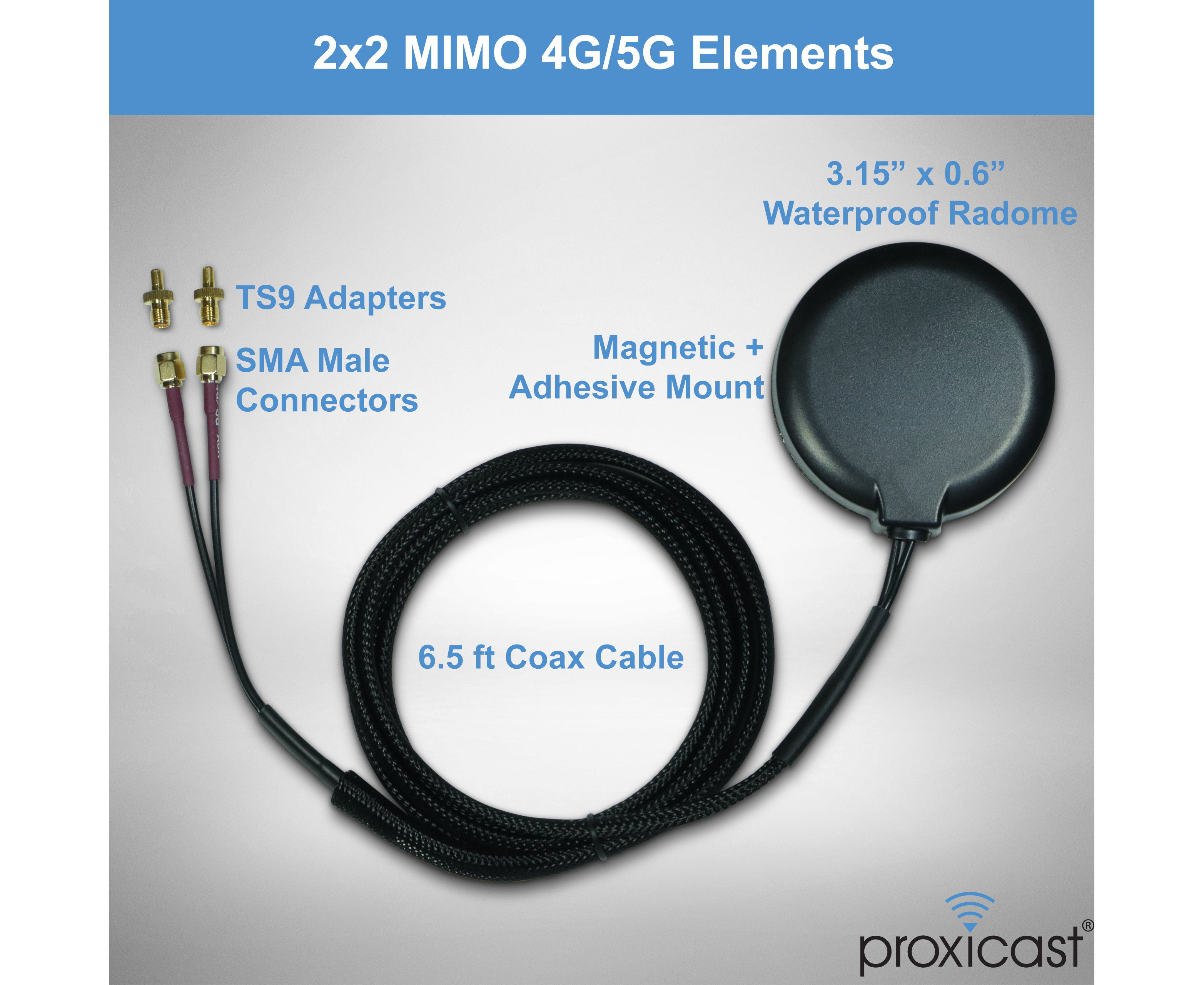

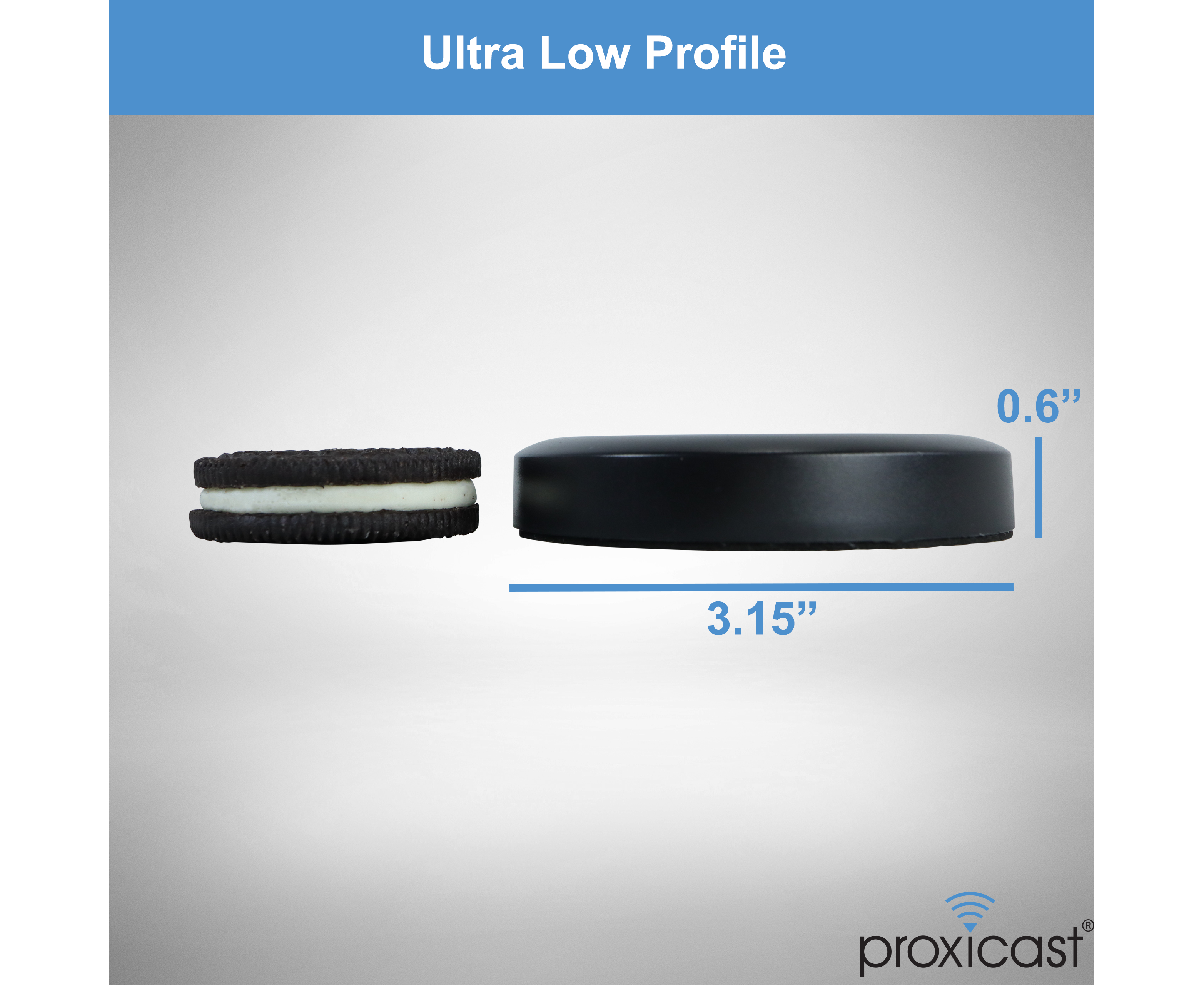

  • SUPER THIN - 0.6 inches high x 3.15 inches diameter - SMA Male connector + TS9 Adapter with 6.5 ft coax pigtail
  • Perfect for kiosks, vending machines, control panels, ceilings and covert installations

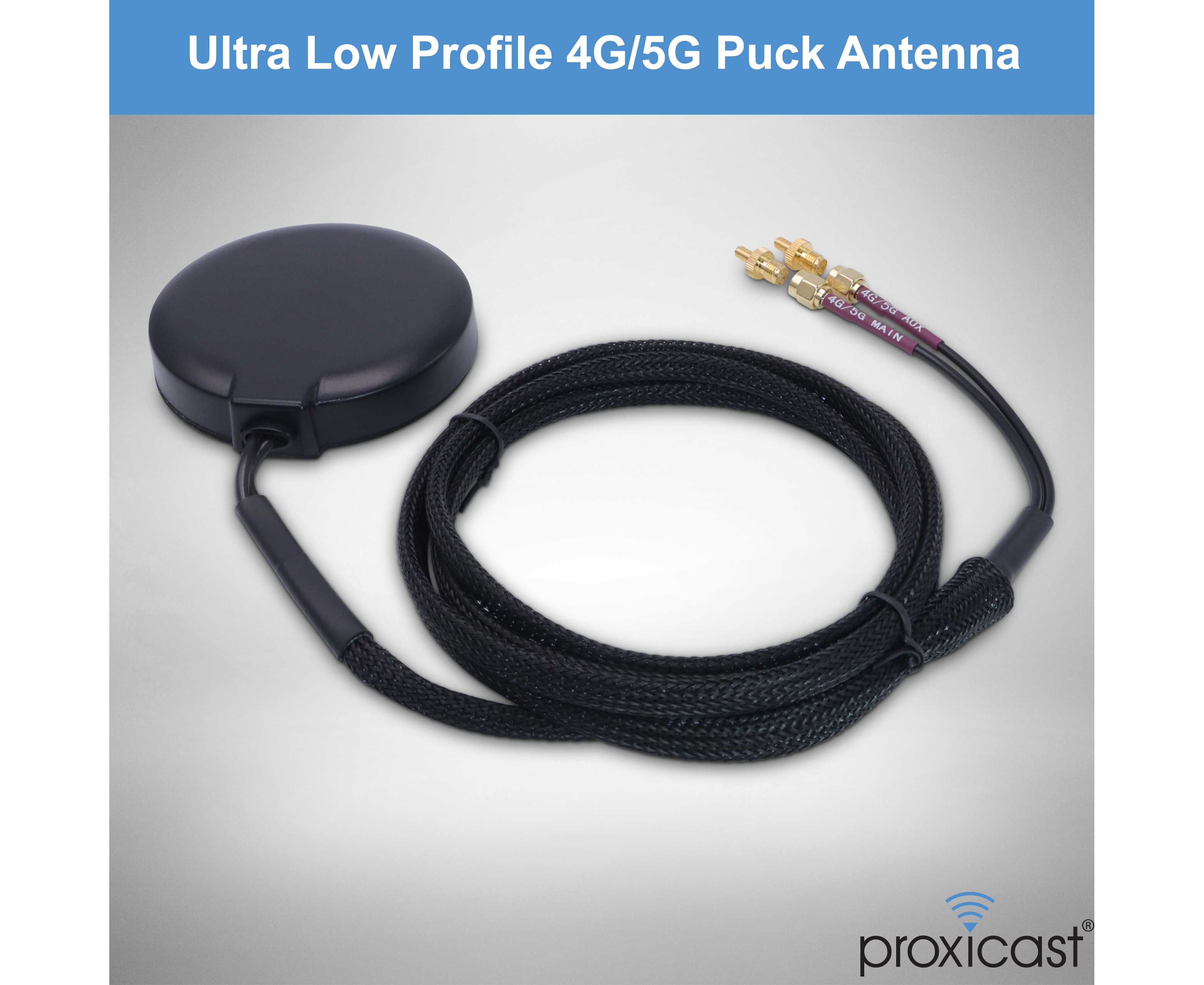

This extremely low profile (< 0.6 inches tall) fixed mount omni-directional antenna provides up to 2.5 dBi of gain
and works on all 4G/LTE and sub-6 GHz 5G frequencies on Verizon, AT&T, T-Mobile, US Cellular, Bell Mobility,
Rogers, Telus, Sasktel, Telcel, Movistar, Digicel and many other cellular operators worldwide.

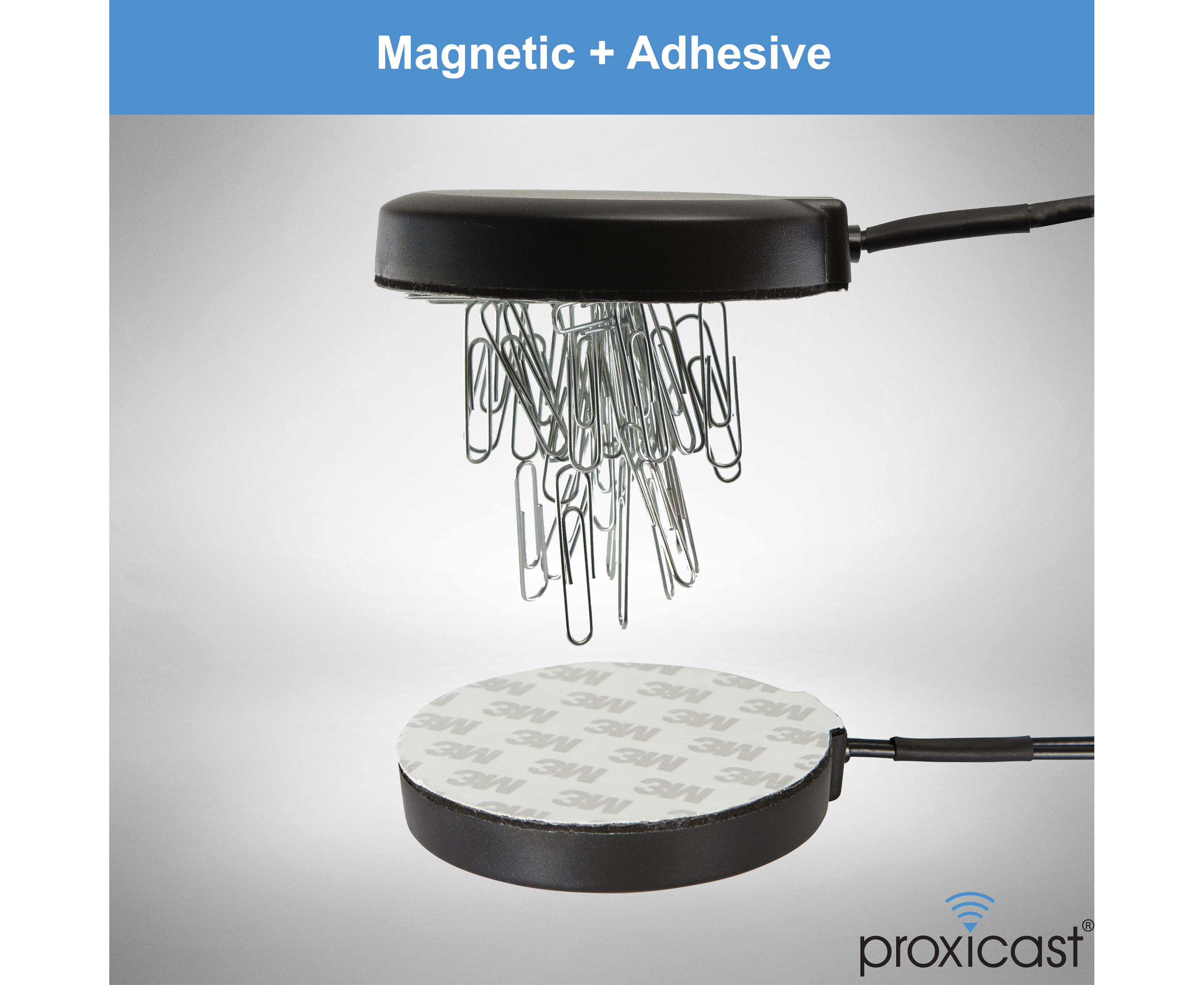

Mounts via strong internal magnet or integrated 3M adhesive pad. Includes 6.5 ft of low-loss coax in a mesh

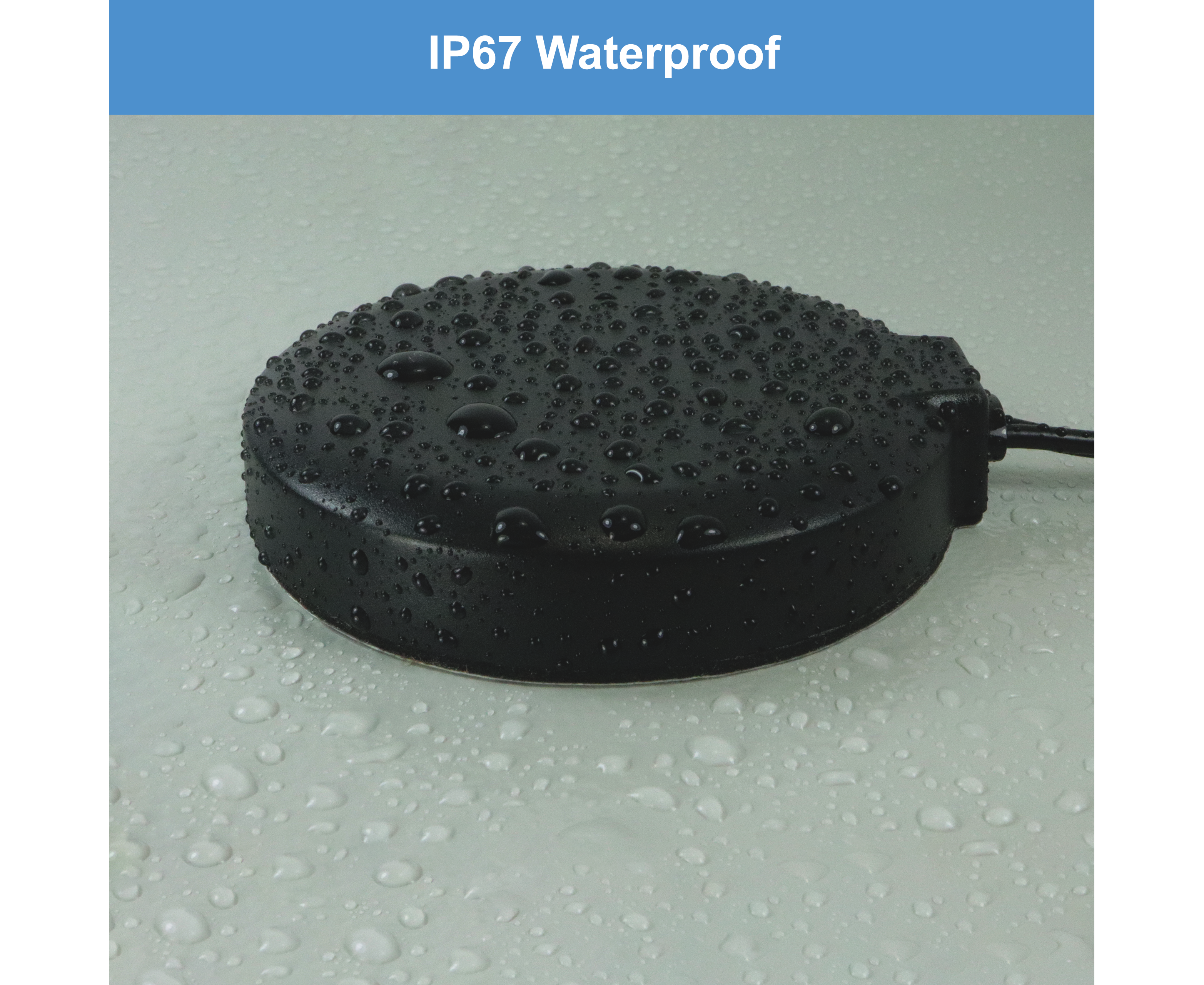

sleeve fed through side of antenna radome. Completely waterproof (IP67).

Designed for M2M applications such as vending machines, meter housings, equipment sheds, or other locations
requiring an inconspicuous low-profile external antenna. Can also be vehicle mounted for buses, vans, trucks or
other mobile installations.

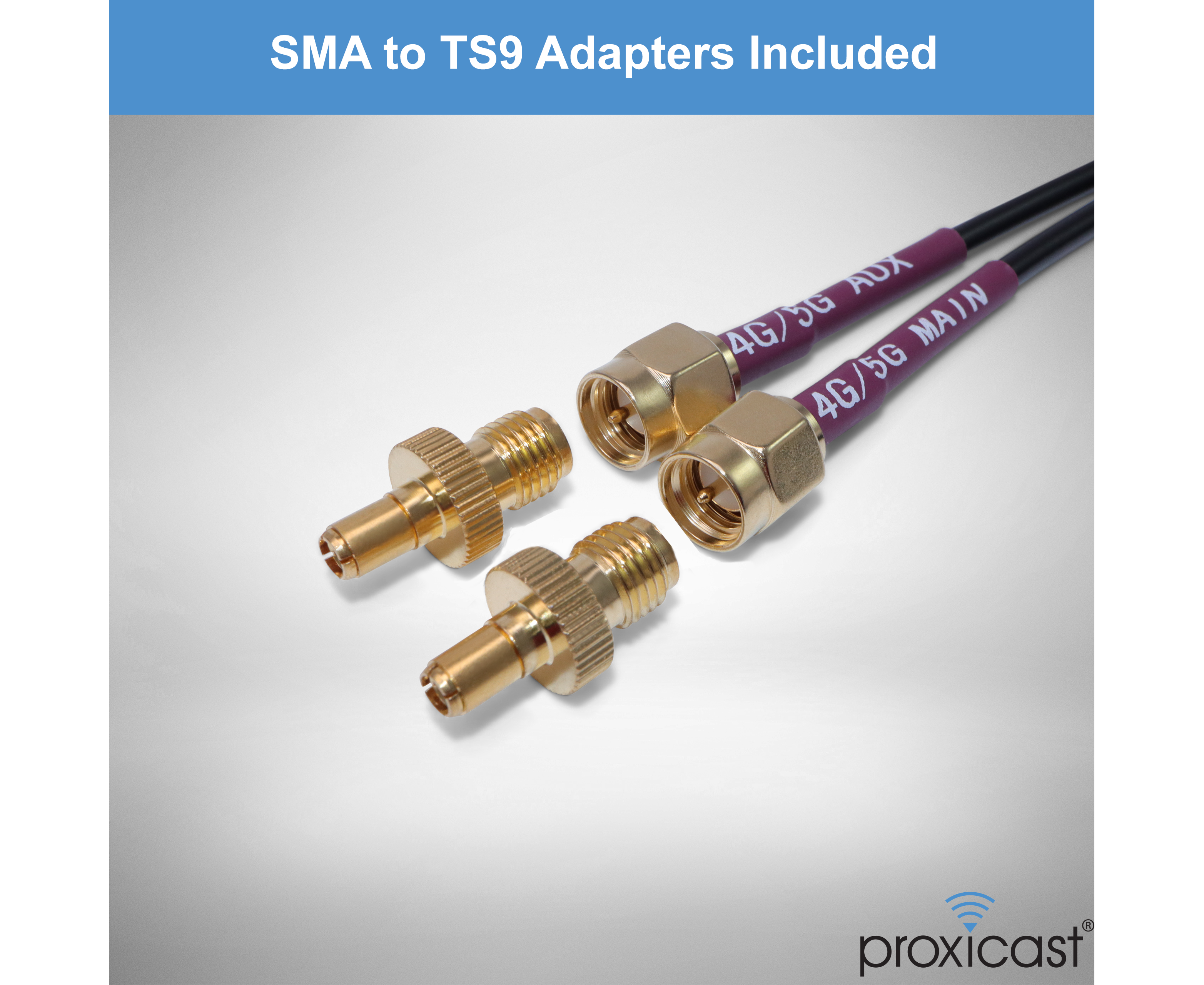

Dual integrated SMA male plug connectors mate with SMA female jacks on MIMO capable modems, routers,
etc. Includes 2 SMA to TS9 adapters for use with routers and hotspots with TS9 external antenna jacks.

For optimum performance this antenna should be mounted through a flat, horizontal metal surface at least 8
inches in diameter.



Application Examples

Factory

Vending Machines

Kiosks & ATMs

Machine Control Panels

Ambulance

Vending Machines

  • Inventory Levels
  • Machine Status
  • Advertising Updates
  • Price Changes

Kiosks & ATMs

  • Bank Machines
  • Self Service Kiosks
  • Digital Signage
  • Alarm Systems

Machine Control Panels

  • PLC's
  • NEMA Enclosures
  • Weather Stations
  • Meters & Pump Houses

Emergency Vehicles

  • Police / Fire
  • Ambulance / EMS
  • Hazmat
  • Command & Control
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount through a horizontal metal surface at least 8 inches in diameter
  • Do not use a Y cable to connect 2 antenna leads to 1 modem port
  • Do not extend coax cables
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
ANT-121-M19 Specifications
Electrical Properties
Frequency Range 600~6000 MHz
Impedance 50 ohms
Peak Gain 2.5 dBi
Radiation Omni
Polarization Linear
Max input power 50 W
Ground Plane 8 inch (20 cm) diameter min.
Mechanical Properties
Material

Radome: UV stabilized ABS plastic

Connector: Brass with Nickel plating

Adhesive Pad: Urethane Foam

RoHS compliant
Connector 2x SMA Male Plugs + 2x SMA/TS9 Adapters
Operating Temp. -40°C to +85°C
Dimensions Height 0.6 in. (15 mm); Diameter 3.2 in. (81.3 mm
Mounting

Magnetic & Adhesive
Weight 4.6 oz (130 g)
Environmental Rating

IP67 (waterproof)



SKU: ANT-122-M19

UPC: 850021295226



ANT-122-M19 Specifications (618 Kb)

  • Title: Proxicast Ultra Low Profile MIMO 4G / 5G Omni-Directional Magnetic/Adhesive Mount Antenna for Verizon, AT&T, T-Mobile Modems & Routers with SMA or TS9 External Antenna Jacks
  • Part #: ANT-122-M19
  • UPC Code: 850021295226
  • ASIN: B0B9J2MHTB
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 0.600
  • PERMALINK: https://www.proxicast.com/shopping/ANT-122-M19
