Proxicast Vandal Resistant 4x4 MIMO Low Profile 4G/5G Omni-Directional Screw Mount Antenna - 10 ft Coax Leads - for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Others

MSRP:$13995
$11295
You save: $27.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
Price
$108.43
$107.30
$106.17
$105.04
Availability: 59 Item(s)
ANT-121-M44
+ −

Minimum quantity for "Proxicast Vandal Resistant 4x4 MIMO Low Profile 4G/5G Omni-Directional Screw Mount Antenna - 10 ft Coax Leads - for Cisco, Cradlepoint, Digi, Pepwave, Sierra Wireless and Others" is 1.

Add to Wish List
Key Features

  • LOW PROFILE ~ 3 inches Tall with 3-4 dBi Gain -- Omni-directional MIMO -- Indoor/Outdoor Use
  • 4 SMA MALE CONNECTORS on 10 ft Coax Leads / Vandal Resistant Materials & Design
  • 4 IDENTICAL ISOLATED OMNIDIRECTIONAL ANTENNA ELEMENTS Cover all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) in a Compact Enclosure
  • WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
  • COMPATIBLE WITH 4X4 MIMO Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters.
  • FOR INDUSTRIAL, COMMERCIAL AND INTERNET OF THINGS (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage

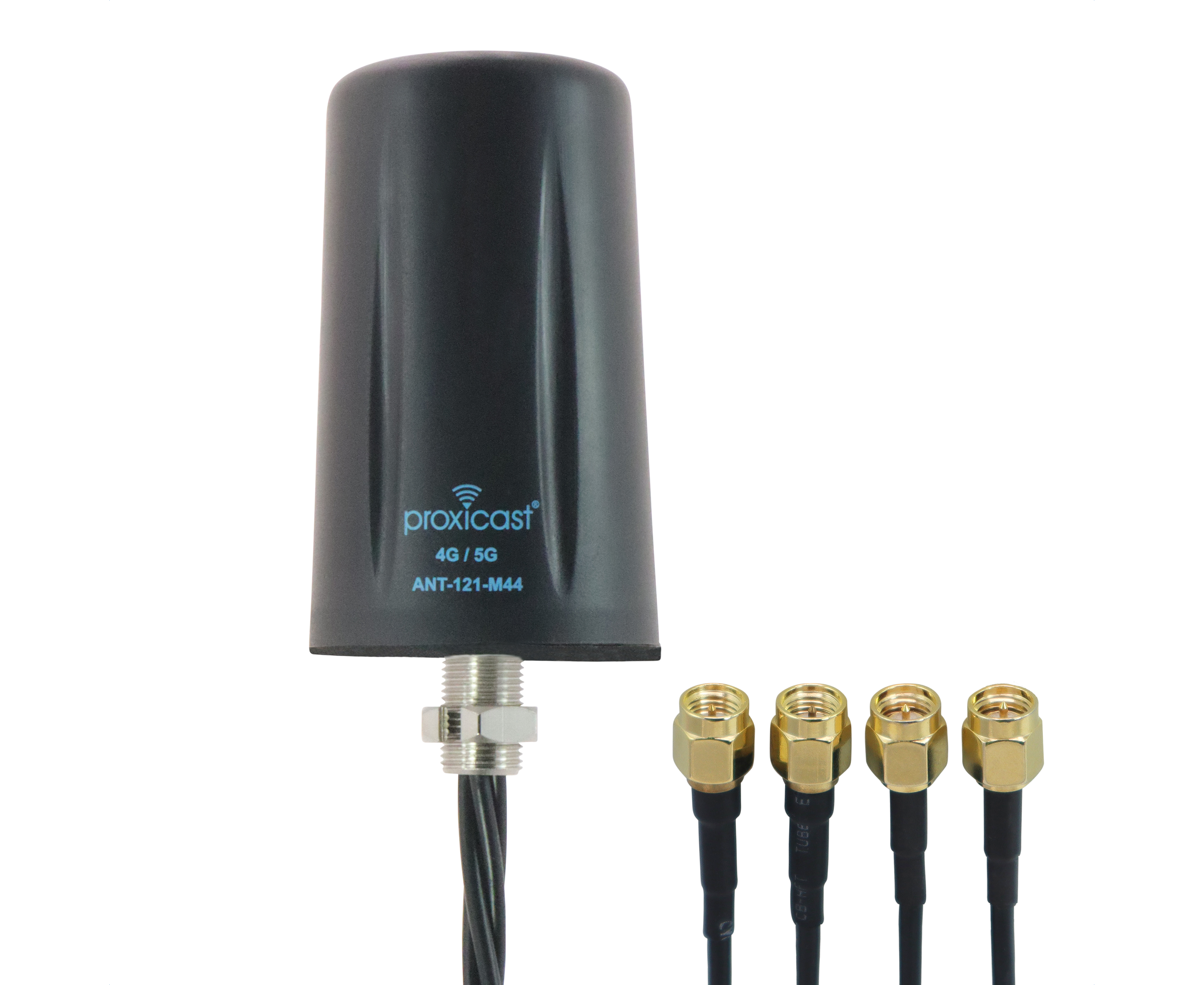

This low profile (~3 inches tall) fixed mount omni-directional antenna is a solution for today's state-of-the-art multi-antenna wireless systems (5G & Dual-SIM 4G/LTE). It offers 3 to 4 dBi of gain and support for all 4G/5G cellular frequency bands on AT&T, Verizon, T-Mobile, Bell, Rogers, Telus and other carriers worldwide.

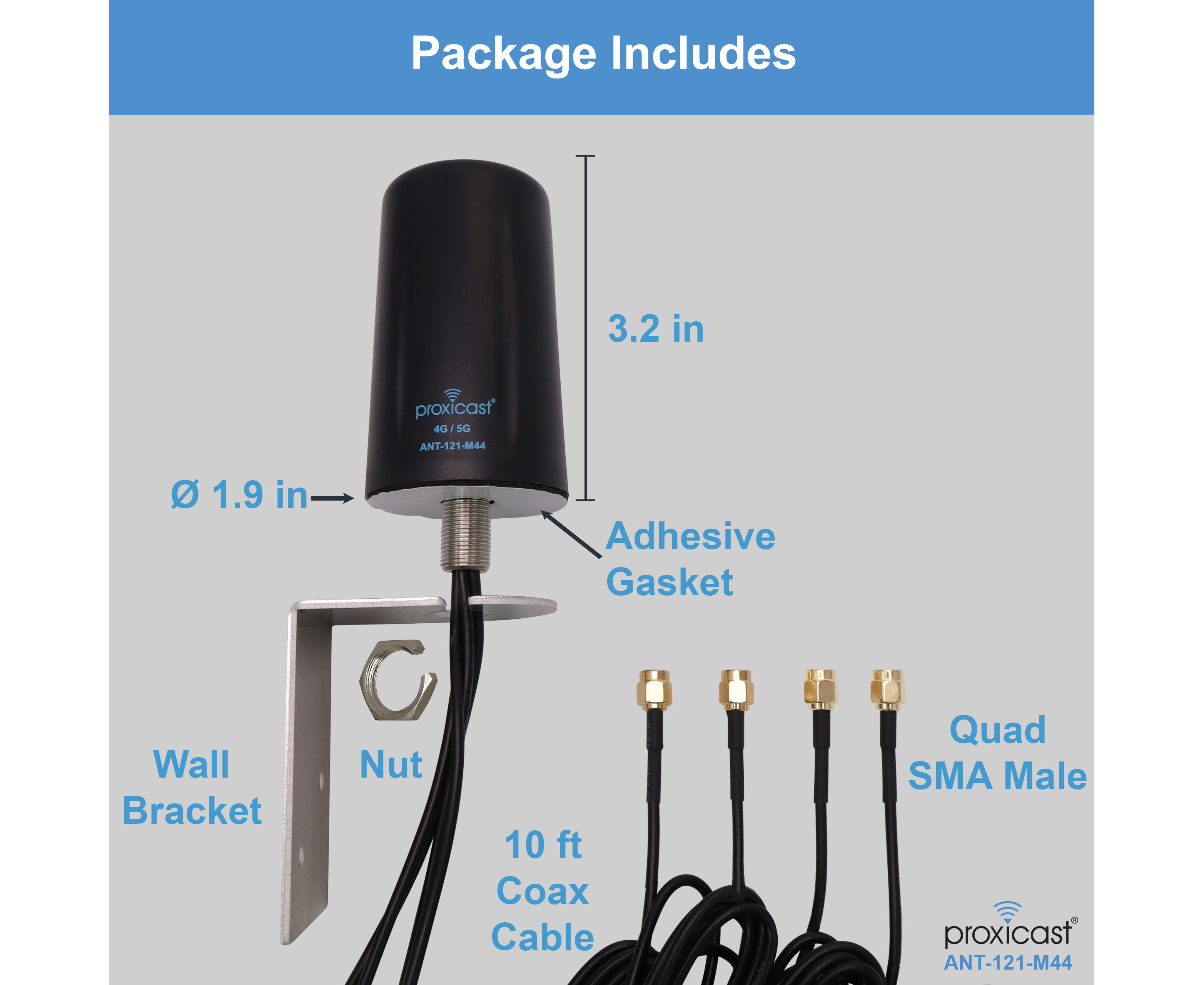

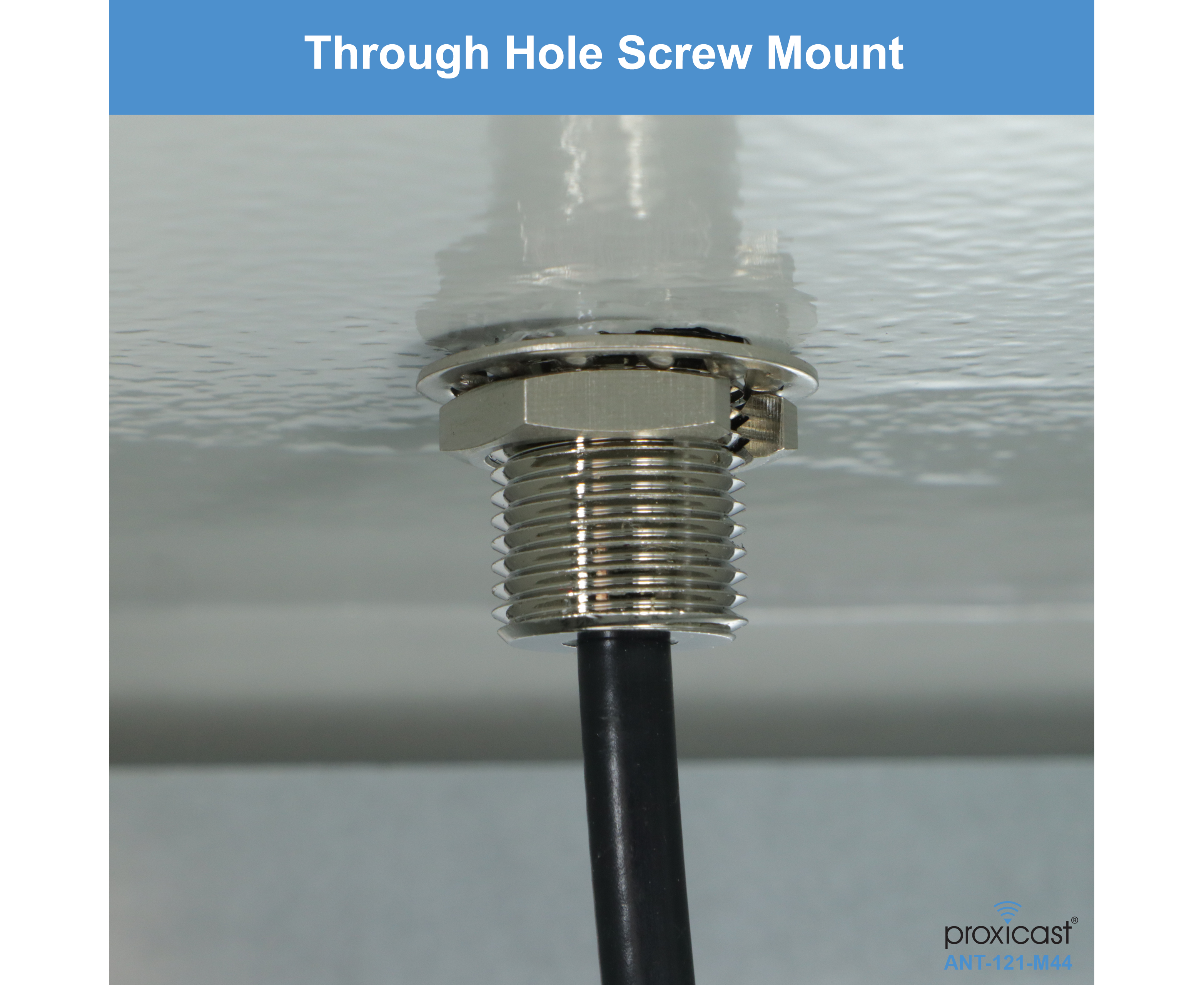

Permanently mounts via a 1/2 in. (12 mm) hole. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an thick threaded mounting post. Includes four 10 ft strands of low-loss LMR 100 coax fed through the center mounting post. Includes an "L" bracket for optional wall mounting. Completely waterproof (IP67).

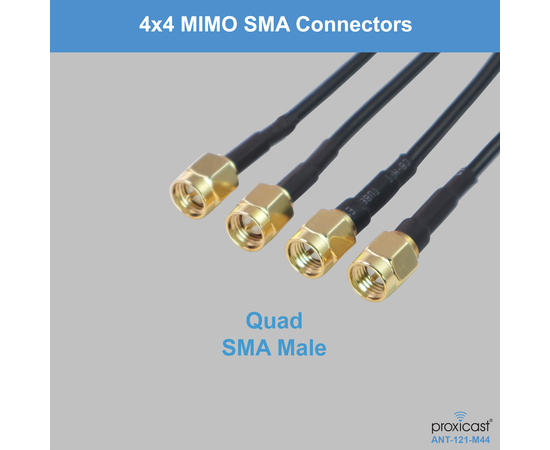

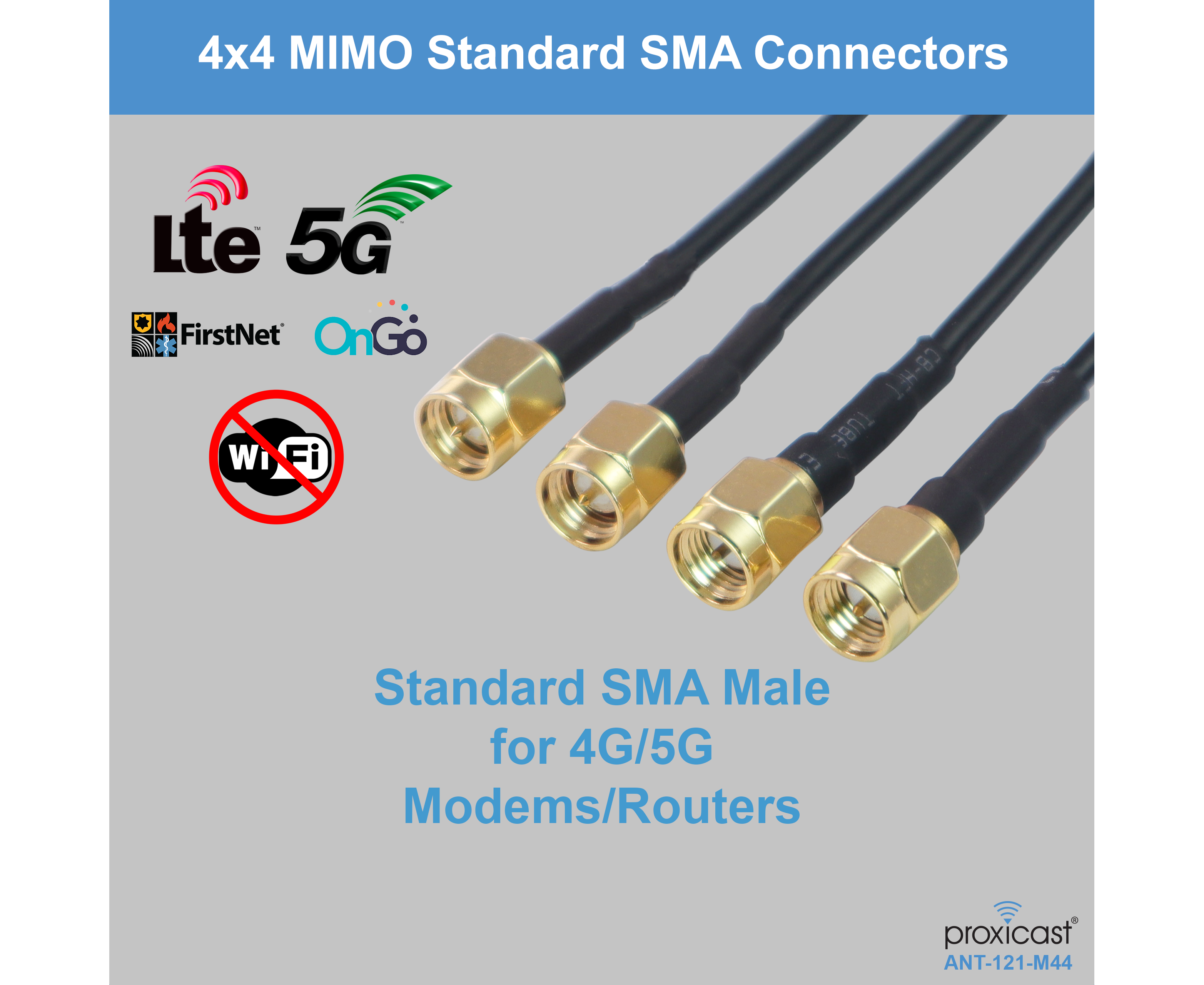

Integrated SMA male plug connectors mate with SMA female jacks found on most cellular modems and routers.  The single lead version of this antenna is part # ANT-121-002.  The 2x2 MIMO version of this antenna is part # ANT-121-M22.

Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations.

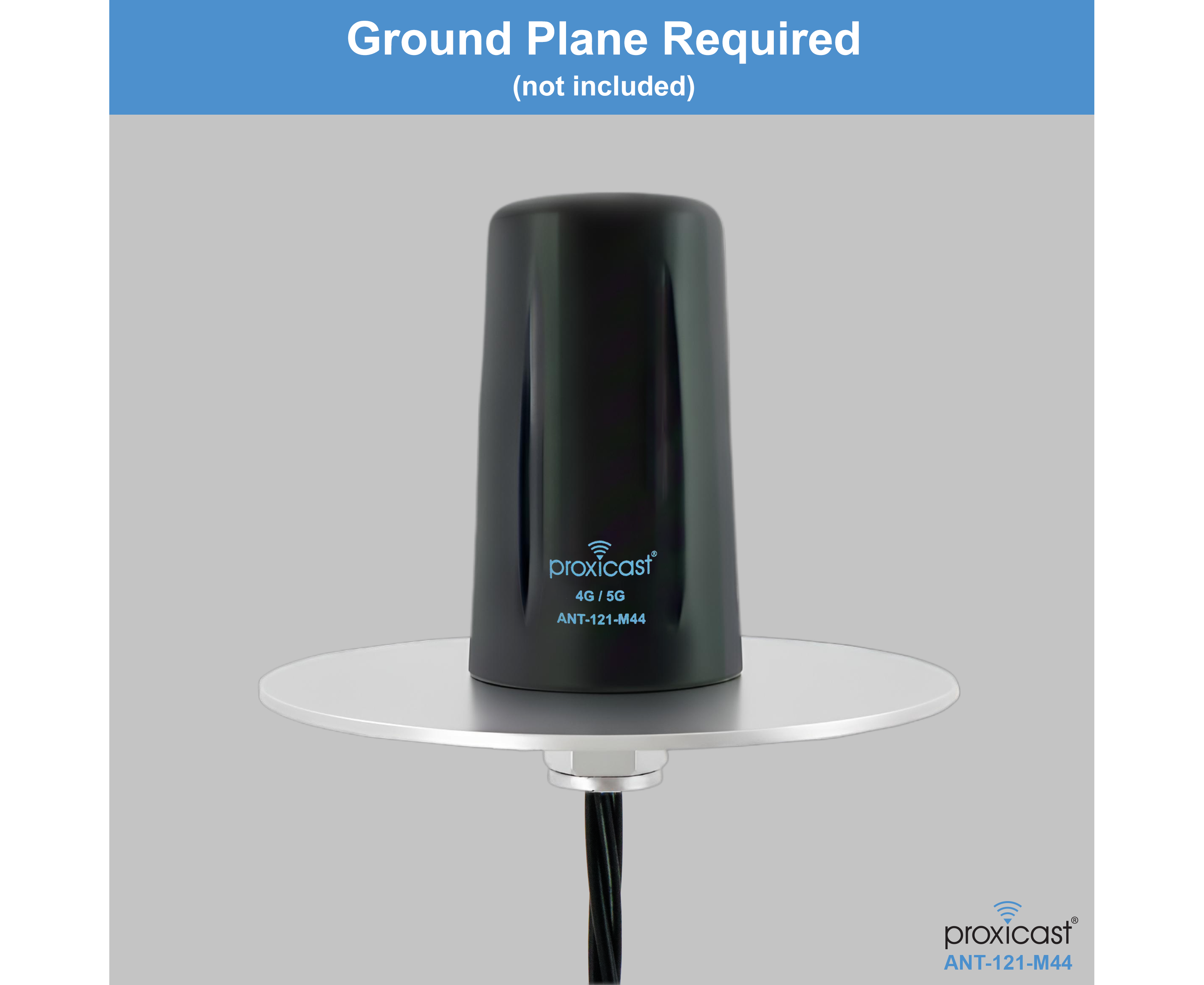

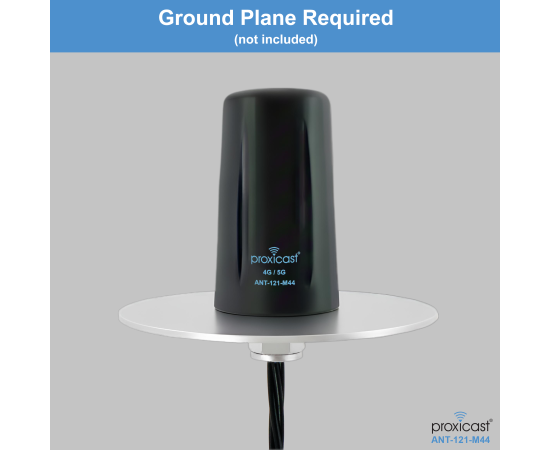

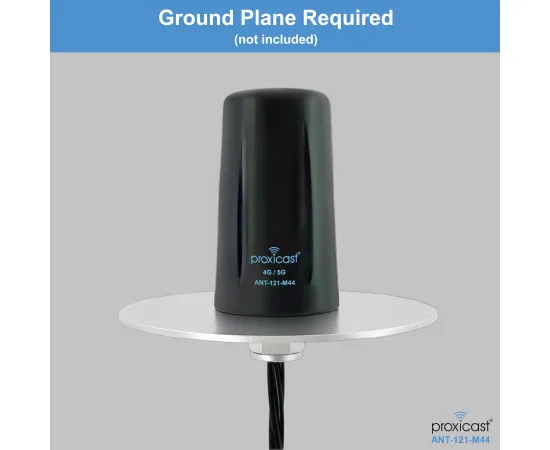

* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.



Vending Machines

Kiosks & ATMs

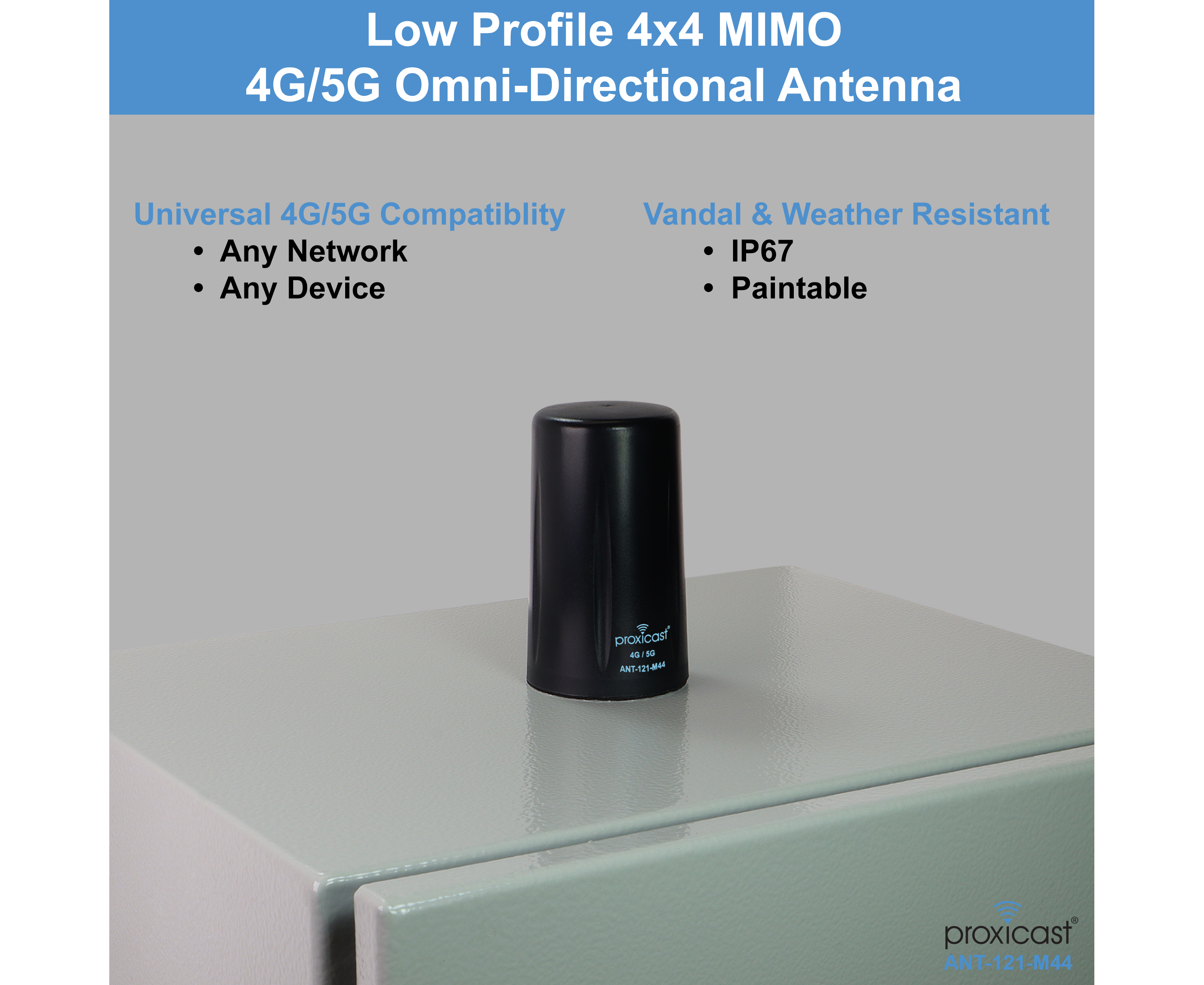

Machine Control Panels

Logos

Vandal Resistant

  • High Impact ABS Radome
  • Thick Mounting Post
  • Not Removable from Outside
  • No Exposed Coax Cabling

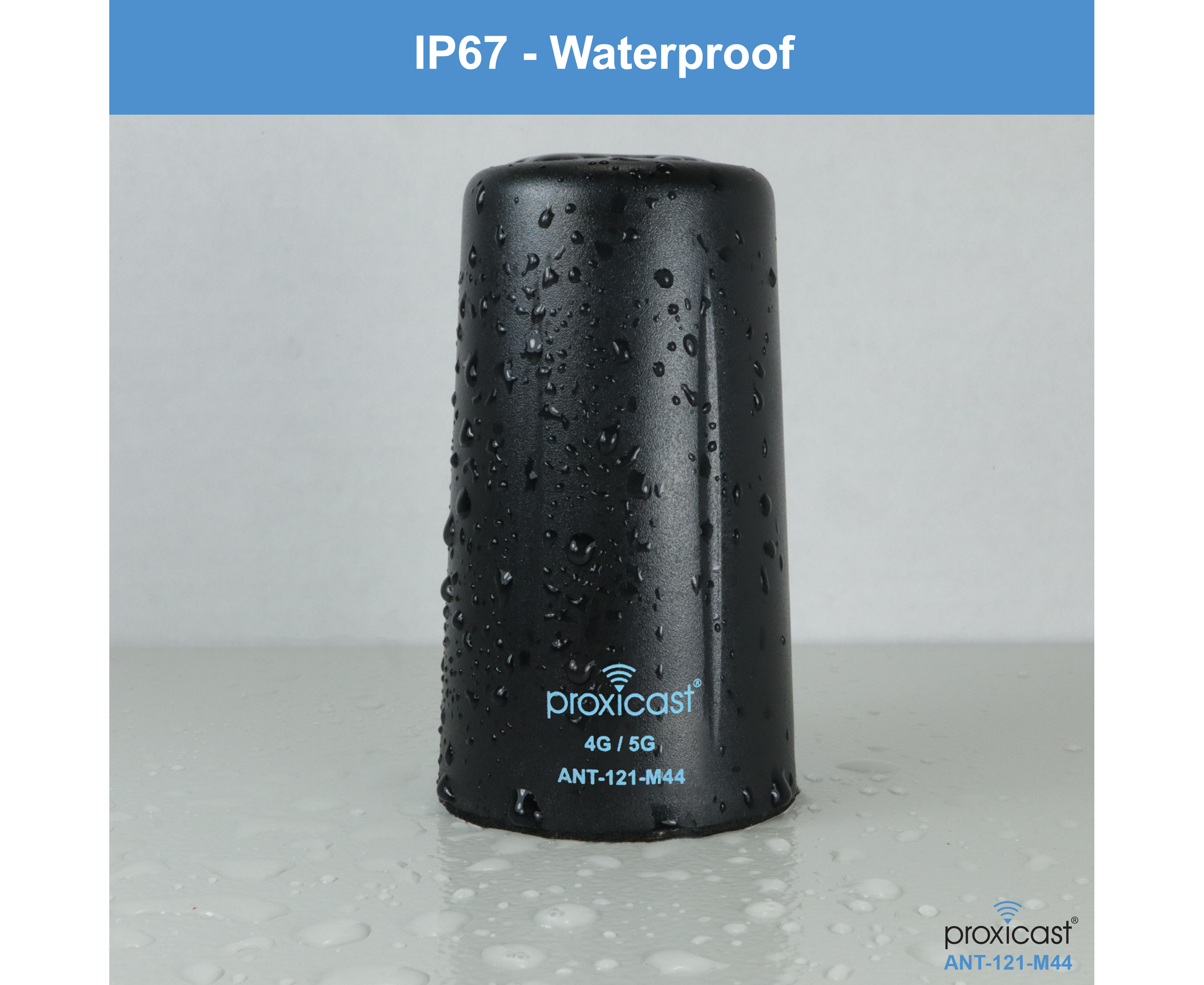

Weatherproof

  • Water & Dust Proof
  • IP67 Rated
  • Adhesive Rubber Gasket between
    Antenna and Mounting Surface

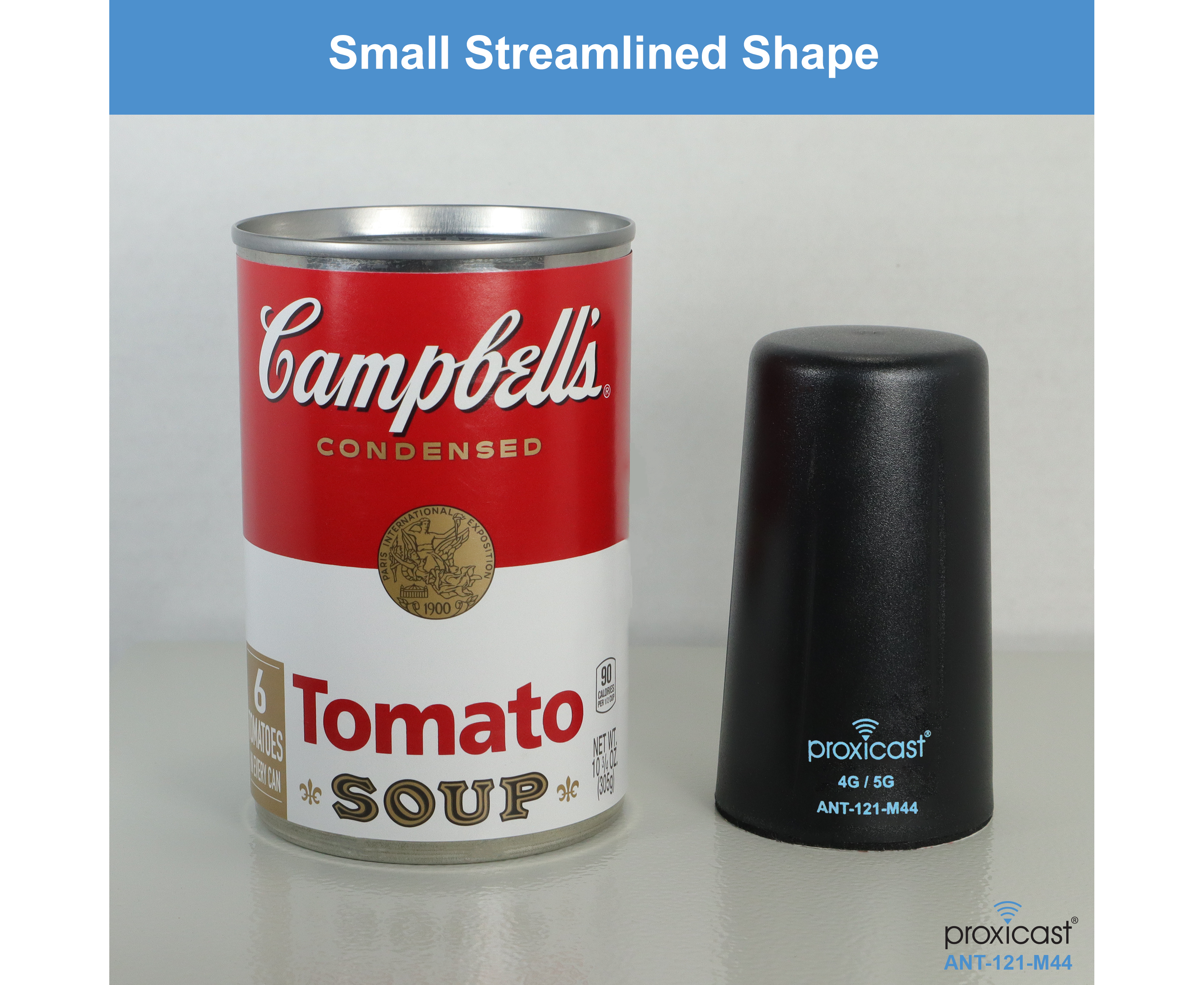

Inconspicuous

  • 3 Inches Tall
  • Simple Geometric Shape
  • Omnidirectional Coverage
  • Paintable to Blend into Surroundings

Universal Compatiblity

  • Any MIMO Capable 4G/5G Device
    with 4 SMA Jacks
  • Any 4G/5G, FirstNet or
    CBRS Network
  • AT&T, T-Mobile, Verizon
  • Bell, Rogers, Telus

Application Examples

Factory

Vending Machines

Kiosks & ATMs

Machine Control Panels

Ambulance

Vending Machines

  • Inventory Levels
  • Machine Status
  • Advertising Updates
  • Price Changes

Kiosks & ATMs

  • Bank Machines
  • Self Service Kiosks
  • Digital Signage
  • Alarm Systems

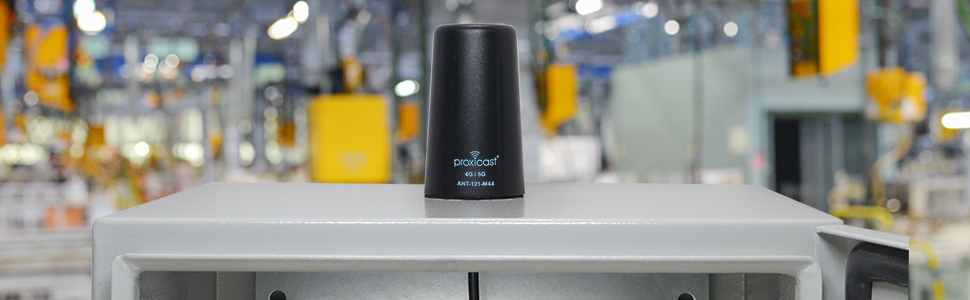

Machine Control Panels

  • PLC's
  • NEMA Enclosures
  • Weather Stations
  • Meters & Pump Houses

Emergency Vehicles

  • Police / Fire
  • Ambulance / EMS
  • Hazmat
  • Command & Control



Compatible with any 4x4 MIMO 5G Modem or Router with External Antenna Ports Including:

Cisco Catalyst Cellular Gateways:

  • CG522-E
  • CG418-E

 Cradlepoint:

  • E300 Series Enterprise Router
  • E3000 Series Enterprise Router
  • AER2200 Series Enterprise Router
  • R1900 Series 5G Ruggedized Router
  • IBR1700 Series Ruggedized Router
  • W1850 Series 5G Wideband Adapter

 Digi:

  • EX50
  • CORE plug-in LTE modem (Dual SIM 4G)
  • TX64 5G / LTE-Advanced Pro Cellular Router

 MoFi:

  • 5500

 Peplink:

  • MAX BR1 Pro 5G
  • MAX BR2 Pro
  • B310 Series
  • MBX Series (requires QMA adapters)

 Rosbustel:

  • R5020 & EG5120

 Sierra Wireless:

  • AirLink XR80 & XR90 (requires FAKRA adapters)



Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount through a horizontal metal surface at least 8 inches in diameter
  • Do not use a Y cable to connect 2 antenna leads to 1 modem port
  • Do not extend coax cables
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality (SINR, RSRQ) not signal Strength (RSSI, RSRP, bars)
ANT-121-M44 Specifications
Electrical Properties
Frequency Range 600-6000 MHz - all 4G & 5G Sub-6 (FR1) Bands
Impedance 50 ohms
Antenna Gain 3-4 dBi frequency dependent
Radiation Omni
Polarization Vertical
VSWR < 3.0:1 in band
Max input power 50 W
Ground Plane 8 inch (20 cm) diameter min.
Mechanical Properties
Material

Radome: UV stabilized ABS plastic (black)

Connector: Brass with Nickel plating

Mounting Bracket: Aluminum

RoHS compliant
Connector 4x SMA Male on 10 ft (3m) low-loss LMR100 coax cable
Operating Temp. -40°C to +80°C
Height Radome: 3.2 inches / 82 mm
Diameter

Radome: 1.9 inches / 48 mm at base

Mounting post: 0.5 inches / 12 mm x 1 mm extra fine thread
Weight 8.8 oz (250 g)
Environmental Rating

IP67 (waterproof)



SKU: ANT-121-M44

UPC: 850021295202
