Vandal Resistant Low Profile Dual Band 2.4 / 5.8 GHz Wi-Fi 802.11 b/g/n/ac/ax Omni-Directional Antenna - 3-5 dBi Gain - Fixed Mount - 10 ft Coax Lead w/ RP-SMA

MSRP:$64.95
$49.95
You save: $15.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$47.95
$47.45
$46.95
Availability: 52 Item(s)
ANT-131-002
+

Minimum quantity for "Vandal Resistant Low Profile Dual Band 2.4 / 5.8 GHz Wi-Fi 802.11 b/g/n/ac/ax Omni-Directional Antenna - 3-5 dBi Gain - Fixed Mount - 10 ft Coax Lead w/ RP-SMA" is 1.

Add to Wish List
Key Features

  • LOW PROFILE - 3 inches Tall with 3-5 dBi Gain - Omni-directional - Indoor / Outdoor Permanent Weatherproof Mount

  • VANDAL RESISTANT Materials & Design - Reverse Polarity SMA Male Connector on 10 ft Low-Loss Coax Lead

  • IEEE 802.11 a/b/g/n/ac Compatible - Works on all Wi-Fi networks including 2400 MHz and 5800 MHz Worldwide

  • COMPATIBLE with most WLAN devices such as access points, hotspots and routers from Airlink, ASUS, CalAmp, Cisco, Cradlepoint, Digi, D-Link, Linksys, MoFi, Netgear, Novatel, Pepwave, Proxicast, TP-Link, Sierra Wireless and many others

  • PERFECT FOR industrial, commercial and Internet Of Things (IOT) applications such as Hot Spots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), NEMA Enclosures, Mobile & Vehicles (buses, trucks, vans, cars), SCADA, Telemetry, PLCs, RTUs, Digital Signage and more



For outdoor/indoor applications. Excellent for Wi-Fi hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing Wi-Fi routers, access points or other Wi-Fi enabled devices which have reverse polarity SMA external antenna connectors.

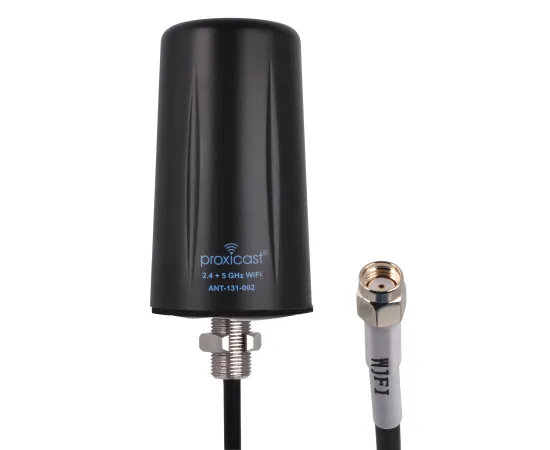

This low profile (~ 3 inches tall) fixed mount omni-directional antenna provides 3 to 5 dBi of gain and supports both the 802.11 b/g/n 2.4 GHz and 802.11 a/ac 5.8 GHz frequency bands. Permanently mounts via a 5/8 in. (16 mm) hole with locking internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick threaded screw mounting post. Includes 10 ft of low-loss RG58U coax fed through center mounting post. Includes "L" bracket for optional wall mounting.

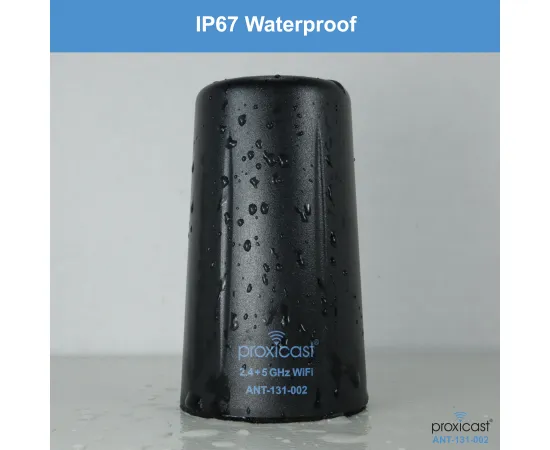

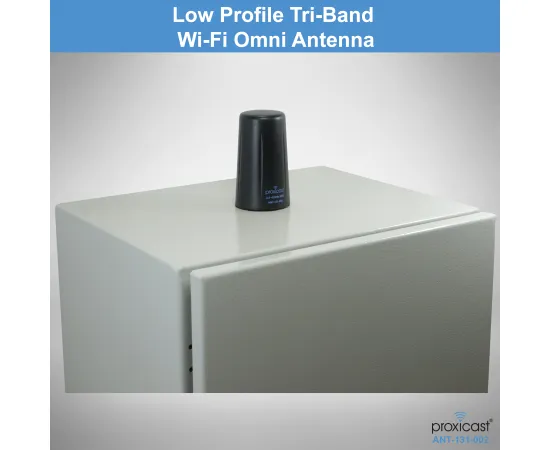

Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67) when installed with post extending into a water-tight enclosure. Not waterproof when used exclusively with wall bracket.

Integrated RPSMA male plug connector mates with female jack found on most Wi-Fi access points and routers.

* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.

Note: MIMO systems should have identical antennas on all connectors for best results.

The 4G/LTE version of this antenna is ANT-121-002.



Application Examples

Factory

Vending Machines

Kiosks & ATMs

Machine Control Panels

Ambulance

Vending Machines

  • Inventory Levels
  • Machine Status
  • Advertising Updates
  • Price Changes

Kiosks & ATMs

  • Bank Machines
  • Self Service Kiosks
  • Digital Signage
  • Alarm Systems

Machine Control Panels

  • PLC's
  • NEMA Enclosures
  • Weather Stations
  • Meters & Pump Houses

Surveillance

  • WiFi Cameras
  • DVRs' & NVR's
  • Covert Installations
  • Law Enforcement
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount through a horizontal metal surface at least 8 inches in diameter
  • Do not use a Y cable to connect 2 modem ports to 1 antenna
  • Do not extend coax cables
  • Fully tighten coax connectors to modem antenna ports
  • Stand 3+ feet away from antenna when testing
ANT-131-002 Specifications
Electrical Properties
Frequency Range 2400-2483 / 5150-5250 / 5725-5850 MHz (802.11 a, b, g, n, ac, ax)
Impedance 50 ohms
Antenna Gain 3-5 dBi
Radiation Omni
Polarization Vertical
VSWR ADGP < 2.0:1
Max input power 50 W
Ground Plane 8 inch (20 cm) diameter min.
Mechanical Properties
Material

Radome: UV stabilized ABS plastic (black)

Connector: Brass with Nickel plating

Mounting Bracket: Aluminum

RoHS compliant

Connector RP-SMA Male on 10 ft (3m) low-loss RG58U coax cable
Operating Temp. -40°C to +80°C
Height Radome: 3.2 inches / 82 mm
Diameter

Radome: 1.9 inches / 48 mm at base

Mounting post: 0.55 inches / 14 mm

Weight 6.2 oz (176 g)
Environmental Rating

IP67 (waterproof)



SKU: ANT-131-002

UPC: 617237750457
