Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas

Name: Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas
SKU: ANT-233-003
Price: 21.95 USD
Availability: OutOfStock

Home/Accessories/Lightning Arresters/Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas

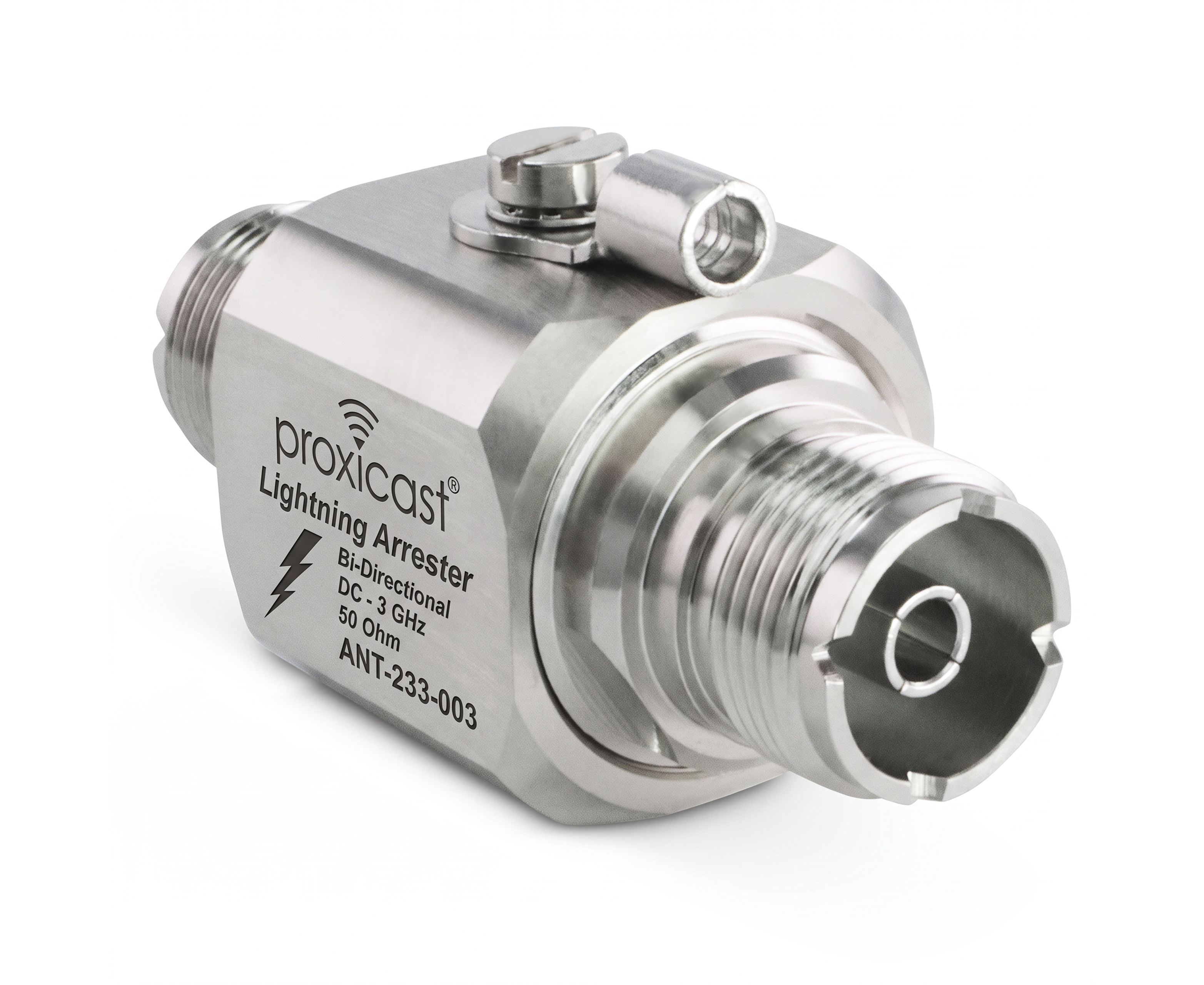

Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas, Gender: UHF Female / UHF Female - V3

MSRP:$31⁹⁵

$21⁹⁵

You save: $10.00

Our Quantity Discounts:

Quantity

15+

30+

50+

100+

250+

Price

$21.51

$21.29

$21.07

$20.85

$20.63

$20.41

** Out of Stock **

Notify me when [ ] units of this item are back in stock.

Gender:

Part #: ANT-233-003

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by Part #	Sort by Gender
$19⁹⁵ MSRP:$31⁹⁵	Availability: 10 Item(s) + −	ANT-233-002	Gender: UHF Female / UHF Female
$21⁹⁵ MSRP:$31⁹⁵	Out of Stock	ANT-233-003	Gender: UHF Female / UHF Female - V3
$19⁹⁵ MSRP:$31⁹⁵	Availability: 11 Item(s) + −	ANT-234-002	Gender: UHF Male / UHF Female
$21⁹⁵ MSRP:$31⁹⁵	Availability: 996 Item(s) + −	ANT-234-003	Gender: UHF Male / UHF Female - V3

Description
Specifications
Videos
Documentation
Product Inquiry
Identity

Key Features

DESIGNED FOR VHF, UHF, TWO-WAY, AMATEUR / HAM and CB RADIOS - Features 2 UHF Female SO239 Connectors
BI-DIRECTIONAL PROTECTION - High Quality Construction - Outdoor Rated - Suitable for In-Line Use
VERY LOW RF INSERTION LOSS (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through
230V GAS DISCHARGE TUBE - Coaxial Cable Surge Protector with Multi-Strike Capability Shunts Damaging Surges, Transients, and Lightning Energy to Ground
CONNECT COAXIAL SURGE PROTECTOR to Antenna Signal Feedline and Earth Ground

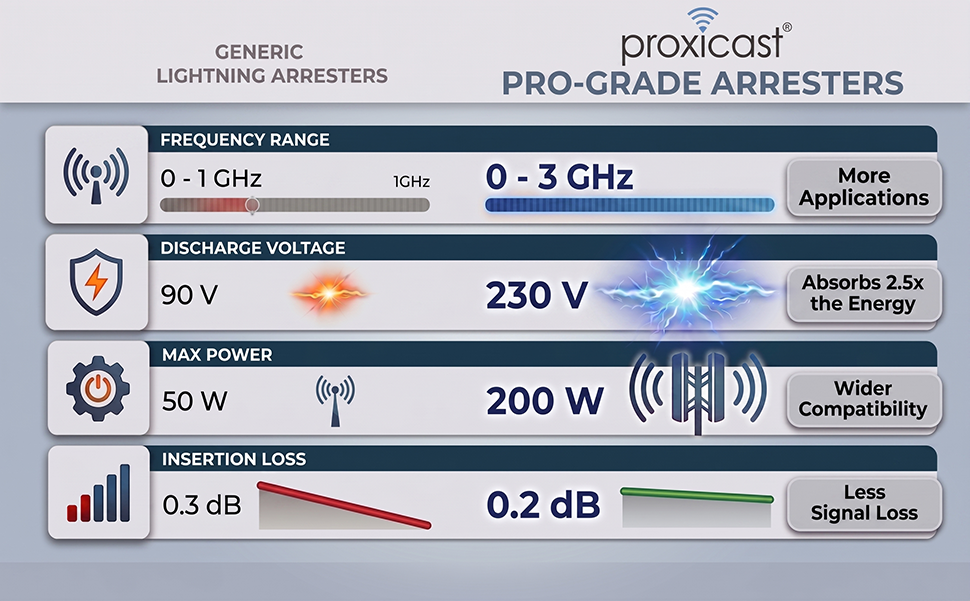

This gas discharge tube lightning suppressor features wide-band operation from DC to 3 GHz with low RF insertion loss, making it ideal for HF, Marine VHF, UHF, CB, Amateur Radio (Ham), P25, GMRS, LMR, Two-Way and other radio system antennas. It can absorb 2.5 times the energy of typical 90V arresters.

With dual UHF-Female (SO-239) connectors, the arrester sits inline with your coax cabling. It passes DC for applications such as remote amplifiers and LNAs. Both ports are equally protected - it can be installed in either orientation. The housing ground lug provides superior grounding.

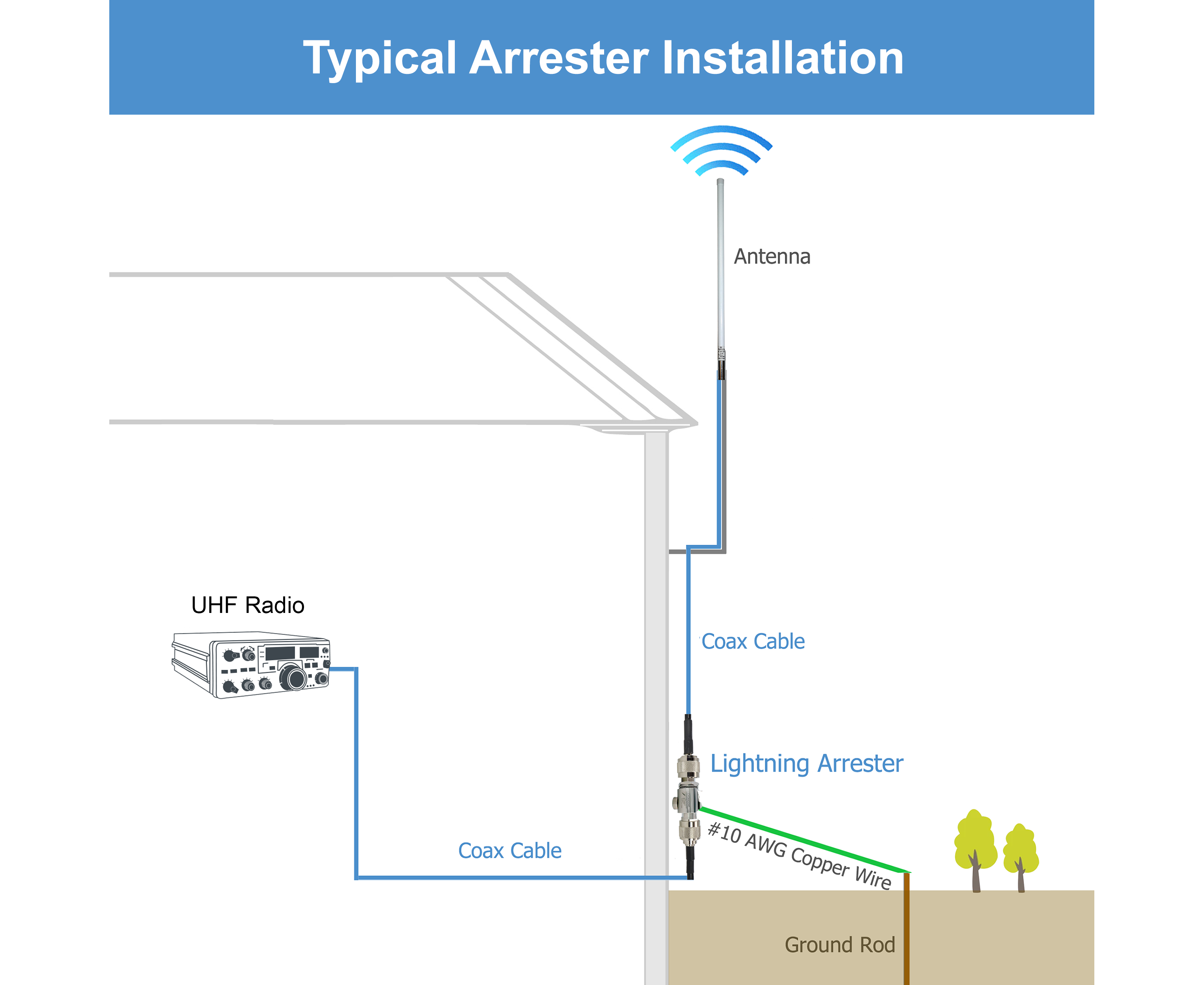

Coaxial lightning suppressors should be installed between outdoor antennas and radio equipment to protect from high-energy electrical pulses carried through the coax cable either from a direct or nearby lightning strike. Arresters should be installed outdoors as close as possible to the equipment to be protected, typically at the point where the coax cable enters the building.

Applications

VHF / UHF
HAM / Amateur Radio
CB / Citizens Band
FirstNET
P25
LMR
GMRS

ANT-233-003 Specifications

Electrical Properties
Frequency Range	0 - 3 GHz
Impedance	50 ohms
Discharge Voltage	DC 230V
Max Power	200 W
Insertion Loss	< 0.2 dB
VSWR	ADGP < 1.2
Mechanical Properties
Material	Connector Body: Nickel Plated Brass RoHS compliant

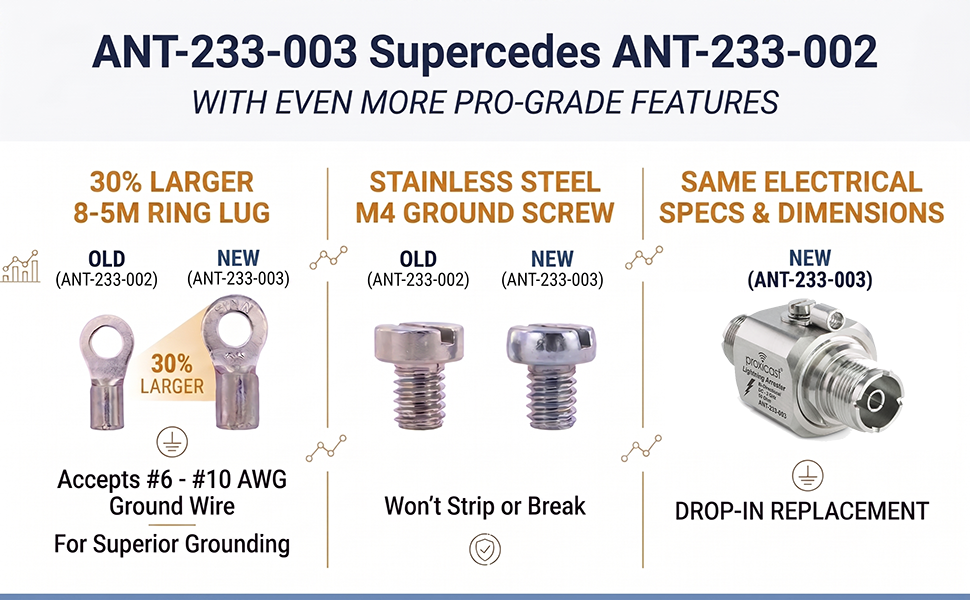

Connectors	UHF Female (SO-239) / UHF Female (SO-239) Stainless Steel M4 Screw 8-5M Non-Insulated Ring Terminal Lug (6 AWG Max Wire Diameter)
Dimensions	2.24 x 1 in (57 x 25 mm)
Weight	4 oz (113 g)

SKU: ANT-233-003

UPC: 850021295882

Proxicast Lightning Arrester Ad

Lightning Arrester Installation Guide (144 Kb)

Title: Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas
Part #: ANT-233-003
UPC Code: 850021295882
ASIN: B0H1KDL37H
HS Code: 8536.30.80.00
Country of Origin: CN - China
Export Control: EAR99 / NLR (No License Required)
Shipping Weight (lbs): 0.300
PERMALINK: https://www.proxicast.com/shopping/ANT-233-003
