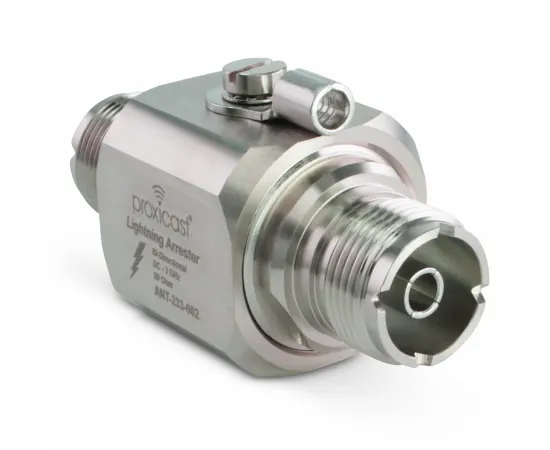

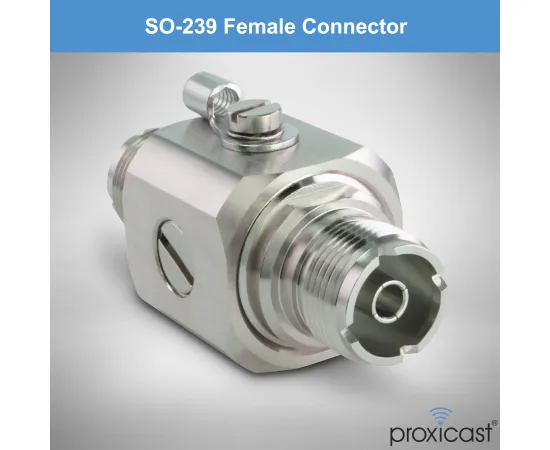

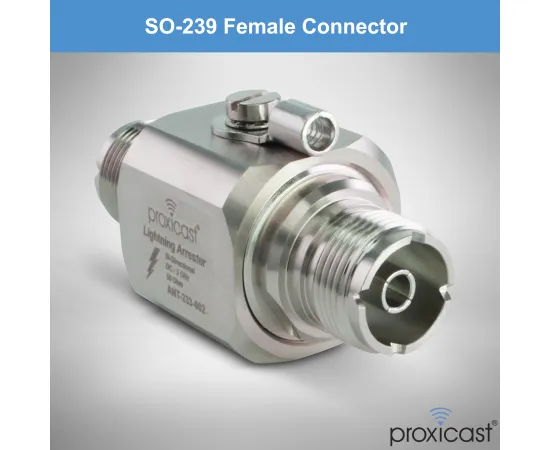

Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas

MSRP:$2995
$1795
You save: $12.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$17.23
$17.05
$16.87
Availability: 617 Item(s)
ANT-233-002
+ −
Add to Wish List
Key Features
  • DESIGNED FOR VHF, UHF, TWO-WAY, AMATEUR / HAM and CB RADIOS - Features 2 UHF Female SO239 Connectors

  • BI-DIRECTIONAL PROTECTION - High Quality Construction - Outdoor Rated - Suitable for In-Line Use

  • VERY LOW RF INSERTION LOSS (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through

  • 230V GAS DISCHARGE TUBE - Coaxial Cable Surge Protector with Multi-Strike Capability Shunts Damaging Surges, Transients, and Lightning Energy to Ground

  • CONNECT COAXIAL SURGE PROTECTOR to Antenna Signal Feedline and Earth Ground

This gas discharge tube lightning suppressor features wide-band operation from DC to 3 GHz with low RF insertion loss, making it ideal for HF, Marine VHF, UHF, CB, Amateur Radio (Ham), P25, GMRS, LMR, Two-Way and other radio system antennas. It can absorb 2.5 times the energy of typical 90V arresters.

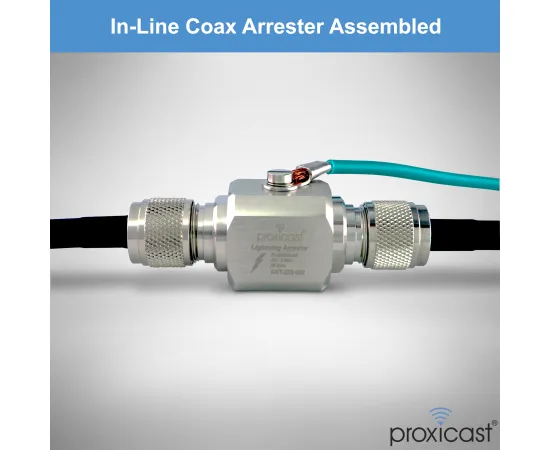

With dual UHF-Female (SO-239) connectors, the arrester sits inline with your coax cabling. It passes DC for applications such as remote amplifiers and LNAs. Both ports are equally protected - it can be installed in either orientation. The housing ground lug provides superior grounding.

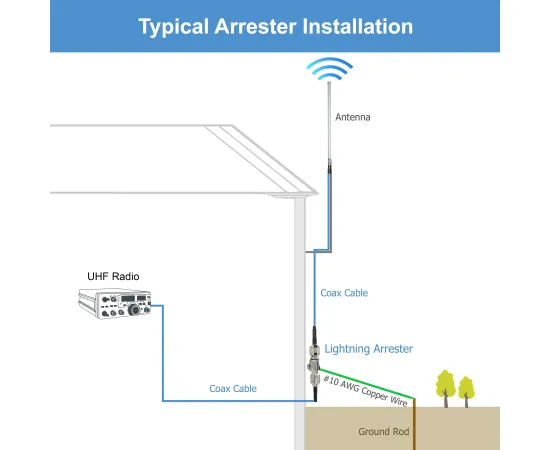

Coaxial lightning suppressors should be installed between outdoor antennas and radio equipment to protect from high-energy electrical pulses carried through the coax cable either from a direct or nearby lightning strike. Arresters should be installed outdoors as close as possible to the equipment to be protected, typically at the point where the coax cable enters the building.



Applications

  • VHF / UHF
  • HAM / Amateur Radio
  • CB / Citizens Band
  • FirstNET
  • P25
  • LMR
  • GMRS

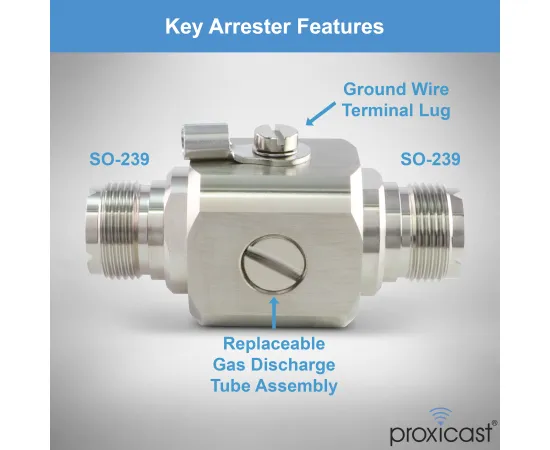

Pro-Grade Lighting Arrester Features

ANT-233-002 Specifications
Electrical Properties
Frequency Range 0 - 3 GHz
Impedance 50 ohms
Discharge Voltage DC 230V
Max Power 200 W
Insertion Loss < 0.2 dB
VSWR ADGP < 1.2
Mechanical Properties
Material Connector Body: Nickel Plated Brass
RoHS compliant
Connectors UHF Female (SO-239) / UHF Female (SO-239)
Ground Lug
Dimensions 2.24 x 1 in (57 x 25 mm)
Weight 4 oz (113 g)



SKU: ANT-233-002

UPC: 850021295295

Proxicast Lightning Arrester Ad

ANT-233-002 Specification Sheet (261 Kb)

  • Title: Coaxial Lightning Arrester/Suppressor with UHF SO-239 Female Connectors - Pro-Grade Coax Cable Surge Protector for RF, HF, VHF, UHF, CB, Ham, Two-Way Radio and Other Antennas
  • Part #: ANT-233-002
  • UPC Code: 850021295295
  • ASIN: B0CBW6J6YW
  • HS Code: 8535.40.00
  • Country of Origin: China
  • Shipping Weight (lbs): 0.300
  • PERMALINK: https://www.proxicast.com/shopping/ANT-233-002
