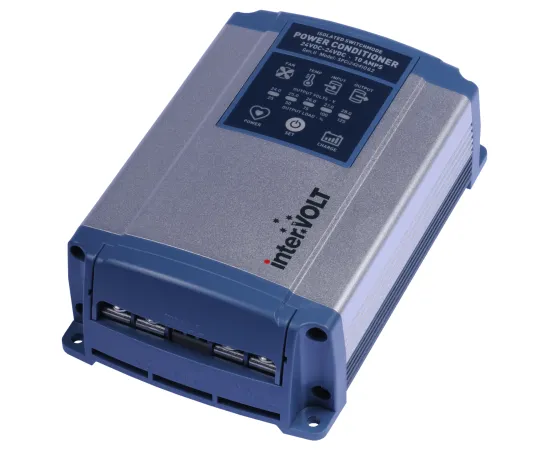

interVOLT 24V DC 10 Amp Isolated Power Conditioner – Model SPCi242410G2

MSRP:$41995
$31995
You save: $100.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$307.15
$303.95
$300.75
Availability: 9 Item(s)
PWR-SPCi242410G2
+

Minimum quantity for "interVOLT 24V DC 10 Amp Isolated Power Conditioner – Model SPCi242410G2" is 1.

Add to Wish List
Key Features

  • Premium Grade 24V DC Power Conditioner / Isolator

  • User Adjustable Output Voltage from 24V to 28V for Line-load and Battery Charging Applications

  • Highly Stable (< 20mV ripple) Under a Range of Input Conditions (20 - 33 VDC input)

  • Heavy Duty 10 Amp Continuous Output - Galvanic Isolation between Input and Output

  • Innovative Operator Interface and Circuit Protection Features

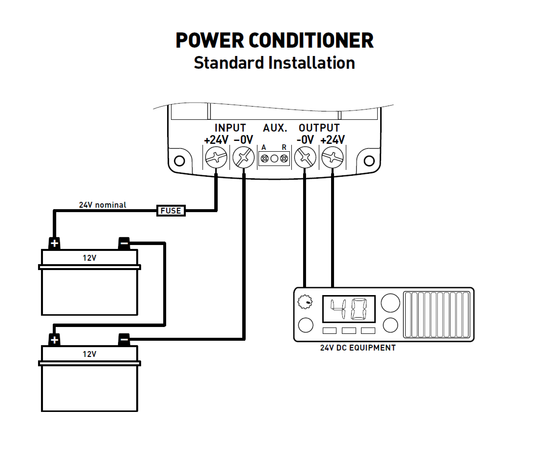

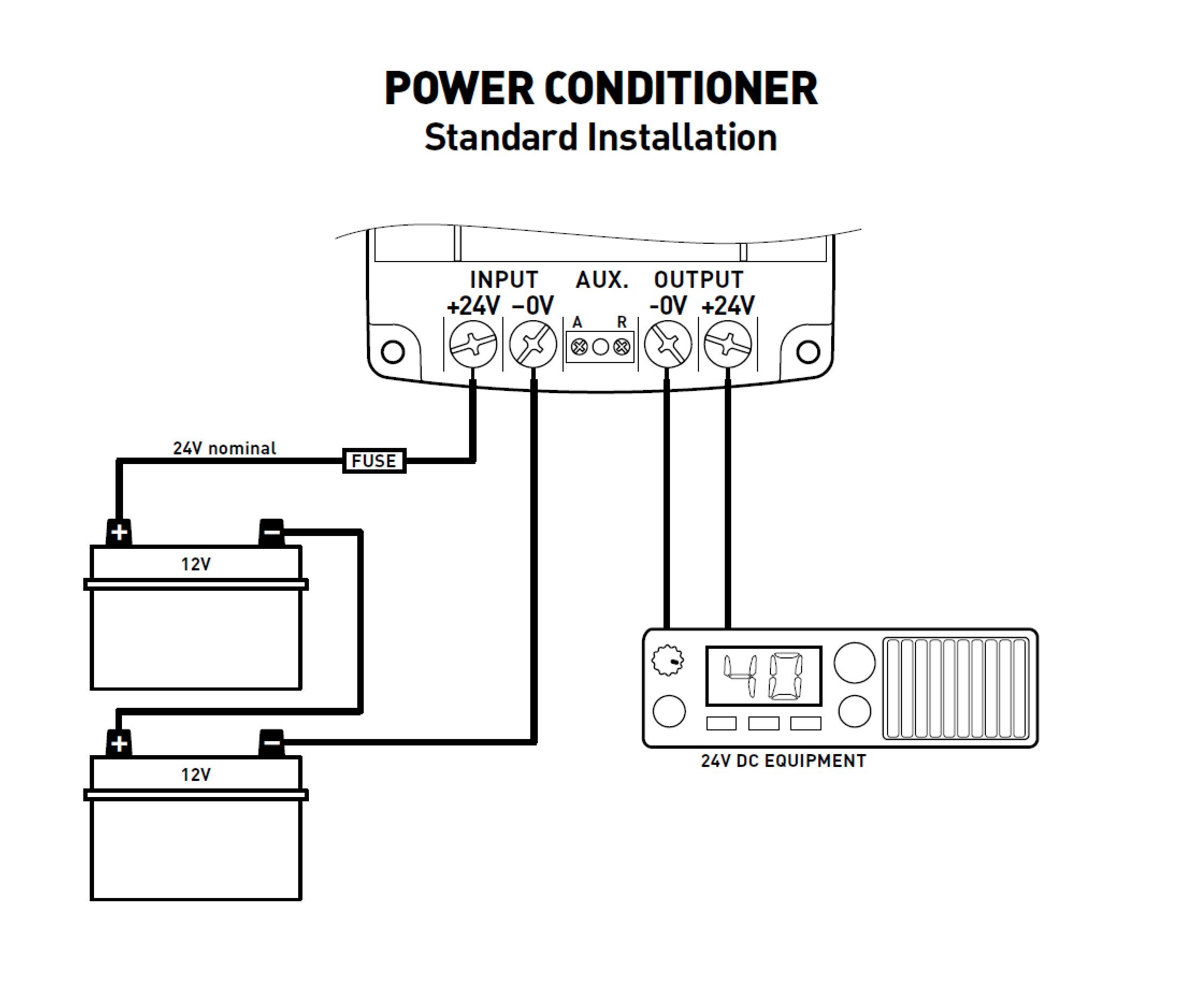

24VDC to 24VDC powers conditioner are used to connect auxiliary 24VDC equipment in a 24VDC wired application. An isolated power conditioner eliminates the spikes, dips and noise generated by the input source.

The interVOLT SPCi242410G2 is a converter, stabilizer, isolator and regulator with the added advantage of galvanic isolation.

Intervolt SPCi Series power conditioners are designed for high demand power requirements in transport, telemetry, and alternative energy applications. They are suitable for powering a range of 24VDC equipment including communications, navigation, monitoring, instrumentation, lighting, refrigeration and much more.

Intervolt SPCi’s are fully protected from typical connection and installation faults such as reverse connection, short-circuiting, overloading, high output voltages and high temperatures.

They are constructed of quality marine grade materials and are designed to provide many years of continuous service while coping with the demands of the harshest applications, high temperature, high humidity environments.

Innovative features. Rugged design. Simple installation. Peace-of-Mind.



Key Specifications

• Input: 20 - 33 VDC initial (will dip to 17V during operation)
• Output Voltage User adjustable 24.0V to 28.0V in 1.0V increments

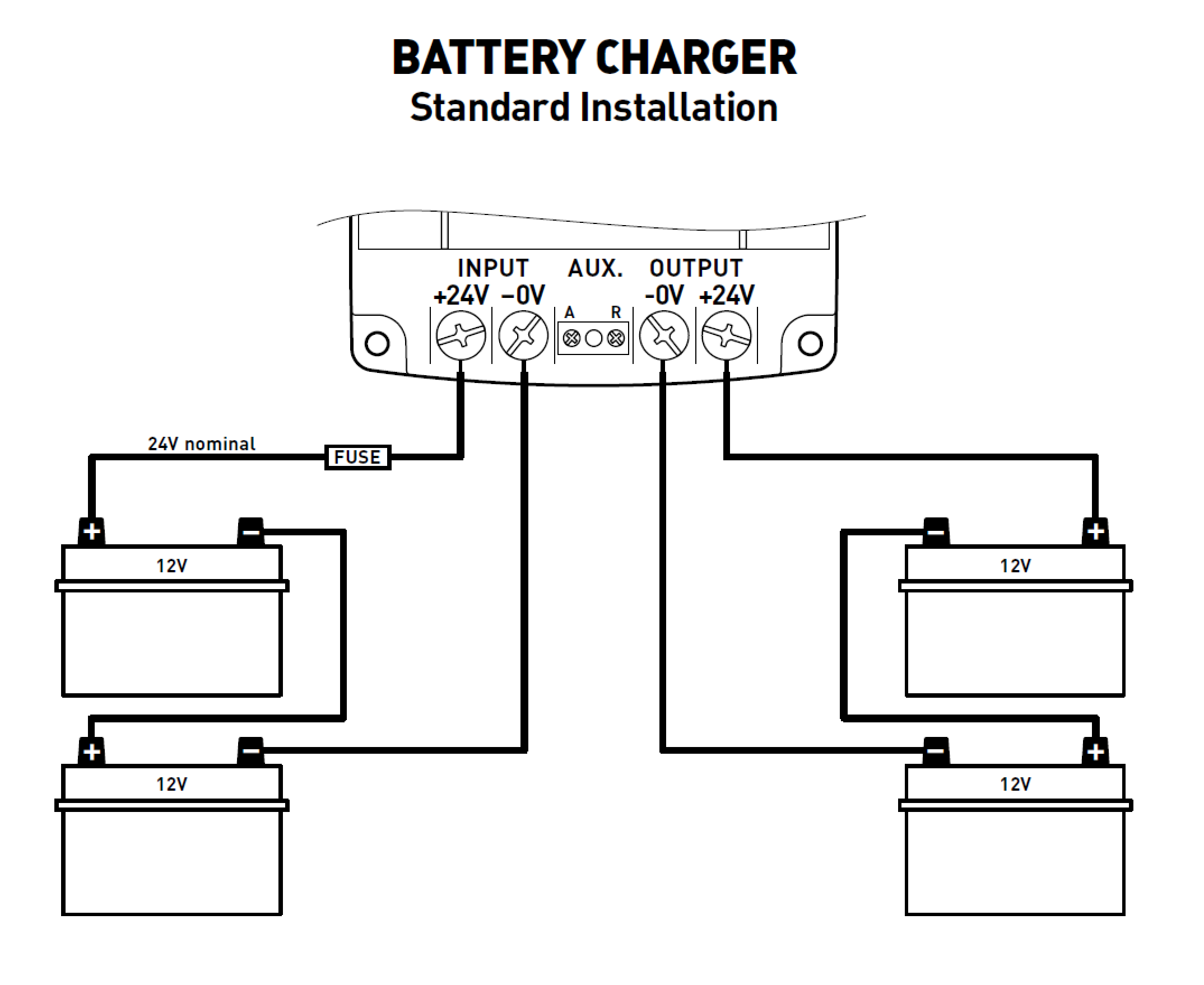

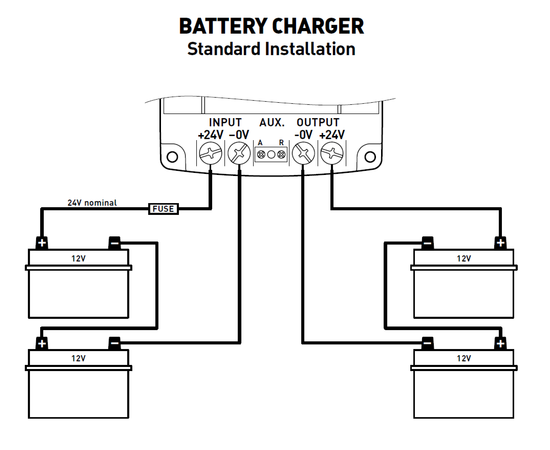

• Battery Charging Mode 2 Stage – boost 28.8V, float 27.2V
• Continuous Current Rating: 10 A
• Tri-colour LED indicators: standby mode, load on, short circuit and temperature
• Galvanic isolation
• Automatic reset for under voltage, overload, short circuit, over temp and ground fault
• External alarm output
• Remote switching input
• Materials: Aluminum, ABS/PC plastics, stainless steel. No ferrous materials; Conformally coated PCB
• Op. Temp: -25 to +50C
• Dim: 170 x 110 x 55mm (830 g)

See the complete specs on the Documentation tab.

interVOLT Logo

Proxicast is an Authorized InterVOLT Reseller



SPCi242410G2 Specifications
Output Voltage (Converter Mode) User adjustable 24.0V to 28.0V in 1.0V increments
Output Voltage (Charger Mode) 2 Stage – boost 28.8V, float 27.2V
Input Voltage 20 - 33 VDC initial (will dip to 17V during operation)
Constant Rating 10 Amp @ 40°C
Intermittent Rating All units have up to a 25% rating over the continuous rating at a maximum of 50% duty cycle for 10 minutes.
Momentary Rating All units peak at greater than 25% of continuous rating for a period of 5 seconds.
Power Efficiency Typically 91%
Standby Power With no load connected (idle mode) average current draw is typically 85mA.
Output ripple Less than 20mV peak to peak
Environmental considerations Operating temperature range is -25°C to + 50°C and ideally humidity should not exceed 90%
Conformity EMC – IEC 61204-3 and AS/NZS CISPR 11 G1, CB
Construction Manufactured using corrosion resistant materials throughout, including anodised 6063 aluminium, ABS/PC plastics and stainless steel hardware. No ferrous materials are used and all PCB assemblies feature conformal coating (tropicalisation).
Safety Devices
  • Shutdown protection with automatic reset for input under voltage, output overload, output short circuit, over temperature and loss of negative reference using purpose built circuitry. All shutdown conditions are output to external source for remote monitoring.

  • Internal fuse protection (not user serviceable) for reverse polarity connection and output over voltage condition.
Alarm Devices
  • Pre-emptive warning for impending shutdown due to output overload, input under voltage and over temperature. All alarm conditions are output to external source for remote monitoring.

  • Failure warning of internal cooling fan due to obstruction, fault, damage, etc. Condition is output to external source for remote monitoring.

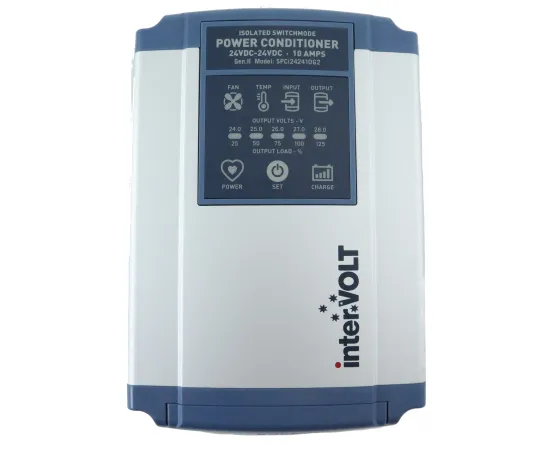

User Interface
  • Illuminated icons are used to display fault conditions for internal fan and temperature and various input/output conditions.

  • Status bar has dual use, to display operator selected voltage output in set-up mode and to indicate the percentage of load on the output in operation. On power up it will indicate the current voltage setting for a period of 10 seconds.
Auxiliary Connections
  • External Alarm Output – an external signal for remote monitoring of both the pre-emptive and shutdown alarms.

  • Remote Switching Input – used to isolate the output from the input with a simple, low current, control switch i.e. toggle switch.

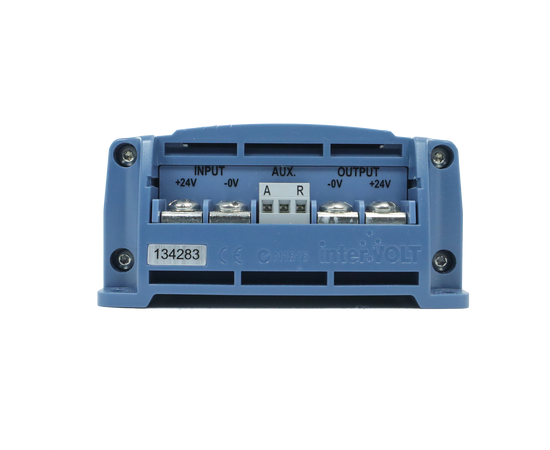

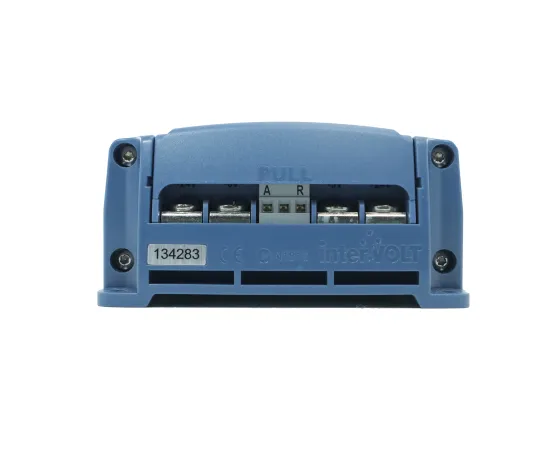

Termination For input/output terminals the SVCi uses high current proprietary terminals with combination M5 fasteners. The control/monitoring terminal is a customized 2 gang Euro block. All in marine grade materials.
Warranty 24 month end user warranty
Length Overall 170mm
Width Overall 110mm
Height Overall 55mm
Weight 830 grams



SKU: PWR-SPCi242410G2

UPC: 617237751911

  • Title: interVOLT 24V DC 10 Amp Isolated Power Conditioner – Model SPCi242410G2
  • Part #: PWR-SPCi242410G2
  • UPC Code: 617237752017
  • ASIN: B09749MMWQ
  • HS Code: 9032.89.20.00
  • Country of Origin: Australia
