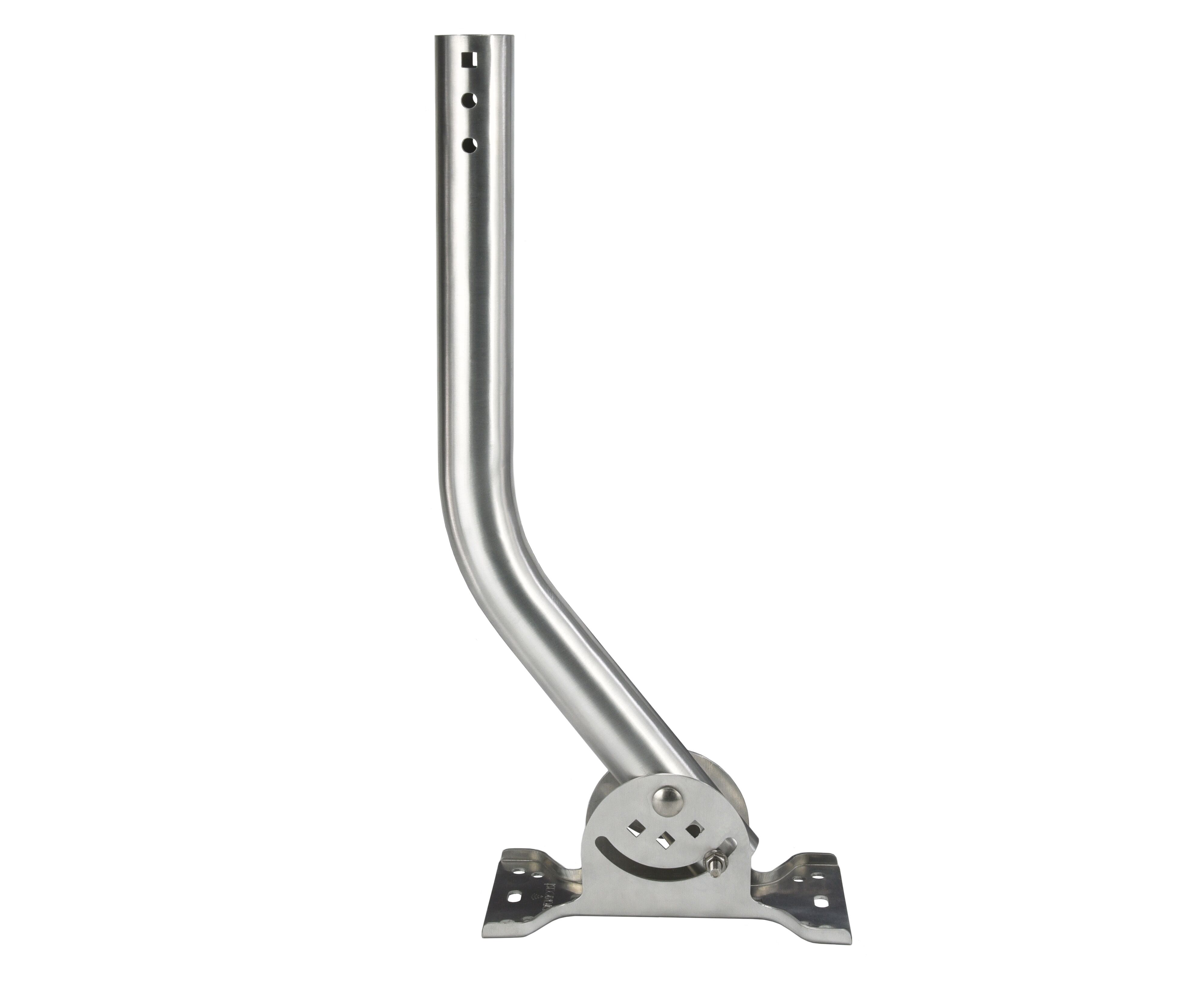

Proxicast Pro-Grade J-Max 100% Aluminum Rustproof Antenna Mount - Universal Outdoor Adjustable Pivot/Lock Bracket & J-Pipe Mast (1.5" x 18" Pole) for Wall, Eave, Gable, Chimney or Roof Mounting
- View all variations as list
| Sort by Price | Sort by Availability | Sort by Part # | Sort by Material |
|---|---|---|---|
|
$4595
MSRP:$4995
|
Availability:
422 Item(s)
|
ANT-800-JP2
|
Material:
|
$4895
MSRP:$5295
|
Availability:
1092 Item(s)
|
ANT-800-JP3
|
Material:
|
Key Features
- HEAVY DUTY ANTENNA MOUNTING KIT - SOLID AIRCRAFT GRADE 5052 ALUMINUM Bracket & Arm - 304 STAINLESS STEEL Mounting Hardware Included - Will Not Rust onto your House!

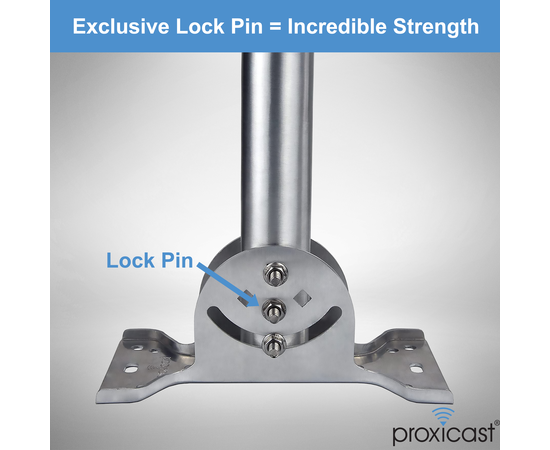

- UNIQUE LOCKING PIN - Increases Strength and Stability for Heavy Antennas at 0, +45, -45 Degrees
- ADJUSTABLE PIVOT / SLIDE - Position JPole for Best Signal Reception; Mount Base to Any Flat or Sloping Surface
- UNIVERSAL DESIGN - Compatible With Any Type/Brand of Antenna - 4G, 5G. WiFi, TV / HDTV, Satellite, Helium, Weather Station, Ham, CB, etc.
- REVERSIBLE J PIPE - Extend Wall Standoff Distance for Antenna Mounting Flexibility
 |

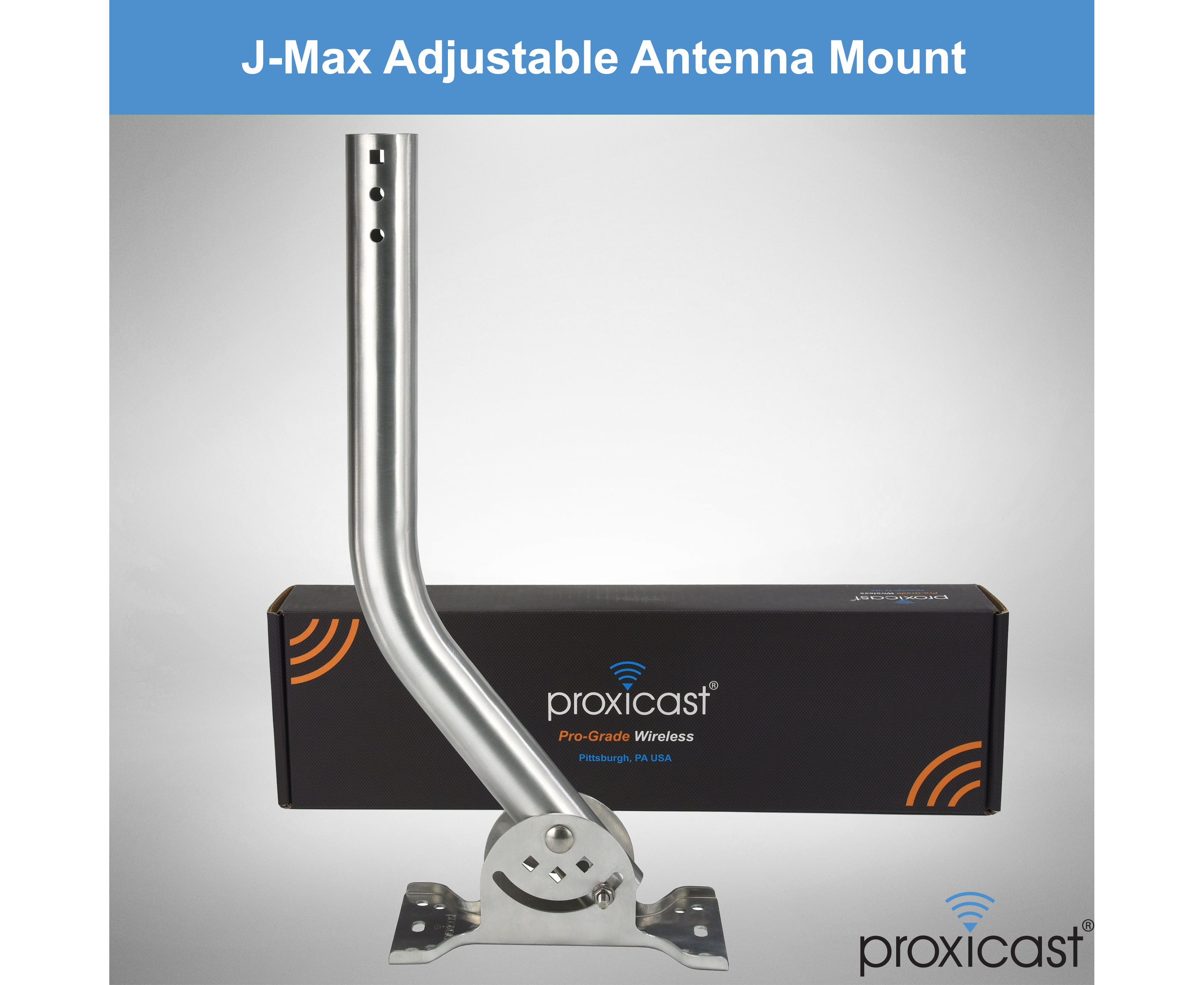

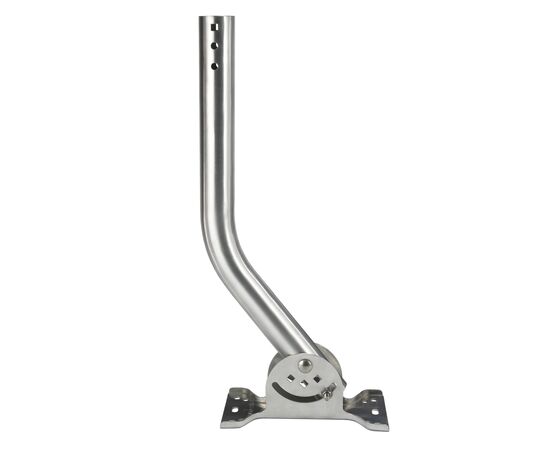

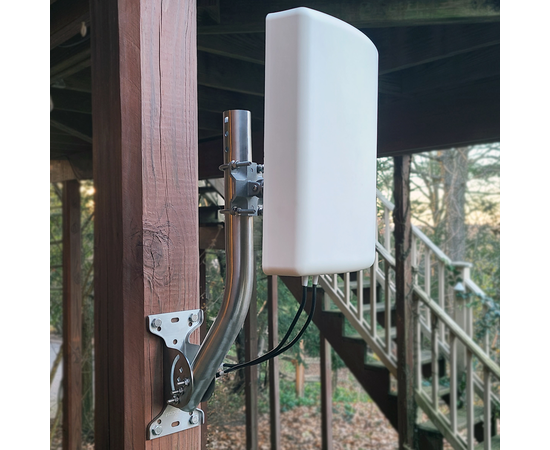

Proxicast Pro-Grade J-Max Aluminum Adjustable Antenna Mounting Bracket Kitfor Wall, Eave, Gable, Chimney or Roof MountingProxicast’s Pro-Grade J-Max is a light-weight solid aluminum adjustable stand-off antenna mast for convenient and flexible mounting of any sort of antenna, lighting, camera or other equipment to walls, gables, eaves, chimneys, roofs, decks or other flat or sloped surfaces. This is the mount you want to support your heavy & expensive equipment like satellite dish, 4G/5G or HDTV antennas, weather stations, surveillance cameras or exterior lighting. |

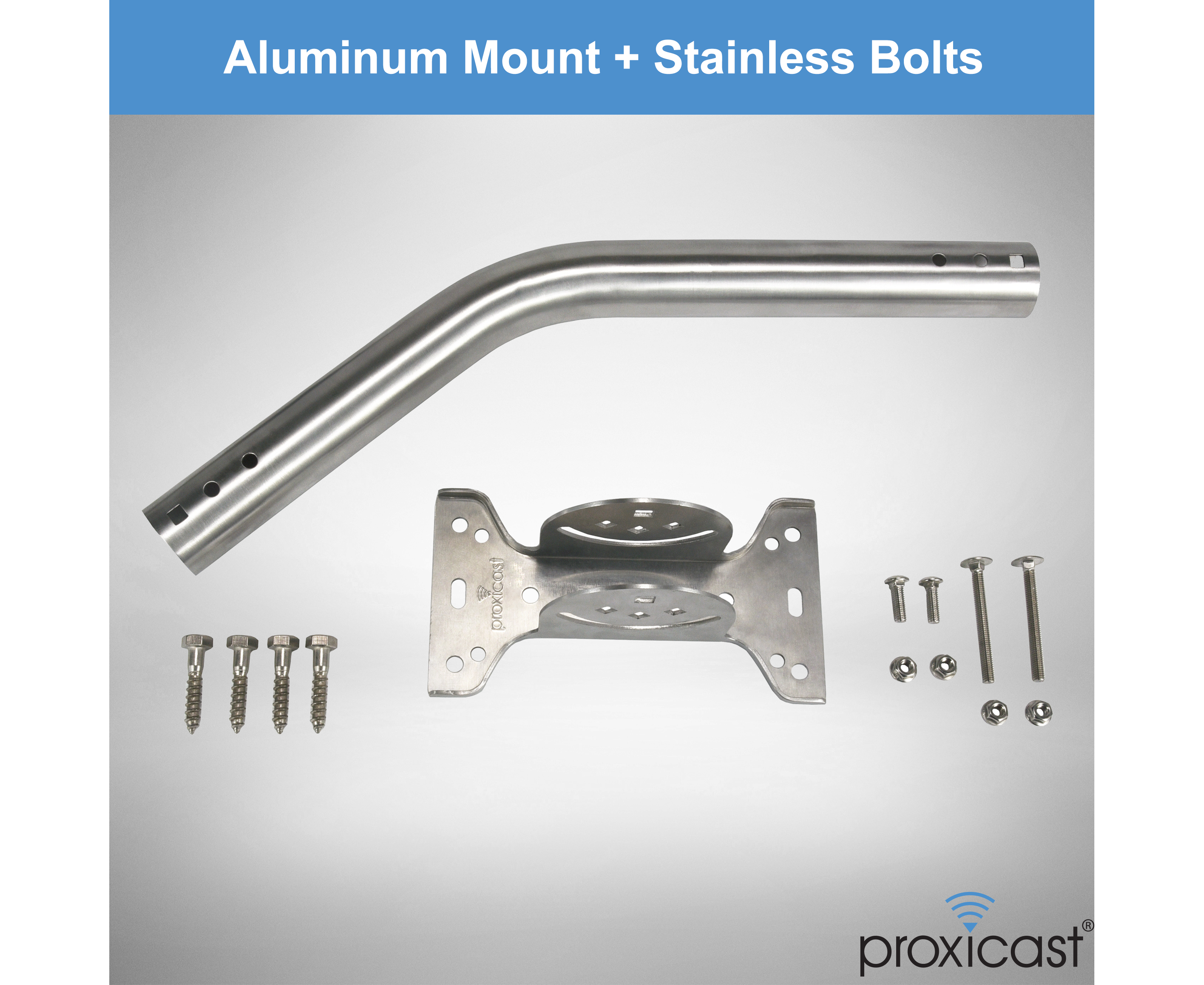

Kit Includes
|
Designed by Antenna Installation ProfessionalsWe've been there. On a ladder in the cold, wind and rain. Or beating sun. Lugging tools and equipment up and down. Trying to get the job done before quitting time. You don't want to come back because the bracket slipped or rusted. We Designed the J-Max Bracket for People Like You People who use the best materials. People who want to do the job right. Once. There are a lot of similar looking adjustable J-mount antenna pole brackets on the market Here's What Makes the J-Max Professional Grade |
 |
 |
 |
 |
Premium Quality MaterialsThis heavy duty antenna mount is made entirely of solid aluminum and stainless-steel that will not rust or discolor your building. The base is precision stamped from a single piece of metal for maximum strength with no welds to fail. This bracket will last a lifetime with no maintenance. |
Unique DesignOur exclusive locking mechanism allows the mast to be securely mounted at -45, 0 or +45 degrees without fear of slippage and gives the J-Max incredible weight bearing capacity up to 125 pounds. The optional slide mechanism allows the mast to be infinitely positioned between +45 and -45 degrees to adapt to a variety of installation situations. |
Installation FlexibilityNumerous pre-drilled holes simplify installation. The mast tube is reversible for different stand-off distances. See the User Guide PDF on this listing for all 6 of the assembly positions. The mast's 1.5 inch diameter accommodates most antenna pole mount mechanisms such as U-Bolts and pole clamps. |
| Material - Base & Pole | Aluminum (AL 5052) |
| Material - Bolts, Nuts, Screws | Stainless Steel (SS 304) |
| Pole Diameter | Outside: 1.5 inches / Inside: 1.38 inches |
| Wall Clearance | 7.75 inches min / 17 inches max |
| Lock Angle Positions | -45, 0, +45 degrees |
| Swing Angle Range | -45 to +45 degrees |
| Assembled Weight | 13 oz |
| Base Plate Dimensions | 7.25 x 4 inches |
| Other Dimensions | See the 2D CAD PDF for complete dimensional information |
| Max Load Capacity | 53 - 125 pounds depending on pole angle. See User Guide. |
SKU: ANT-800-JP2
UPC:Â 850021295059

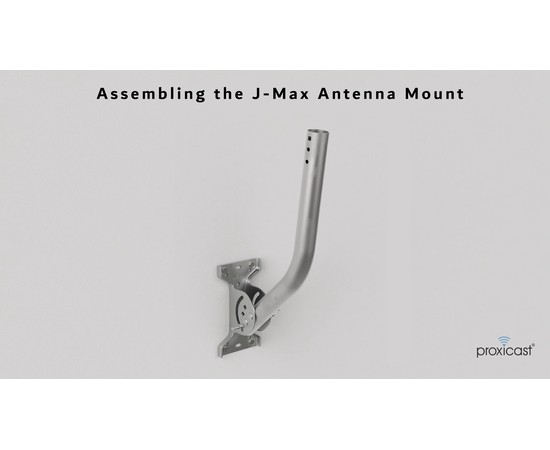

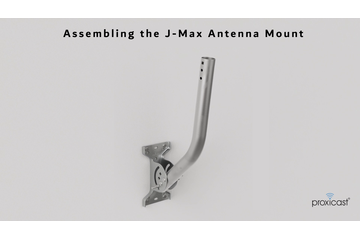

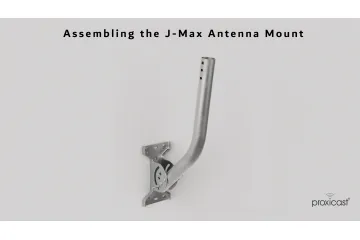

Assembling the J-Max Antenna Mount
- Title: Proxicast Pro-Grade J-Max 100% Aluminum Rustproof Antenna Mount - Universal Outdoor Adjustable Pivot/Lock Bracket & J-Pipe Mast (1.5" x 18" Pole) for Wall, Eave, Gable, Chimney or Roof Mounting
- Part #: ANT-800-JP2
- UPC Code: 00850021295059
- ASIN: B09DGPKX7T
- HS Code: 7616.99.5150
- Country of Origin: China
- Export Control: EAR99 / NLR (No License Required)
- Shipping Weight (lbs): 1.500
