MSNswitch MAX 2-Outlet Internet Enabled Power Switch with Auto Reboot, Power Metering, Surge Protection & Noise Filtration - Ethernet & WiFi - Control via Smartphone, Cloud or API (Model UIS-801bc)

MSNswitch MAX 2-Outlet Internet Enabled Power Switch with Auto Reboot, Power Metering, Surge Protection & Noise Filtration - Ethernet & WiFi - Control via Smartphone, Cloud or API (Model UIS-801bc), MSNSwitch Variants: MAX
MSNswitch MAX 2-Outlet Internet Enabled Power Switch with Auto Reboot, Power Metering, Surge Protection & Noise Filtration - Ethernet & WiFi - Control via Smartphone, Cloud or API (Model UIS-801bc)
$31295 MSRP:$35995

Add to Wish List
Add to Cart
MSRP:$35995
$31295
You save: $47.00
Availability: 50 Item(s)
PWR-UIS801BC
+ −

Add to Wish List
View all variations as list

Key Features

  • MINIMIZE DOWNTIME and SITE VISITS: Automatically power cycle unresponsive equipment when a device does not respond, eliminating costly truck rolls
  • AUTOMATIC INTERNET SELF-HEALING: Eliminates network downtime by automatically rebooting modems and routers when Internet connection loss is detected
  • REMOTE POWER SWITCH: Power-cycle equipment from anywhere using the ezDevice smartphone app, web browser, or API, streamlining troubleshooting and maintenance
  • MONITOR ENERGY USAGE: Track real-time power consumption and receive instant alerts of power fluctuations
  • VERSATILE SCHEDULING: Set scheduled power cycling events, automatically powering down non-essential items during off-hours or proactively rebooting devices
  • INDUSTRIAL-GRADE RELIABILITY: Fire-resistant housing, surge protection, noise filtering to protect valuable equipment from dirty power issues + high-speed WiFi 6 or Ethernet for reliable performance in any environment

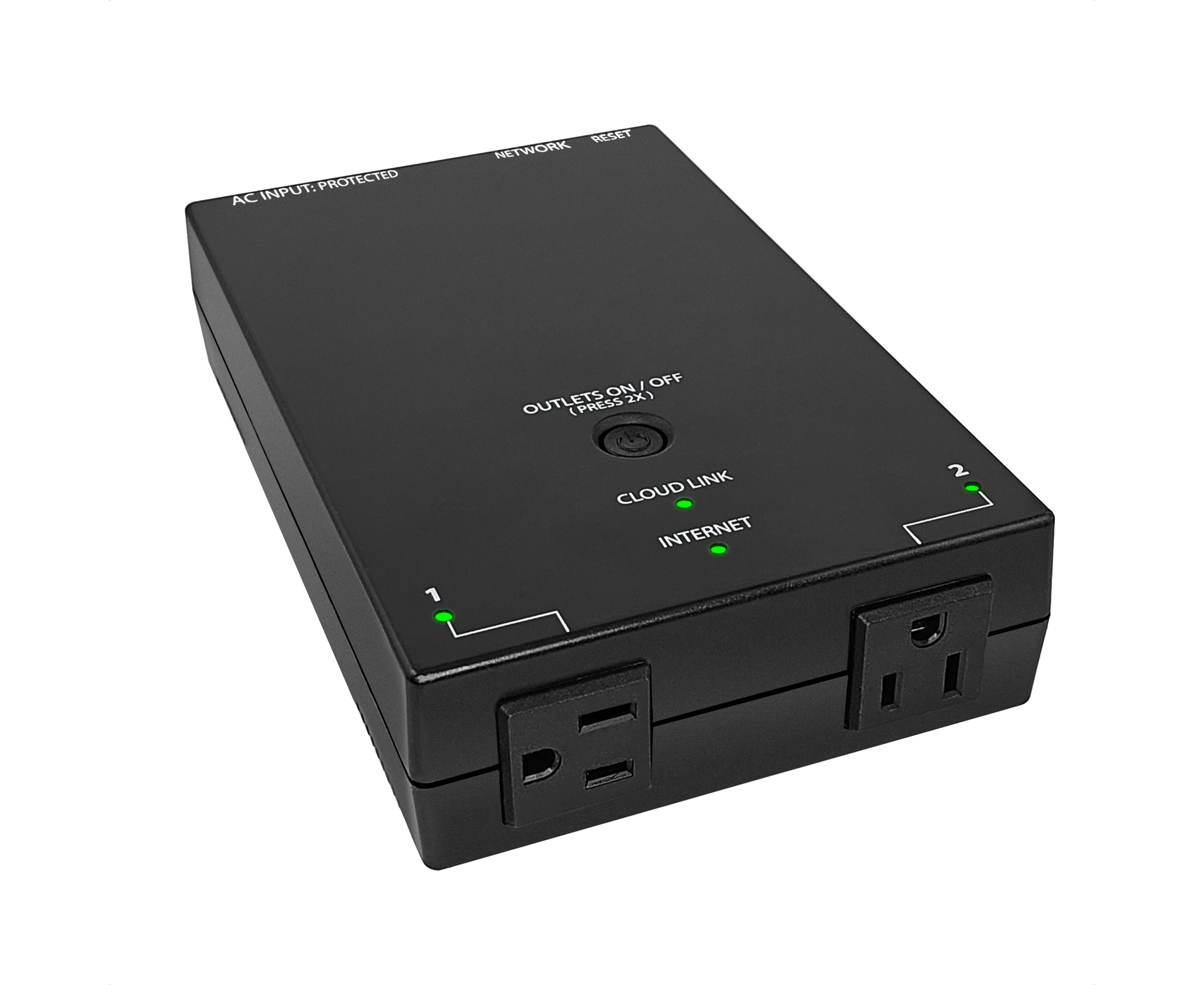

The UIS-801 MSNswitch Max features two individually controllable outlets encased in a fire-resistant plastic housing. Designed for autonomous operation, it can resolve network issues without outside intervention. Once setup, it continuously monitors connectivity and automatically resets devices if connectivity is lost, significantly reducing the need for manual attention, truck rolls, and costly downtimes.

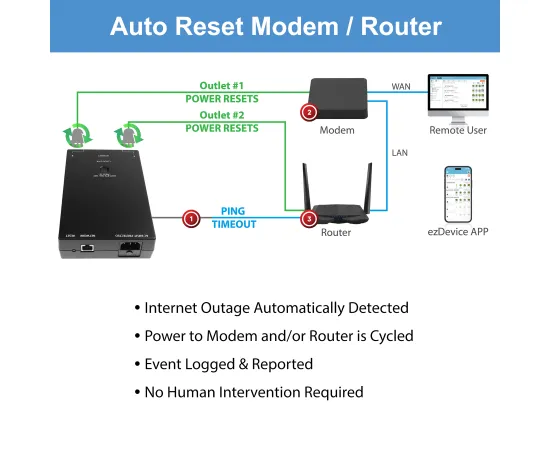

MSNswitch Max will automatically ping up to 7 different preset targets, which can be changed - if they are unreachable, MSNswitch Max will power-cycle one or both AC outlets. Power cycles can also be scheduled in advance. Plus, you can control everything from your smartphone!

MSNswitch Max is a must have for remote site equipment.

Pays for itself with just 1 saved site visit!



Business-Class Features

  • Maintain a continuous Internet connection by resetting power outlets when Internet freezes
  • Monitor status, control outlets & configure device remotely via:
    • ezDevice Smartphone App (Apple iOS & Android)
    • Cloud4UIS.com Web Service
    • Web Browser
    • HTTP API
  • Option to PING LAN IP or WAN IP
  • Scheduled Outlet Power Cycles - 20 On/Off at Day/Time events
  • Countdown Power-Cycling - Automatically power cycle outlet power every X mins (1-1440)

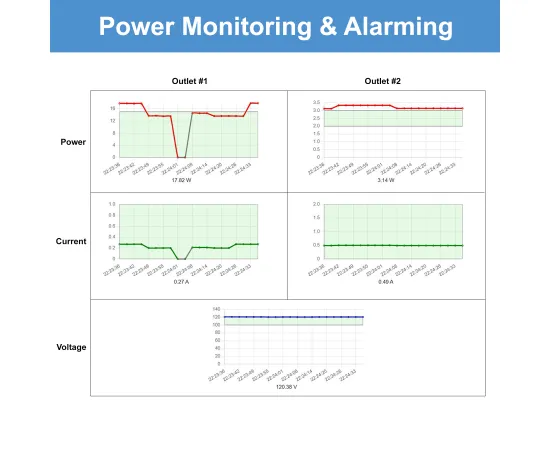

  • Power Usage Recording - Logs voltage & current for each outlet
  • Power Consumption Events - Take action when specified power usage is abnormal
  • Heartbeat Monitoring - Reset one or both outlets if the MSNSwitch does not receive a heartbeat packet
  • E-Mail Alerts – Notify multiple users of various events
  • Advanced Network Configuration – DHCP or static IP address, DNS servers and HTTP/HTTPS web admin interface port
  • Save/Restore Configuration - Easily copy the configuration to multiple units



See the Documentation tab of this listing for examples of the various ways to control the MSNswitch Max.

Proxicast is an IP Mega Technologies Authorized Reseller.

MSNswitch MAX UIS-801bc Specifications

Model UIS-801bc
Input Voltage Range 100VAC - 127VAC @ 50/60Hz
Output Voltage Matches Input Voltage
Max Output Current 13A Continuous @ 120VAC; 15A Trip (Max combined total of two outlets) | Max Power: 1560W

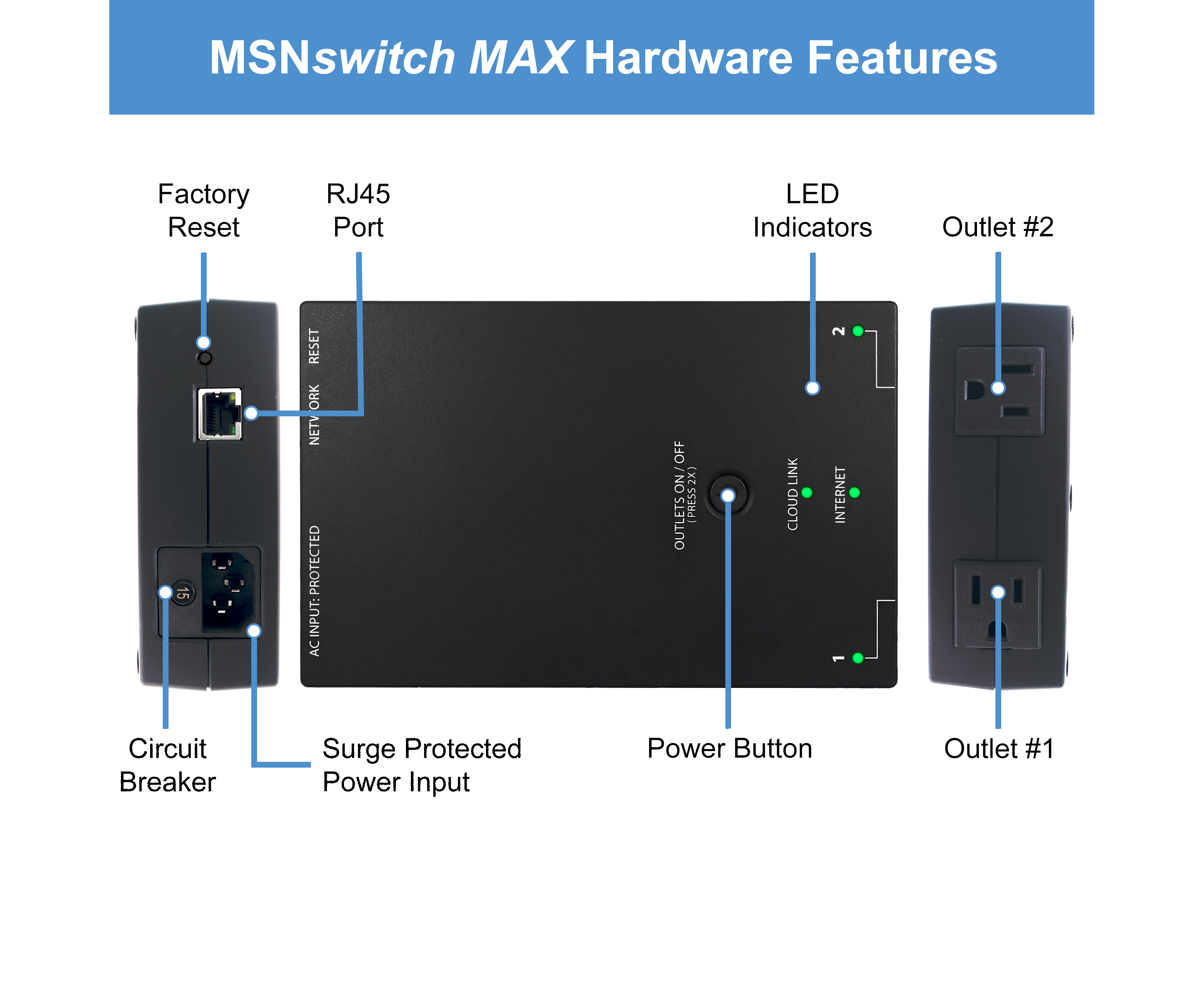

Circuit Breaker 15A Resettable Circuit Breaker (UL60320-1)
Input Plug / Output Sockets IEC C-14 socket
2x NEMA 5-15R (Type B), Individually IP Controllable
Power Button Press 2x to toggle all outlets On or Off
Factory Reset Button Hold for 10 seconds: Initiates a System Restart (Outlet power unchanged)
Hold for 20 seconds: Reset to Factory Default
LED Indicators 2x Outlet Power
1x Internet
1x Cloud Link
Network Ethernet RJ45 10/100 Base-T
Wi-Fi 6 (802.11 b/g/n/ax) 2.4GHz
Bluetooth 5.3GHz
IP Support IPv4 DHCP or Static
Remote Access via Cloud4UIS Does Not Require Firewall Changes or Port Forwarding
Power Metering Individual Outlet Metering: Current (±2.5% ±0.1A)
Voltage (±2.0% ±0.1V) | Power (±2.0% ±0.1W) Note: Metering values are provided for reference and informational purposes only.
Voltage Protection Rating L-N 600V, L-G 600V, N-G 600V
MOV GDT AC Port: 1kV Line to Line; 2kV Line to Earth; Signal Port 1kV
EFT/EMI/RF Filtration IEC 61000-4-4 Level 3
Minimum Insertion Loss in dB (on 50 Ohms system)
Common Mode Insertion Loss: -16.0dB @10kHz, -35.0dB @100kHz, -56.4dB @1MHz
Differential Insertion Loss: -16.3dB @10kHz, -36.1dB @100kHz, -56.3dB @1MHz
Electrostatic Discharge +/- 8KV Air Discharge, +/- 4KV Contact Discharge
Operating Conditions 0°C ~ 60°C at 10% ~ 90% Relative Humidity. For indoor use only.
Environmental Rating IP20
Certification FCC ID: 2AC7Z-ESPC6WROOM1

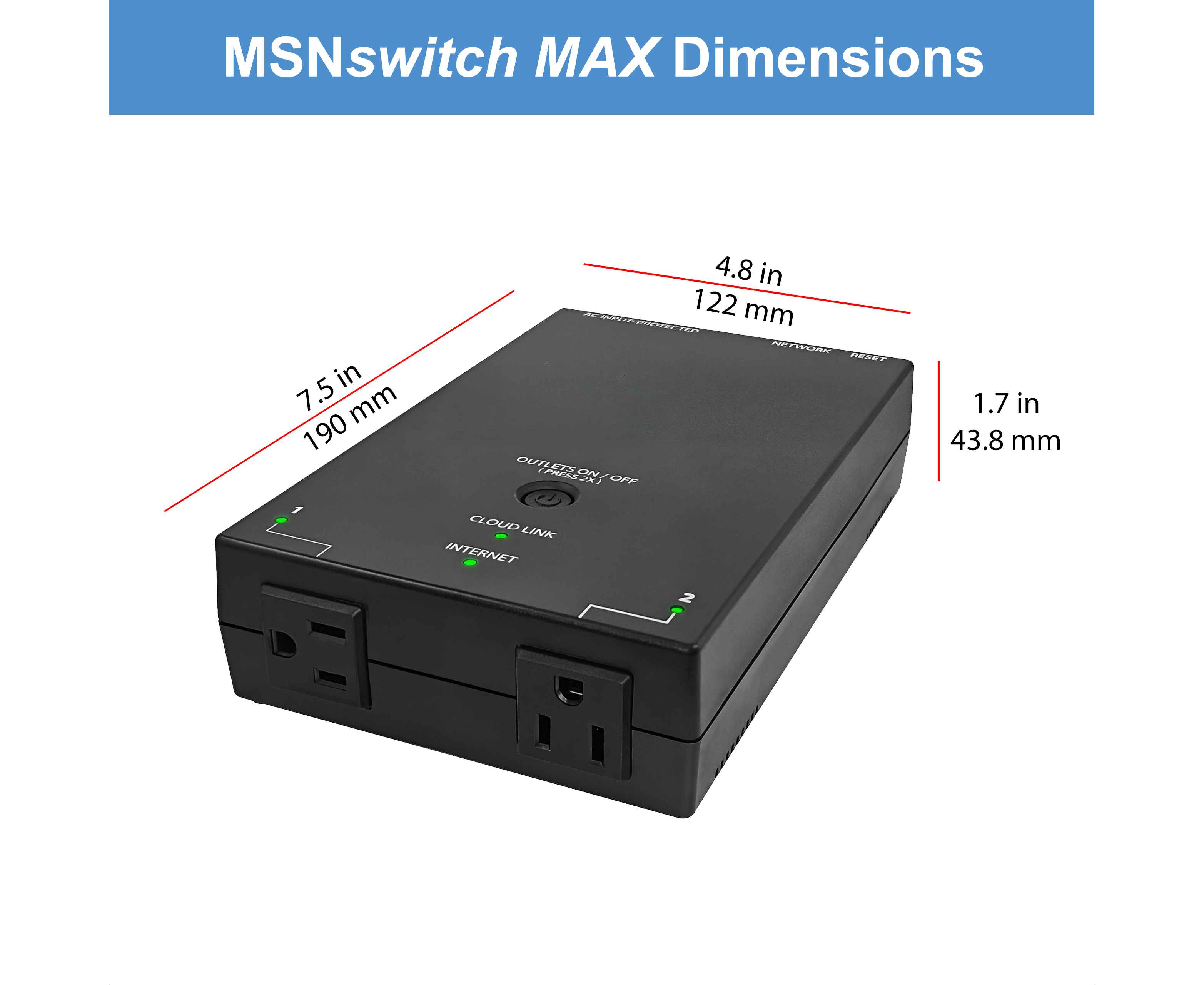

Dimensions 7.5 x 4.8 x 1.7 in (190 x 122 x 43.8 mm)
Languages Supported English, Spanish, Chinese (Traditional), Portuguese (Brazilian), Italian, German
Box Contents MSNswitch MAX, Ethernet Cable, Power Cable, User Guide

SKU: PWR-UIS-801bc

UPC: 850021295813

MSNswitch MAX Quick Start Guide (1,159 Kb)

MSNswitch MAX Specification Sheet (424 Kb)

Tech Note: Controlling the MSNSwitch (1,088 Kb)

Tech Note: MSNSwitch UIS Auto Reset Algorithm (242 Kb)

Tech Note: Using Gmail with the MSNSwitch (374 Kb)

PWR-UIS801BC Declaration of Conformity (178 Kb)

Quick Start Icon Quick Start Guide
Online tips for getting started with the MSNSwitch.

View the latest Quick Start Guide
ezDevice
Free smartphone app that lets you remotely monitor and control multiple ezOutlets and MSNSwitches.



Netility
Free desktop app to find and manage multiple MSNSwitches on your LAN.

Download for Windows & Mac

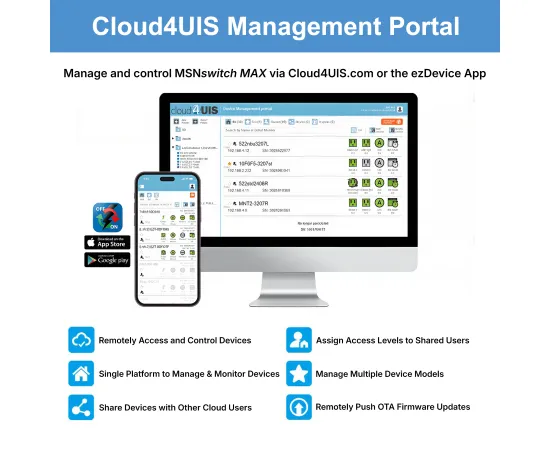

Cloud4UIS
Free web site where you can remotely monitor and control multiple ezOutlets and MSNSwitches. Automatically synchronized with ezDevice.

Login to Cloud4UIS.com

Firmware Updates

MSNswitch MAX firmware can be updated via Cloud4UIS.com, ezDevice, the device's internal web server or Netility.

The latest firmware is: MNX.5834 Released on Oct. 30, 2025.

New firmware image files can also be downloaded from https://www.msnswitch.com/

Please be advised that firmware upgrades are undertaken at user's discretion and risk.

  1. While the firmware is upgrading, the device LEDs will blink. DO NOT POWER OFF THE DEVICE during this time!
  2. Upgrading from old firmware may take approximately 15 to 20 min. Please be patient.
  3. The outlet status will remain unchanged throughout the upgrade process.
  4. A successful and completed upgrade is confirmed when user login page becomes accessible again.
  5. WARNING: Interrupting the power supply or network connection at any time before the login page appears can result in the device becoming permanently inoperable.
