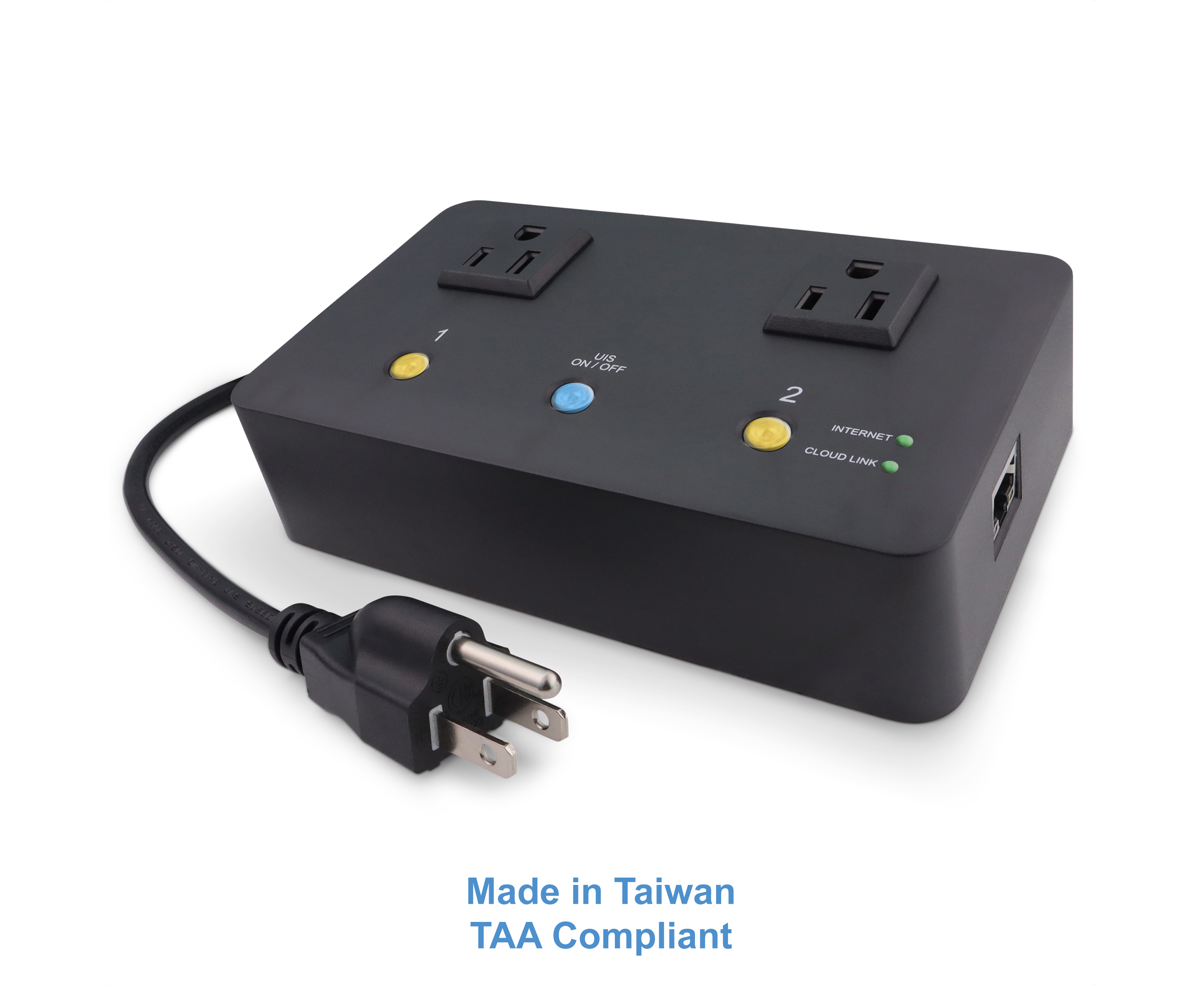

MSNSwitch2 Internet Enabled IP Remote Power Switch with Reboot - Control via Smartphone App, Cloud Service, Web Browser or API - 2 Independent AC Power Outlets (Model UIS-722T)

Save 15%
MSRP:$14995
$12795
You save: $22.00
Our Quantity Discounts:
Quantity
5+
15+
30+
50+
100+
Price
$122.83
$121.55
$120.27
$118.99
$117.71
Availability: 540 Item(s)
PWR-UIS722T
+ −

Minimum quantity for "MSNSwitch2 Internet Enabled IP Remote Power Switch with Reboot - Control via Smartphone App, Cloud Service, Web Browser or API - 2 Independent AC Power Outlets (Model UIS-722T)" is 1.

Add to Wish List

Key Features

  • Monitors Internet Connectivity and Automatically Cycles One or Both Outlets When Connection is Lost + User Definable Scheduled Power Cycling

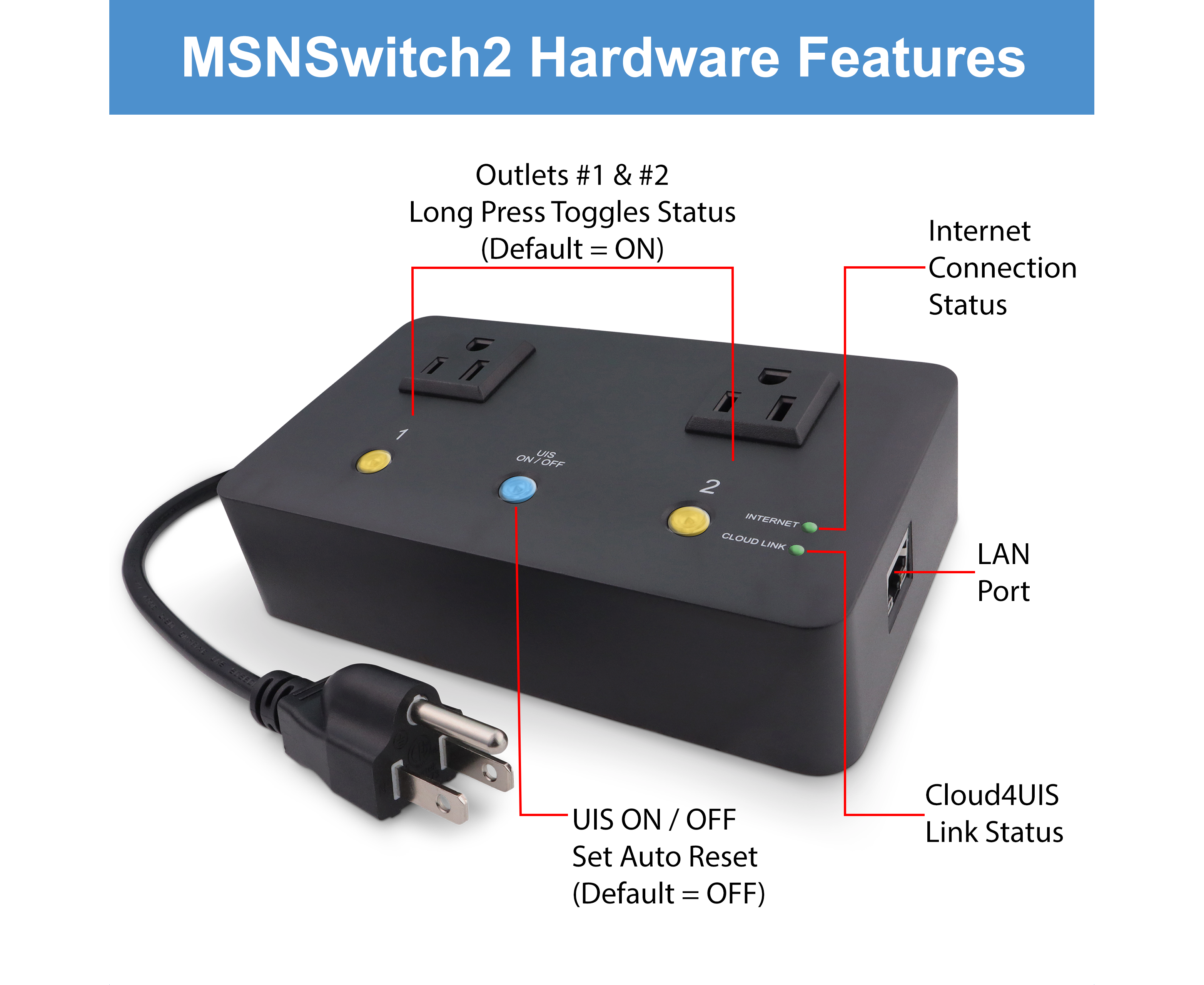

  • Functional Out of the Box - Single Button Press Enables Auto Reset Function with Settings Appropriate for Most Situations
  • Automatically Control and Reboot any Remote Electrical Equipment such as Computers, Modems, Routers, DVRs, PLCs, Industrial Computers, etc.

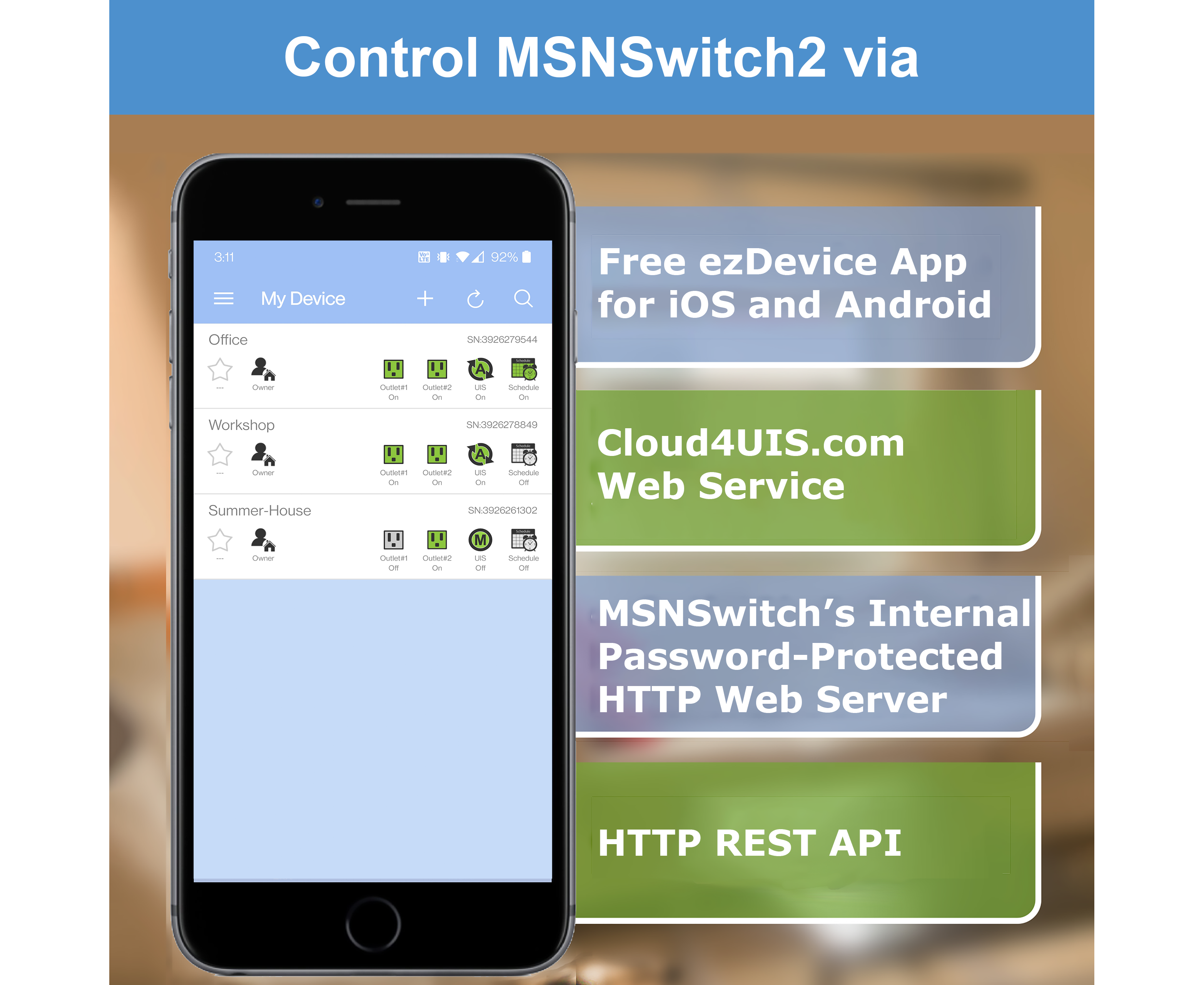

  • Configure & Control Remotely Over the Internet via ezDevice Smartphone App, Cloud4UIS Web Service, any Web Browser, or via its API
  • Pings Multiple Internet Sites to Determine Online Status - User Definable Targets & Fault Tolerance
  • 2 Independently Controlled 10A NEMA 5-15 (USA) 3 Prong Grounded Outlets; FCC Approved



Identical to MSNSwitch Model UIS-722b but manufactured in Taiwan for TAA Compliance

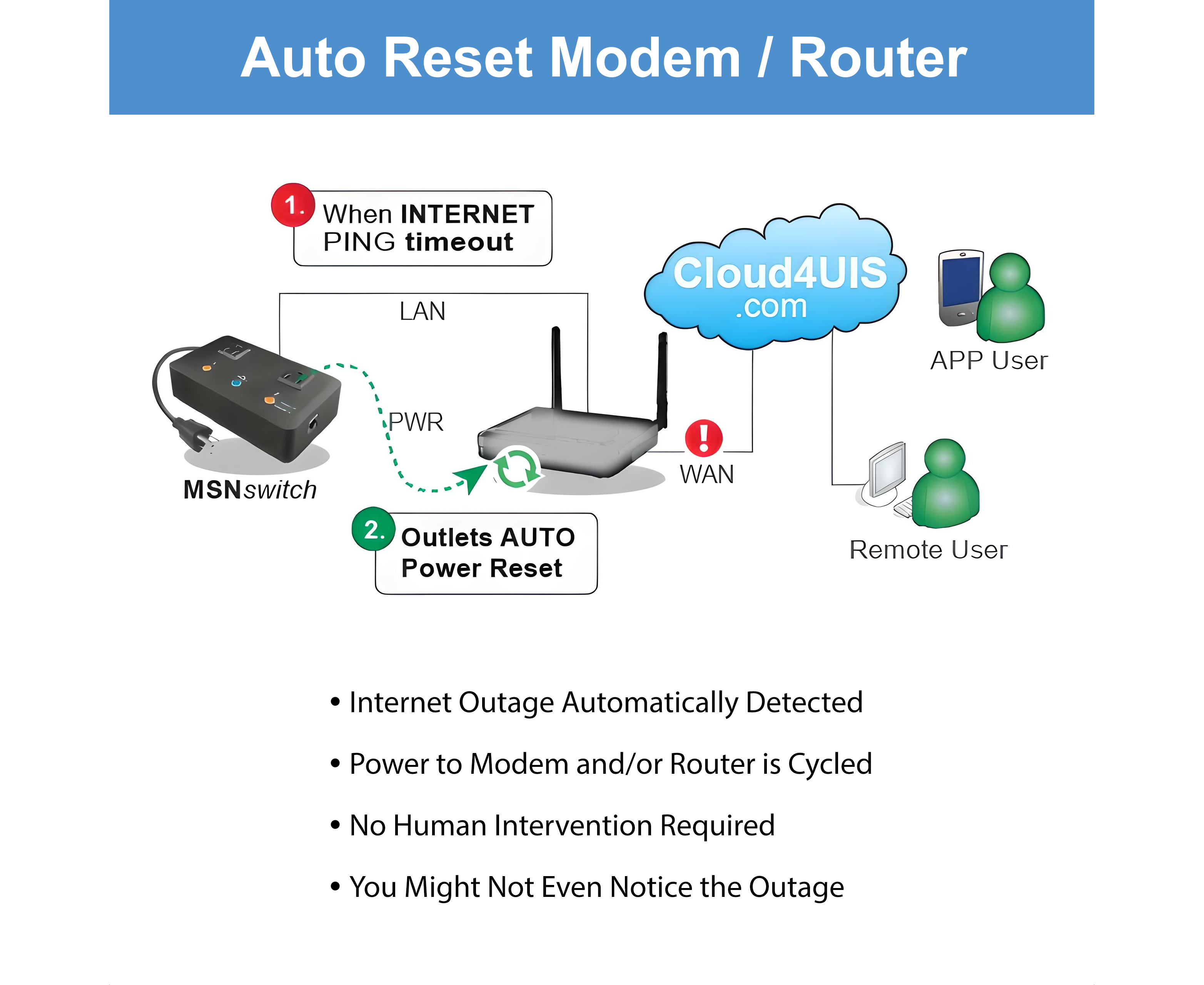

MSNSwitch2 can power-cycle any device when Internet connectivity is lost. This remotely controlled AC power switch can automatically reboot your modem or router without anyone present.

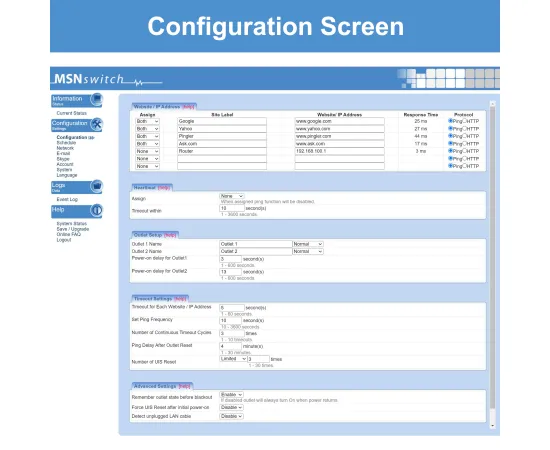

MSNSwitch2 will automatically ping up to 7 different preset targets, which can be changed - if they are unreachable, MSNSwitch2 will power-cycle one or both AC outlets. Power cycles can also be scheduled in advance. Plus, you can control everything from your smartphone!

MSNSwitch2 is a must have for remote site equipment.

Pays for itself with just 1 saved site visit!



Business-Class Features

  • Maintain a continuous Internet connection by resetting power outlets when Internet freezes
  • Monitor status, control outlets & configure device remotely via:
    • ezDevice Smartphone App (Apple iOS & Android)
    • Cloud4UIS.com Web Service
    • Web Browser
    • HTTP API
  • Option to PING LAN IP or WAN IP
  • Scheduled Outlet Power Cycles - 20 On/Off at Day/Time events
  • Countdown Power-Cycling - Automatically power cycle outlet power every X mins (1-1440)
  • Heartbeat Monitoring - Reset one or both outlets if the MSNSwitch does not receive a heartbeat packet
  • Dynamic DNS Support & Remote Admin
  • E-Mail Alerts – Notify multiple users of various events

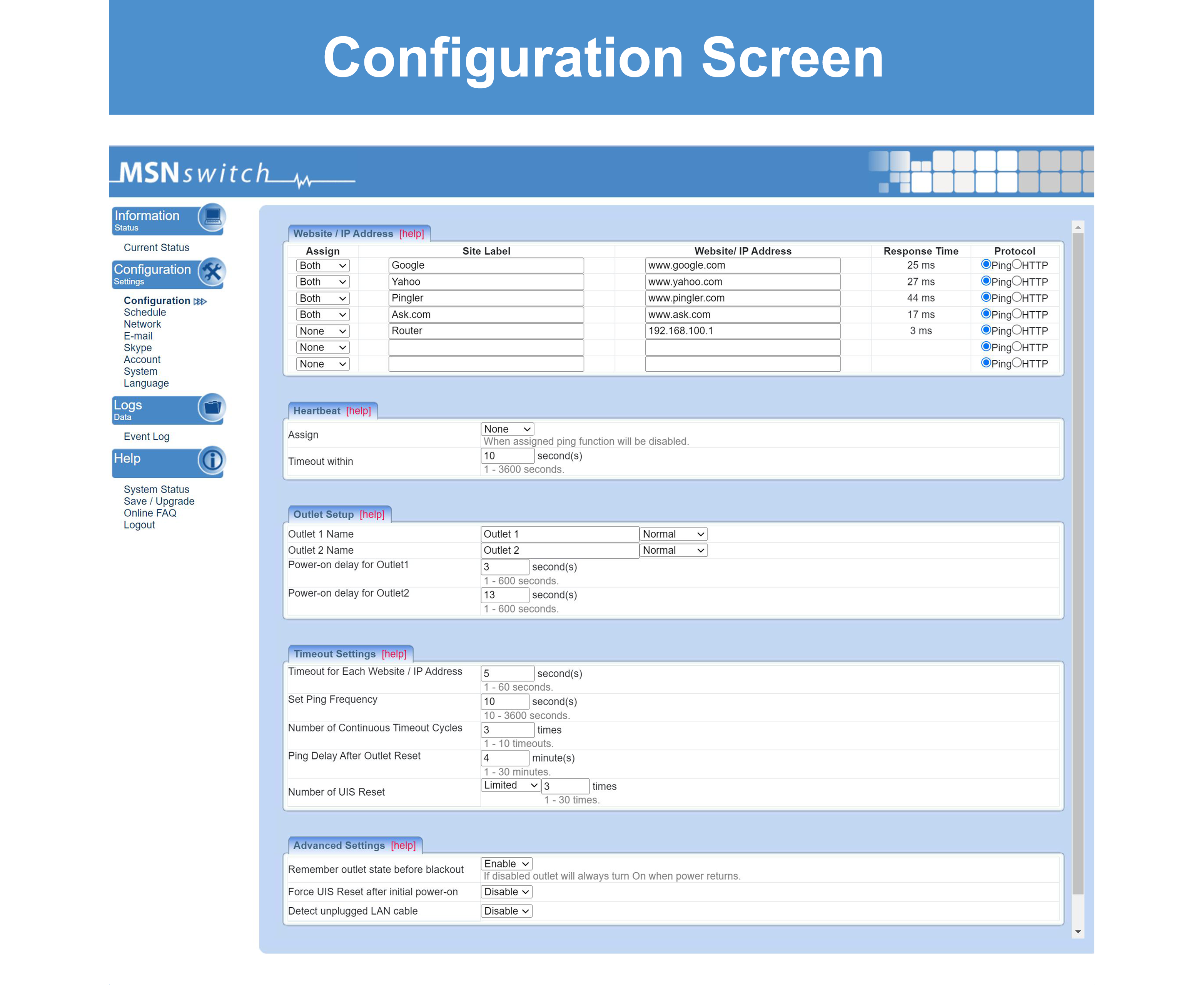

  • Advanced Network Configuration – DHCP or static IP address, DNS servers and HTTP web admin interface port
  • Save/Restore Configuration - Easily copy the configuration to multiple units



See the Documentation tab of this listing for examples of the various ways to control the MSNSwitch.



Proxicast is an IP Mega Technologies Authorized MSNSwitch Reseller.

MSNSwitch UIS-722T Specifications

Model UIS-722T - Made in Taiwan
Input Voltage Range 100~250V, 50/60Hz
Max Output Current 10A Combined Across Both Outlets - Output Voltage Matches Input
Input Plug / Output Sockets Type B (US) NEMA 5-15R

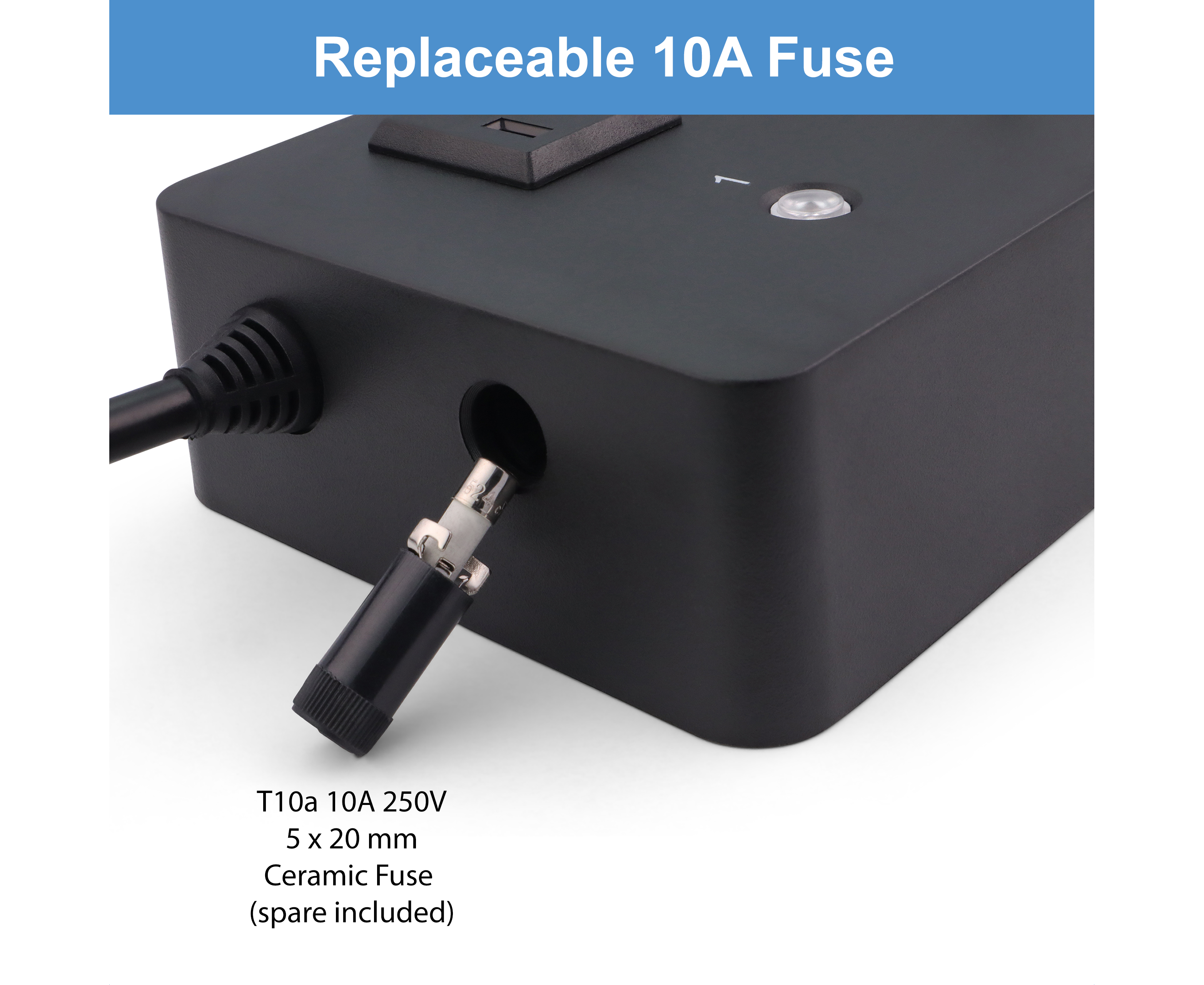

Fuse Type T10AH250V Ceramic Slow Blow 5x20 mm (1 spare fuse included in power inlet port)
Network 10/100 Base-T, RJ45
Operating Conditions 0~60C at 10~90% RH
Environmental Rating IP20

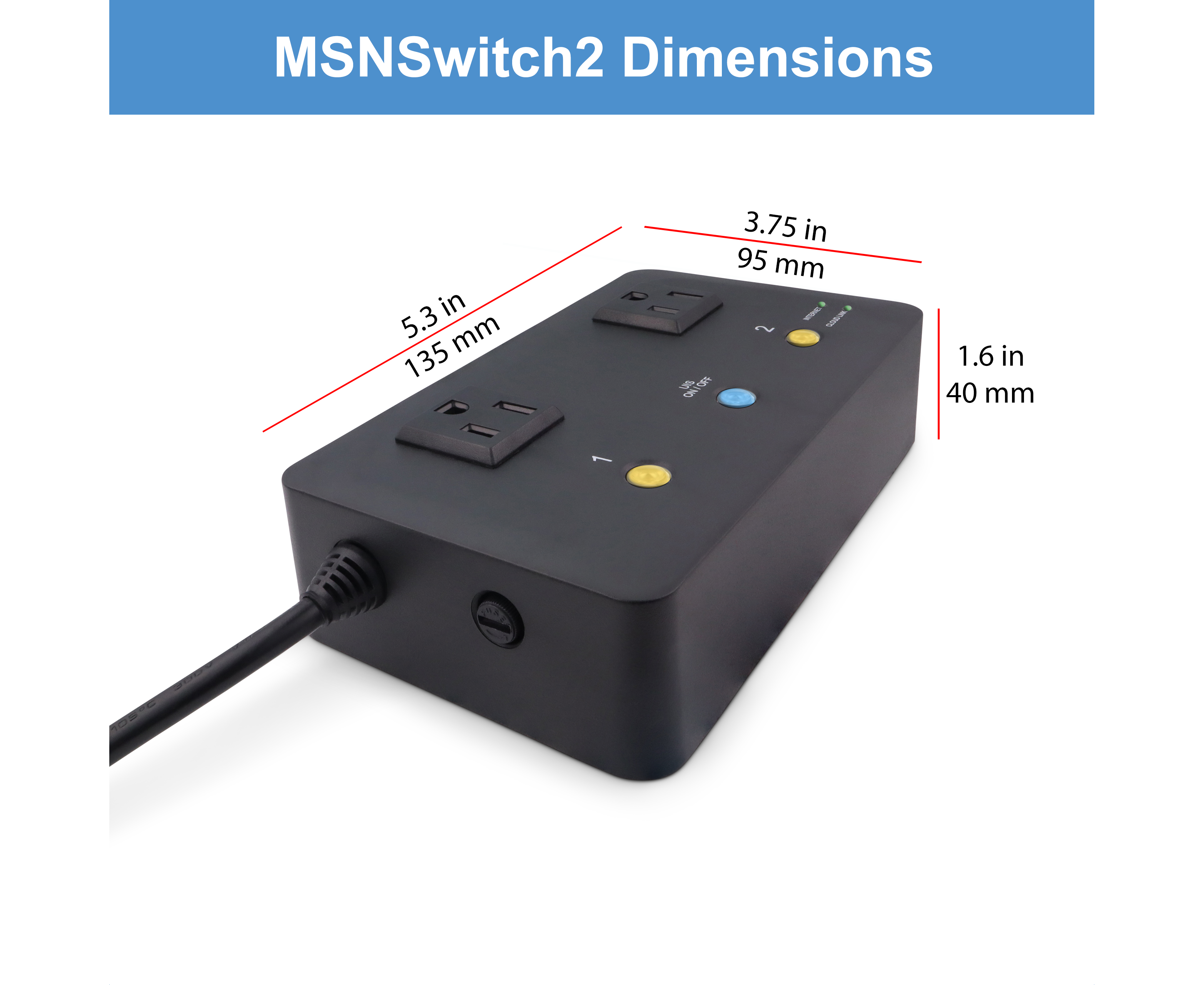

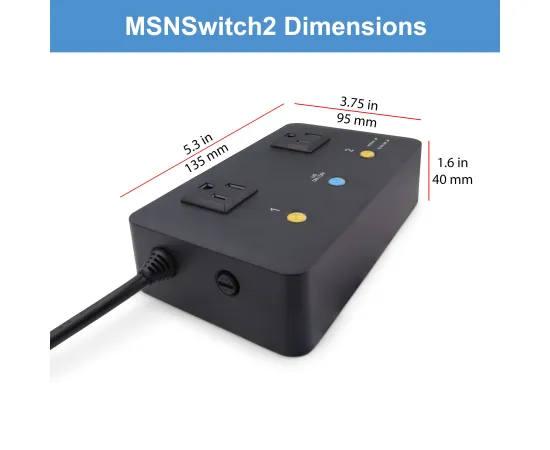

Dimensions 6.3 x 3.75 x 1.58 in   (160x95x40 mm)
Box Contents MSNSwitch2, Ethernet Cable, QuickStart Guide

SKU: PWR-UIS-722T

UPC: 850021295769

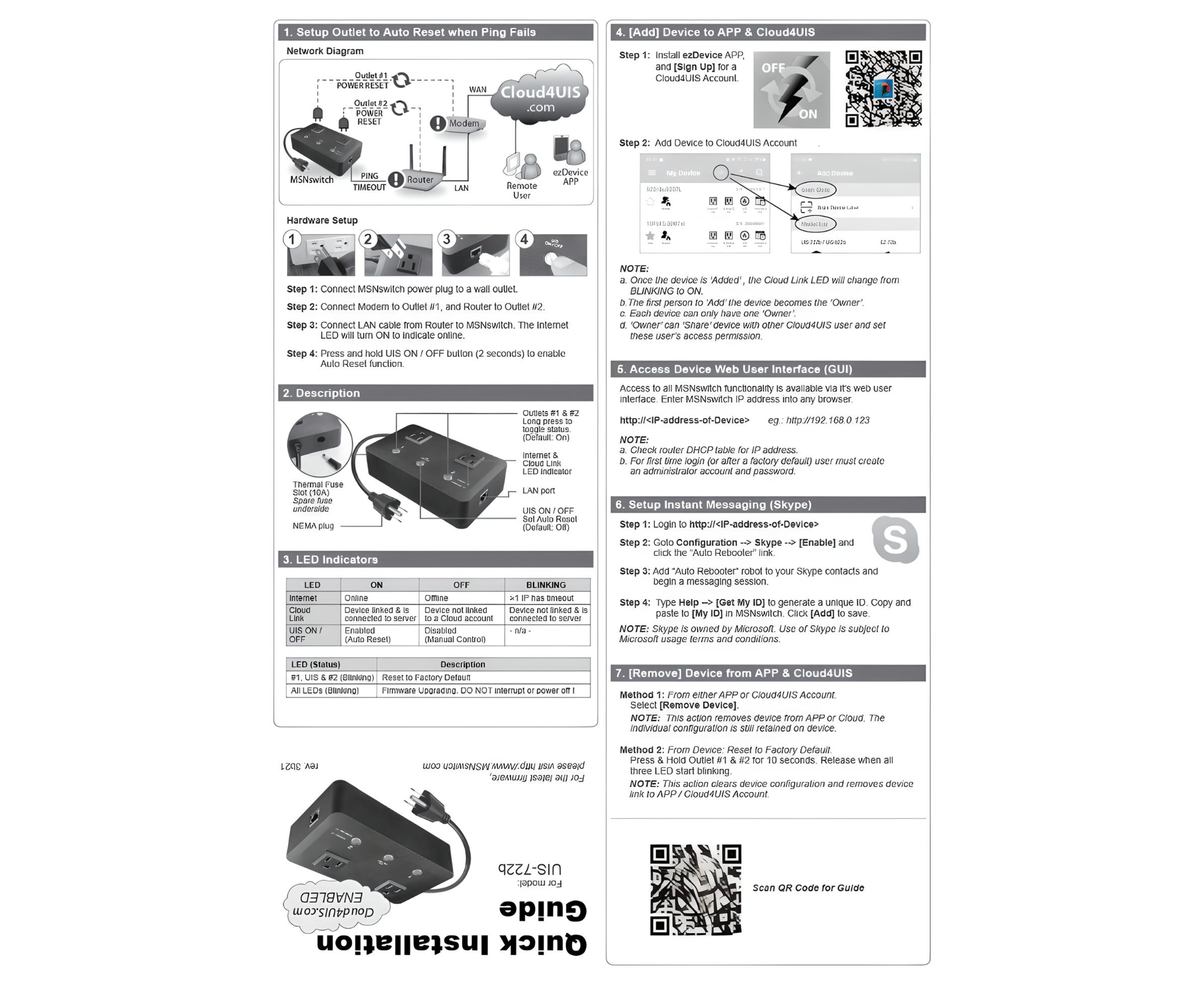

MSNSwitch Quick Start Guide (13 Kb)

Tech Note: Controlling the MSNSwitch (1,172 Kb)

Tech Note: MSNSwitch UIS Auto Reset Algorithm (122 Kb)

Tech Note: Using Gmail with the MSNSwitch (304 Kb)

UIS622-b 2D CAD Drawing (.DXF) (268 Kb)

Quick Start Icon

Quick Start Guide
Online tips for getting started with the MSNSwitch.

View the latest Quick Start Guide
ezDevice
Free smartphone app that lets you remotely monitor and control multiple ezOutlets and MSNSwitches.





Netility
Free desktop app to find and manage multiple MSNSwitches on your LAN.

Download for Windows & Mac

Cloud4UIS
Free web site where you can remotely monitor and control multiple ezOutlets and MSNSwitches. Automatically synchronized with ezDevice.

Login to Cloud4UIS.com

Firmware Updates

MSNSwitch firmware can be updated via the device's internal web server, Netility or ezDevice.  The latest firmware is: MNU.4623 Released on Dec. 11, 2024.

The firmware image file can also be downloaded from https://www.msnswitch.com/

Please be advised that firmware upgrades are undertaken at user's discretion and risk.

  1. While the firmware is upgrading, the device LEDs will blink. DO NOT POWER OFF THE DEVICE during this time!
  2. Upgrading from old firmware may take approximately 15 to 20 min. Please be patient.
  3. The outlet status will remain unchanged throughout the upgrade process.
  4. CAUTION: This is a major version upgrade. DO NOT refer to the progress bar in User Interface (UI) as indicator for completion.
  5. A successful and completed upgrade is confirmed when user login page becomes accessible again.
  6. WARNING: Interrupting the power supply or network connection at any time before the login page appears can result in the device becoming permanently inoperable.
  • Title: MSNSwitch2 Internet Enabled IP Remote Power Switch with Reboot - Control via Smartphone App, Cloud Service, Web Browser or API - 2 Independent AC Power Outlets (Model UIS-722T)
  • Part #: PWR-UIS722T
  • UPC Code: 850021295769
  • ASIN: B0FMDKRSSR
  • HS Code: 8536.50.7000
  • Country of Origin: Taiwan
  • Export Control: EAR99 / NLR (No License Required)
  • Shipping Weight (lbs): 1.500
