Proxicast Pro-Gain 4G / 5G MIMO Antenna - Wide-Band Omni-Directional for Cellular Modems & Routers on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, Movistar, Telcel, Claro and Others

MSRP:$32995
$24995
You save: $80.00
Our Quantity Discounts:
Quantity
5+
15+
30+
Price
$239.95
$237.45
$234.95
Availability: 155 Item(s)
Carbon
Proxicast Pro-Gain 4G / 5G MIMO Antenna - Wide-Band Omni-Directional for Cellular Modems & Routers on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, Movistar, Telcel, Claro and Others, Color: Carbon
ANT-127-05M
+ −
Add to Wish List
Key Features

  • MIMO PERFORMANCE from Omnidirectional Elements with 7 dBi Peak Gain on all 4G/LTE and 5G Networks Worldwide

  • ENHANCES SIGNAL & DATA SPEEDS for Sites with Poor Cellular Signal Coverage

  • DUAL FEMALE N CONNECTORS Integrated to Antenna Base *** REQUIRES 2 COAX EXTENSION CABLES ***

  • COMPATIBLE with Any Brand of Modem, Router, Gateway or Hotspot including Cisco, Cradlepoint, Netgear, Pepwave, MoFi, Digi, Sierra Wireless

  • SUPPORTS all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (AT&T, Verizon). Also Compatible with FirstNet and CBRS Systems.

  • EXTREMELY RUGGED Outdoor Weatherproof Housing and Corrosion-Resistant Materials

  • HEAVY DUTY Pole Mounting Bracket and Hardware Included (mast sold separately). Can also be Wall Mounted.



Now you can enjoy the benefits of 4G/5G MIMO technology AND omni-directional coverage with a single antenna.

Proxicast's unique new commercial-grade omni-directional LTE MIMO antenna is compatible with 4G/LTE data services from Verizon, AT&T, T-Mobile, Bell Mobility, Rogers and most other cellular operators worldwide.

Two separately fed ultra wideband elements in a single housing enable multiple input / multiple output connectivity, resulting in higher performance.

With appropriate adapter cables (not included), this antenna is compatible with cellular modems, hotspots and routers from Cisco, Cradlepoint, Digi, MoFi, Pepwave, Sierra Wireless and others.

The antenna’s rugged housing, extra heavy duty mounting hardware and corrosion-resistant materials are ideal for outdoor applications.

Proxicast Pro-Gain Omni Directional MIMO 4G/LTE Antenna

OMNI-DIRECTIONAL MIMO PERFORMANCE

  • Proxicast's Pro-Gain Omni MIMO antenna sends and receives signal in all directions unlike directional 4G/5G MIMO panel & yagi antennas that require time-consuming effort to position
ENHANCED DATA SPEEDS WITH MIMO
  • MIMO technology allows cellular modems & routers to use two simultaneous data streams for greater throughput
PROFESSIONAL GRADE SOLUTION
  • The rugged housing, extra heavy duty mounting hardware and corrosion-resistant materials are ideal for outdoor applications

Key Features


  • MIMO Performance
  • Wide Band Coverage
  • 7 dBi Peak Gain
  • Dual N Connectors
  • Universal Compatibility
  • Pole / Wall Mountable

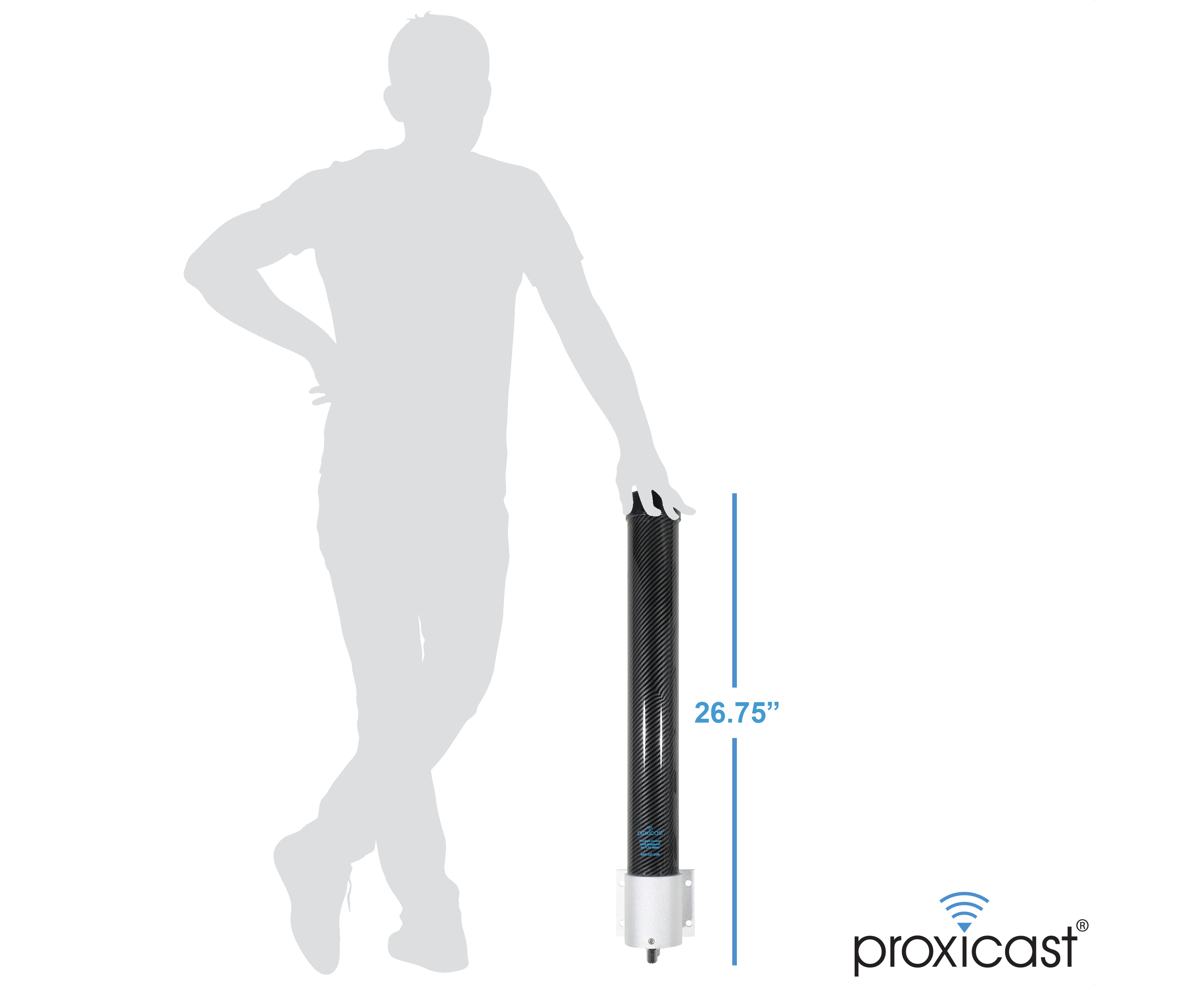

  • 26.75" Tall - Weatherproof
  • Professional Grade
4G 5G Logos

Works on all Cellular Networks

 Wireless Router

Compatible with any 4G/5G Device
Any Network

Proxicast's unique new commercial-grade omni-directional MIMO antenna boosts 4G/5G signals on Verizon, AT&T, T-Mobile, US Cellular, Bell Mobility, Rogers, Telus, Sasktel, Telcel, Movistar, Digicel and many other cellular operators worldwide.

 Any Model

With the appropriate adapter cables (not included), this antenna is compatible with all dual-antenna Mi-Fi Hotspots, external 4G/5G cellular modems and routers from companies such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Proxicast, and Sierra Wireless.
Wrench & Nut Icon

Simple Installation

 Rain Cloud

Ideal for Outdoor Applications
No Pointing or Alignment

Two fully isolated and separately fed ultra-wideband elements enable multiple input / multiple output LTE connectivity, resulting in higher performance without the need for a second antenna. The omni-directional design provides high gain without the cellular tower location and alignment hassles of directional antennas. Wall/Pole mounting hardware included.

 Corrosion Resistant

The antenna’s rugged housing, extra heavy-duty mounting hardware and corrosion-resistant materials are complemented by its sleek high-tech carbon fiber appearance which blends into any environment making it suitable for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
Pro Tips

For Best Results

  • Orient antenna vertically
  • Mount antenna as high as possible, but keep coax leads as short as possible
  • Position away from other antennas, lighting fixtures, motors, Low-E or tinted/coated windows, large metal or concrete objects
  • Do not use a splitter to connect 1 modem port to both antenna jacks
  • Do not use RG59/RG6 coax (75 Ohm TV cable from the hardware store) – signal will be seriously degraded.  Use low-loss 50 Ohm coax designed for cellular use: ANT-140-020
  • Weatherseal outdoor connections. Use Silicone Tape part# ANT-900-002
  • Stand 3+ feet away from antenna when testing
  • Maximize signal Quality(SINR, RSRQ) not signal Strength(RSSI, RSRP, bars)

**IMPORTANT

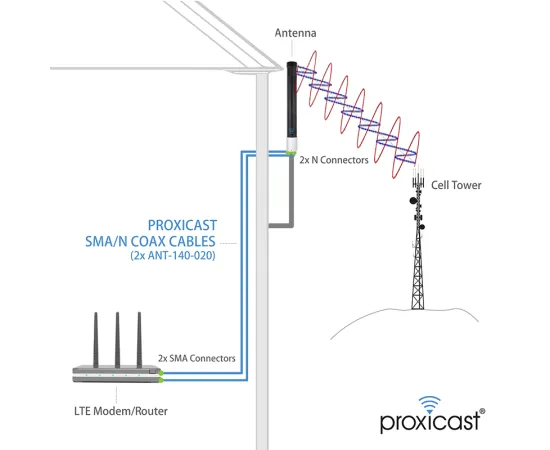

This antenna is for direct wired connection to cellular data devices with 2 antenna connectors.



ANT-127-05M Specifications
Electrical Properties
Frequency Range 600-6000 MHz
Peak Gain 7 dBi freq. dependent
VSWR < 2.0
Radiation Pattern Omni-Directional
Impedance 50 ohms
Polarization Vertical
Max Input Power 50 W
Ground Plane Not Required
Lightning Protection DC Grounded
Mechanical Properties

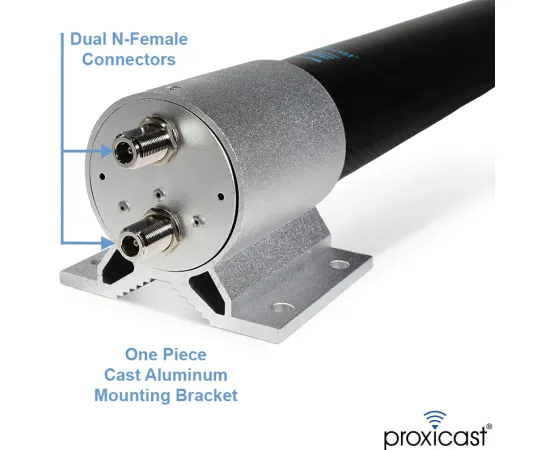

Connector Type 2x N Female (jack) integrated into base of antenna

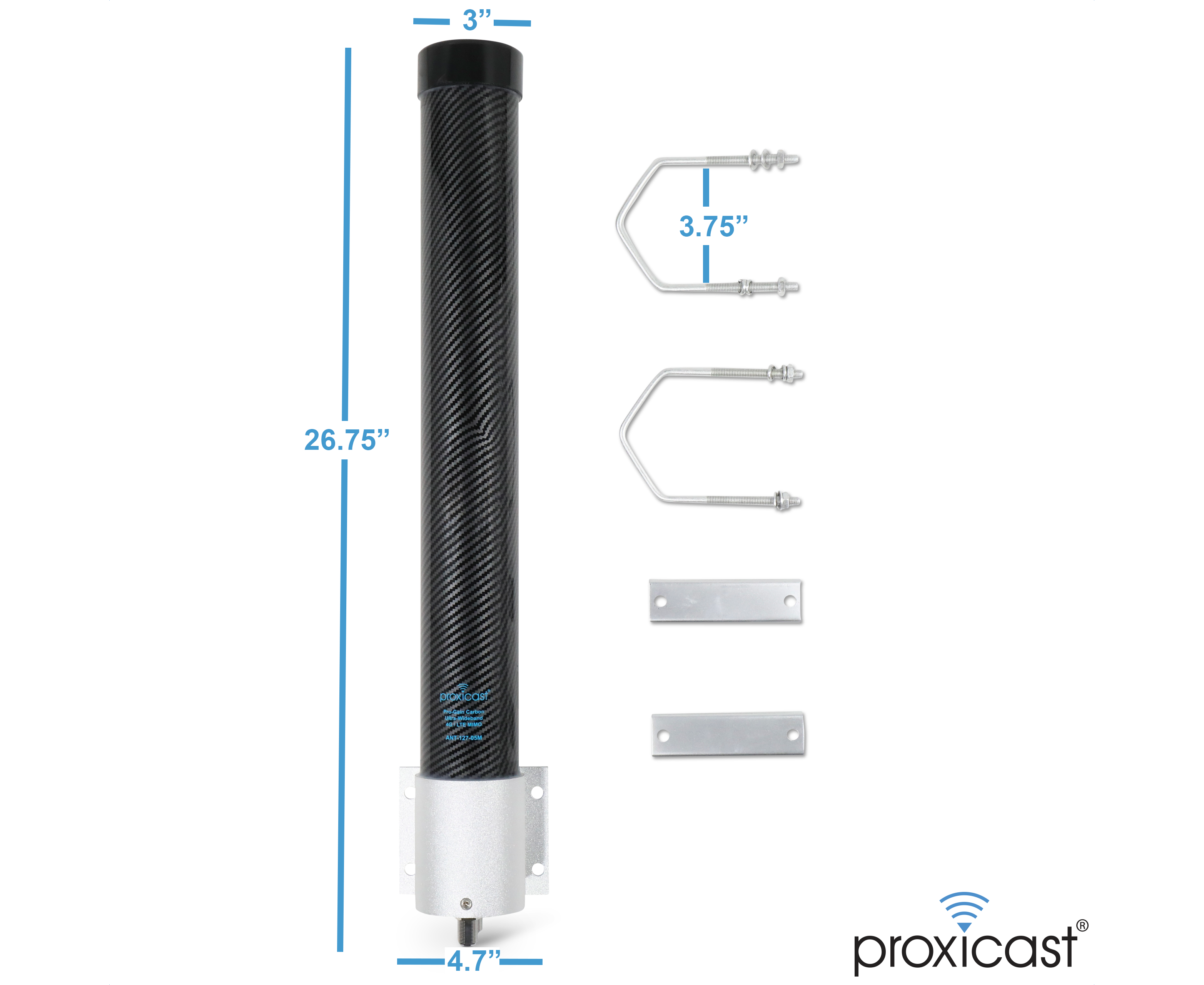

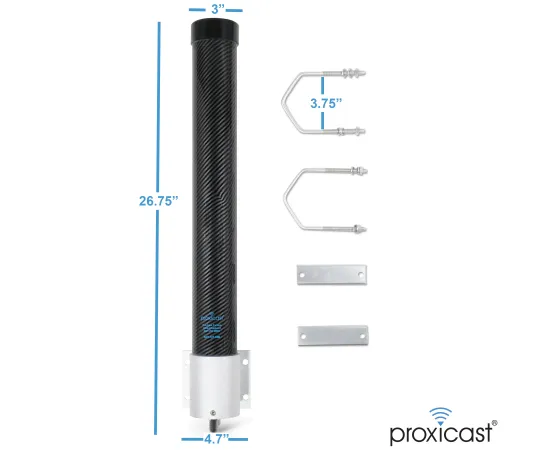

Length 26.75 in / 760 mm
Diameter 3 in / 76 mm ~ 4.7 in / 119 mm across mounting plate
Weight 6.2 lbs / 2.8 kg
Materials UV stabilized polyurethane coated ABS, aluminum - RoHS compliant
Color Black Carbon Fiber or Pearlescent White
Wind Rating 134 mph / 60 m/s
Operating Temp. -40°F to +149°F / -40°C to +65°C
Mounting Pole/Wall Mount via integrated bracket (3.75” dia. U-bolts included)



SKU: ANT-127-05M

UPC: 617237751775

ANT-127-05x-Specifications (1,059 Kb)

  • Title: Proxicast Pro-Gain 4G / 5G MIMO Antenna - Wide-Band Omni-Directional for Cellular Modems & Routers on Verizon, AT&T, T-Mobile, Telus, Bell Canada, Rogers, Movistar, Telcel, Claro and Others
  • Part #: ANT-127-05M
  • UPC Code: 617237751775
  • ASIN: B07ZBVX8VL
  • HS Code: 8517.70.00.00
  • Country of Origin: China
  • Shipping Weight (lbs): 6.000
